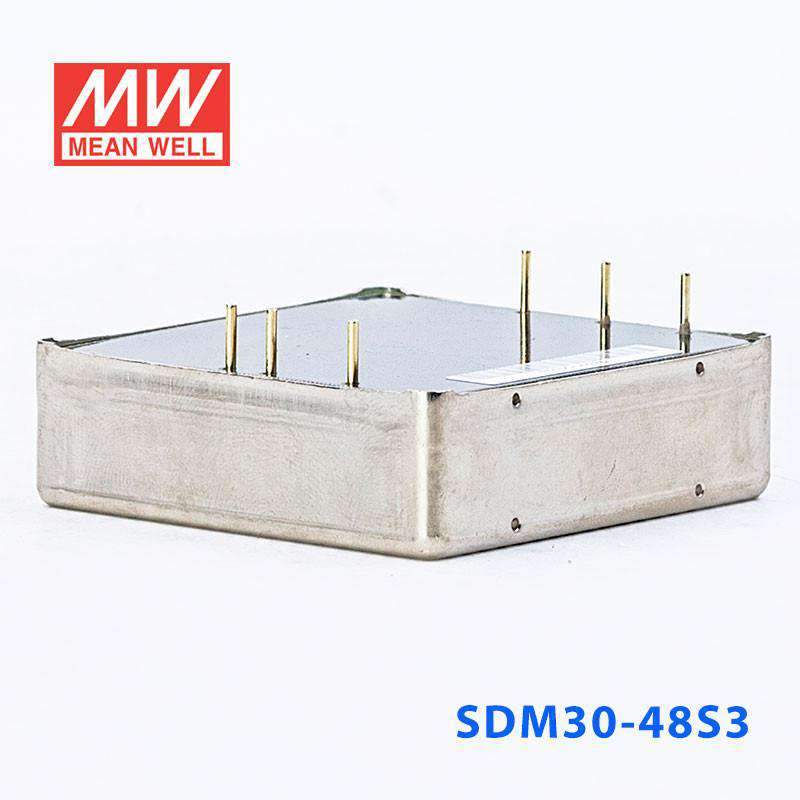

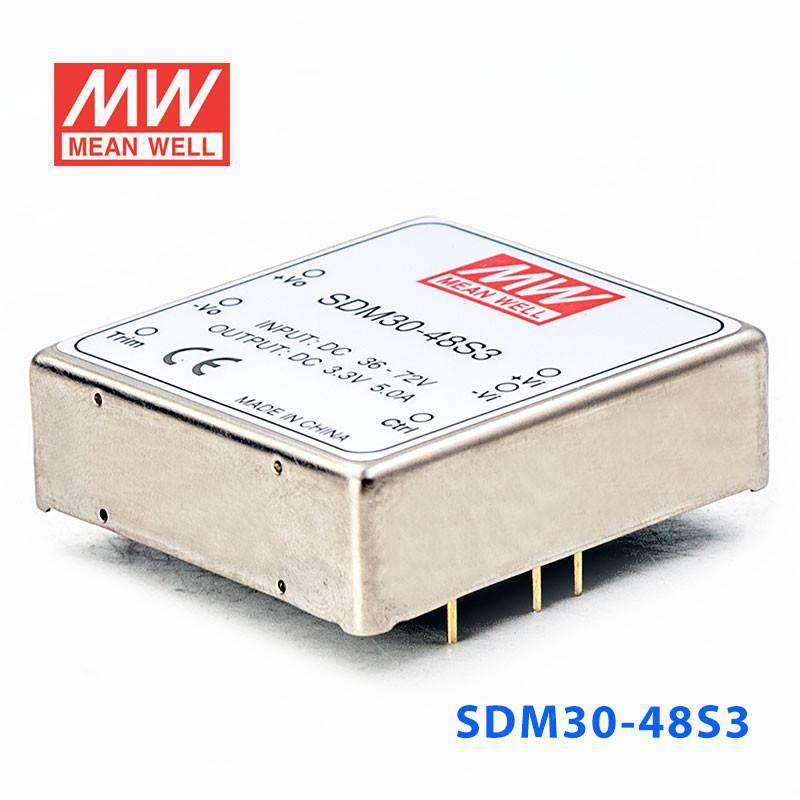

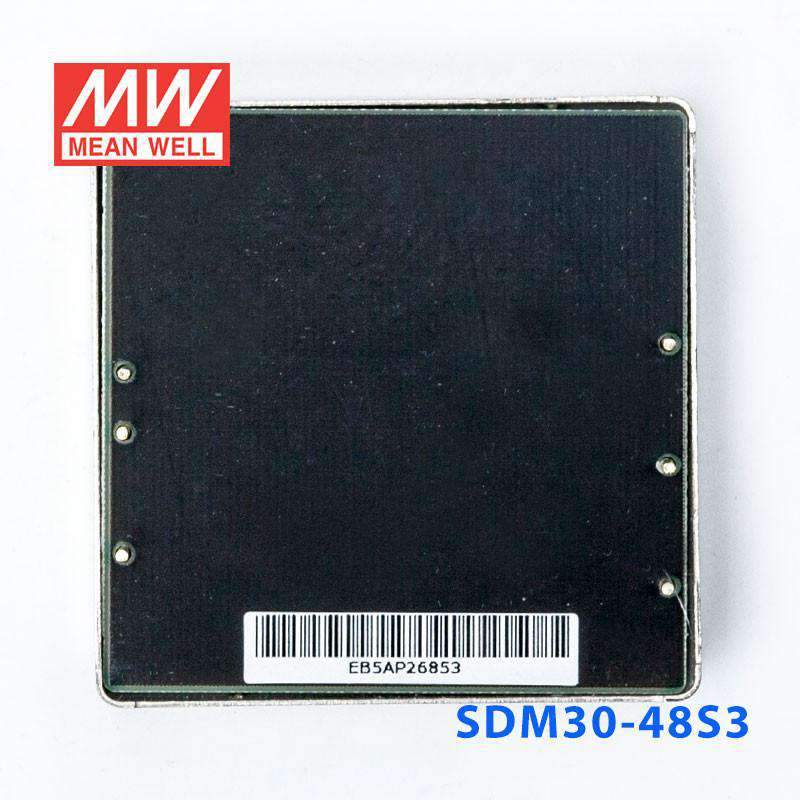

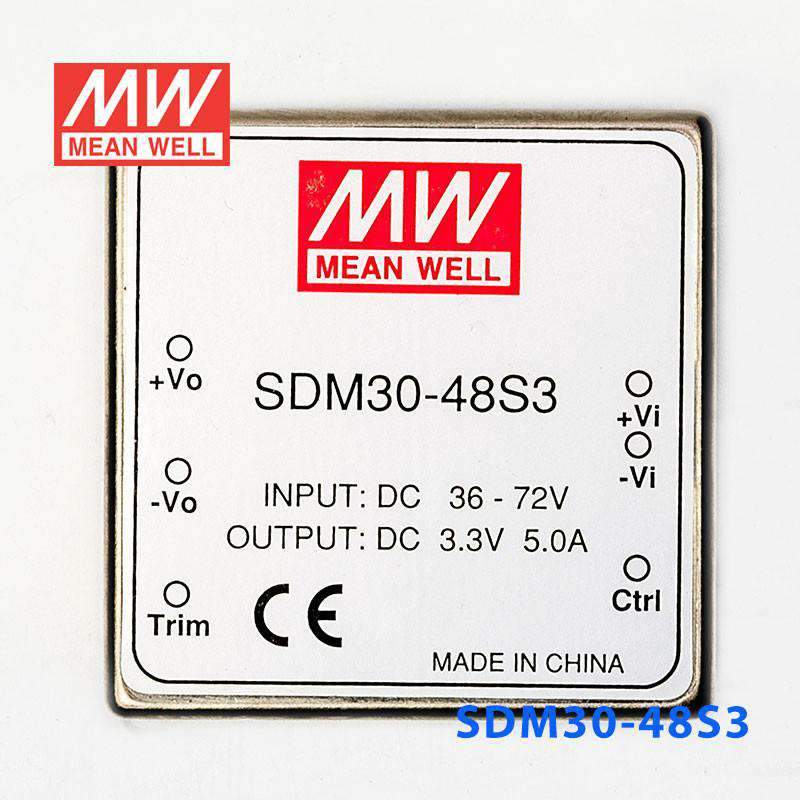

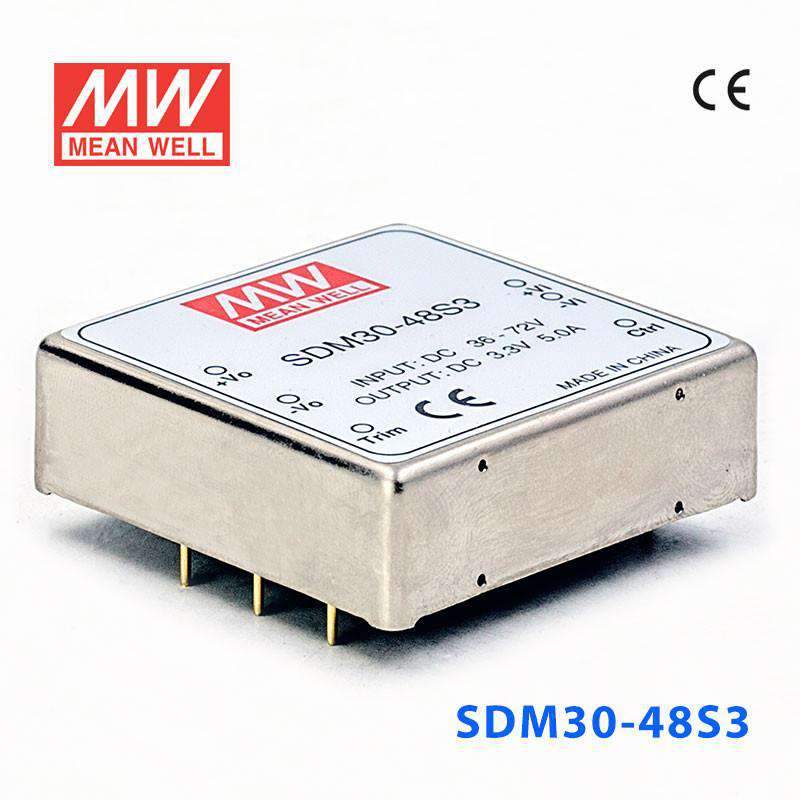

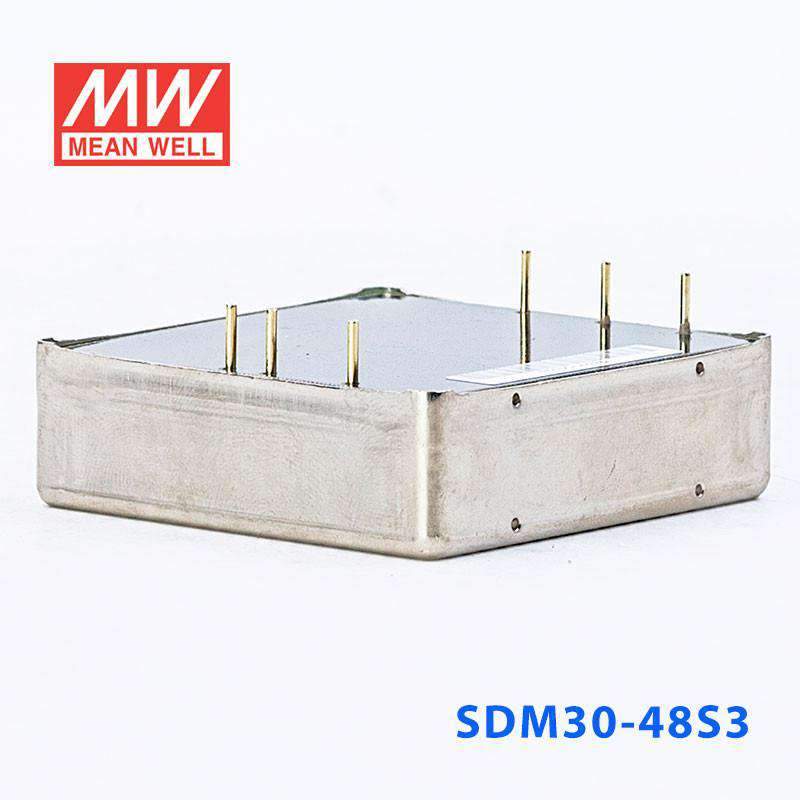

Mean Well SDM30-48S3 DC-DC Converter - 16.5W - 36~72V in 3.3V out

$30.30 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

"

Features

  • Wide 2:1 DC input range
  • In/out capacitance 1000pF
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • 1000 DC I/O isolation for D/D
  • Built-in remote ON/OFF control
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at 225KHz
  • Low cost
  • High relibility
  • 2 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    SDM Series
  • Power Rating
    16.5 Watt
  • Output Voltage
    3.3 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    36V~72V
  • Standards Met
    CE,EMC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~85°C
  • Warranty
    2 Year
  • Length
    2 in
  • Width
    2 in
  • Height
    0.63 in
  • Weight
    0.22 lb
