Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

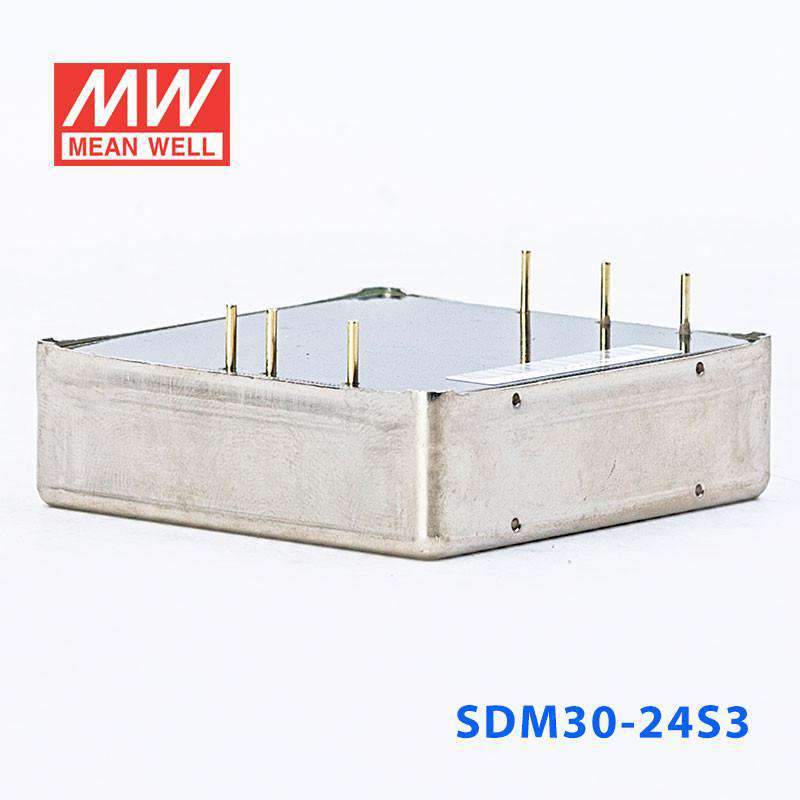

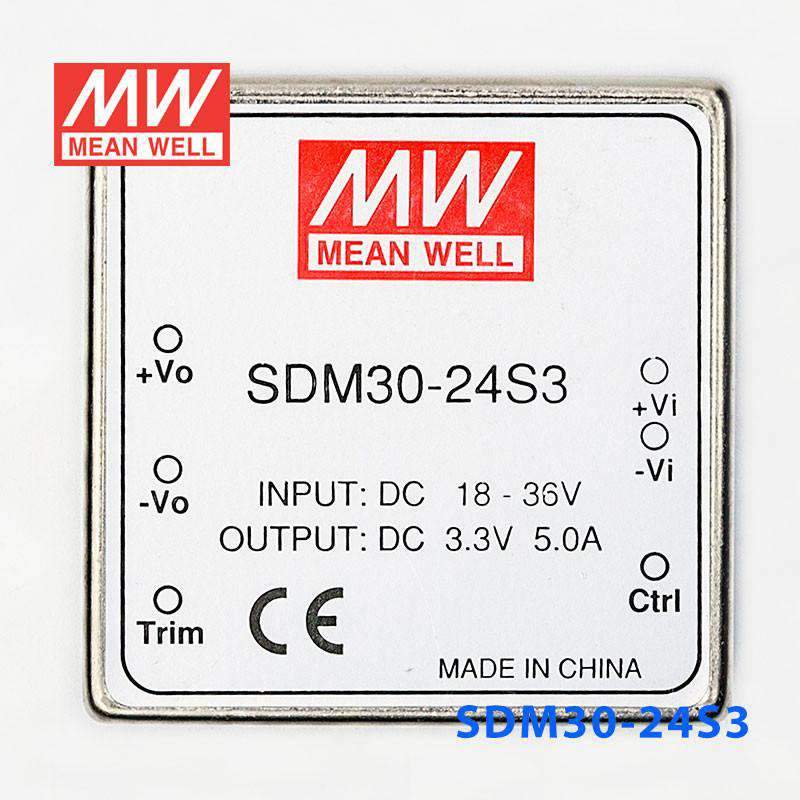

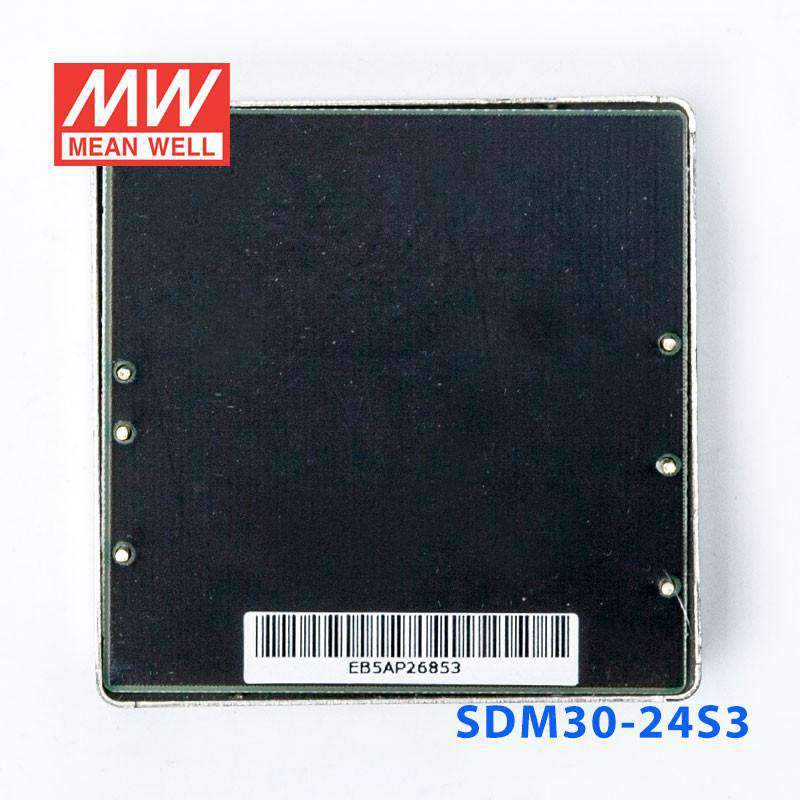

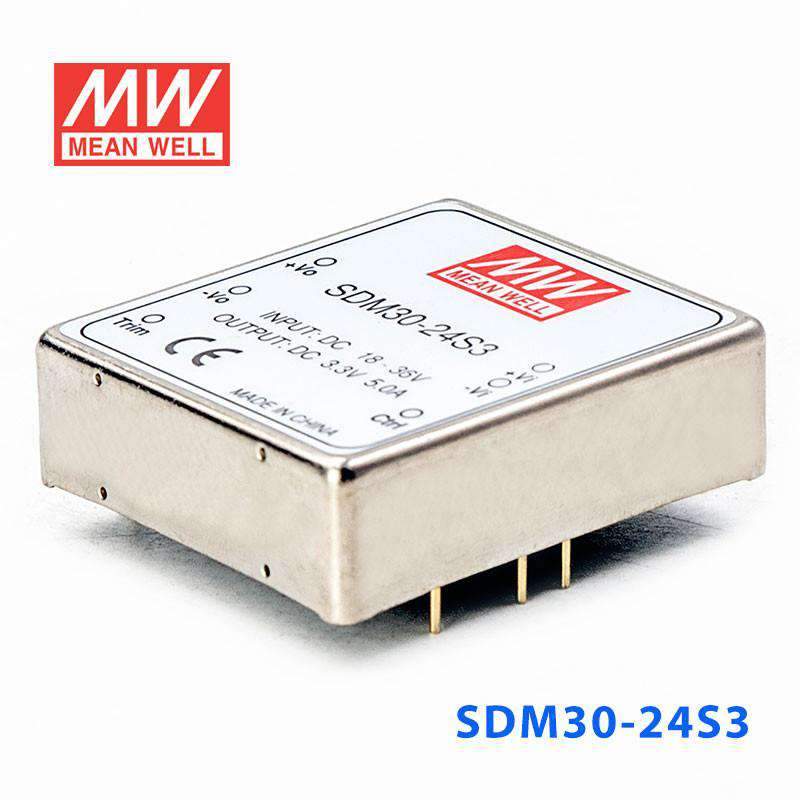

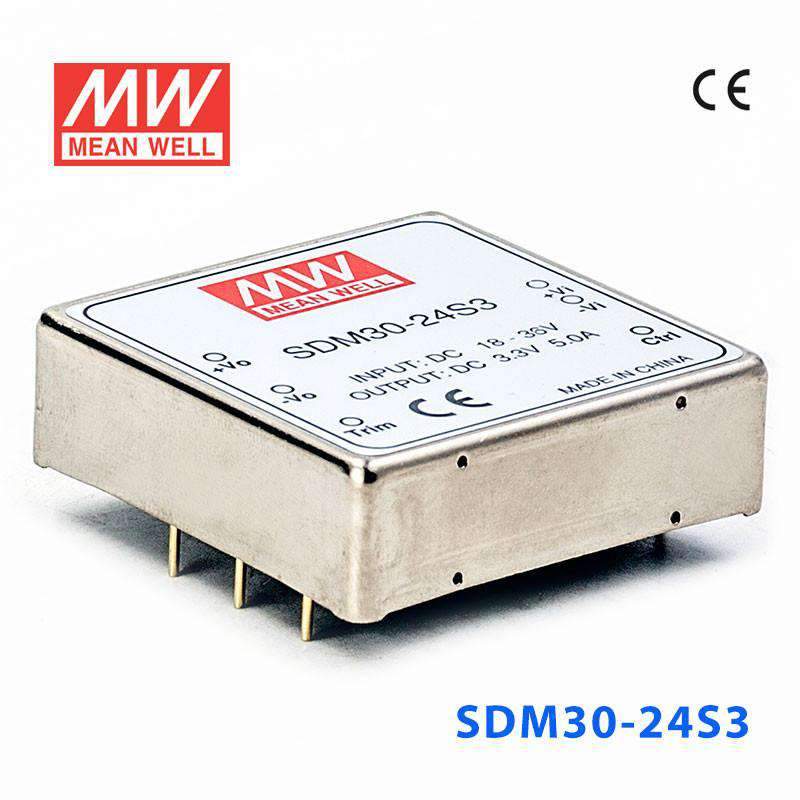

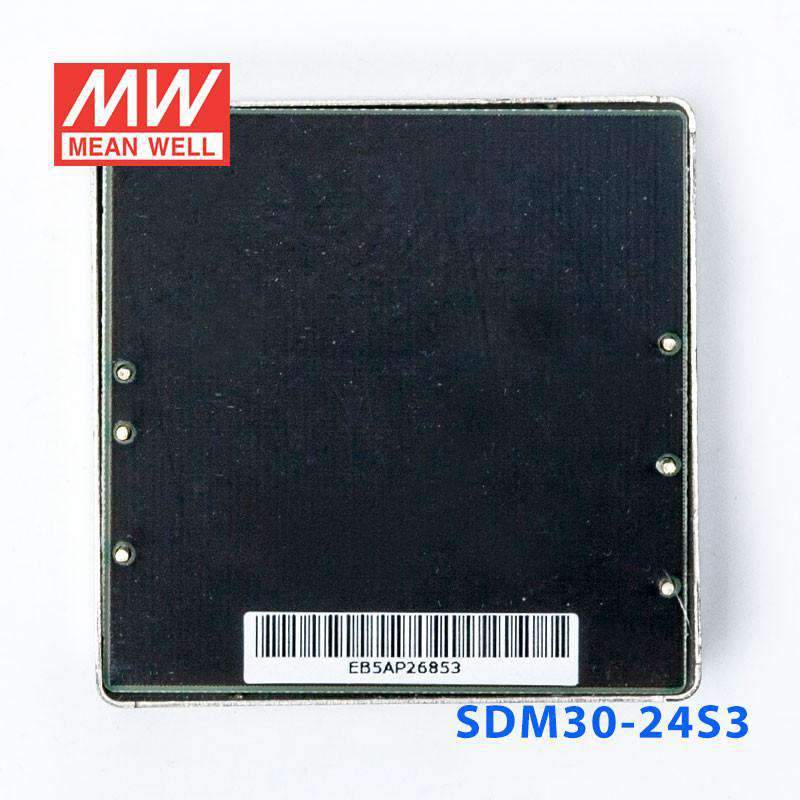

Mean Well SDM30-24S3 DC-DC Converter - 16.5W - 18~36V in 3.3V out
$27.85 USD
Unit price /
Unavailable
Description
Description
"
Features
- Wide 2:1 DC input range
- In/out capacitance 1000pF
- Protections: Short circuit / Over current / Over voltage / Over temperature
- 1000 DC I/O isolation for D/D
- Built-in remote ON/OFF control
- Cooling by free air convection
- 100% full load burn-in test
- Fixed switching frequency at 225KHz
- Low cost
- High relibility
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDM Series
-
Power Rating16.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current5 Ampere
-
Input Voltage18V~36V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~85°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.63 in
-
Weight0.22 lb
