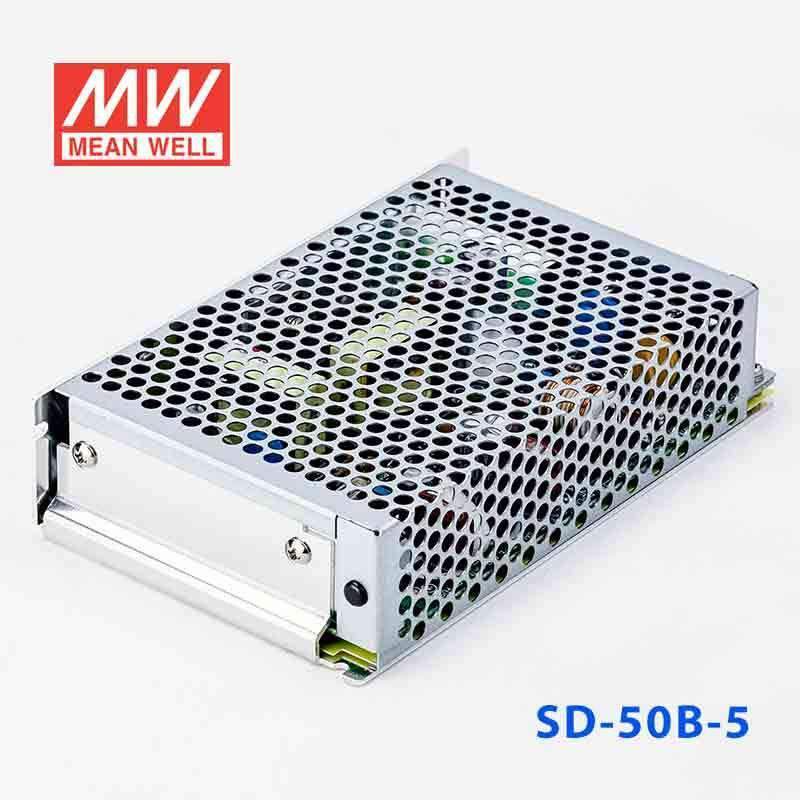

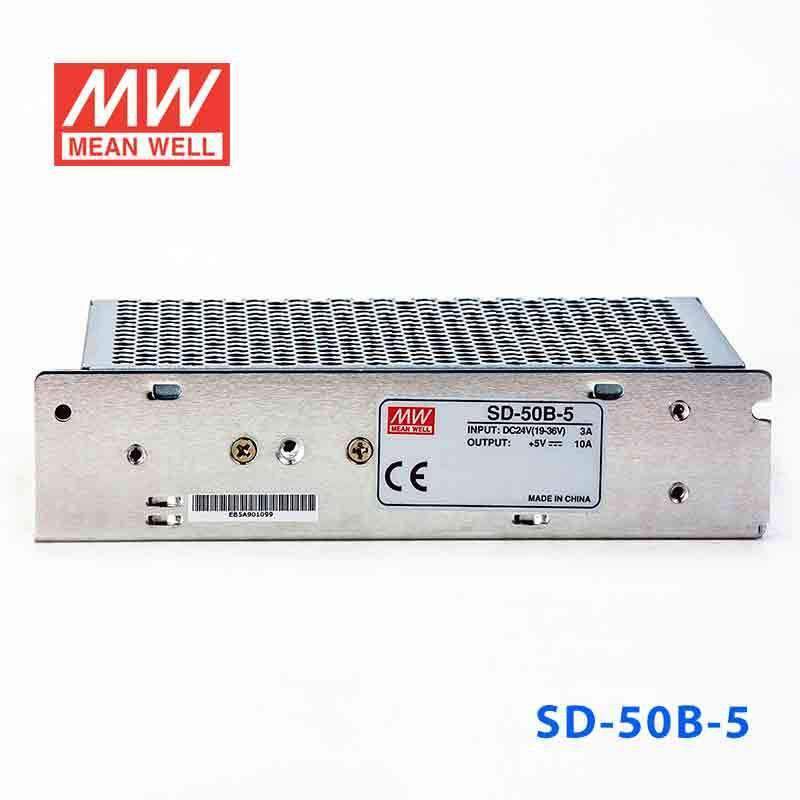

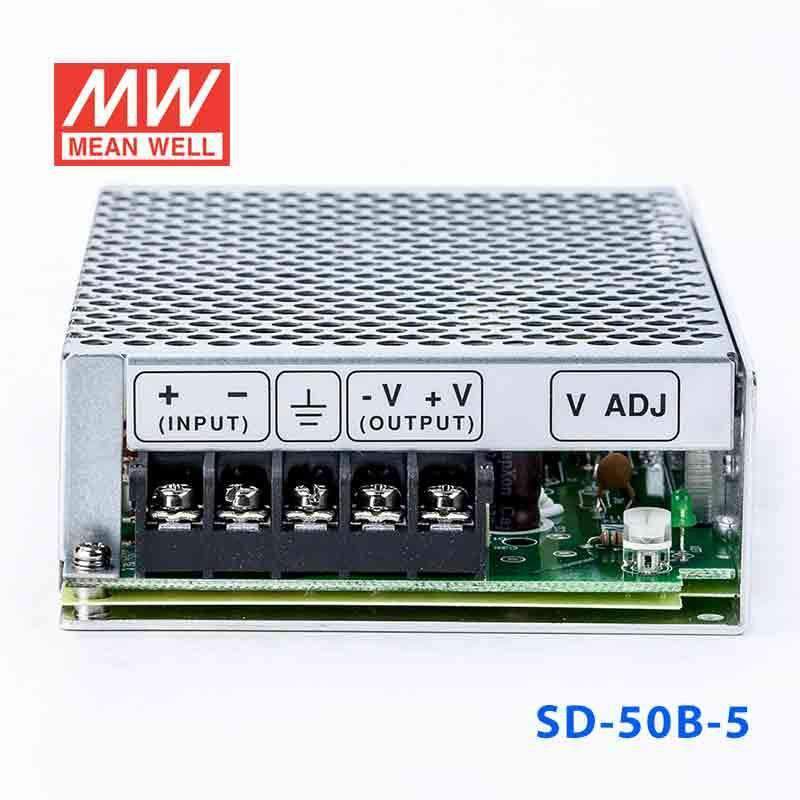

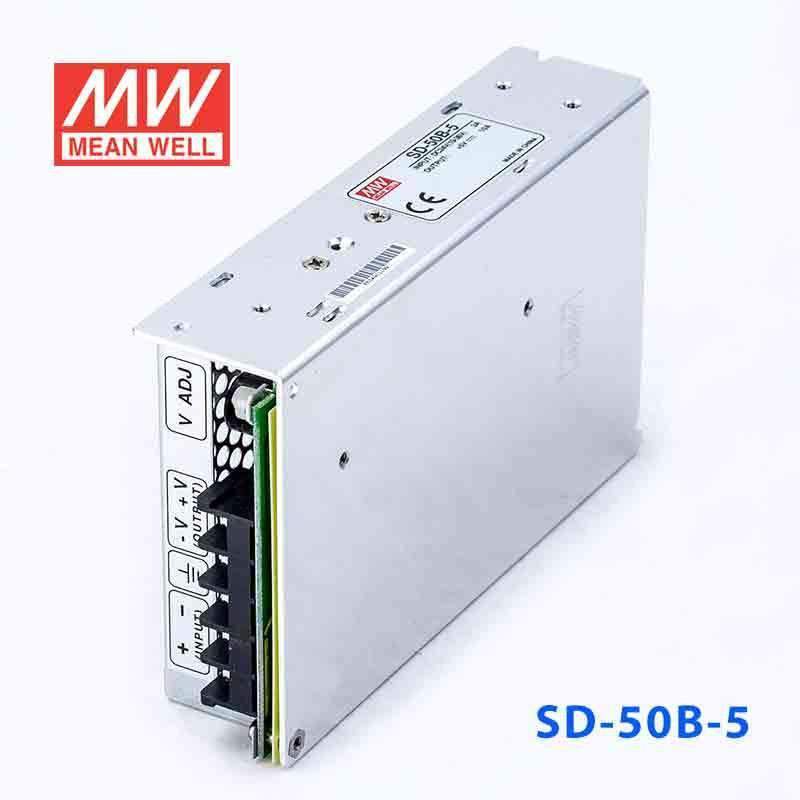

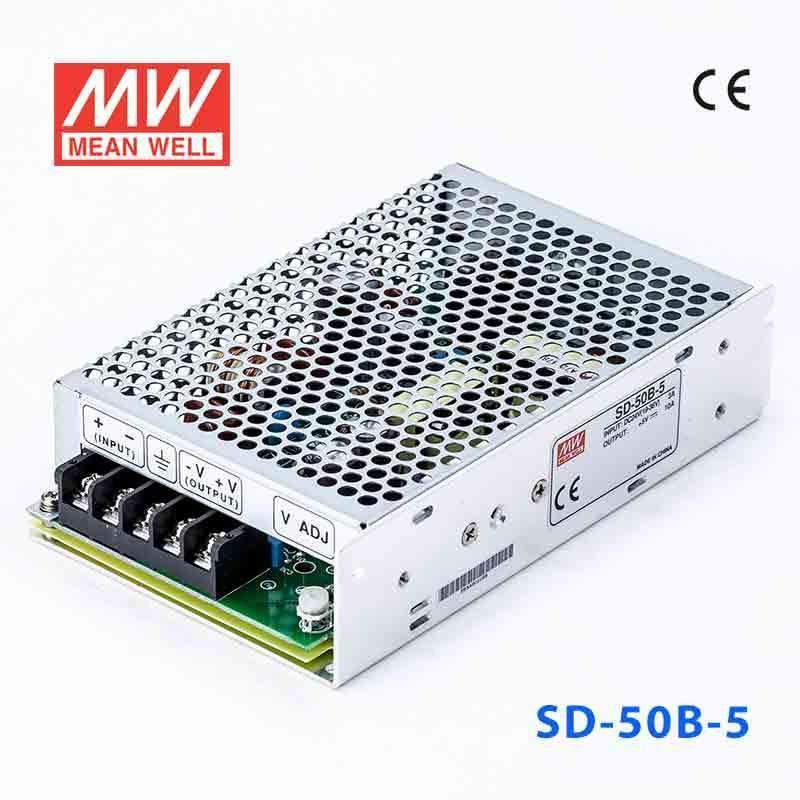

Mean Well SD-50B-5 DC-DC Converter - 50W - 19~36V in 5V out
$34.44 USD
Unit price /
Unavailable
Description
Description
Features :
· 2:1 wide input range
· Protections: Short circuit / Overload / Over voltage
· 1500VAC I/O isolation
· Built-in EMI filter, low ripple noise
· 100% full load burn-in test
· Fixed switching frequency at 83KHz
· Low cost
· High reliability
· 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating504 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage19V~36V
-
Standards MetCE,EAC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.06 lb
