Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

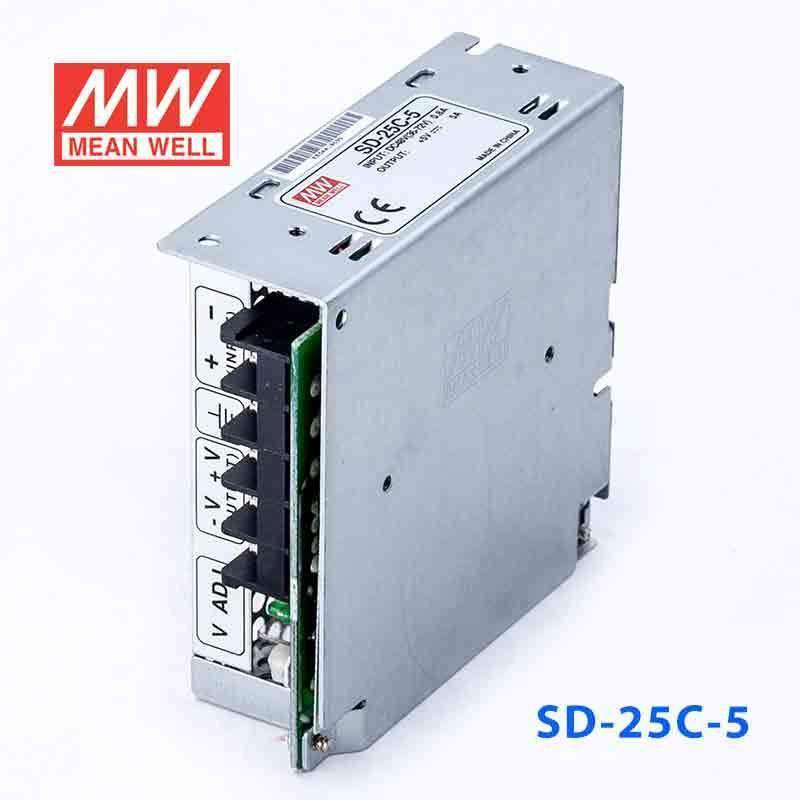

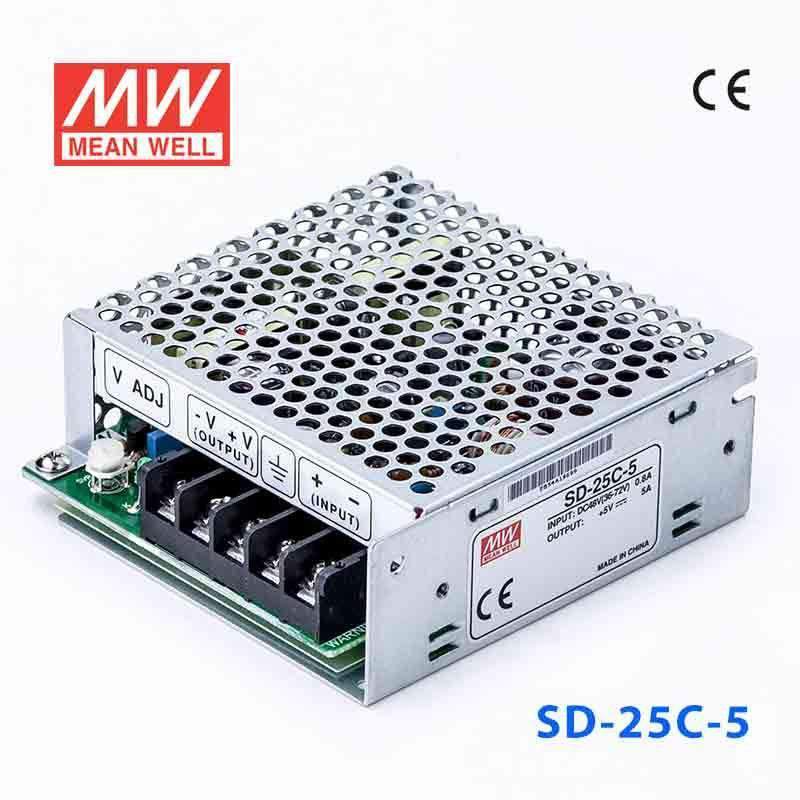

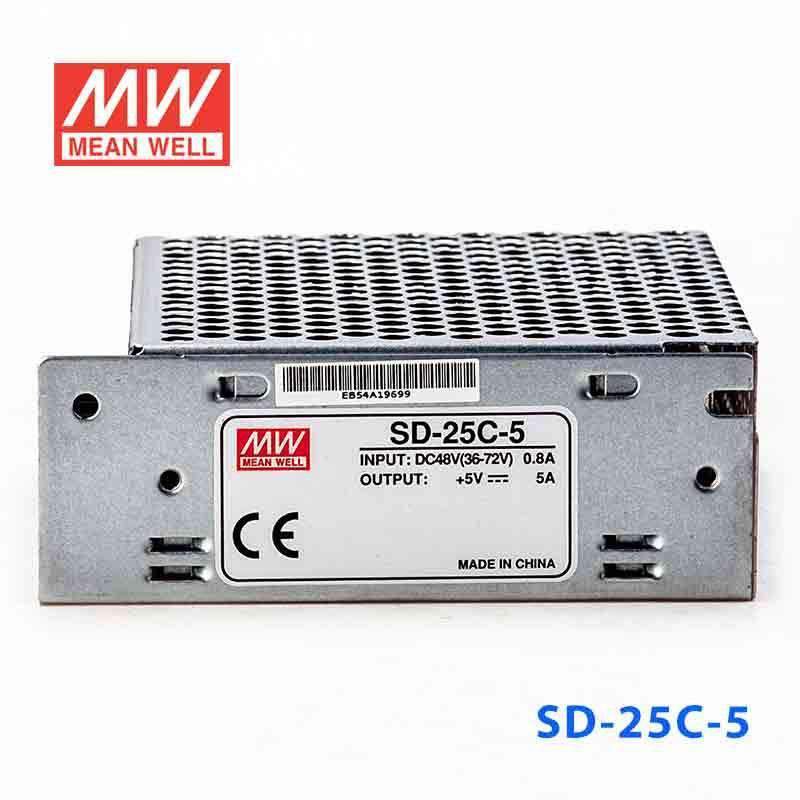

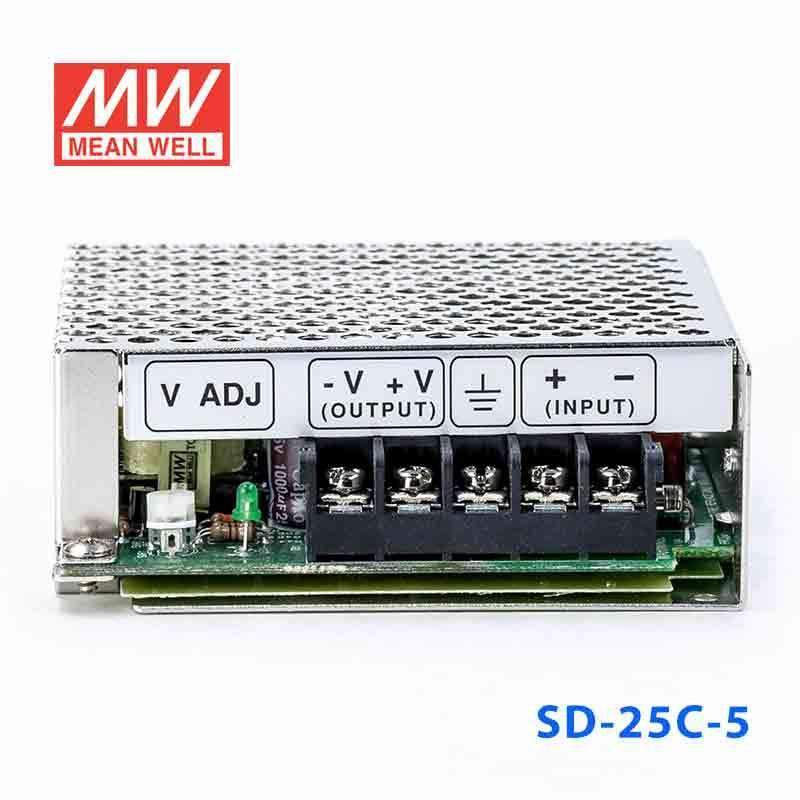

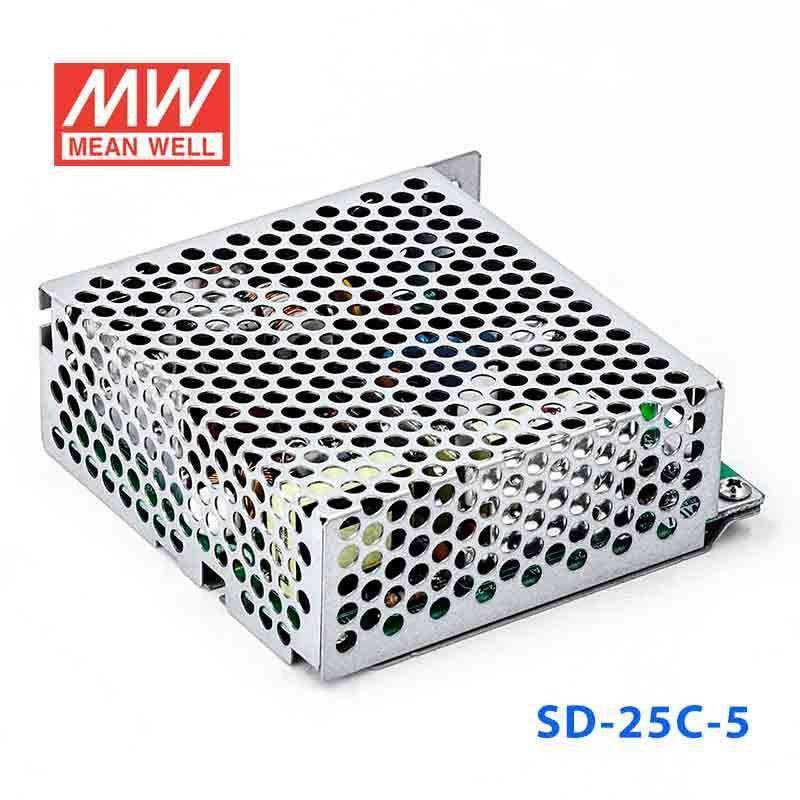

Mean Well SD-25C-5 DC-DC Converter - 25W - 36~72V in 5V out
$27.72 USD
Unit price /
Unavailable
Description
Description
· 2:1 wide input range
· Protections: Short circuit / Overload
/ Over voltage
· 1500VAC I/O isolation
· Built-in EMI filter, low ripple noise
· 100% full load burn-in test
· Fixed switching frequency at
83KHz
· Low cost
·
High reliability
2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage36V~72V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.84 lb
File Downloads
File Downloads
::specification::
