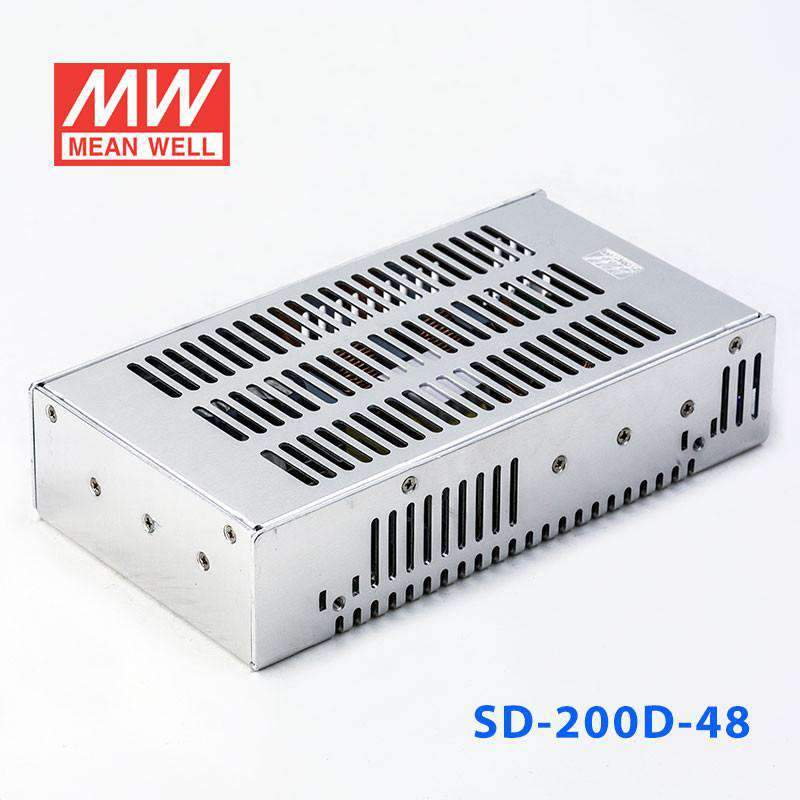

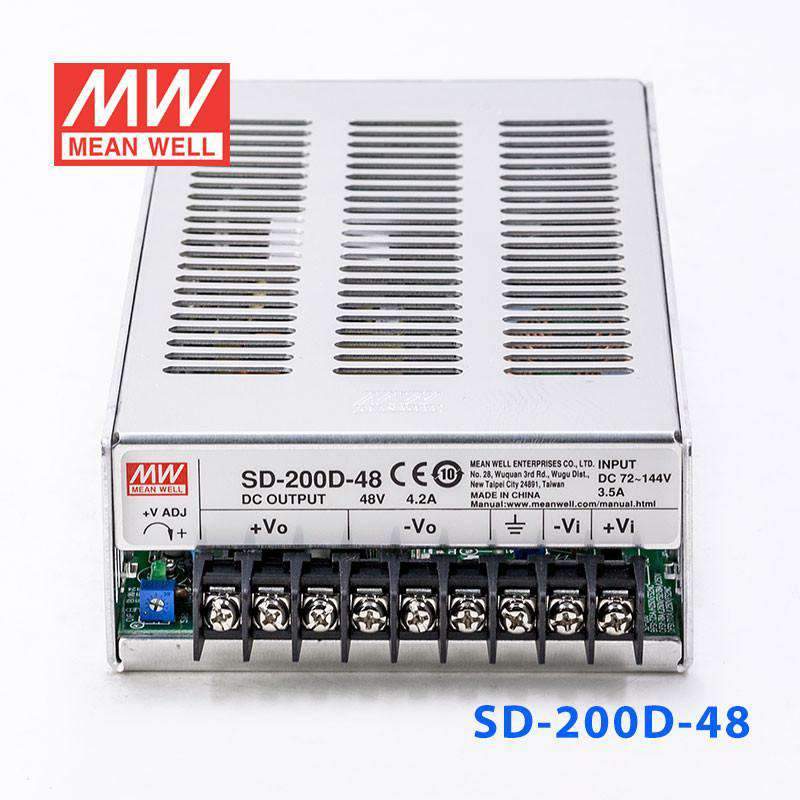

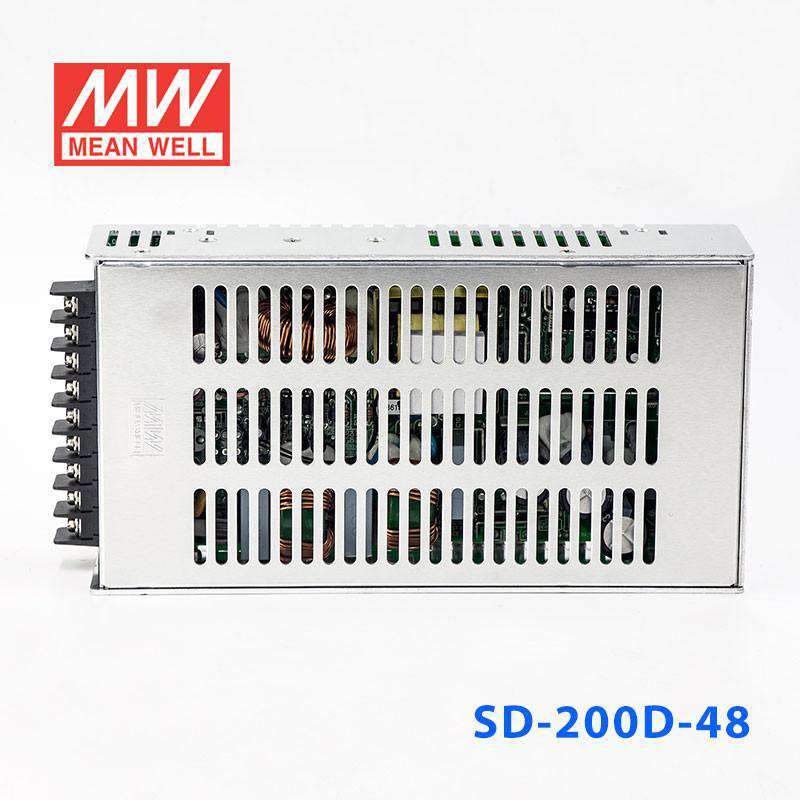

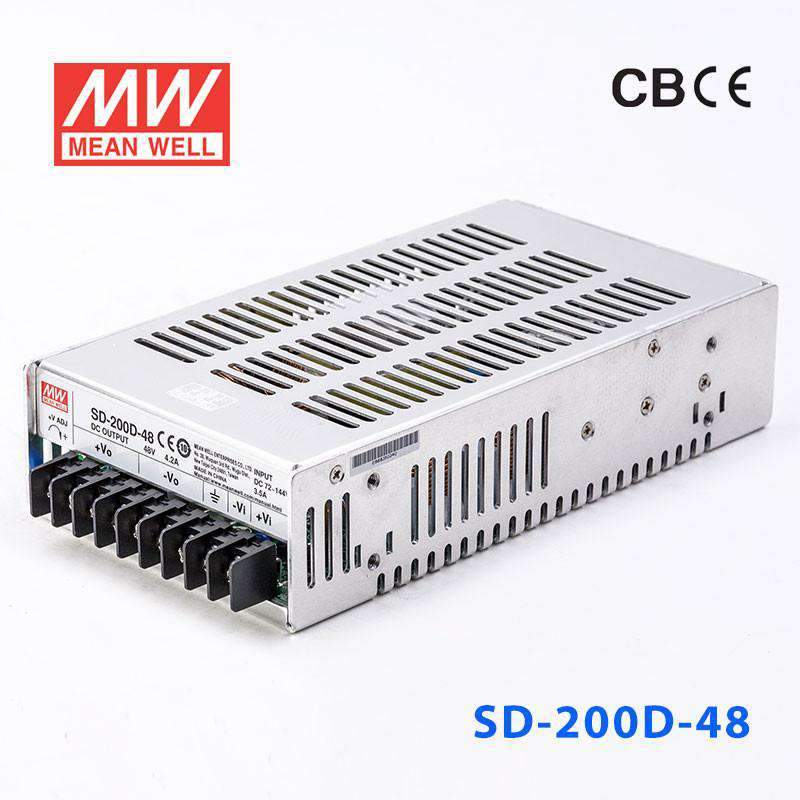

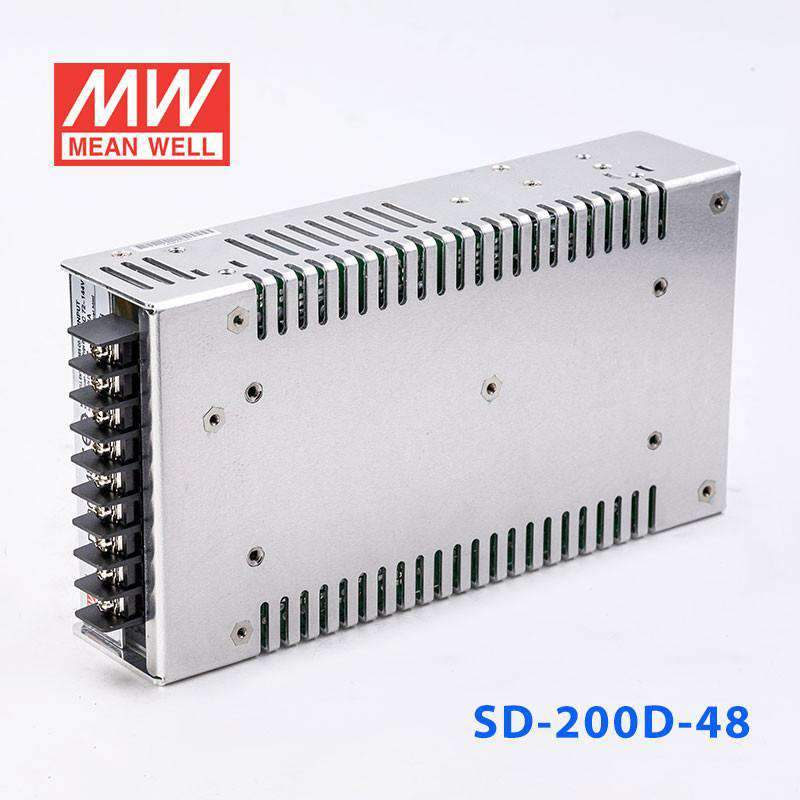

Mean Well SD-200D-48 DC-DC Converter - 201.6W - 72~144V in 48V out ...
Overview
SD-200D-48 is the 48V output model of this series: rated current 4.2A, rated power 201.6W, typical efficiency 90%.
Features
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 1500VAC I/O isolation
- Cooling by free air convection
- 100% full load burn-in test
- 24V and 48V input voltage design refer to LVD
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- RATED CURRENT
- 4.2A
- CURRENT RANGE
- 0 ~ 4.2A
- RATED POWER
- 201.6W
- RIPPLE & NOISE (max.)Note.2
- 200mVp-p
- VOLTAGE ADJ. RANGE
- 43 ~ 53VDC
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 300ms, 50ms at full load
INPUT
- VOLTAGE RANGE
- 72 ~144VDC
- EFFICIENCY (Typ.)
- 90%
- DC CURRENT (Typ.)
- 3.5A/96V
- INRUSH CURRENT (Typ.)
- 45A/96VDC
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Shut down o/p voltage, re-power on to recover
- OVER VOLTAGE
- 53 ~ 65V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +60℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC/BS EN/EN 62368-1, EAC TP TC 004 approved, design refer to AS/NZS 62368.1
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55022 (CISPR22) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 1919.7K hrs min. Telcordia SR-332 (Bellcore) ; 280.6K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 215*115*50mm (L*W*H)
- PACKING
- 1.1Kg; 12pcs/14.4Kg/0.9CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the SD-200D-48 to power 48V automation hardware from a 72-144VDC input source?
Yes, the listed specs show constant-voltage 48V output at up to 4.2A with a 72-144VDC input range. It is suitable for 48V automation hardware if the total load stays within 201.6W.
Is this model a good fit for 48V industrial control panels or communication equipment?
It can fit 48V control or communications equipment that needs steady constant-voltage power. The rated output is 48V and 4.2A, so the equipment load must remain at or below 201.6W.
Would the SD-200D-48 work for 48V embedded or mobile electronics on a high-voltage bus?
It is intended for systems with source input between 72-144VDC and provides constant-voltage 48V output. That makes it appropriate for 48V embedded or mobile electronics within the 4.2A output limit.
Is the SD-200D-48 suitable for outdoor installations?
The operating temperature is listed as -20°C to +60°C (refer to the derating curve), but no IP rating is provided in the specs. Without a stated IP rating, it should be used in protected enclosures rather than exposed outdoor locations.
How does the SD-200D-48 compare with related SD-200D converters?
The SD-200D models are SD-200D-5 at 200W, 5V, 40A; SD-200D-12 at 200.4W, 12V, 16.7A; SD-200D-24 at 201.6W, 24V, 8.4A; and SD-200D-48 at 201.6W, 48V, 4.2A. The family varies mainly by output voltage and current while staying near the 200W range.
