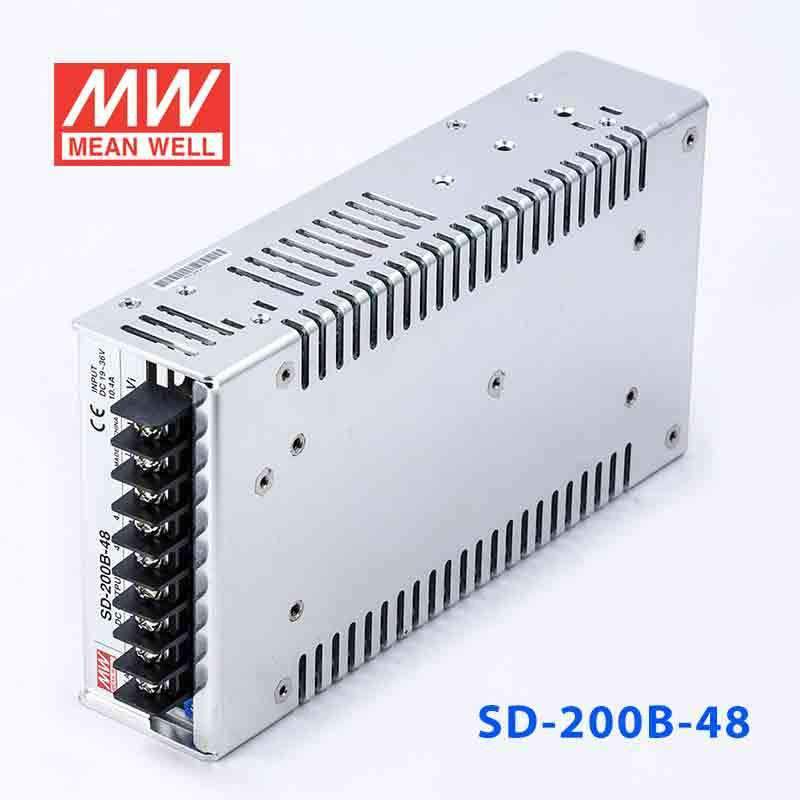

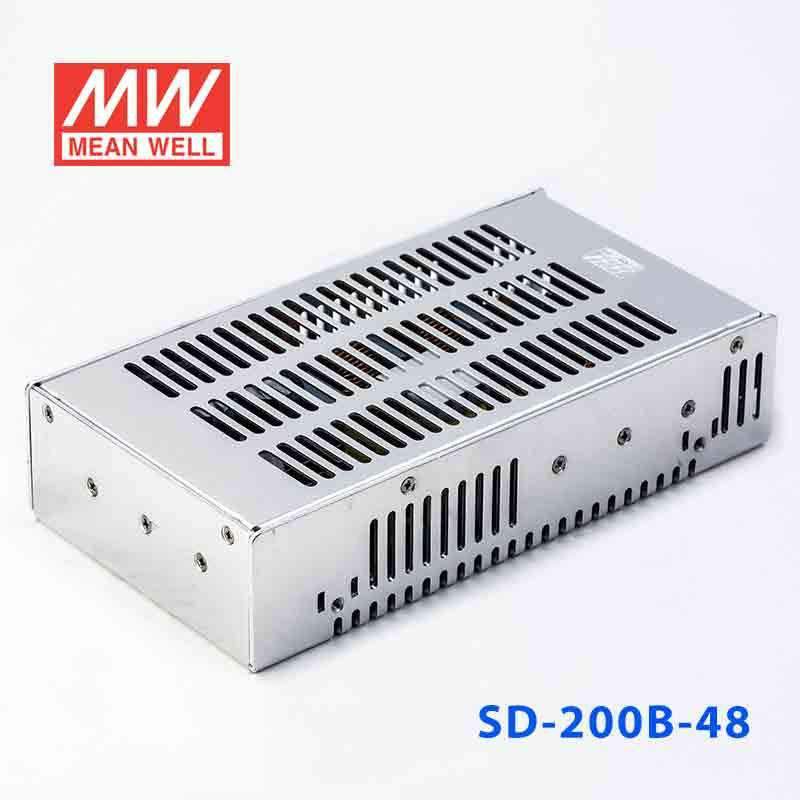

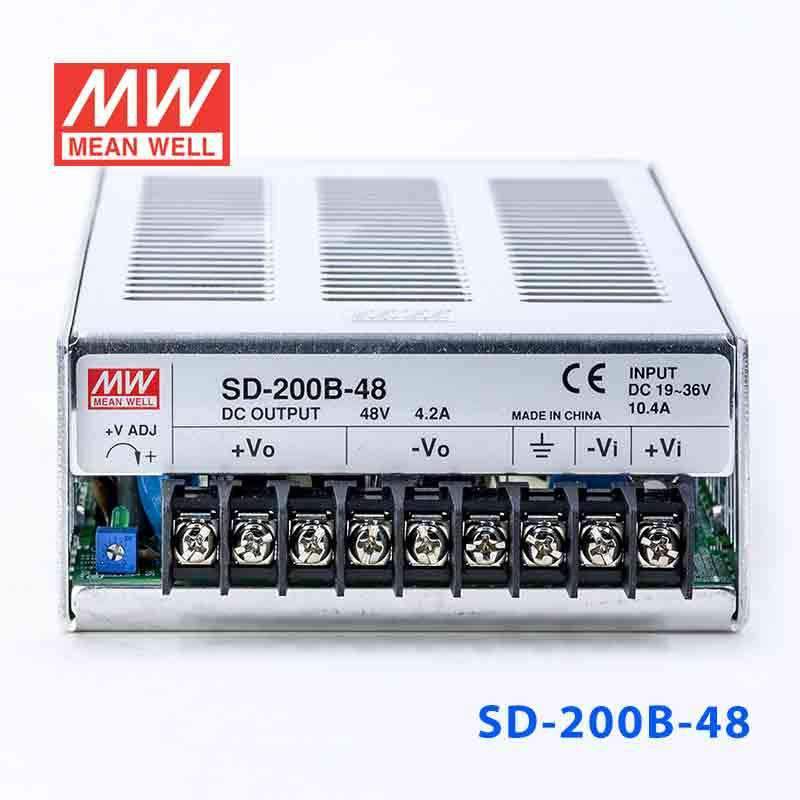

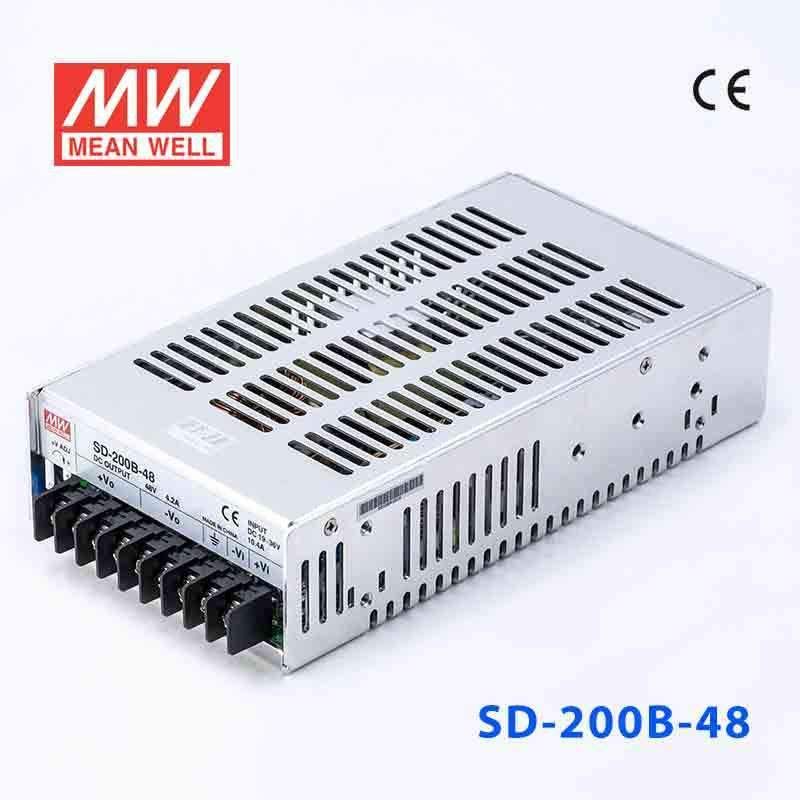

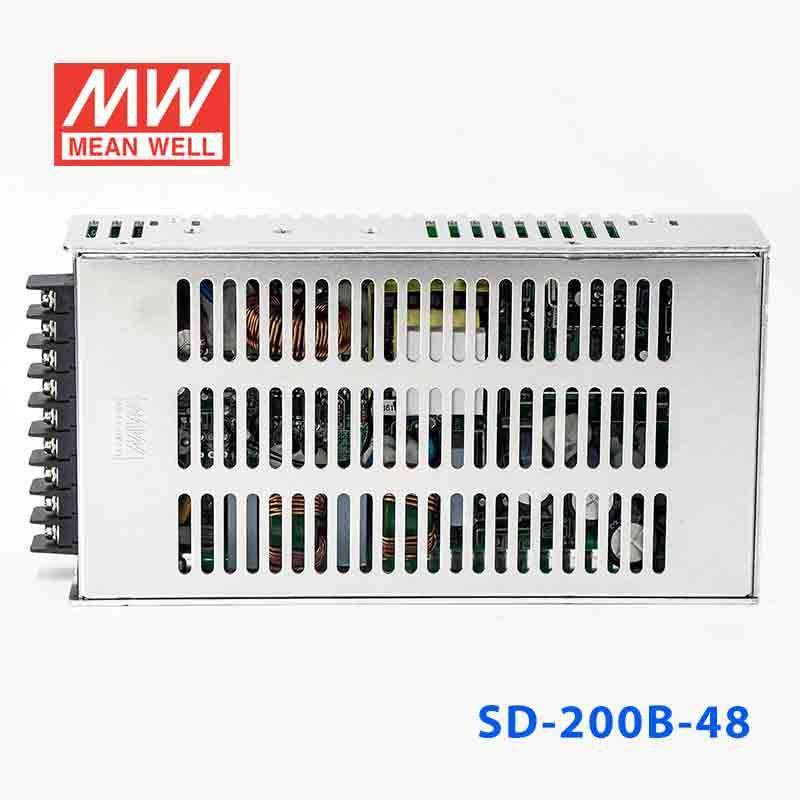

Mean Well SD-200B-48 DC-DC Converter - 201.6W - 19~36V in 48V out 4.2A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-200B-48
$92.11 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-200B-48 is the 48V output model of this series: rated current 4.2A, rated power 201.6W, typical efficiency 86%.

Features

  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 1500VAC I/O isolation
  • Cooling by free air convection
  • 100% full load burn-in test
  • 24V and 48V input voltage design refer to LVD
  • 2 years warranty

Specifications

SD-200B-48Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
4.2A
CURRENT RANGE
0 ~ 4.2A
RATED POWER
201.6W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
43 ~ 53VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
300ms, 50ms at full load

INPUT

VOLTAGE RANGE
19 ~ 36VDC
EFFICIENCY (Typ.)
86%
DC CURRENT (Typ.)
10.4A/24V
INRUSH CURRENT (Typ.)
C:45A/48VDC D:45A/96VDC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
53 ~ 65V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1approved (for SD-200C-5/12/24 type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1919.7K hrs min. Telcordia SR-332 (Bellcore) ; 280.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*50mm (L*W*H)
PACKING
1.1Kg; 12pcs/14.4Kg/0.9CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-200B-48 Mechanical Specification
Mechanical Specification
SD-200B-48 Block Diagram
Block Diagram
SD-200B-48 Derating Curve
Derating Curve

Downloads

FAQ

Can I use this converter for a 48V PLC, relay, and sensor circuit in automation equipment?

Yes, it can fit a 48V constant-voltage load when the source is within 19-36VDC. The output is rated at up to 4.2A and 201.6W, so the total PLC, relay, and sensor demand needs to stay inside that range.

Will this work for a 48V HMI or industrial touchscreen system?

It can support a 48V HMI or touchscreen system that expects constant-voltage power. This model provides 48V output up to 4.2A, with 201.6W total available power.

Is this suitable for a 48V embedded controller or communications device?

It is appropriate for 48V embedded or communications hardware if the equipment uses a fixed 48V input and the load does not exceed 4.2A or 201.6W. The 2:1 wide 19-36VDC input range also helps when the upstream source varies within that span.

Can this be used in a cold or hot indoor equipment enclosure?

The specified operating temperature range is -20°C to +60°C, with output derating per the derating curve, so it is intended to operate across a fairly wide enclosure temperature range. Because no IP rating is listed, the safer fit is a protected indoor enclosure rather than direct outdoor exposure.

What are the differences between the SD-200B-48 and the other SD-200B versions?

The SD-200B variants are SD-200B-5 at 170W, 5V, 34A; SD-200B-12 at 200.4W, 12V, 16.7A; SD-200B-24 at 201.6W, 24V, 8.4A; and SD-200B-48 at 201.6W, 48V, 4.2A. That means the selection is mainly about matching the required output voltage and current while staying within the same 19-36VDC input family.
