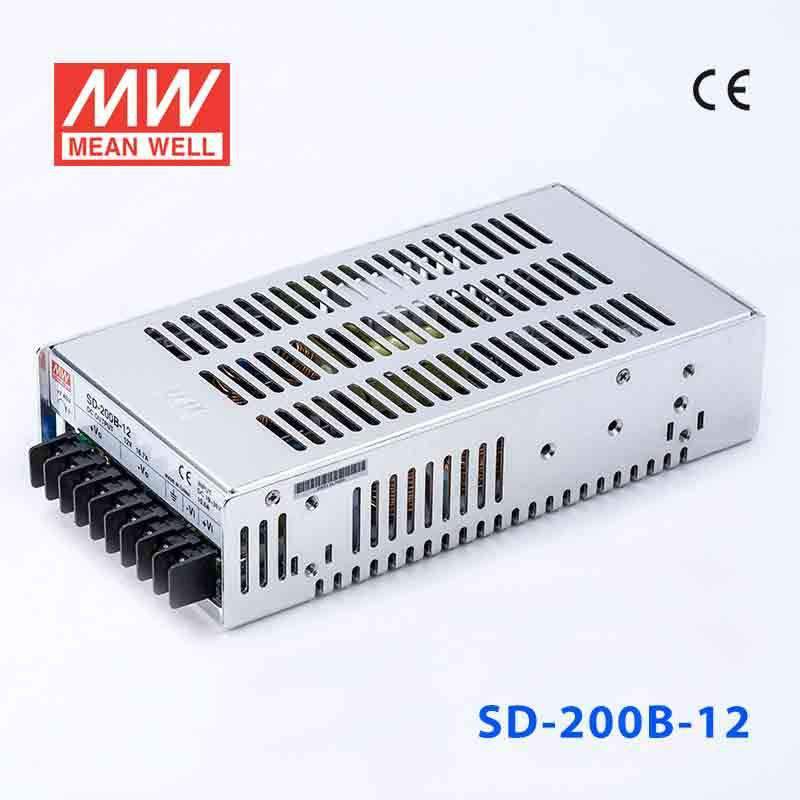

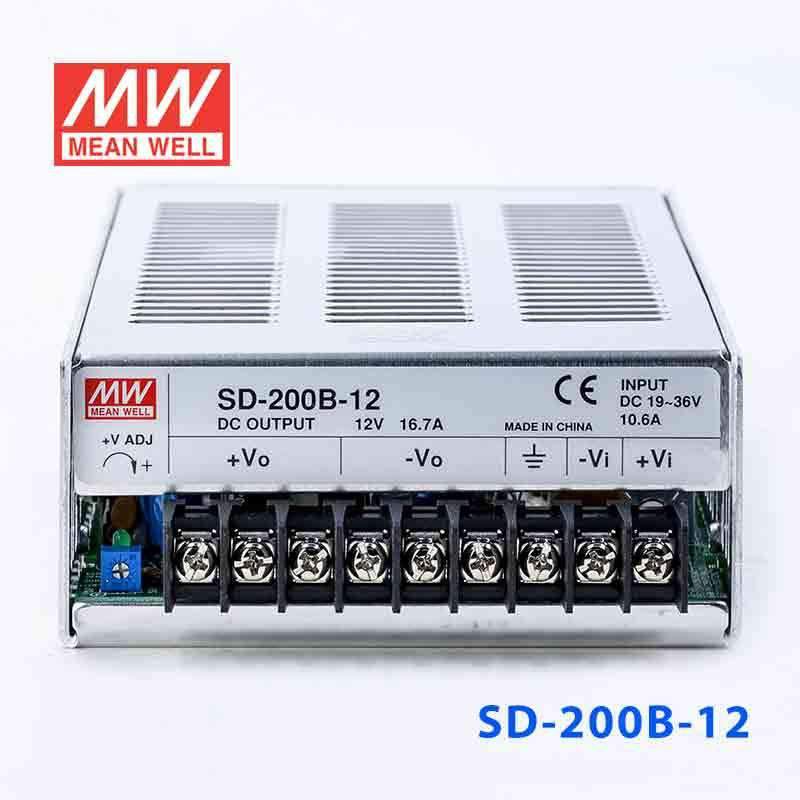

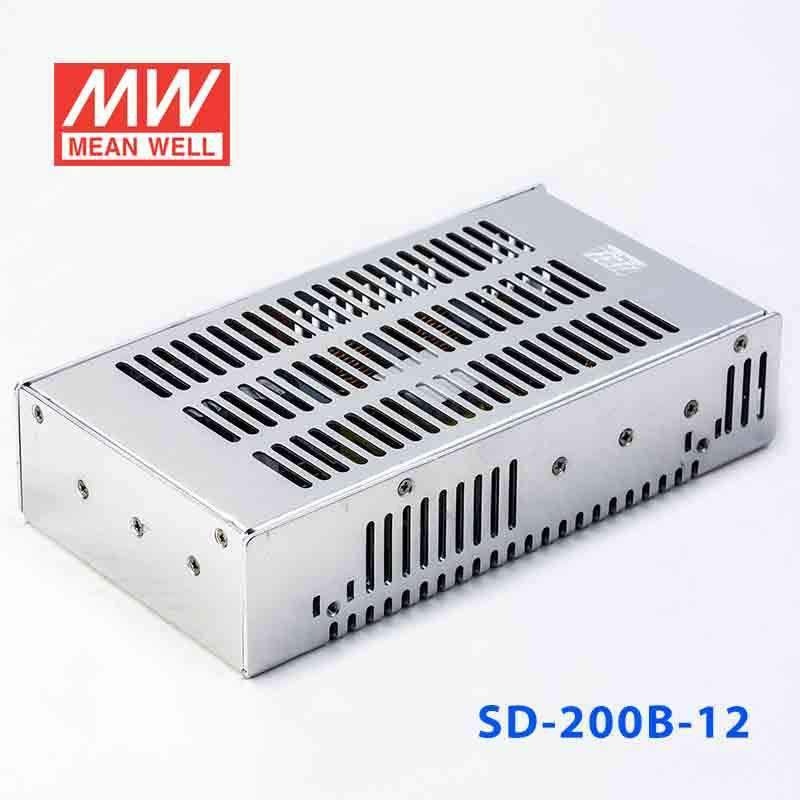

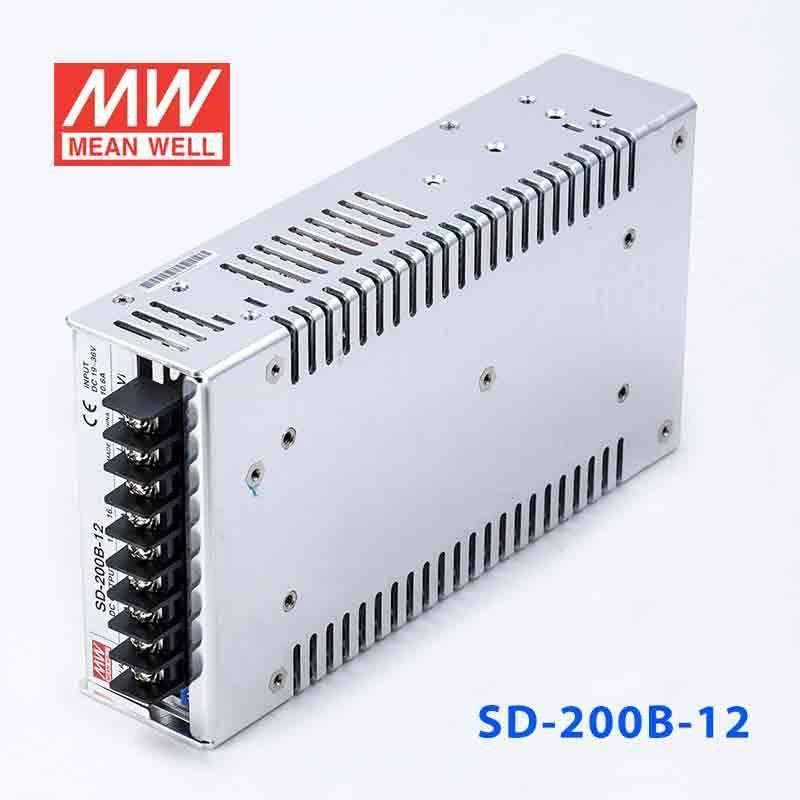

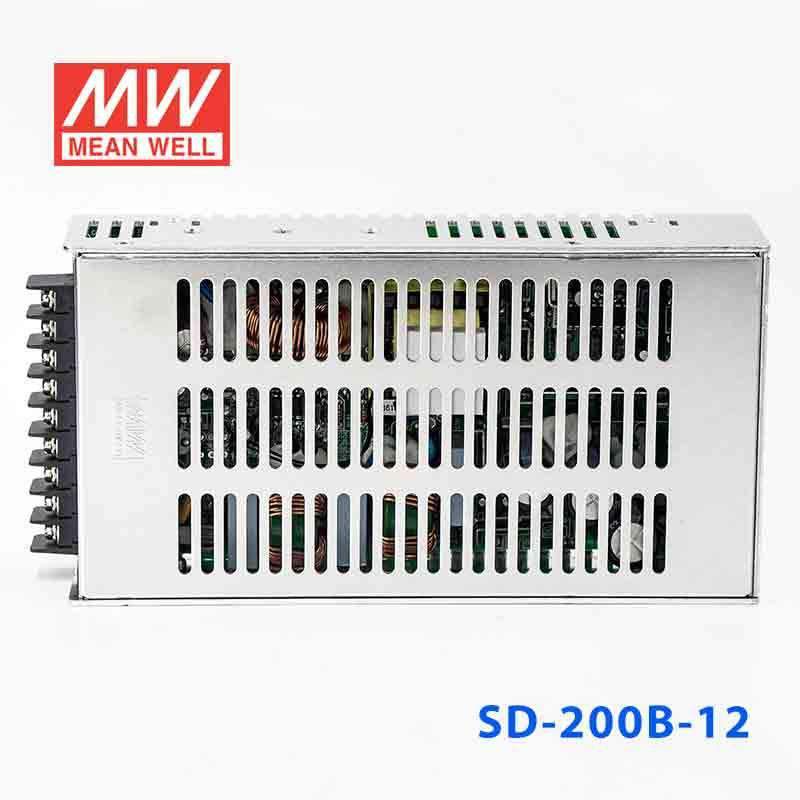

Mean Well SD-200B-12 DC-DC Converter - 200.4W - 19~36V in 12V out 16.7A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-200B-12
$92.11 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-200B-12 is the 12V output model of this series: rated current 16.7A, rated power 200.4W, typical efficiency 82%.

Features

  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 1500VAC I/O isolation
  • Cooling by free air convection
  • 100% full load burn-in test
  • 24V and 48V input voltage design refer to LVD
  • 2 years warranty

Specifications

SD-200B-12Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
16.7A
CURRENT RANGE
0 ~ 16.7A
RATED POWER
200.4W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
11 ~ 16VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
300ms, 50ms at full load

INPUT

VOLTAGE RANGE
19 ~ 36VDC
EFFICIENCY (Typ.)
82%
DC CURRENT (Typ.)
10.6A/24V
INRUSH CURRENT (Typ.)
C:45A/48VDC D:45A/96VDC

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Shut down o/p voltage, re-power on to recover
OVER VOLTAGE
16.8 ~ 20V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1approved (for SD-200C-5/12/24 type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1919.7K hrs min. Telcordia SR-332 (Bellcore) ; 280.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
215*115*50mm (L*W*H)
PACKING
1.1Kg; 12pcs/14.4Kg/0.9CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-200B-12 Mechanical Specification
Mechanical Specification
SD-200B-12 Block Diagram
Block Diagram
SD-200B-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SD-200B-12 for high-current 12V logic or controller loads from a 24V source?

Based on the spec sheet, this unit delivers constant-voltage 12V output at up to 16.7A from a 19-36VDC input range, so a 24V source is within range. That makes it suitable for higher-current 12V industrial or embedded loads up to 200.4W.

Is the SD-200B-12 appropriate for powering multiple 12V embedded devices on one rail?

It can be appropriate when the combined load remains within the listed 16.7A output current and 200.4W power rating. The 2:1 wide input range supports use on systems with 19-36VDC available upstream.

Would this model work for a 12V industrial computer or control backplane?

Yes, the specs support 12V applications, with constant-voltage 12V output and up to 16.7A available. The listed 1.5KVAC input-to-output isolation is also relevant for industrial equipment where isolation may be required.

How does SD-200B-12 compare with the other SD-200B models listed?

Based on the spec sheet, SD-200B-5 is 170W, 5V, 34A; SD-200B-12 is 200.4W, 12V, 16.7A; SD-200B-24 is 201.6W, 24V, 8.4A; and SD-200B-48 is 201.6W, 48V, 4.2A. The listed differences are output voltage, output current, and power across the SD-200B family.

Is the SD-200B-12 suitable for outdoor or temperature-variable enclosures?

The operating temperature range is specified as -20°C to +60°C with derating per the derating curve, which supports use across a defined industrial temperature range. The specs do not include an IP rating, so ingress protection for outdoor exposure is not defined in the product data.
