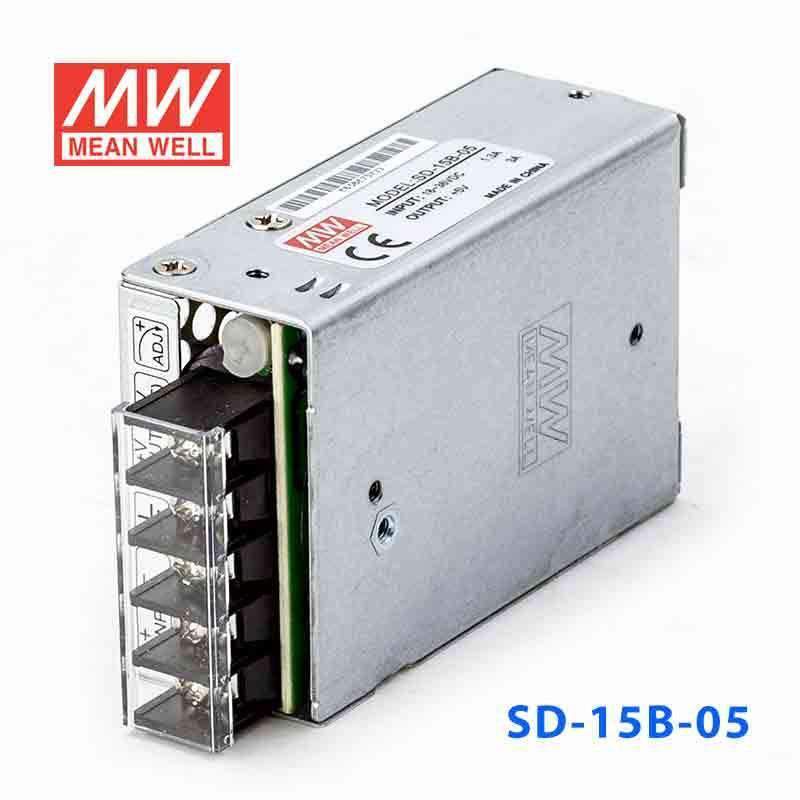

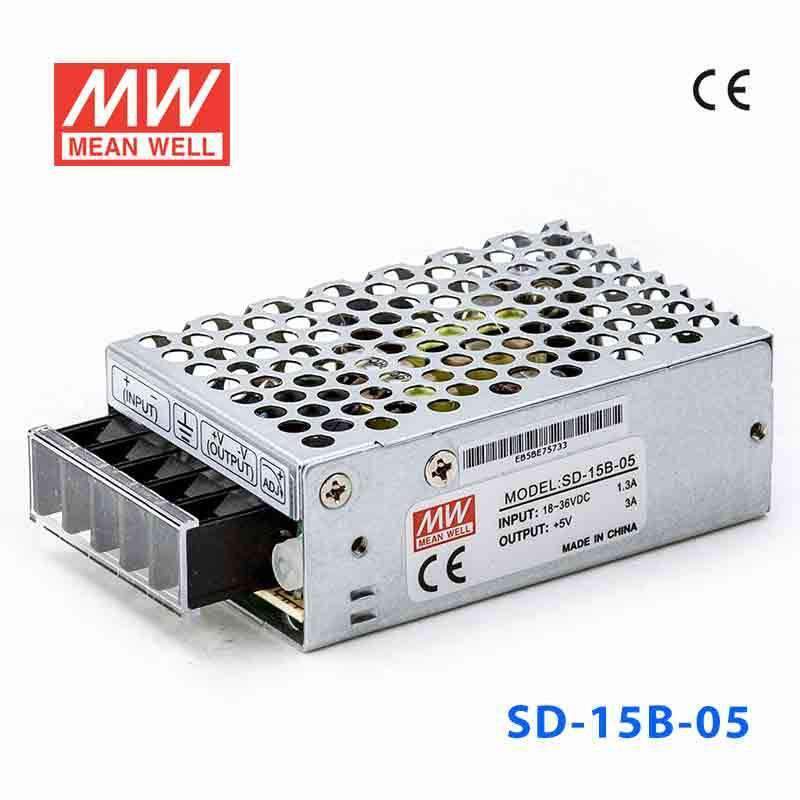

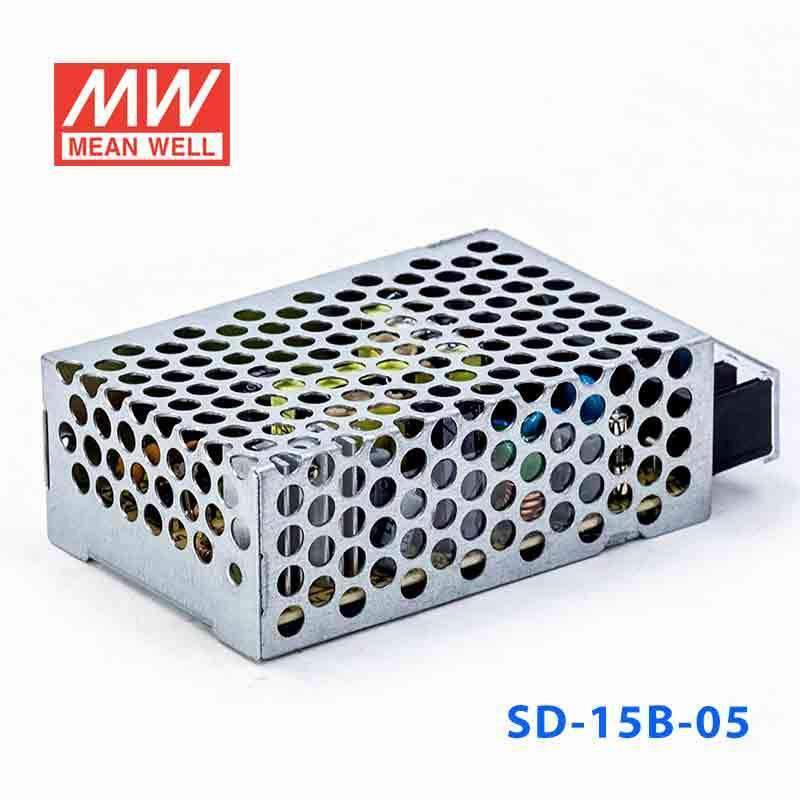

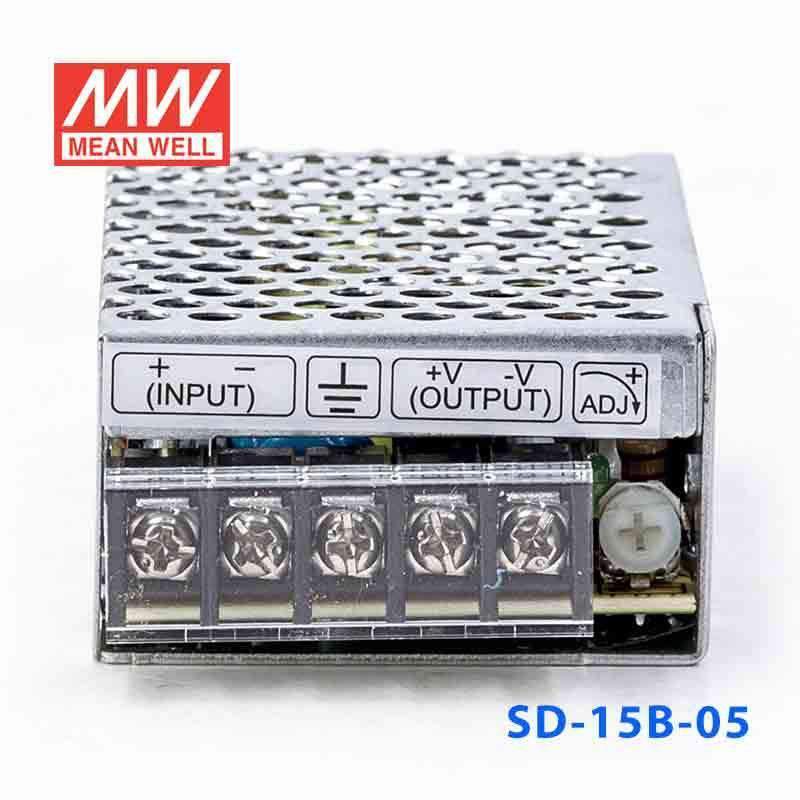

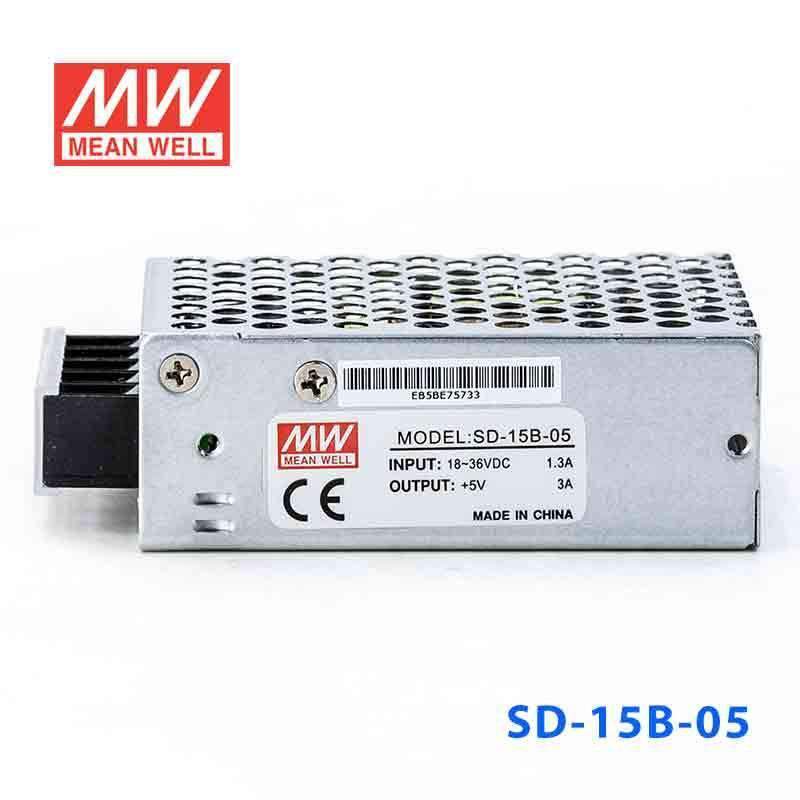

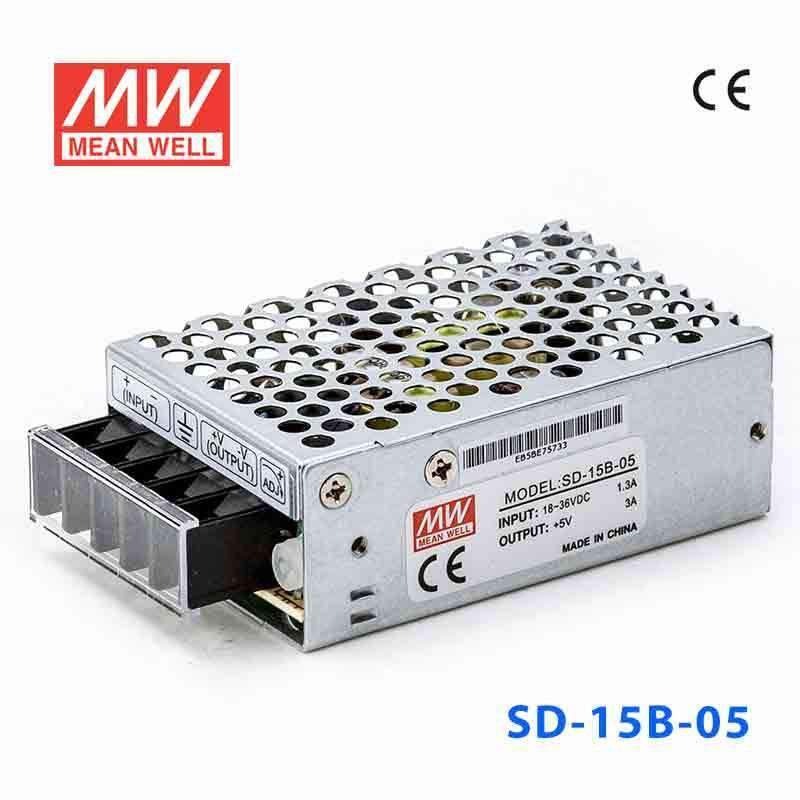

Mean Well SD-15B-5 DC-DC Converter - 15W - 18~36V in 5V out 3A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-15B-5
$16.43 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-15B-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 76%.

Features

  • 2:1 wide input range
  • Protections:Short circuit/Over load /voltage
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-15B-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ.RANGE
4.75~5.5VDC
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE ,HOLD UP TIME
2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load

INPUT

VOLTAGE RANGE
B:18 ~ 36VDC
EFFICIENCY(Typ.)
76%
DC CURRENT(Typ.)
0.9A/24VDC

PROTECTION

OVER LOAD
105 ~160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032(CISPR32), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
3861.2K hrs min. Telcordia SR-332 (Bellcore) ; 644.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
78*51*28mm (L*W*H)
PACKING
0.18Kg,60 PCS/11.8Kg
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at normal input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-15B-5 Mechanical Specification
Mechanical Specification
SD-15B-5 Block Diagram
Block Diagram

Downloads

FAQ

Can I use the SD-15B-5 to power a small embedded controller from a 24V industrial supply?

Yes, this converter is suited to low-power embedded control hardware that needs a regulated 5V output from an 18-36VDC input source. It provides constant-voltage 5V output at up to 3A with a 15W power rating, which fits compact control electronics rather than higher-load devices.

Is the SD-15B-5 a fit for sensor interfaces or industrial communication boards that run on 5V?

It can be a fit when the load needs 5V constant-voltage power and stays within 3A and 15W. The 18-36VDC input range suits 24V-class systems, and the listed 1.5KVAC input-output withstand voltage is relevant in industrial and embedded environments.

Can this converter be used in automation panels for low-power 5V logic loads?

Yes, it is sized for low-power 5V logic loads in automation equipment when the source is within 18-36VDC. Its compact 78.0 × 51.0 × 28.0 mm housing and 0.18 kg weight also make it practical where panel space is limited.

How does the SD-15B-5 compare with the other SD-15B models?

Within the SD-15B group, SD-15B-5 is 15W, 5V, 3A; SD-15B-12 is 15W, 12V, 1.25A; and SD-15B-24 is 15W, 24V, 0.625A. The main differences are the output voltage and output current, while all three are part of the same 15W family.

Is the SD-15B-5 suitable for outdoor or harsh-environment use?

The listed operating temperature is -10°C to +60°C, with output derating at higher temperatures per the derating curve. The provided specs do not list an IP rating, so dust and water ingress protection are not specified in the product data.
