Mean Well

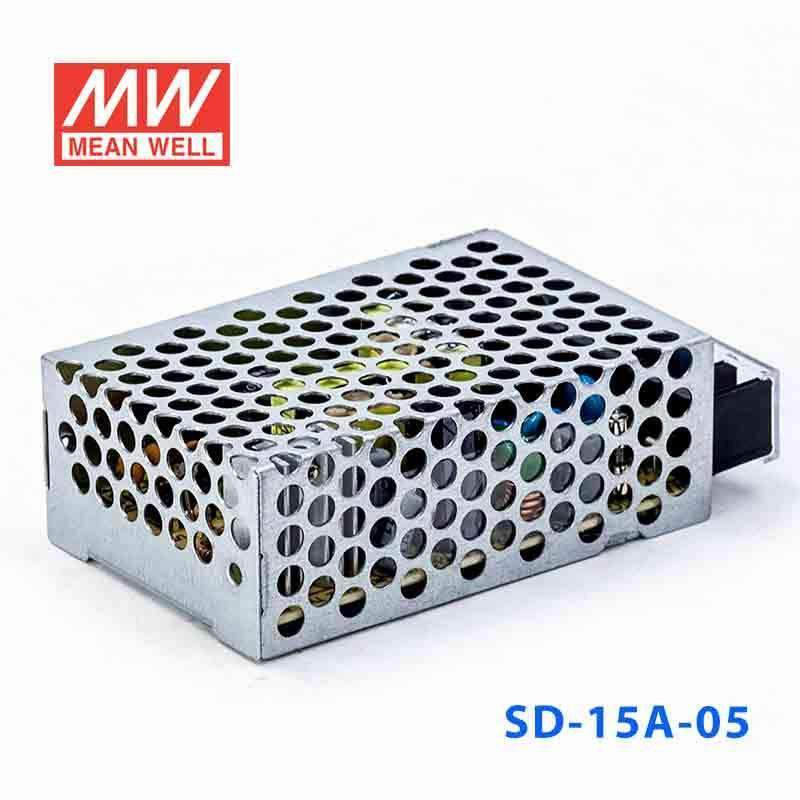

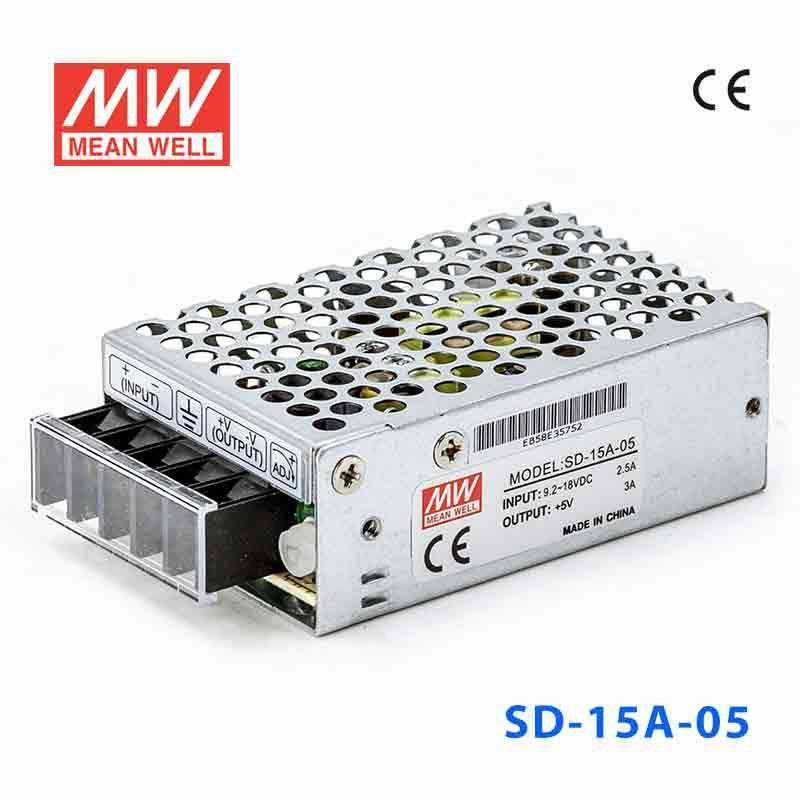

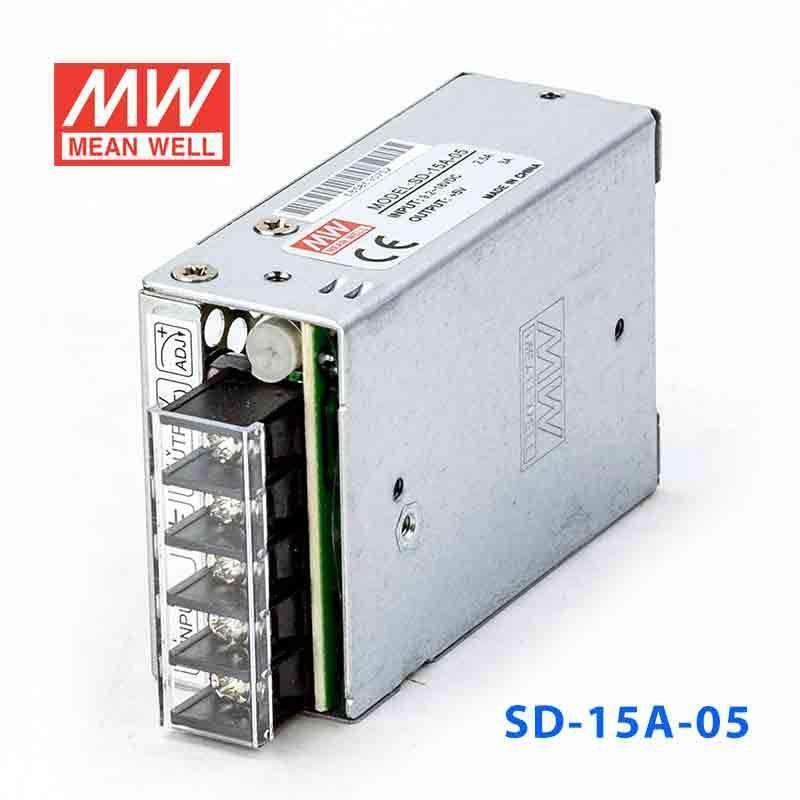

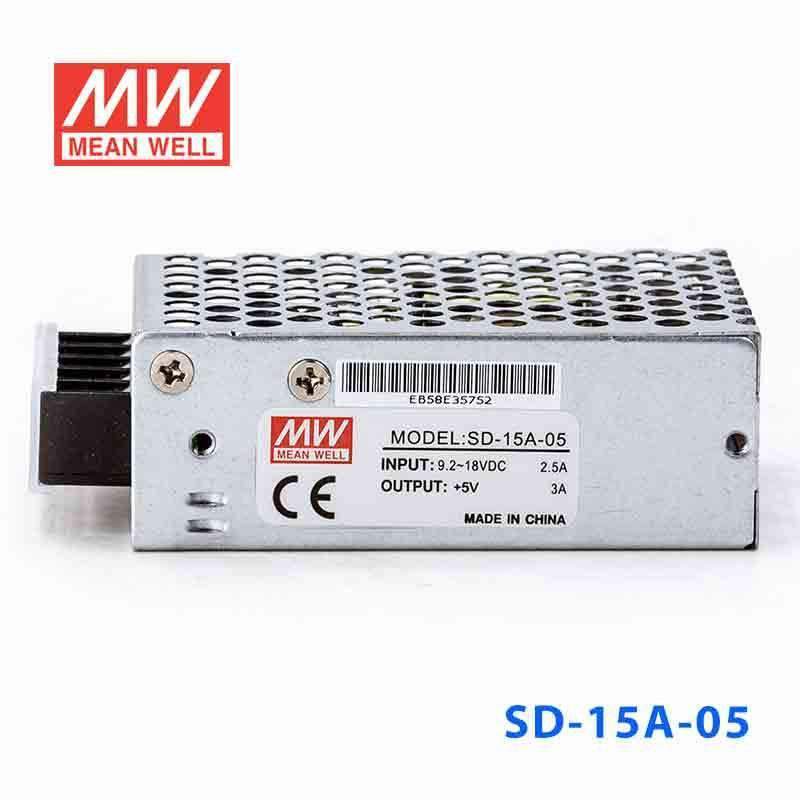

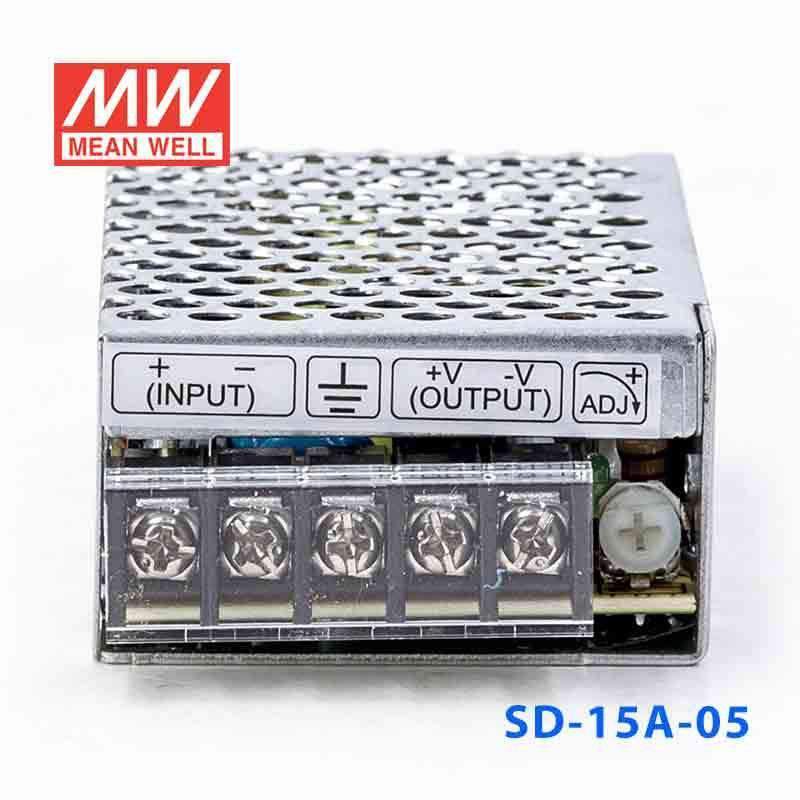

Mean Well SD-15A-5 DC-DC Converter - 15W - 9.2~18V in 5V out 3A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-15A-5
$17.46 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-15A-5 is the 5V output model of this series: rated current 3A, rated power 15W, typical efficiency 68%.

Features

  • 2:1 wide input range
  • Protections:Short circuit/Over load /voltage
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-15A-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ.RANGE
4.75~5.5VDC
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE ,HOLD UP TIME
2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load

INPUT

VOLTAGE RANGE
A: 9.2 ~18VDC
EFFICIENCY(Typ.)
68%
DC CURRENT(Typ.)
1.9A/12VDC

PROTECTION

OVER LOAD
105 ~160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032(CISPR32), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
3861.2K hrs min. Telcordia SR-332 (Bellcore) ; 644.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
78*51*28mm (L*W*H)
PACKING
0.18Kg,60 PCS/11.8Kg
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at normal input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-15A-5 Mechanical Specification
Mechanical Specification
SD-15A-5 Block Diagram
Block Diagram

Downloads

FAQ

Can I use the SD-15A-5 to power a 5V embedded controller or industrial interface board from a 9.2-18VDC input source?

Yes, this converter provides constant 5V output at up to 3A with a total 15W rating. That makes it suitable for low-power 5V embedded controllers, interface boards, or similar electronics within those output limits.

Is the SD-15A-5 suitable for a 5V logic or communications module in an automation cabinet?

It is intended for regulated 5V loads that need no more than 3A. With a 9.2-18VDC input range and compact 78.0 × 51.0 × 28.0 mm size, it fits small automation or control electronics rather than larger 5V systems.

Can this converter run a small 5V industrial computing or monitoring device?

It can support a low-power 5V device as long as the total load stays within 15W and 3A. The constant voltage output is better suited to stable 5V electronics than to loads that require a different output type.

Can the SD-15A-5 be used in hot or cold industrial conditions?

The rated operating temperature range is -10°C to +60°C, with output derating at higher temperatures per the derating curve. No IP rating is shown in the provided specs, so the listing does not define outdoor or water-exposed suitability.

What are the differences between the SD-15A-5 and the other SD-15A versions?

In the SD-15A range, SD-15A-5 is 15W, 5V, 3A; SD-15A-12 is 15W, 12V, 1.25A; and SD-15A-24 is 15W, 24V, 0.625A. All three use the same 9.2-18VDC input range, constant voltage operation, -10°C to +60°C operating temperature (with derating), 78 × 51 × 28 mm dimensions, 0.18 kg weight, and EAC TP TC 004 approval.
