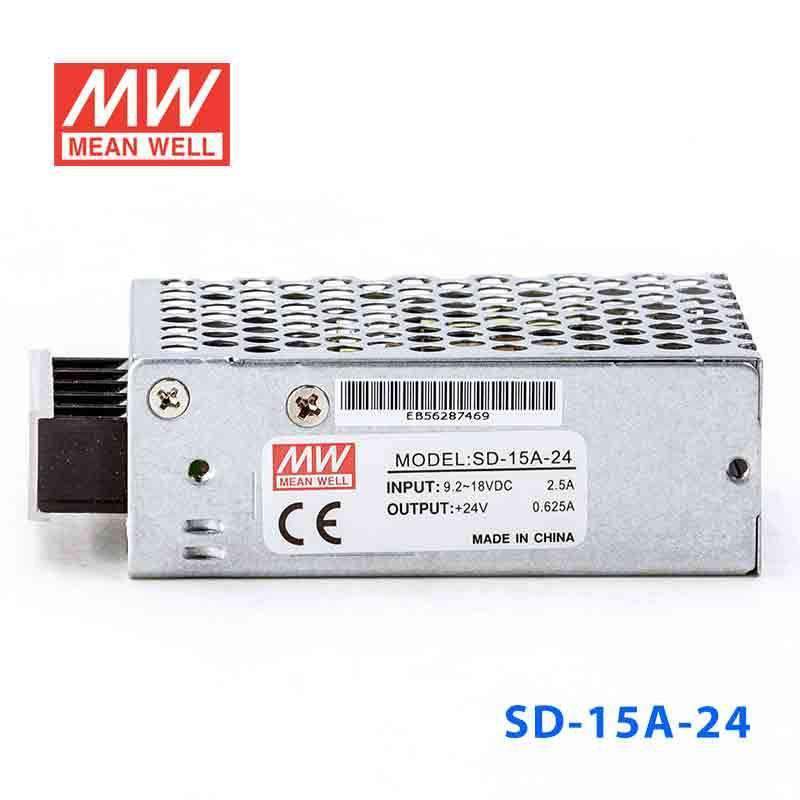

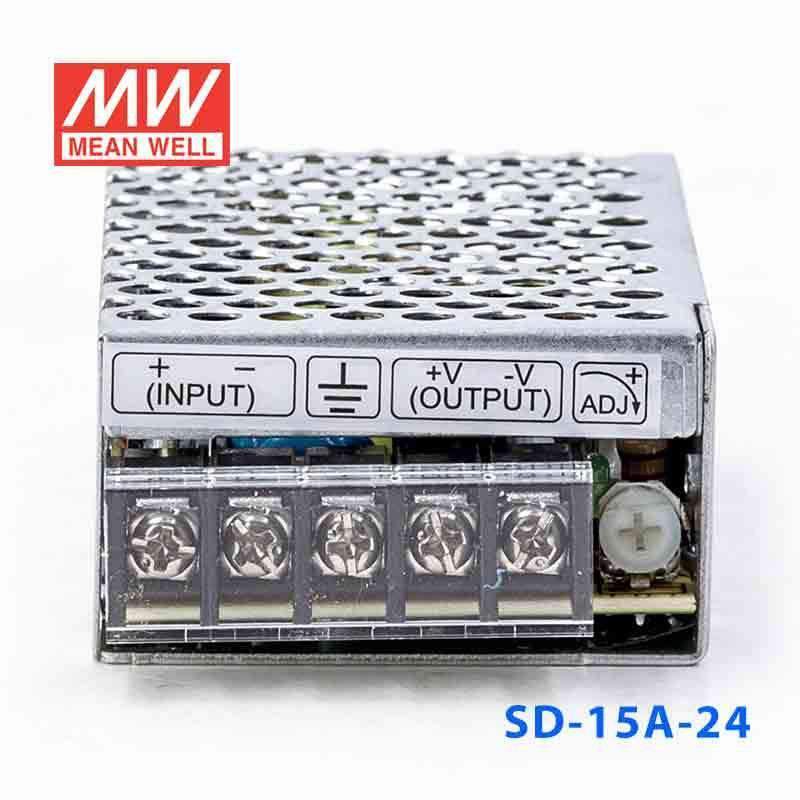

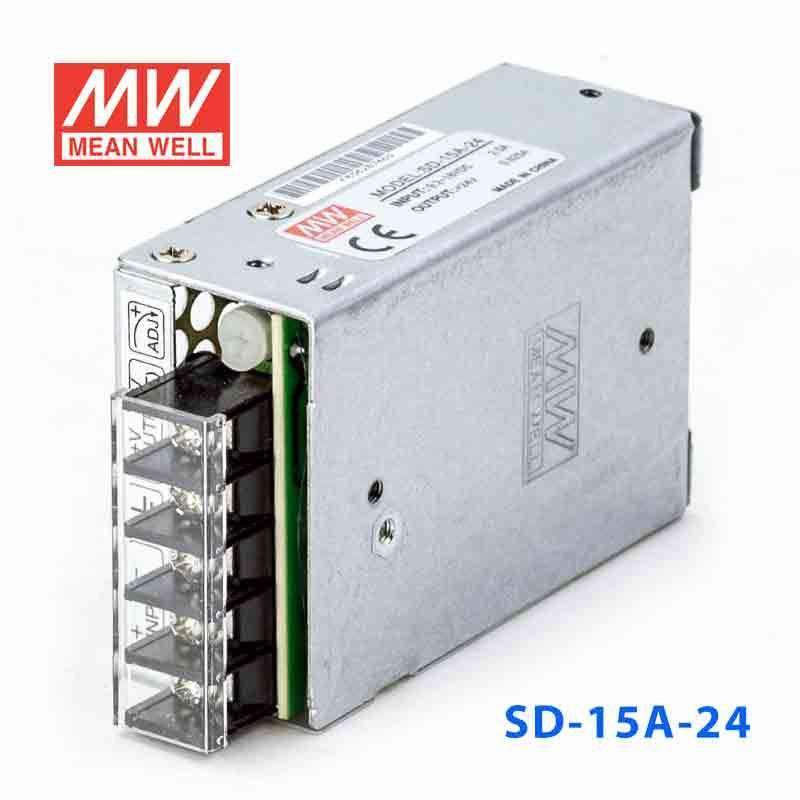

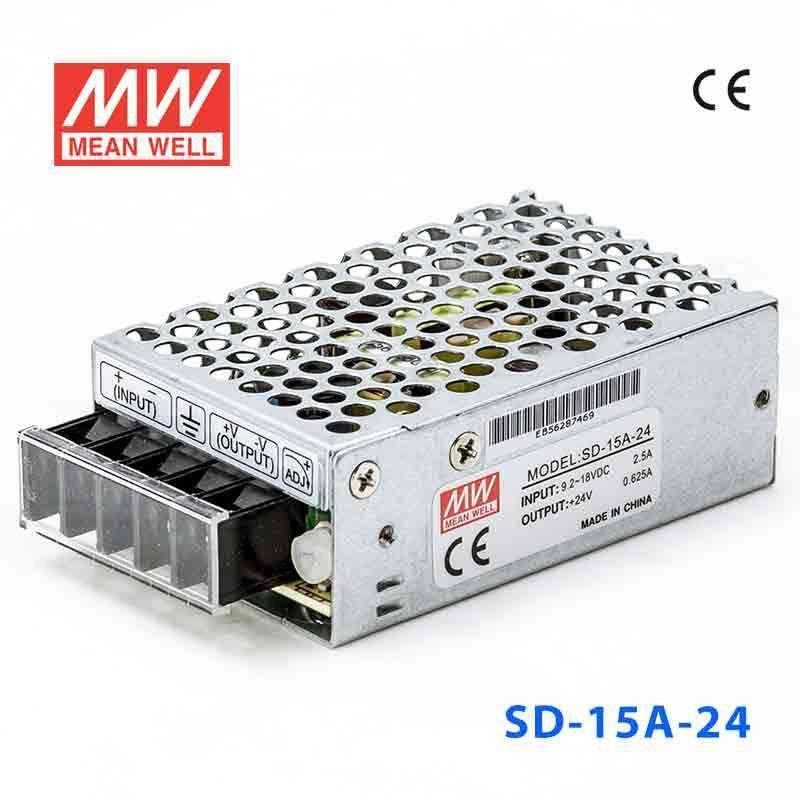

Mean Well SD-15A-24 DC-DC Converter - 15W - 9.2~18V in 24V out 625mA

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-15A-24
$16.28 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-15A-24 is the 24V output model of this series: rated current 0.625A, rated power 15W, typical efficiency 70%.

Features

  • 2:1 wide input range
  • Protections:Short circuit/Over load /voltage
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-15A-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
0.625A
CURRENT RANGE
0 ~ 0.625A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ.RANGE
21.6~26.4VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±0.2%
SETUP, RISE ,HOLD UP TIME
2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load

INPUT

VOLTAGE RANGE
A: 9.2 ~18VDC
EFFICIENCY(Typ.)
70%
DC CURRENT(Typ.)
1.9A/12VDC

PROTECTION

OVER LOAD
105 ~160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032(CISPR32), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
3861.2K hrs min. Telcordia SR-332 (Bellcore) ; 644.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
78*51*28mm (L*W*H)
PACKING
0.18Kg,60 PCS/11.8Kg
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at normal input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

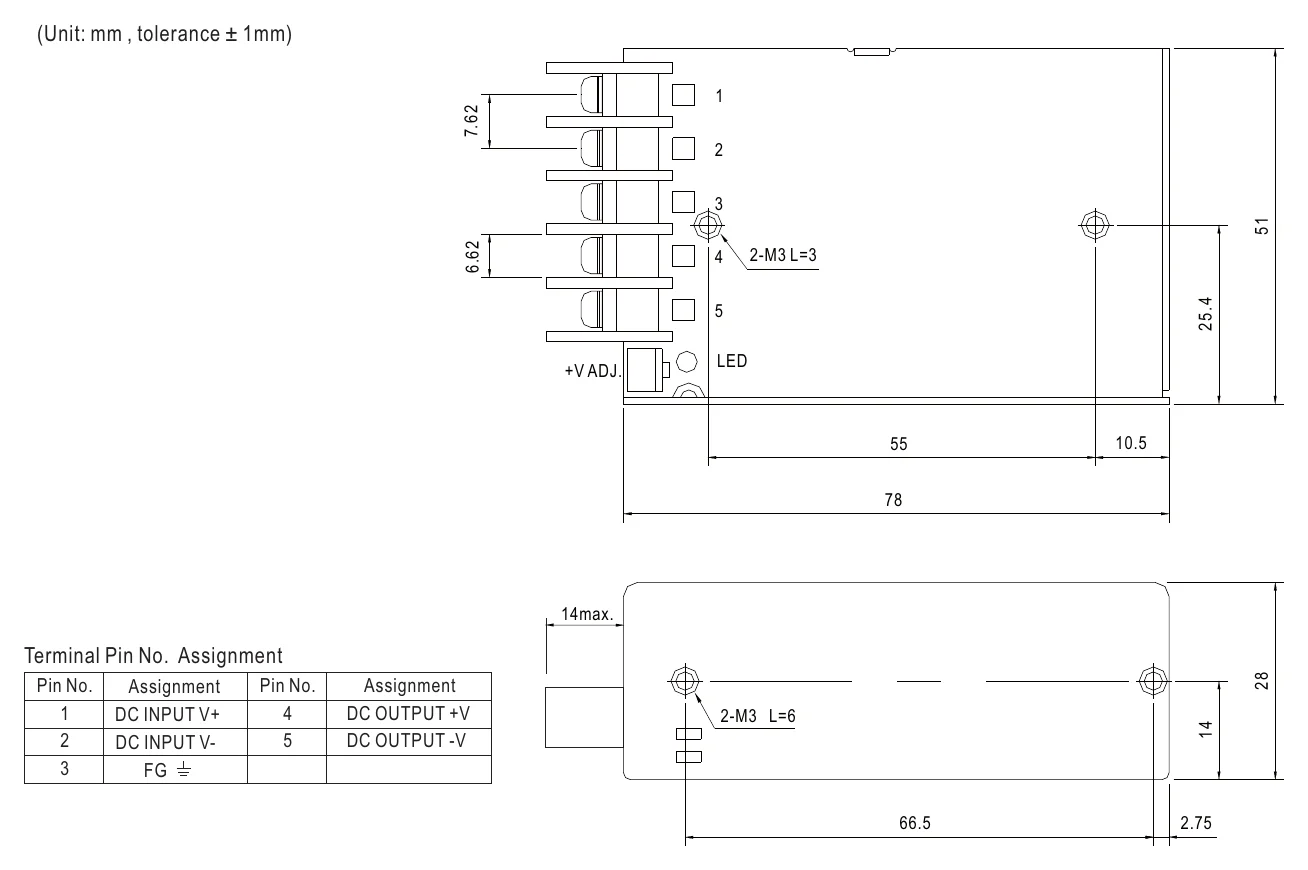

SD-15A-24 Mechanical Specification
Mechanical Specification

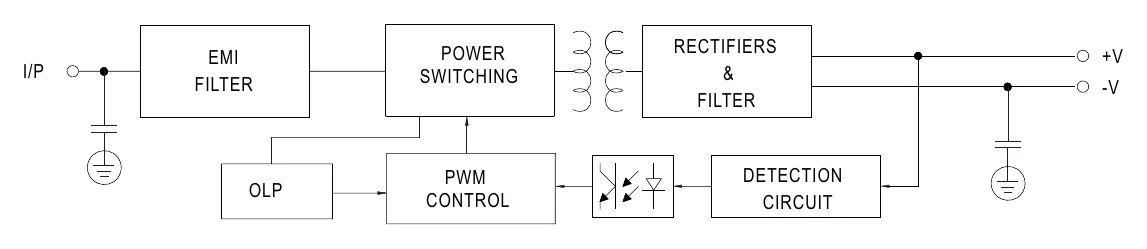

SD-15A-24 Block Diagram
Block Diagram

Downloads

FAQ

Can I use the SD-15A-24 to run a small 24V industrial sensor or transmitter from a 9.2-18VDC input source?

Yes, if the device needs a constant 24V output and draws no more than 0.625A. This converter provides 15W total and accepts a 9.2-18VDC input range, so it is intended for low-power 24V industrial or embedded loads.

Is the SD-15A-24 a good choice for a compact 24V automation accessory in a tight enclosure?

It is designed for small low-power 24V loads, with a 78.0 × 51.0 × 28.0 mm housing and 0.18 kg weight. The output is limited to 24V at 0.625A, so it fits light auxiliary devices rather than higher-current 24V equipment.

Can this model power a 24V embedded or control module from a low-voltage source?

It can when the source stays within the 9.2-18VDC input range and the module requires constant voltage output. The 15W capacity makes it suitable for smaller 24V control or embedded electronics that remain under 0.625A.

Is the SD-15A-24 suitable for outdoor installations or wide temperature swings?

The specified operating temperature range is -10°C to +60°C, with output derating at higher temperatures per the derating curve. However, no IP rating is provided in the listed specs, so the product data does not state outdoor or weather-exposed suitability.

How does the SD-15A-24 compare with the other SD-15A output options?

The SD-15A family includes SD-15A-5 at 15W, 5V, 3A; SD-15A-12 at 15W, 12V, 1.25A; and SD-15A-24 at 15W, 24V, 0.625A. Each version uses the same 9.2-18VDC input range, constant voltage mode, -10°C to +60°C operating temperature (with derating), 78 × 51 × 28 mm dimensions, 0.18 kg weight, and EAC TP TC 004 approval.
