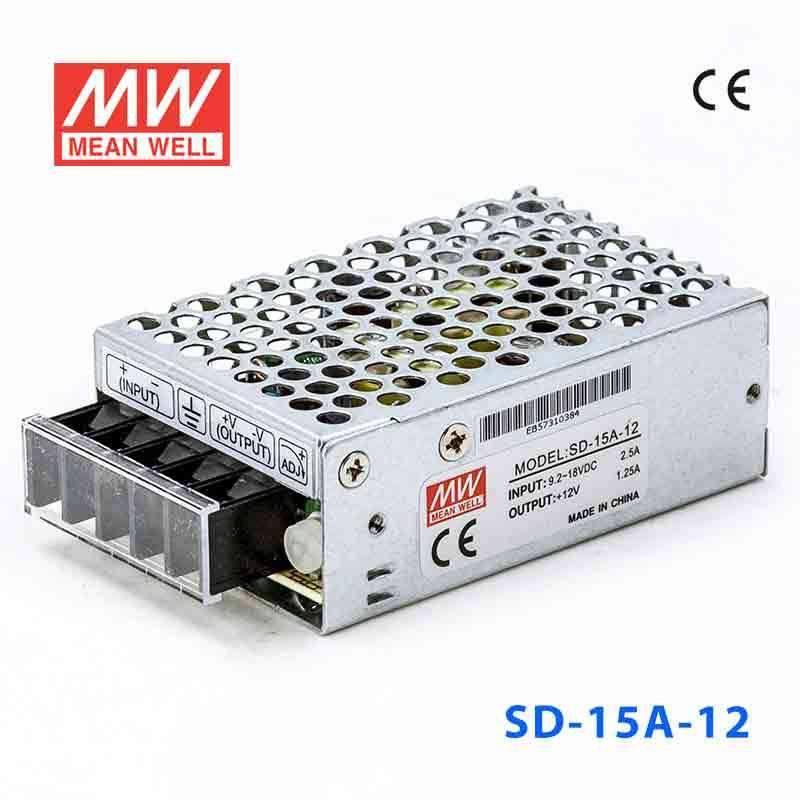

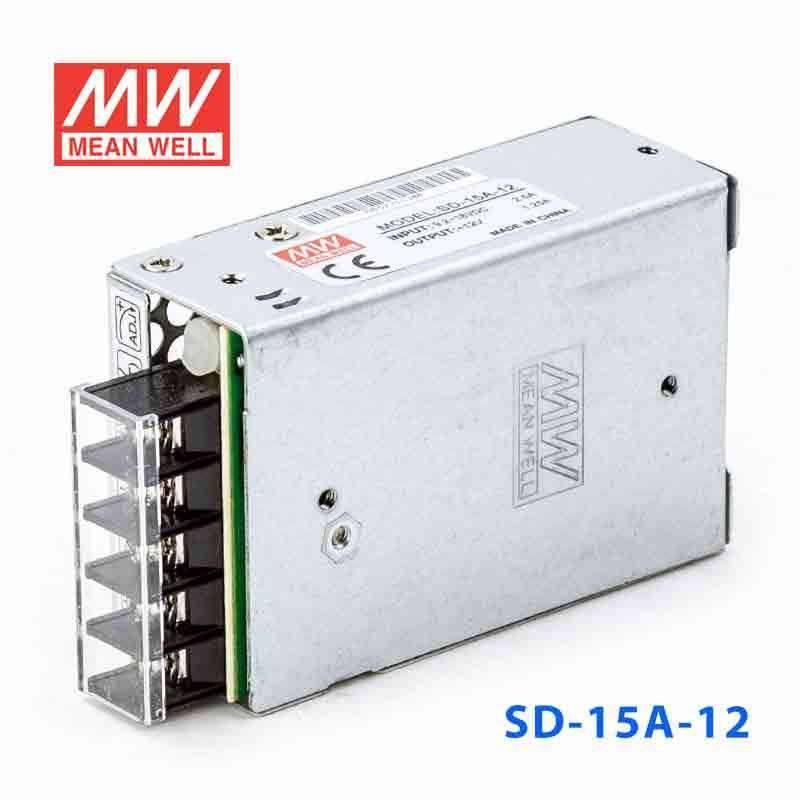

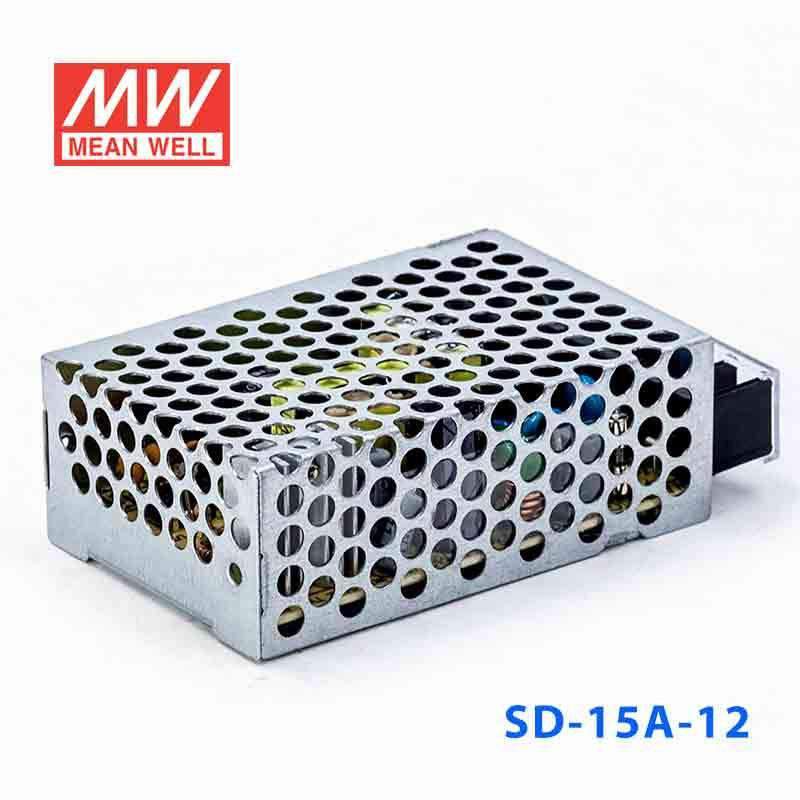

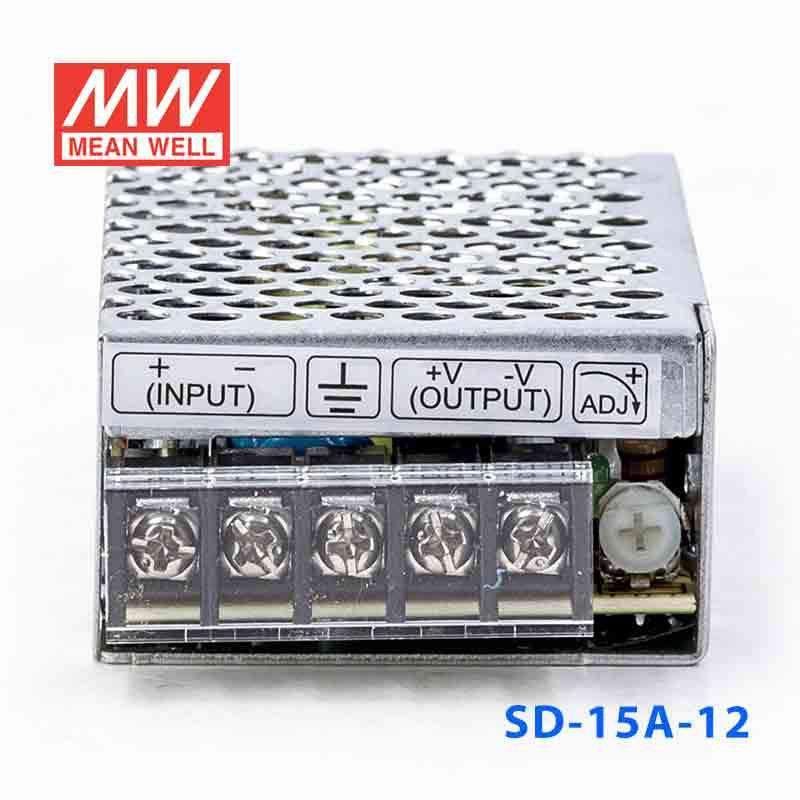

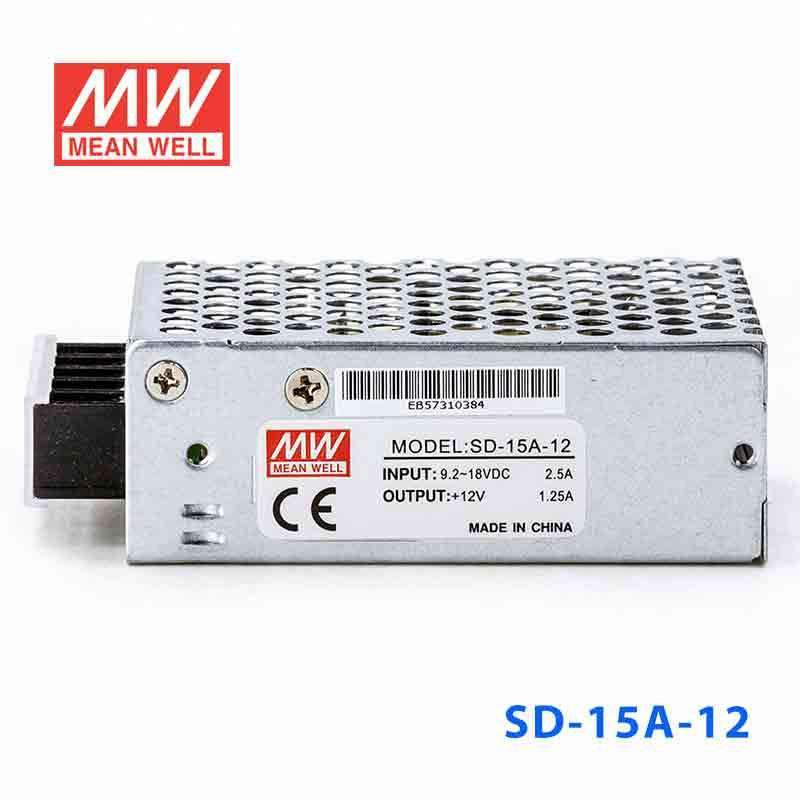

Mean Well SD-15A-12 DC-DC Converter - 15W - 9.2~18V in 12V out 1.25A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-15A-12
$16.28 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-15A-12 is the 12V output model of this series: rated current 1.25A, rated power 15W, typical efficiency 72%.

Features

  • 2:1 wide input range
  • Protections:Short circuit/Over load /voltage
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-15A-12Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
1.25A
CURRENT RANGE
0 ~ 1.25A
RATED POWER
15W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ.RANGE
10.8~13.2VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.3%
SETUP, RISE ,HOLD UP TIME
2.5s, 25ms,--- 12VDC/24VDC/48VDC at full load

INPUT

VOLTAGE RANGE
A: 9.2 ~18VDC
EFFICIENCY(Typ.)
72%
DC CURRENT(Typ.)
1.9A/12VDC

PROTECTION

OVER LOAD
105 ~160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8~ 16.2V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min.each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032(CISPR32), EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
3861.2K hrs min. Telcordia SR-332 (Bellcore) ; 644.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
78*51*28mm (L*W*H)
PACKING
0.18Kg,60 PCS/11.8Kg
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at normal input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-15A-12 Mechanical Specification
Mechanical Specification
SD-15A-12 Block Diagram
Block Diagram

Downloads

FAQ

Can I use the SD-15A-12 to power a 12V industrial sensor or small control accessory from a 9.2-18VDC input source?

Yes, this model is a constant voltage DC-DC converter with a 12V output and 1.25A output current. Its 15W rating and 9.2-18VDC input range fit low-power 12V industrial sensors, control accessories, or embedded devices that stay within those limits.

Is the SD-15A-12 suitable for a compact embedded 12V electronics load in a mobile or battery-based system?

It can be a fit when your source stays within the 9.2-18VDC input range and the load needs regulated 12V constant voltage output. With 15W available in a 78.0 × 51.0 × 28.0 mm package, it is aimed at compact low-power 12V loads rather than higher-current equipment.

Can this converter support a low-power 12V automation device in a control enclosure?

This unit is intended for low-power 12V automation or control devices that draw no more than 1.25A at 12V. The 15W output rating and 1.5KVAC input-output withstand voltage make it more appropriate for small auxiliary loads than for larger 12V control hardware.

Is the SD-15A-12 rated for outdoor or harsh-temperature use?

The operating temperature range is -10°C to +60°C, with output derating at higher temperatures per the derating curve. No IP rating is listed in the provided specs, so outdoor exposure or washdown suitability is not specified by this product data.

What is the difference between the SD-15A-12 and the other SD-15A models?

Within the SD-15A group, SD-15A-5 is 15W, 5V, 3A; SD-15A-12 is 15W, 12V, 1.25A; and SD-15A-24 is 15W, 24V, 0.625A. All share the 9.2-18VDC input range, constant voltage operation, -10°C to +60°C operating temperature (with derating), 78 × 51 × 28 mm dimensions, 0.18 kg weight, and EAC TP TC 004 approval.
