Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

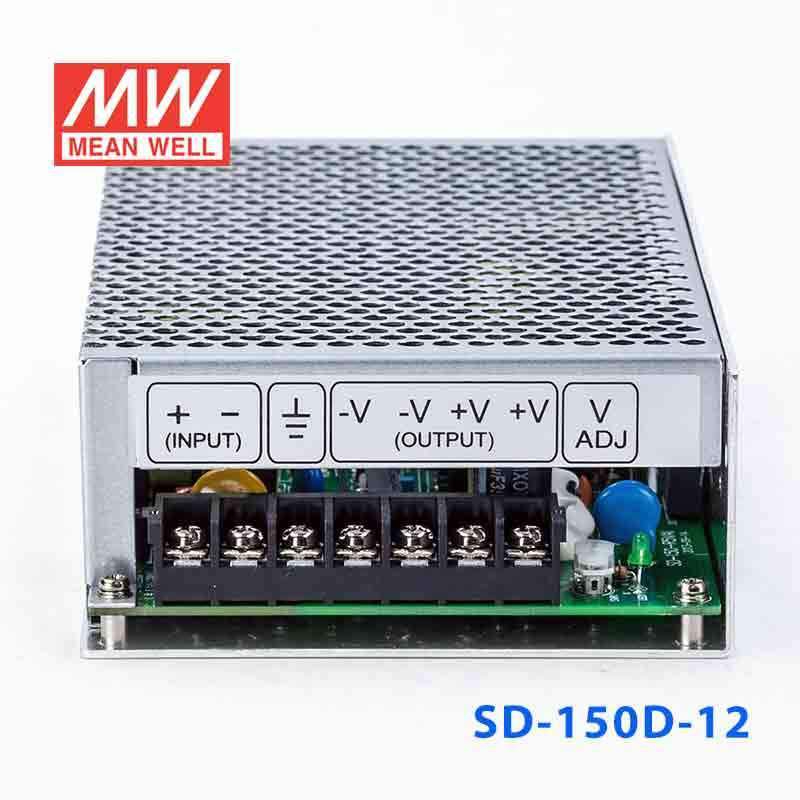

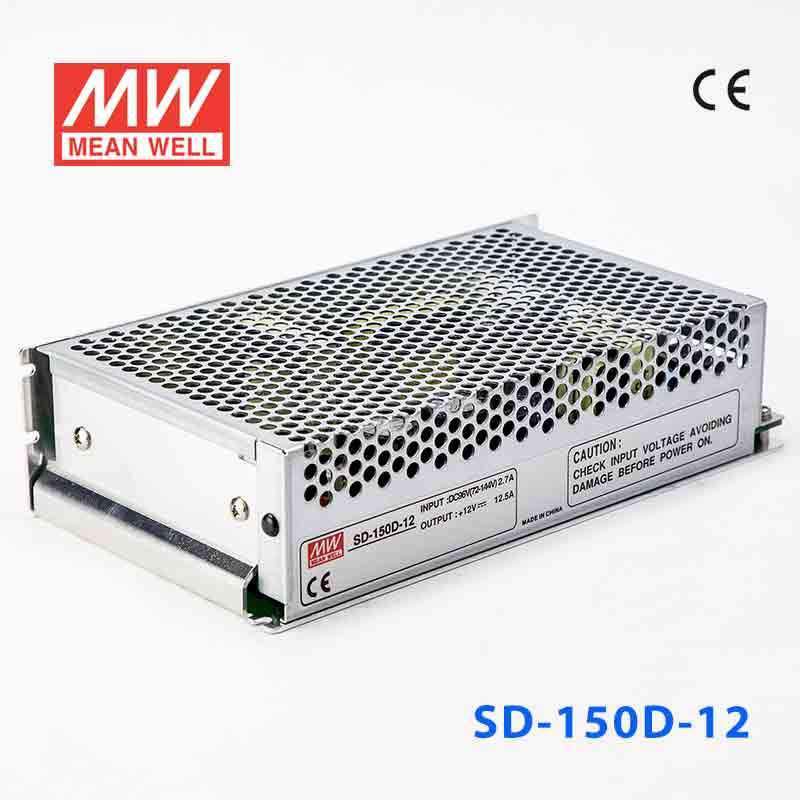

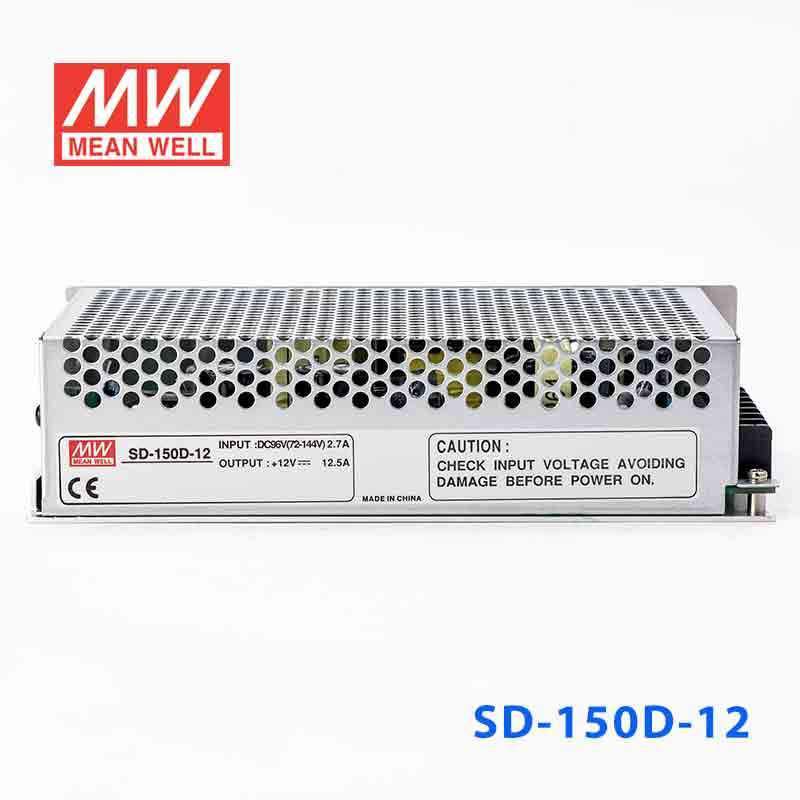

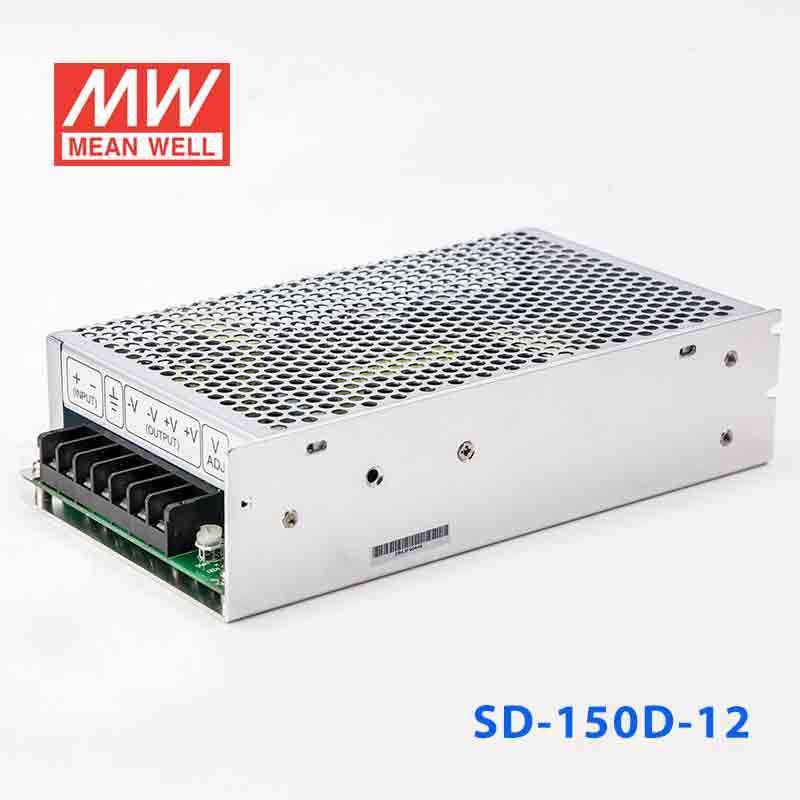

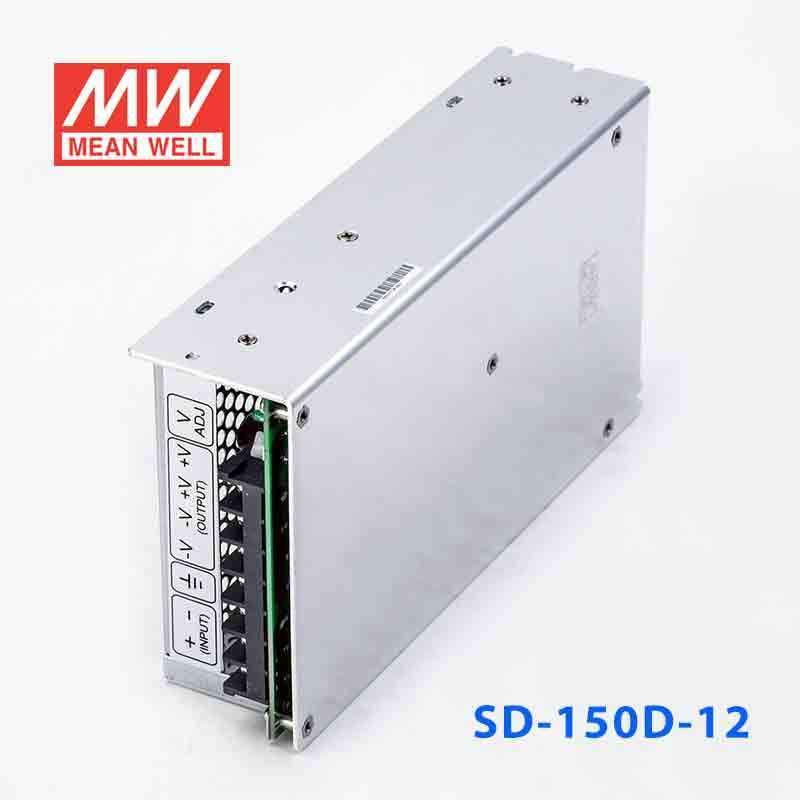

Mean Well SD-150D-12 DC-DC Converter - 150W - 72~144V in 12V out 12.5A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-150D-12
$56.02 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-150D-12 is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 79%.

Features

  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • 24V and 48V input voltage design refer to LVD
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-150D-12Specifications from the official datasheet (2024-09-03 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
12.5A
CURRENT RANGE
0 ~ 12.5A
RATED POWER
150W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
11 ~ 16VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.)
24ms(only D mode) at full load

INPUT

VOLTAGE RANGE
D:72 ~144VDC or 85 ~ 132VAC
EFFICIENCY (Typ.)
79%
DC CURRENT (Typ.)
2.1A/96V
INRUSH CURRENT (Typ.)
D:22.5A/96VDC
LEAKAGE CURRENT
<0.75mA / 120VAC (SD-150D)

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
16.8V ~ 20V/10% LOAD Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMI CONDUCTION & RADIATION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, BS EN/ENV50204, light industry level, EAC TP TC 020

OTHERS

MTBF
2897.06K hrs min. Telcordia SR-332 (Bellcore) ; 419.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*110*50mm (L*W*H)
PACKING
0.86Kg; 16pcs/14.5Kg/0.95CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-150D-12 Mechanical Specification
Mechanical Specification
SD-150D-12 Block Diagram
Block Diagram
SD-150D-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SD-150D-12 to derive 12V power from a 72-144V DC system?

Yes, this DC-DC converter is designed for a 72-144V input range and provides constant 12V output. It can supply up to 12.5A, with a total power rating of 150W.

Is the SD-150D-12 suitable for 12V industrial control or monitoring electronics on a high-voltage DC bus?

It is intended for applications where the source voltage falls between 72V and 144V and the load requires regulated 12V DC. The 12.5A output current and 150W capacity fit 12V control and monitoring loads within that range.

Can this model power 12V embedded hardware in transportation or automation equipment with higher DC input voltage?

Yes, it is a constant-voltage 12V converter for 72-144V input systems. It supports up to 150W output and up to 12.5A for 12V embedded hardware that matches those electrical limits.

Does the SD-150D-12 have an outdoor environmental rating?

No IP rating is listed in the provided specifications, so it should be used in a protected indoor enclosure instead of an exposed outdoor environment. Its specified operating temperature range is -10°C to +60°C, with output load derating at higher ambient temperatures (see the derating curve).

Which SD-150 model should I compare this with in the same series?

For 12V output, the direct siblings are SD-150B-12, SD-150C-12, and SD-150D-12, and all are rated at 150W and 12.5A. Their difference is input range: 19-36V for B, 36-72V for C, and 72-144V for D. The 24V variants are SD-150B-24, SD-150C-24, and SD-150D-24, each rated at 151.2W and 6.3A.
