Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

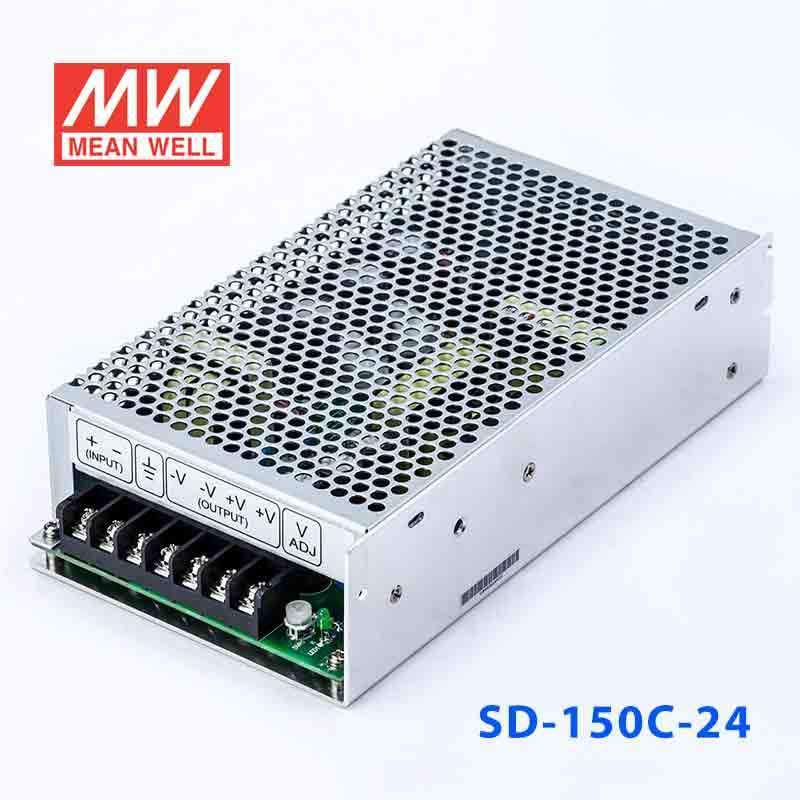

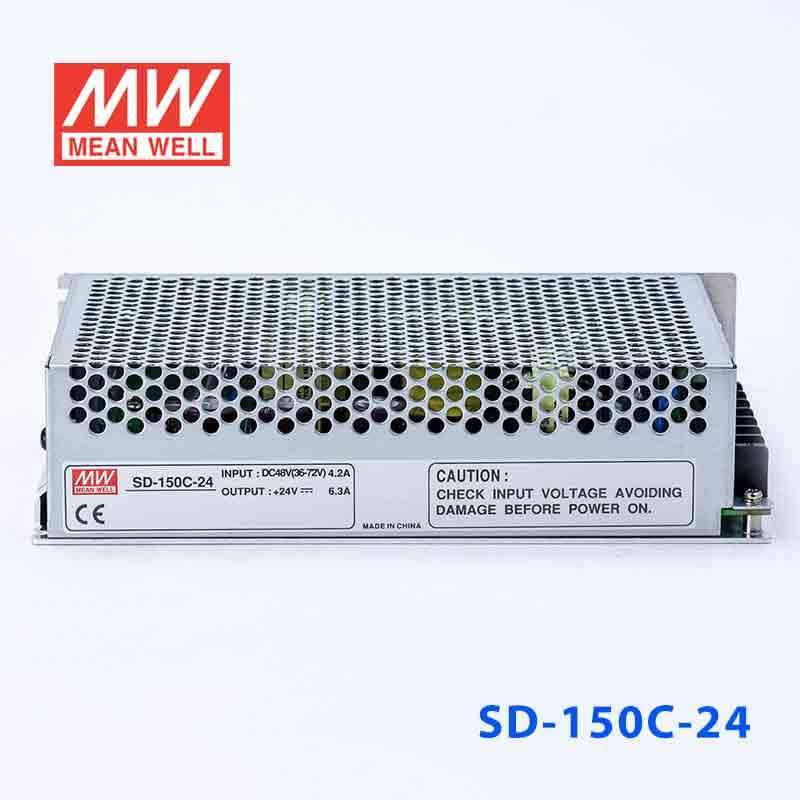

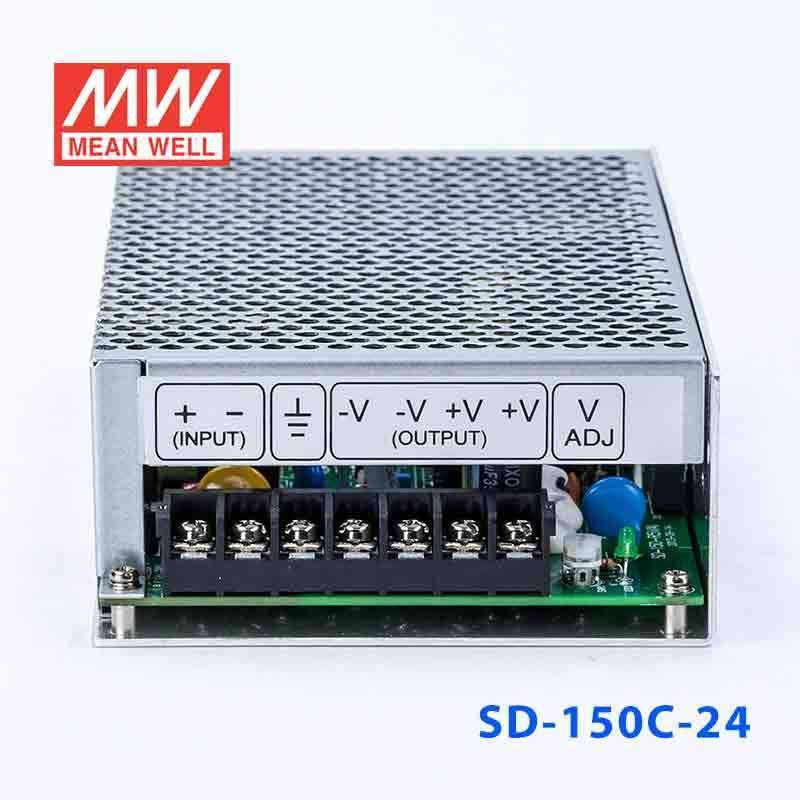

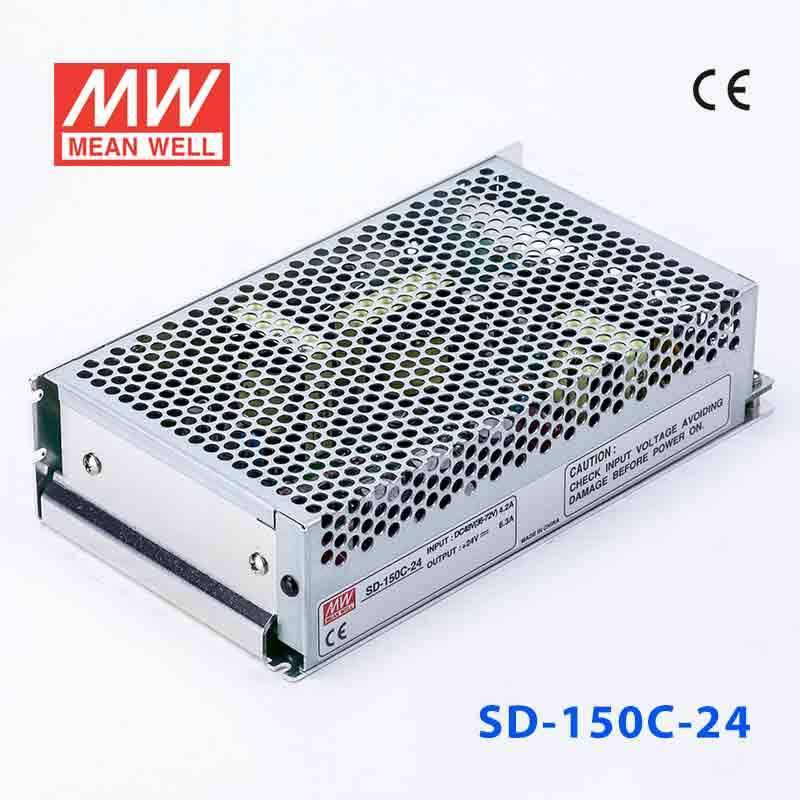

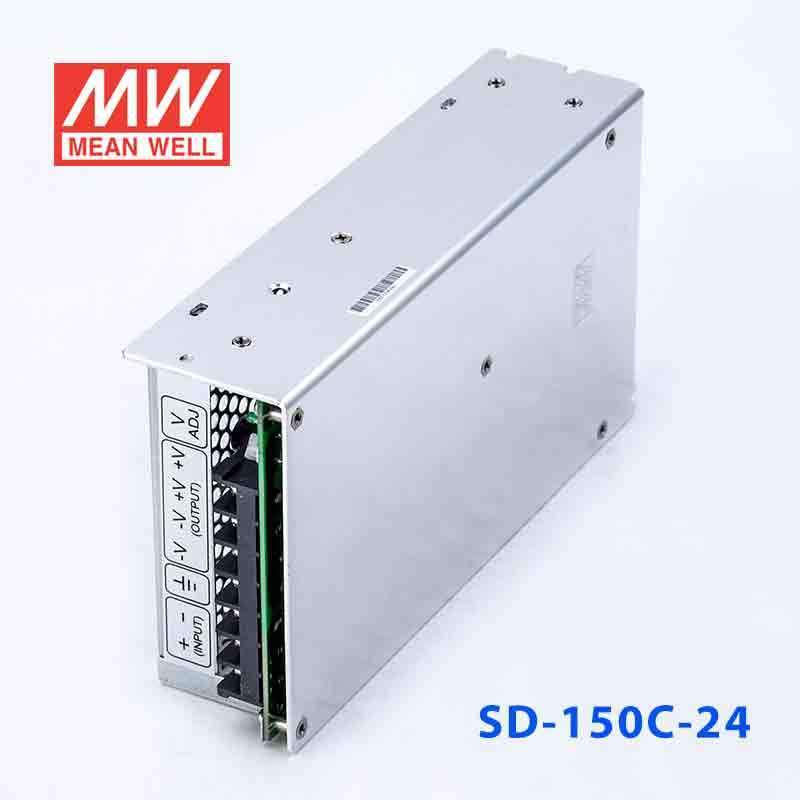

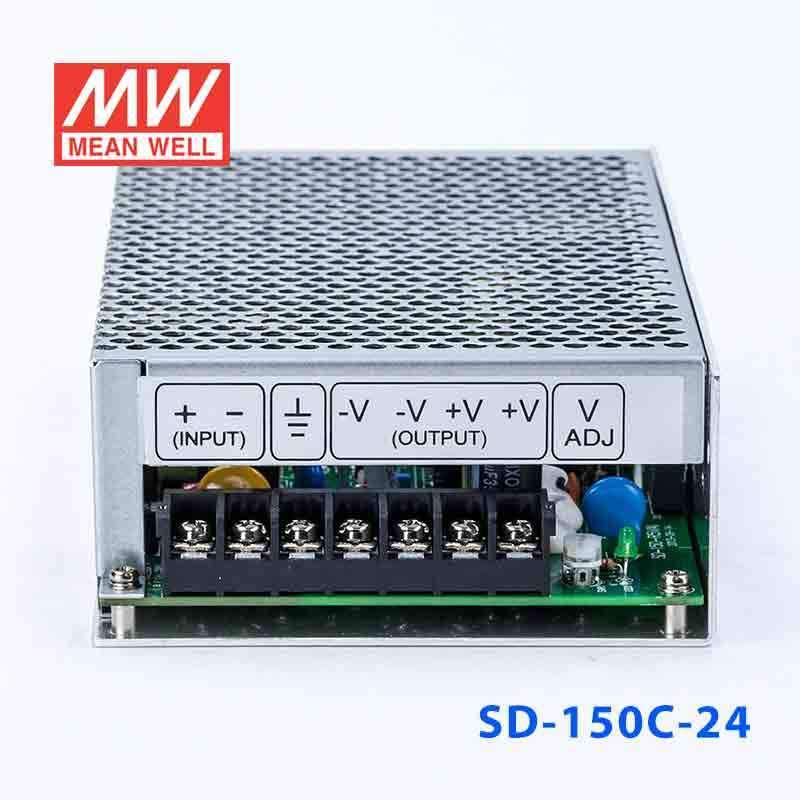

Mean Well SD-150C-24 DC-DC Converter - 150W - 36~72V in 24V out 6.5A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-150C-24
$55.95 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-150C-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 80%.

Features

  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • 24V and 48V input voltage design refer to LVD
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-150C-24Specifications from the official datasheet (2024-09-03 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
6.3A
CURRENT RANGE
0 ~ 6.3A
RATED POWER
151.2W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
23 ~ 30VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.3%
SETUP, RISE TIME
2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.)
24ms(only D mode) at full load

INPUT

VOLTAGE RANGE
C:36 ~ 72VDC
EFFICIENCY (Typ.)
80%
DC CURRENT (Typ.)
4.2A/48V
INRUSH CURRENT (Typ.)
D:22.5A/96VDC
LEAKAGE CURRENT
<0.75mA / 120VAC (SD-150D)

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
31.5 ~ 37.5V/10% LOAD Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMI CONDUCTION & RADIATION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, BS EN/ENV50204, light industry level, EAC TP TC 020

OTHERS

MTBF
2897.06K hrs min. Telcordia SR-332 (Bellcore) ; 419.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*110*50mm (L*W*H)
PACKING
0.86Kg; 16pcs/14.5Kg/0.95CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-150C-24 Mechanical Specification
Mechanical Specification
SD-150C-24 Block Diagram
Block Diagram
SD-150C-24 Derating Curve
Derating Curve

Downloads

FAQ

Can the SD-150C-24 power a 24V industrial control panel from a 36-72V DC source?

Yes, this unit is built for a 36-72V input range and provides a constant 24V output. It can deliver up to 6.3A and 151.2W for 24V control loads that stay within those ratings.

Is this converter a fit for 24V automation devices on a 48V-class battery or DC bus?

It is intended for higher-voltage DC sources in the 36-72V range and regulated 24V output loads. With 6.3A available at 24V, it suits automation and embedded equipment that requires constant-voltage 24V DC within 151.2W.

Can I use the SD-150C-24 for 24V communications or embedded electronics in an equipment rack or cabinet?

Yes, as long as the source is within 36-72V and the connected 24V load does not exceed 6.3A or 151.2W. Its constant-voltage output is intended for electronics that need regulated 24V DC.

Is the SD-150C-24 suitable for outdoor use?

No IP rating is provided in the listed specifications, so it is better treated as a protected indoor product. The stated operating temperature range is -10°C to +60°C, with output load derating at higher ambient temperatures (see the derating curve).

How is the SD-150C-24 different from the other SD-150 converters?

The SD-150C-24 is the 24V, 151.2W, 6.3A version with a 36-72V input range. The other 24V SD-150 models are SD-150B-24 with 19-36V input and SD-150D-24 with 72-144V input, both also rated at 151.2W and 6.3A. The 12V versions are SD-150B-12, SD-150C-12, and SD-150D-12, each rated at 150W and 12.5A.
