Mean Well

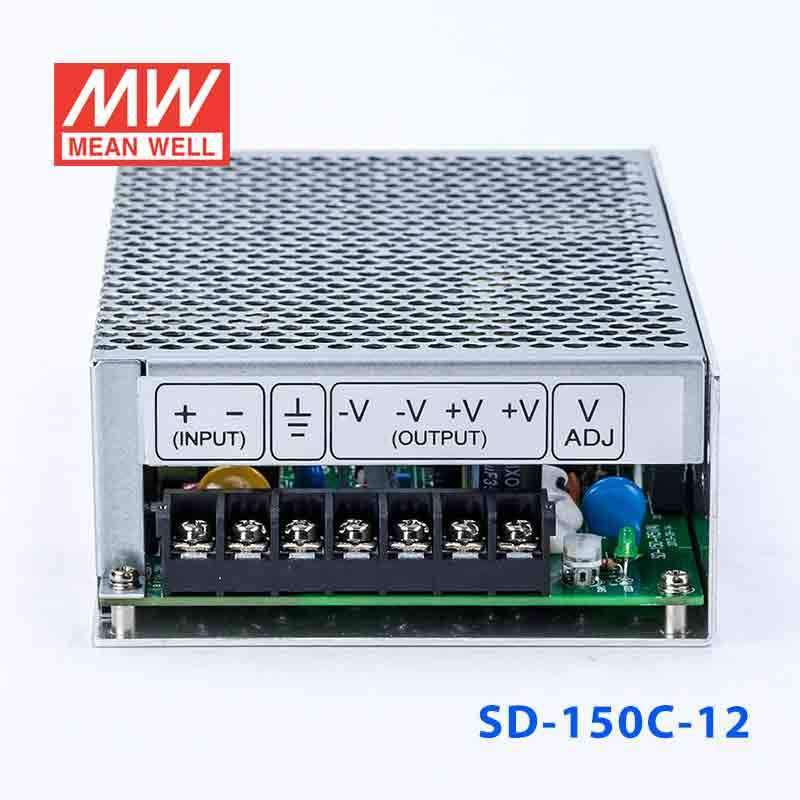

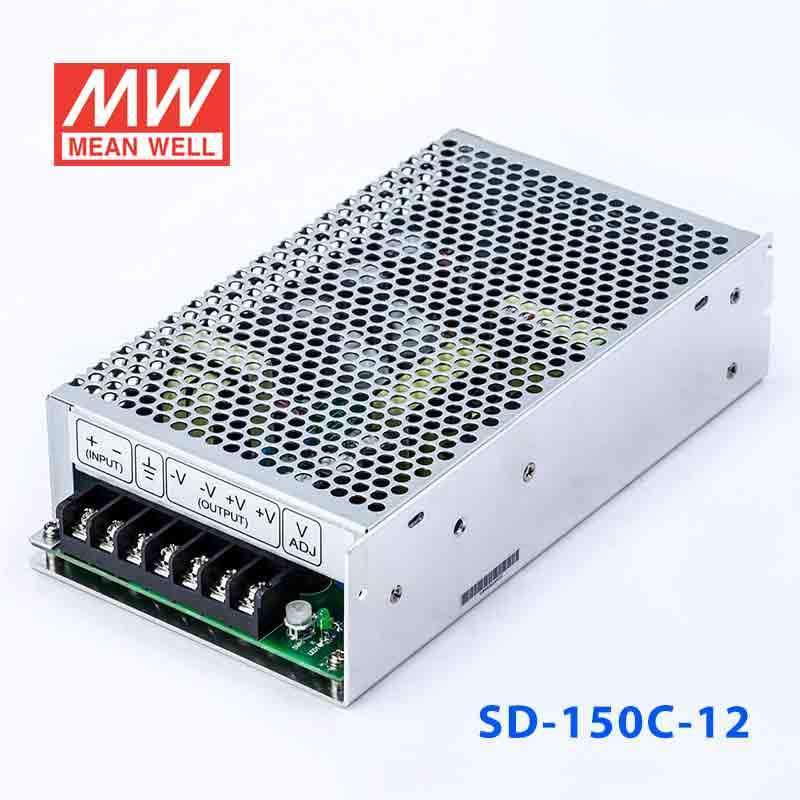

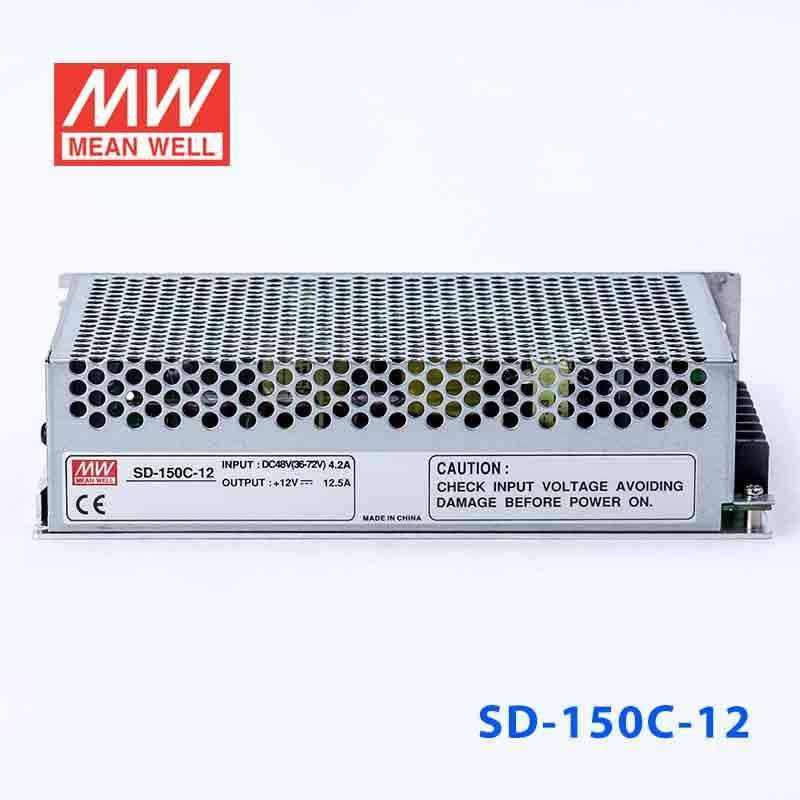

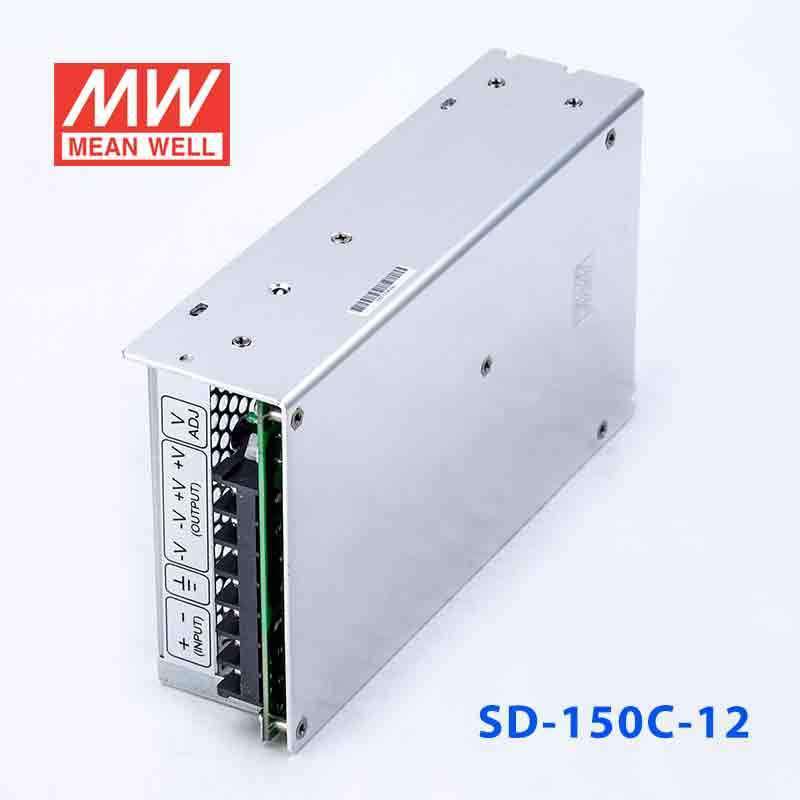

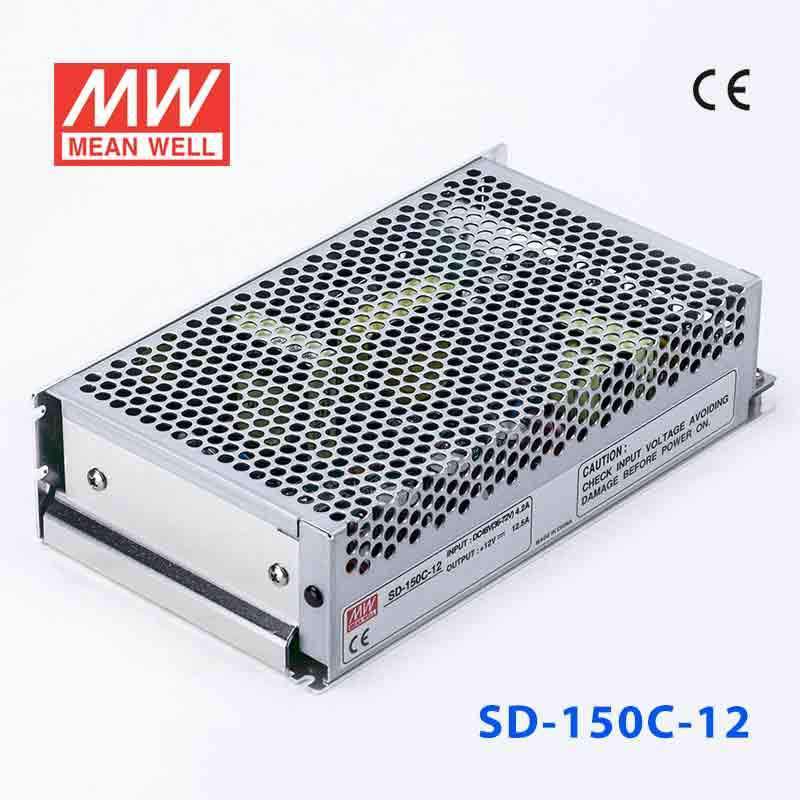

Mean Well SD-150C-12 DC-DC Converter - 150W - 36~72V in 12V out 12.5A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-150C-12
$55.95 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-150C-12 is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 77%.

Features

  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • 24V and 48V input voltage design refer to LVD
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-150C-12Specifications from the official datasheet (2024-09-03 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
12.5A
CURRENT RANGE
0 ~ 12.5A
RATED POWER
150W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
11 ~ 16VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.)
24ms(only D mode) at full load

INPUT

VOLTAGE RANGE
C:36 ~ 72VDC
EFFICIENCY (Typ.)
77%
DC CURRENT (Typ.)
4.2A/48V
INRUSH CURRENT (Typ.)
D:22.5A/96VDC
LEAKAGE CURRENT
<0.75mA / 120VAC (SD-150D)

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
16.8V ~ 20V/10% LOAD Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to output load derating curve)
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMI CONDUCTION & RADIATION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, BS EN/ENV50204, light industry level, EAC TP TC 020

OTHERS

MTBF
2897.06K hrs min. Telcordia SR-332 (Bellcore) ; 419.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*110*50mm (L*W*H)
PACKING
0.86Kg; 16pcs/14.5Kg/0.95CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-150C-12 Mechanical Specification
Mechanical Specification
SD-150C-12 Block Diagram
Block Diagram
SD-150C-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SD-150C-12 to step down a 36-72V DC source for a 12V industrial controller?

Yes, this converter is intended for 36-72V input and provides a constant 12V output. It is rated for up to 12.5A and 150W, so it fits 12V control equipment that remains inside those limits.

Is the SD-150C-12 appropriate for 12V embedded or telecom equipment on a 48V-class DC bus?

It is a practical match when the source falls within the 36-72V input range and the load needs regulated 12V DC. The unit can supply up to 12.5A, with a total output rating of 150W.

Can this model power 12V monitoring, signaling, or automation accessories from a higher-voltage DC supply?

Yes, it converts 36-72V input to a constant 12V output for loads that need stable low-voltage DC. Its 150W and 12.5A ratings make it suitable for 12V monitoring and accessory loads within that envelope.

Will the SD-150C-12 work in hot or cold equipment cabinets?

The specified operating temperature range is -10°C to +60°C, with output load derating at higher ambient temperatures (see the derating curve). No IP rating is listed, so it should be used in a protected indoor enclosure rather than an exposed outdoor location.

What are the key differences between the SD-150C-12 and the other SD-150 versions?

The SD-150C-12 is one of three 12V SD-150 models, alongside SD-150B-12 and SD-150D-12, and all three are rated at 150W and 12.5A. The 24V counterparts are SD-150B-24, SD-150C-24, and SD-150D-24, each rated at 151.2W and 6.3A. The B, C, and D versions differ by input range: 19-36V, 36-72V, and 72-144V respectively.
