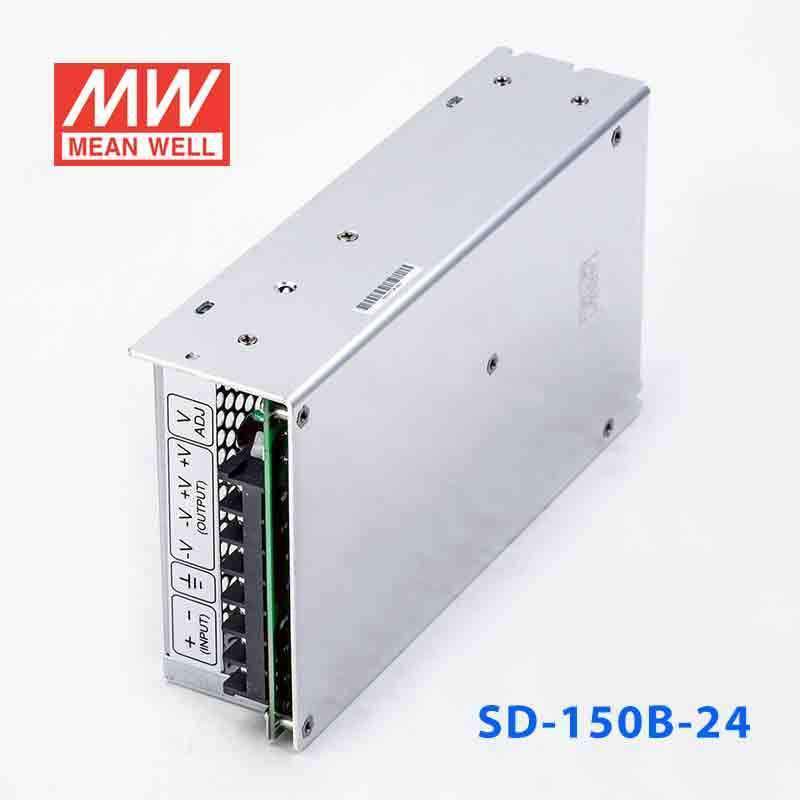

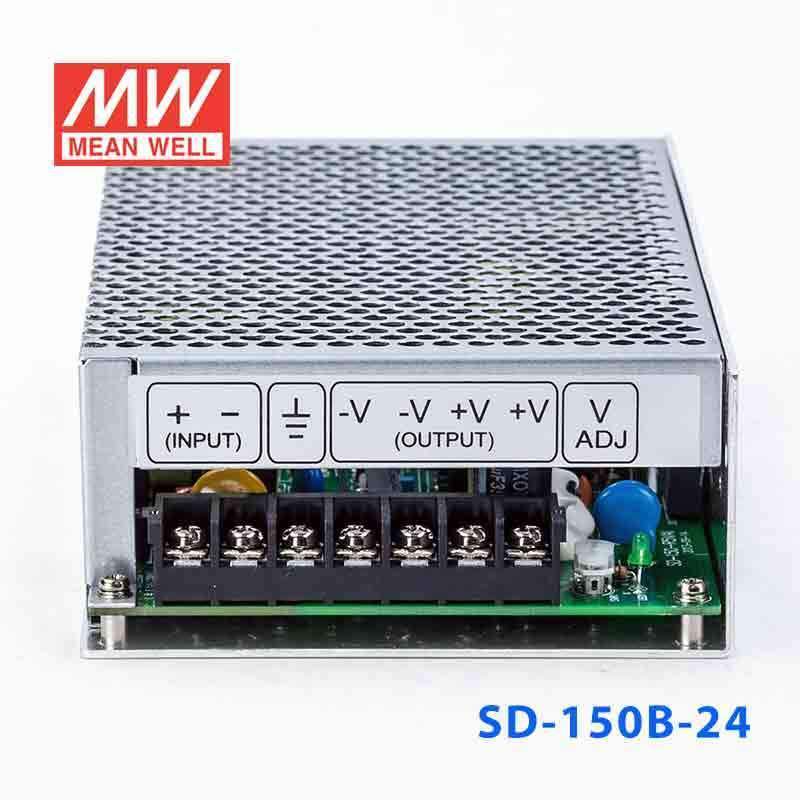

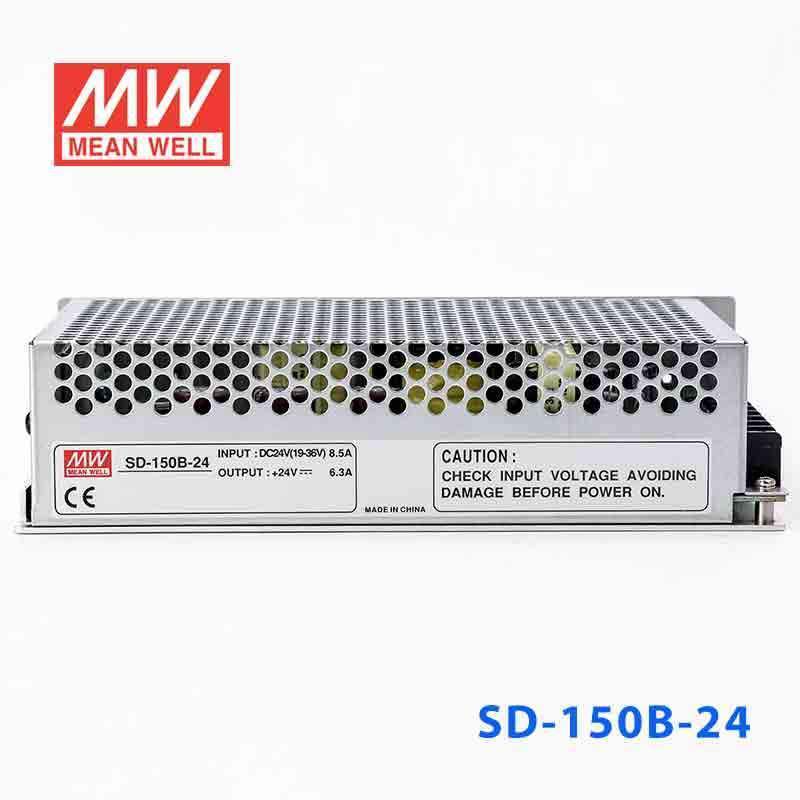

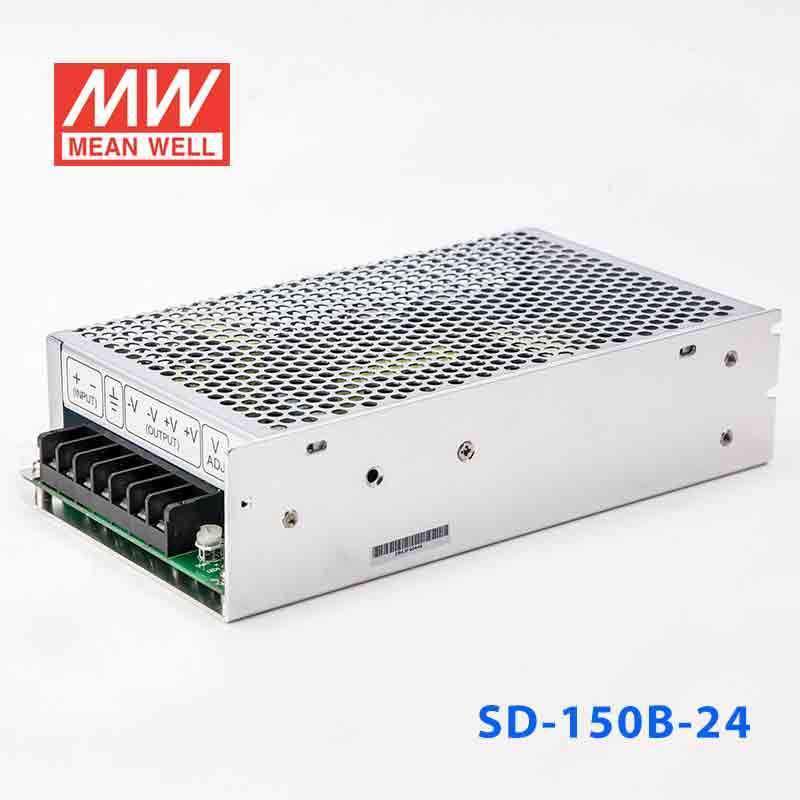

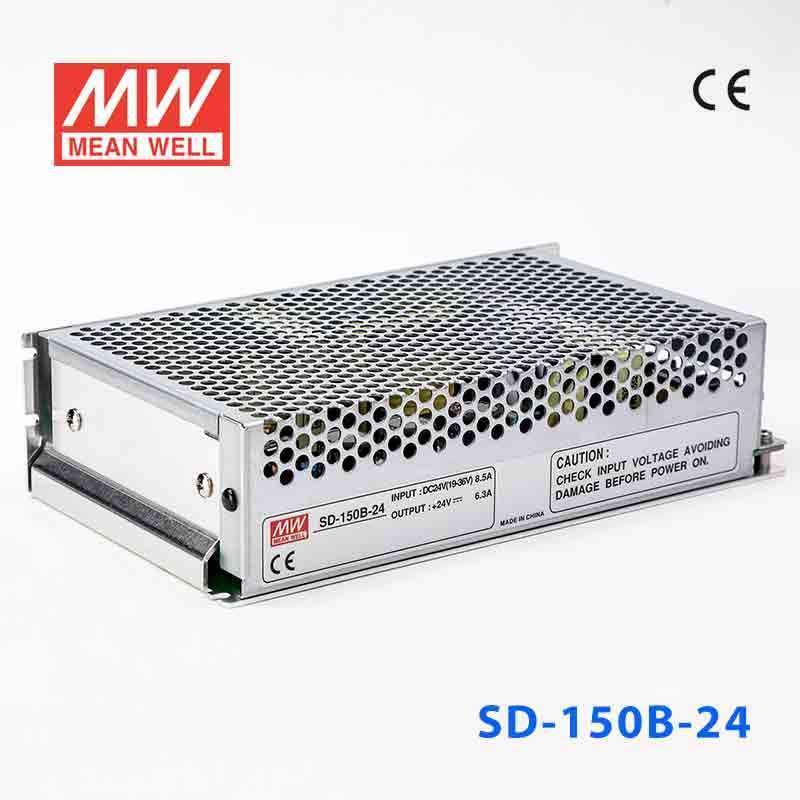

Mean Well SD-150B-24 DC-DC Converter - 150W - 19~36V in 24V out

$56.02 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

· 2:1 wide input range

· Protections: Short circuit / Overload / Over voltage

· 1500VAC I/O isolation

· Built-in EMI filter, low ripple noise

· 100% full load burn-in test

· 24V and 48V input voltage design refer to LVD

· Low cost

· High reliability

· 2 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    SD Series
  • Power Rating
    151.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    6.5 Ampere
  • Input Voltage
    19V~36V
  • Standards Met
    EAC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    7.83 in
  • Width
    4.33 in
  • Height
    1.97 in
  • Weight
    1.9 lb

File Downloads
