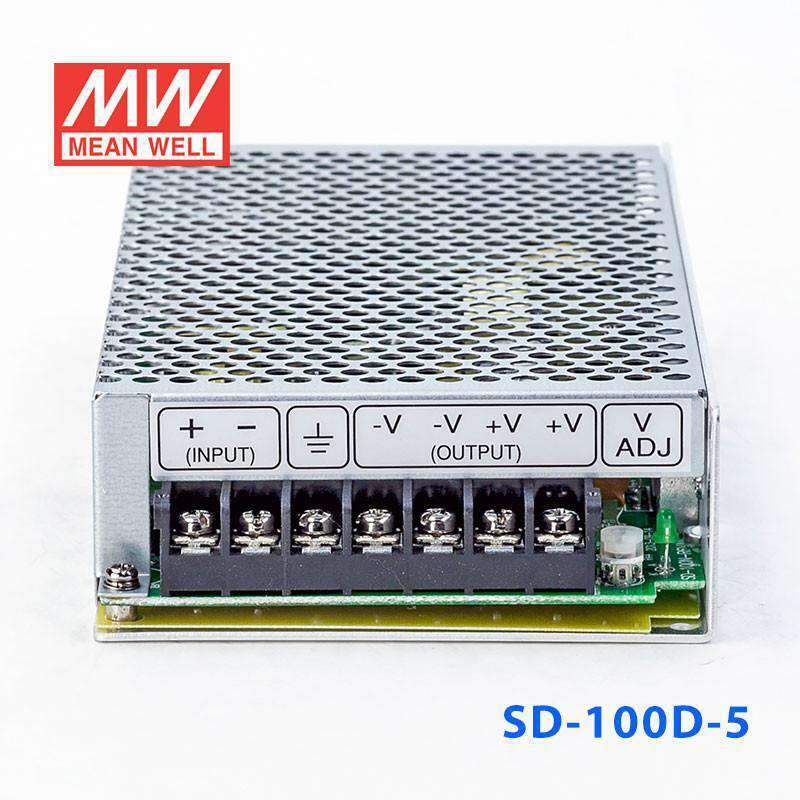

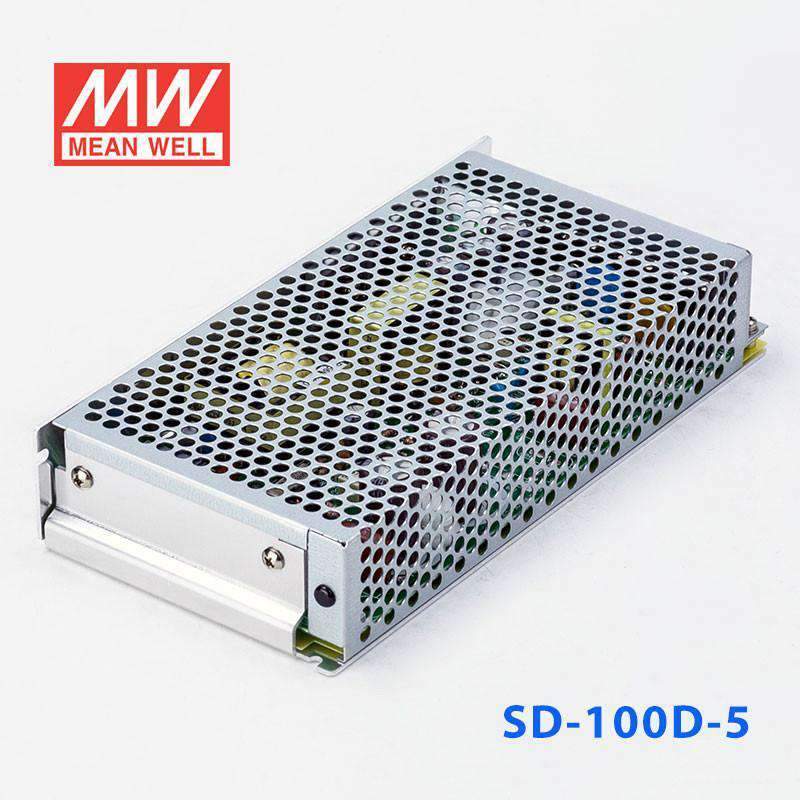

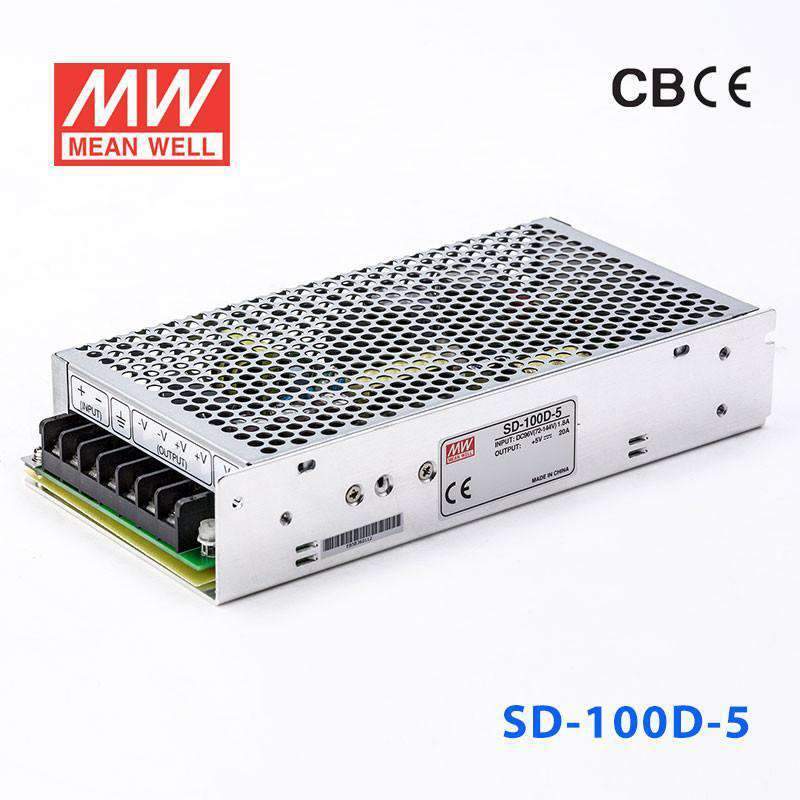

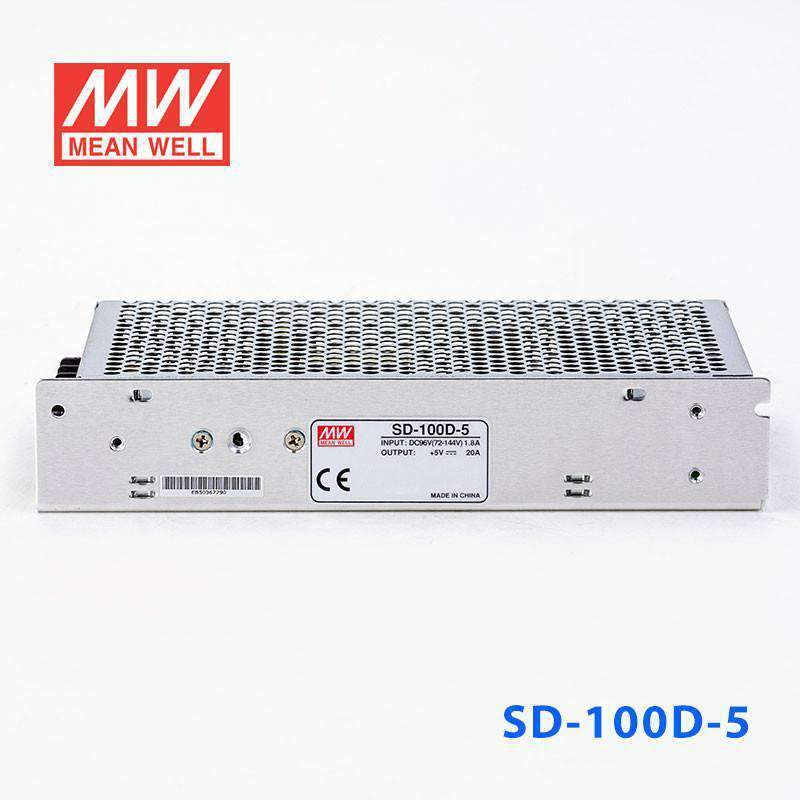

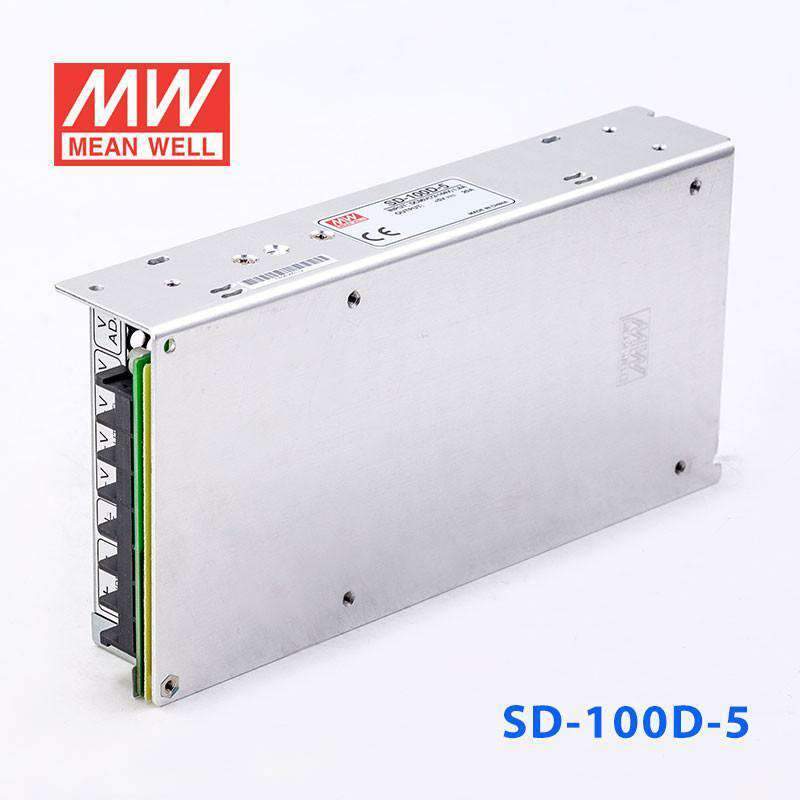

Mean Well SD-100D-5 DC-DC Converter - 100W - 72~144V in 5V out 18A
Overview
SD-100D-5 is the 5V output model of this series: rated current 20A, rated power 100W, typical efficiency 76%.
Features
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage
- 1500VAC I/O isolation
- Built-in EMI filter, low ripple noise
- Low cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- RATED CURRENT
- 20A
- CURRENT RANGE
- 0 ~ 20A
- RATED POWER
- 100W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 4.5 ~ 5.5VDC
- VOLTAGE TOLERANCENote.3
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±0.5%
- SETUP, RISE TIME
- 2s, 50ms(only D mode) at full load
- HOLD UP TIME (Typ.)
- 20ms(only D mode) at full load
INPUT
- VOLTAGE RANGE
- D:72 ~ 144VDC or 85 ~ 132VAC
- EFFICIENCY (Typ.)
- 76%
- DC CURRENT (Typ.)
- 1.8A/96V
- INRUSH CURRENT (Typ.)
- D:18A/96VDC
- LEAKAGE CURRENT
- <0.75mA/120VAC(SD-100D)
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 5.75 ~ 6.75V/10% load Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*98*38mm (L*W*H)
- PACKING
- 0.65Kg; 20pcs/13.8Kg/0.85CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 12,24,48,96VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the SD-100D-5 to power 5V embedded controllers from a 72-144V DC source?
Yes. This unit converts 72-144V input to regulated 5V constant-voltage output. Its 100W rating and 20A output current make it suitable for higher-current 5V embedded and control electronics on high-voltage DC systems.
Is the SD-100D-5 suitable for 5V industrial computers or data acquisition hardware?
It is a fit when the equipment requires 5V input and the total load stays within 100W or 20A. The wide 72-144V input range is useful in systems built around higher-voltage DC buses. Its constant-voltage output is intended for electronics that need a stable 5V supply.
Can this model power several 5V automation devices from one high-voltage DC bus?
It can support multiple 5V devices if their combined demand remains at or below 100W and 20A. That makes it practical for grouped 5V control, monitoring, or processing electronics fed from a 72-144V source. It is better suited to moderate-power 5V loads than the smaller 15W or 25W units in the same series.
Can the SD-100D-5 be used in outdoor equipment enclosures?
No IP rating is listed for this converter, so it is generally better for protected indoor enclosures than direct outdoor exposure. The operating temperature range is -10°C to +60°C. If it is placed in outdoor equipment, the surrounding enclosure would need to provide the environmental protection.
What distinguishes the SD-100D-5 from the other SD-100D models?
The difference is the output class within the same family. SD-100D-5 is 100W at 5V and 20A, SD-100D-12 is 102W at 12V and 8.5A, and SD-100D-24 is 100.8W at 24V and 4.2A. All three stay near the 100W range while targeting different output voltages and current levels.
