Mean Well

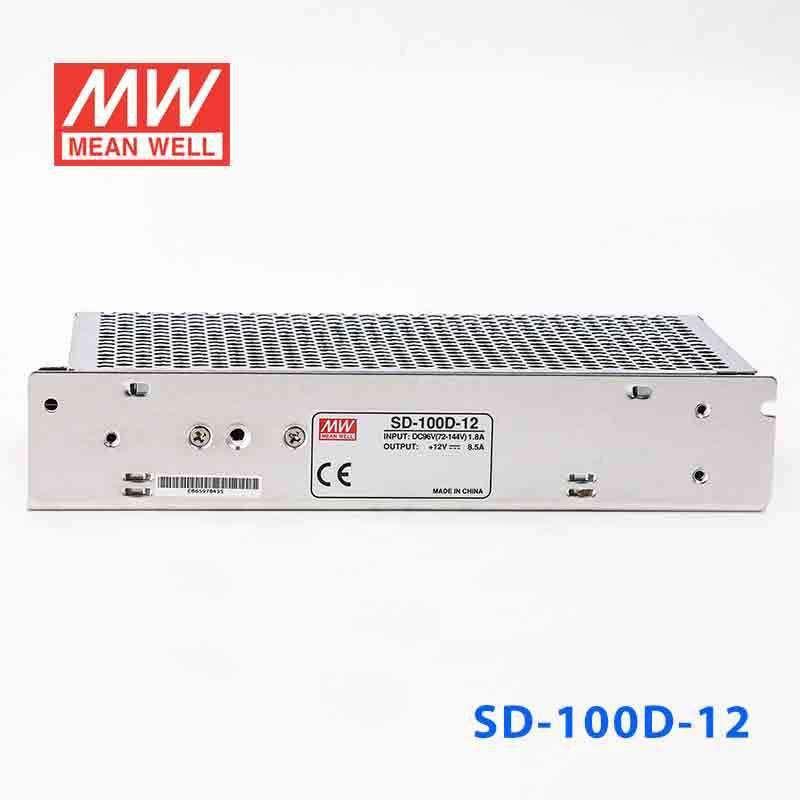

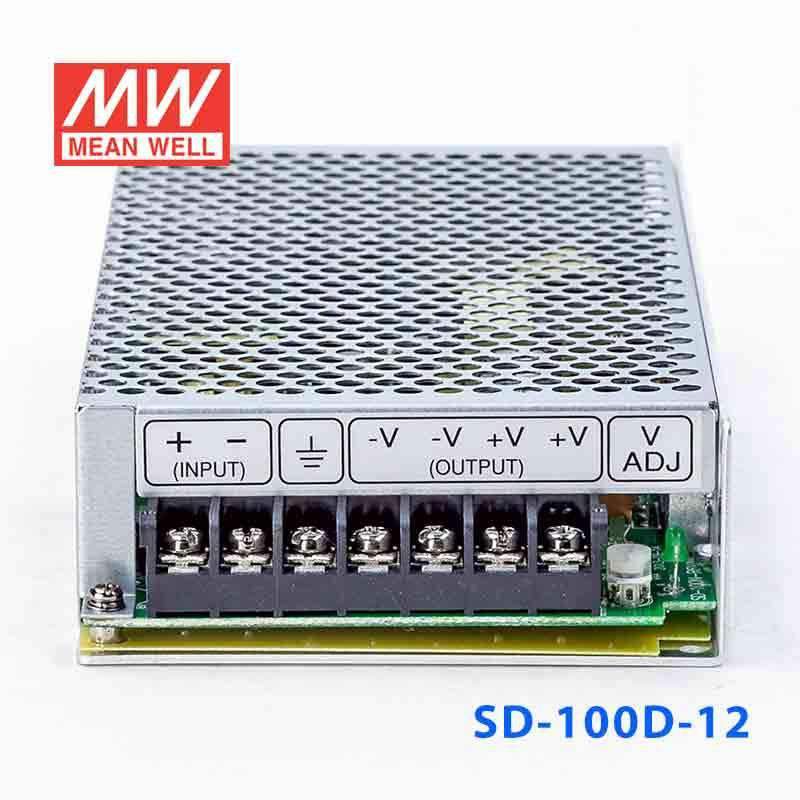

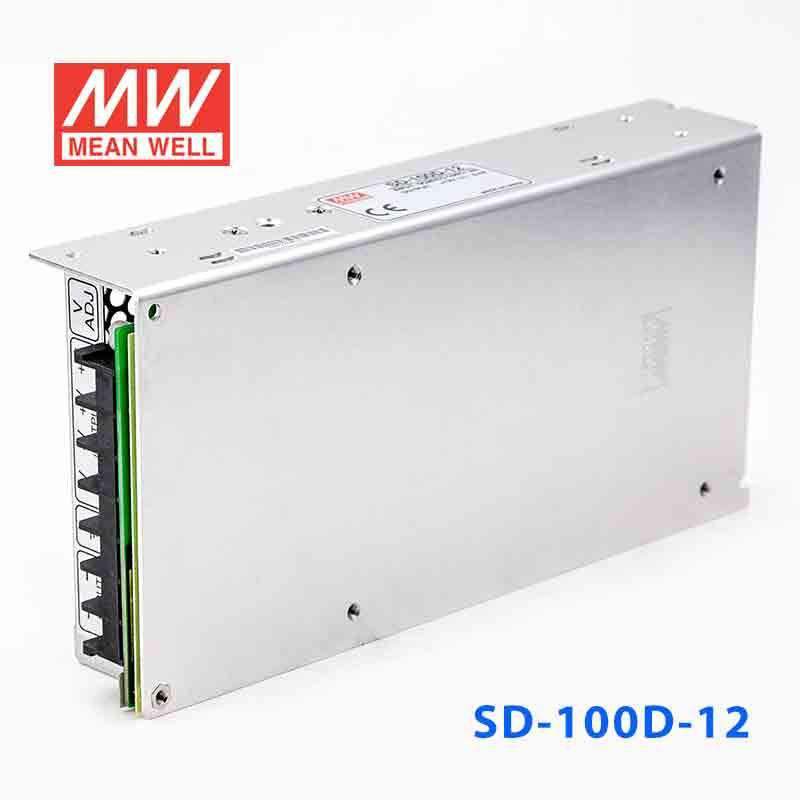

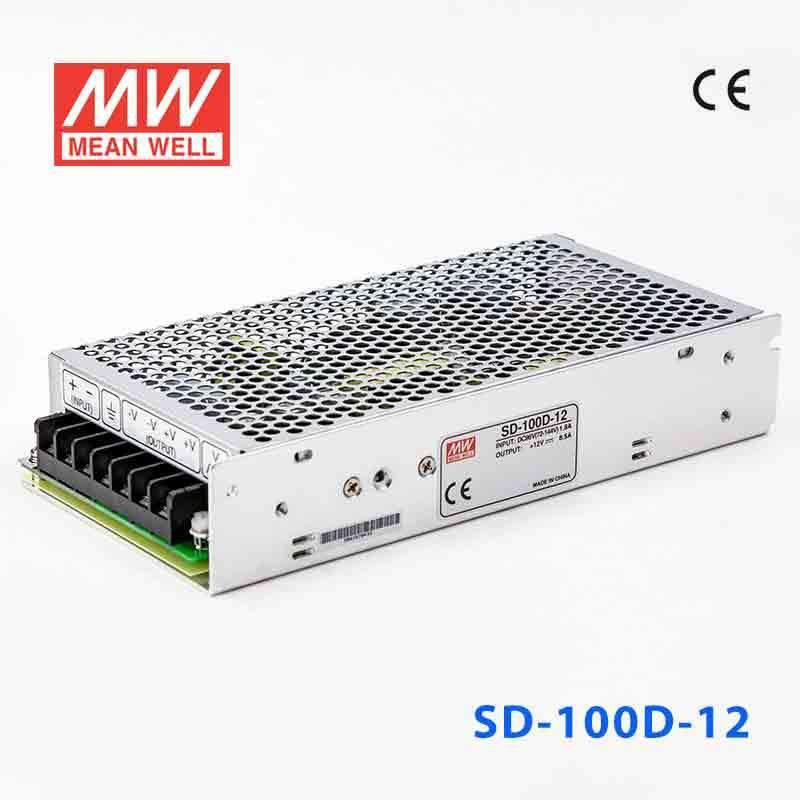

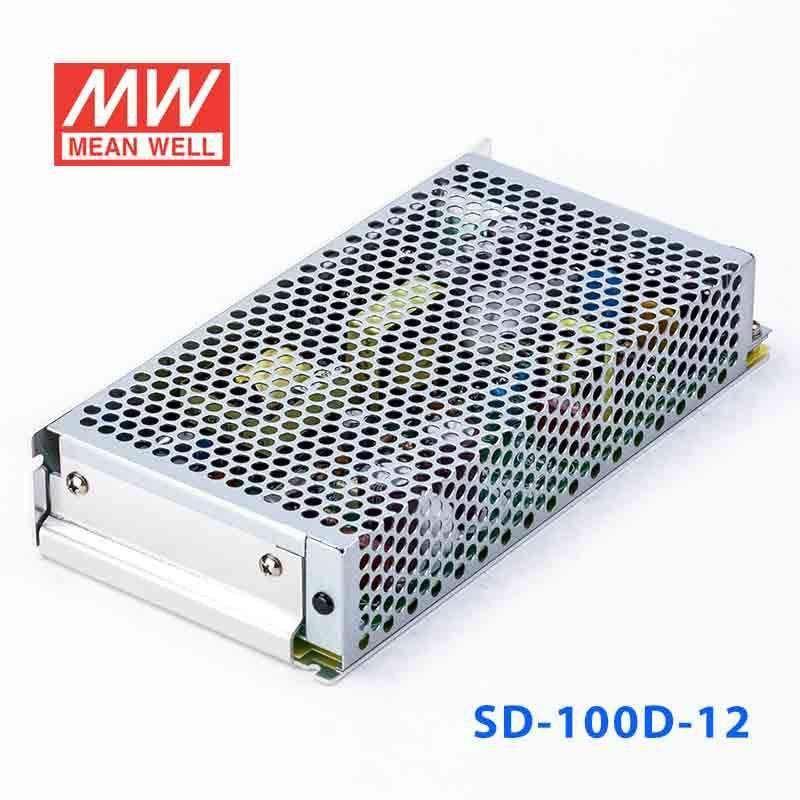

Mean Well SD-100D-12 DC-DC Converter - 100W - 72~144V in 12V out 8.5A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-100D-12
$42.37 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-100D-12 is the 12V output model of this series: rated current 8.5A, rated power 102W, typical efficiency 80%.

Features

  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-100D-12Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
8.5A
CURRENT RANGE
0 ~ 8.5A
RATED POWER
102W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
11 ~ 16VDC
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.3%
SETUP, RISE TIME
2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.)
20ms(only D mode) at full load

INPUT

VOLTAGE RANGE
D:72 ~ 144VDC or 85 ~ 132VAC
EFFICIENCY (Typ.)
80%
DC CURRENT (Typ.)
1.8A/96V
INRUSH CURRENT (Typ.)
D:18A/96VDC
LEAKAGE CURRENT
<0.75mA/120VAC(SD-100D)

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
16.8 ~ 20V/10% load Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.65Kg; 20pcs/13.8Kg/0.85CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 12,24,48,96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-100D-12 S D - 1 0 0 series
S D - 1 0 0 series
SD-100D-12 INPUT ※
INPUT ※
SD-100D-12 Block Diagram
Block Diagram
SD-100D-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SD-100D-12 to power a 12V PLC or HMI from a 72-144V DC source?

Yes. This converter accepts 72-144V input and delivers regulated 12V constant-voltage output. Its 102W, 8.5A rating suits many 12V PLC, HMI, and panel-control loads on high-voltage DC systems.

Is the SD-100D-12 appropriate for 12V communication or monitoring equipment in industrial cabinets?

It is intended for 12V electronics that need stable constant-voltage power from a 72-144V source. The 8.5A output current and 102W capacity make it suitable for moderate-power communication, monitoring, and control devices. The 2:1 input range helps when the upstream DC bus varies within that 72-144V window.

Can this model support 12V embedded or automation devices on a 96V or 110V DC bus?

It is designed for high-voltage DC inputs within 72-144V, so it fits systems built around that bus range. On the output side, it provides 12V at up to 8.5A with a total power limit of 102W. That makes it a practical match for 12V embedded controllers and automation electronics that stay within those limits.

Is the SD-100D-12 meant for indoor or outdoor use?

It is designed for indoor use. The operating temperature range is -10°C to +60°C. For outdoor cabinets, additional environmental protection would normally be required.

What is the main difference between the SD-100D-12 and the other SD-100D versions?

The SD-100D family shares the same high-voltage input class, but the outputs differ. SD-100D-12 is 102W at 12V and 8.5A, SD-100D-24 is 100.8W at 24V and 4.2A, and SD-100D-5 is 100W at 5V and 18A. That means the choice within this group is mainly output voltage and available current at roughly the same 100W class.
