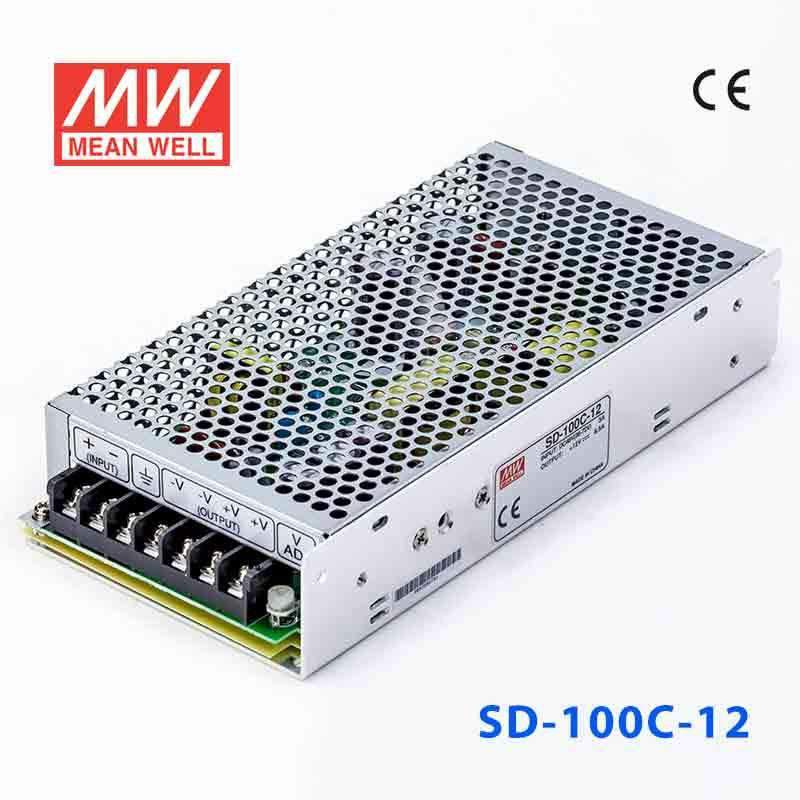

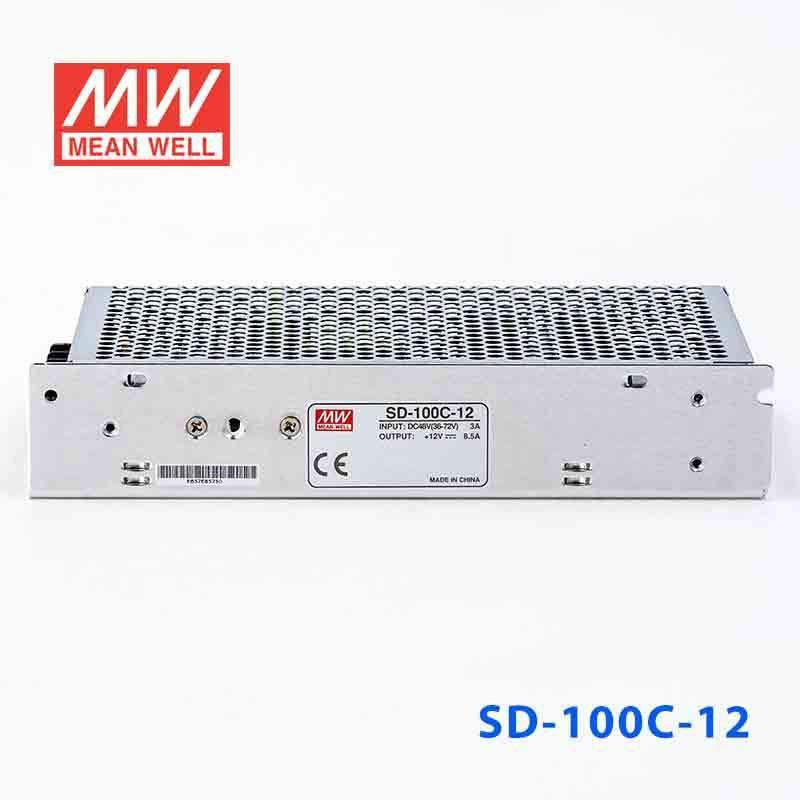

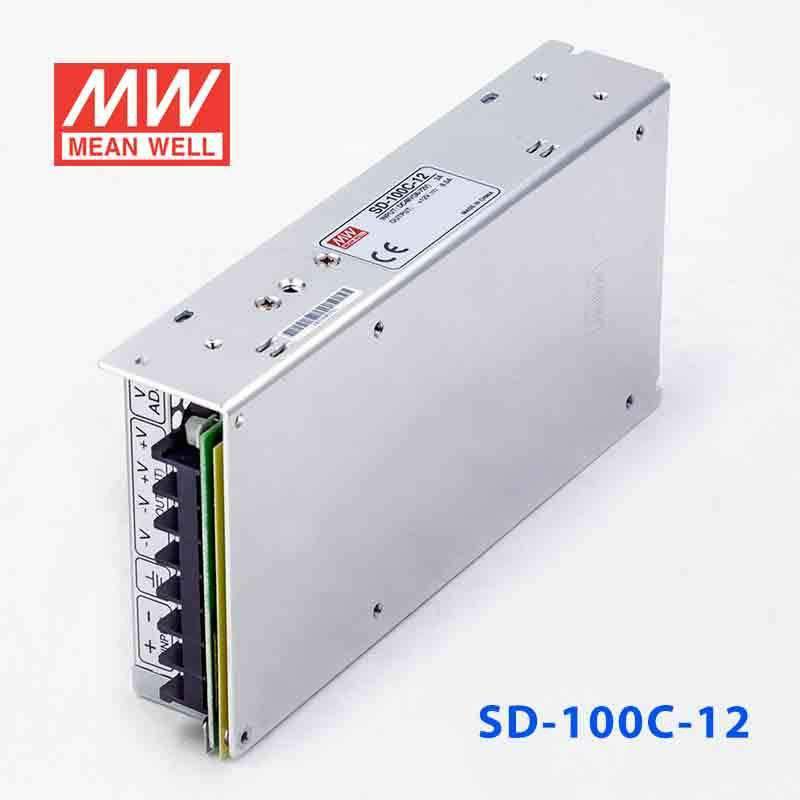

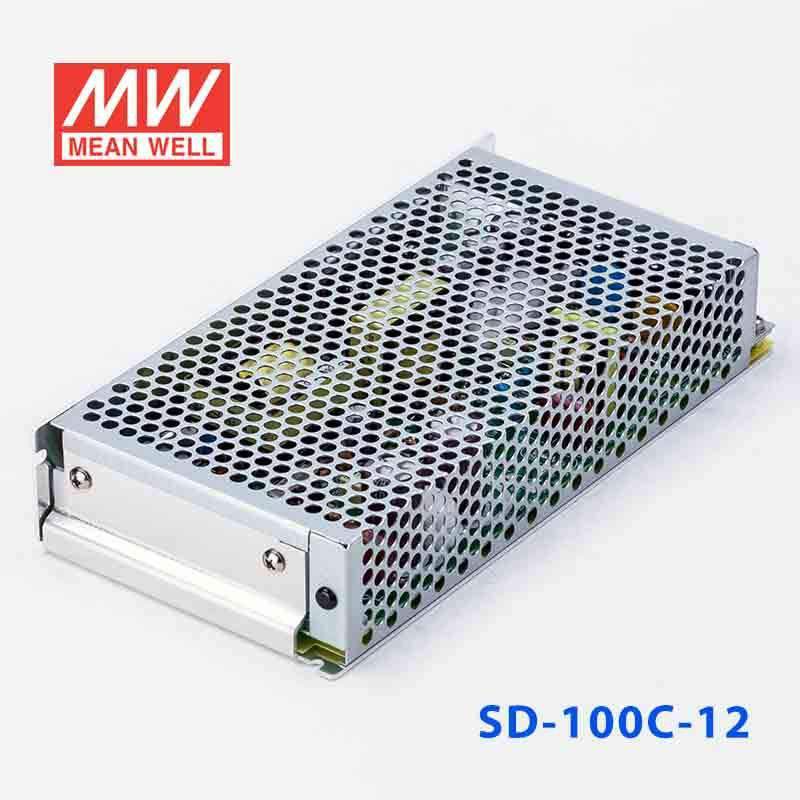

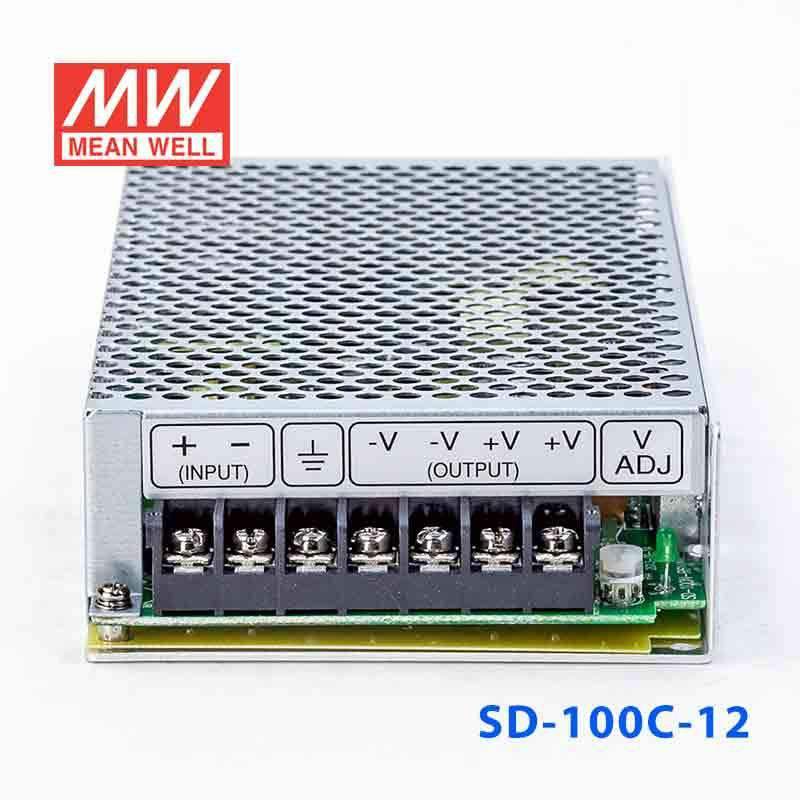

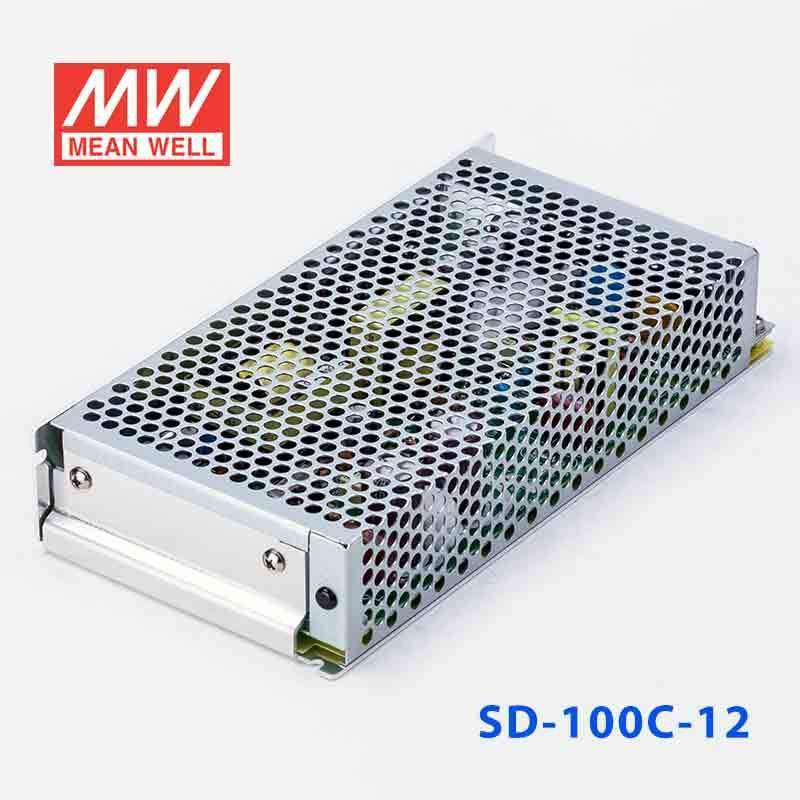

Mean Well SD-100C-12 DC-DC Converter - 100W - 36~72V in 12V out 8.5A
Overview
SD-100C-12 is the 12V output model of this series: rated current 8.5A, rated power 102W, typical efficiency 77%.
Features
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage
- 1500VAC I/O isolation
- Built-in EMI filter, low ripple noise
- Low cost
- High reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 8.5A
- CURRENT RANGE
- 0 ~ 8.5A
- RATED POWER
- 102W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 11 ~ 16VDC
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.3%
- LOAD REGULATION
- ±0.3%
- SETUP, RISE TIME
- 2s, 50ms(only D mode) at full load
- HOLD UP TIME (Typ.)
- 20ms(only D mode) at full load
INPUT
- VOLTAGE RANGE
- C:36 ~ 72VDC
- EFFICIENCY (Typ.)
- 77%
- DC CURRENT (Typ.)
- 2.4A/48V
- INRUSH CURRENT (Typ.)
- D:18A/96VDC
- LEAKAGE CURRENT
- <0.75mA/120VAC(SD-100D)
PROTECTION
- OVERLOAD
- 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 16.8 ~ 20V/10% load Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -20 ~ +85℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)
- SAFETY STANDARDS
- IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*98*38mm (L*W*H)
- PACKING
- 0.65Kg; 20pcs/13.8Kg/0.85CUFT
Test conditions and notes5
- 1. All parameters NOT specially mentioned are measured at 12,24,48,96VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the SD-100C-12 to derive 12V control power from a 36-72V DC bus?
Yes, this converter is designed for a 36-72V input range and provides regulated 12V constant voltage output. With 8.5A output current and 102W power, it fits moderate 12V control and automation loads on higher-voltage DC systems.
Is the SD-100C-12 suitable for 12V industrial HMIs, monitoring devices, or communications equipment on 48V-class systems?
It can be a fit where the source falls inside the 36-72V input range and the load needs 12V constant voltage. Its 102W and 8.5A output rating suits moderate-power 12V electronics rather than large 12V current draws.
Can the SD-100C-12 power 12V embedded subsystems in automation or transport equipment with a higher-voltage DC source?
This model is intended for 12V loads that need regulated output from a 36-72V input source. The 2:1 wide input range supports higher-voltage DC platforms, while the 8.5A and 102W rating define the usable load size.
Is the SD-100C-12 rated for exposed outdoor service?
The available specs list an operating temperature range of -10°C to +60°C for the SD-100C series, but no IP rating is provided. That means the stated data supports temperature evaluation, but not outdoor ingress protection claims.
How does the SD-100C-12 compare with other SD-100 family outputs?
In the SD-100 range, the 12V versions SD-100A-12, SD-100B-12, SD-100C-12, and SD-100D-12 are each rated at 102W and 8.5A. The 24V versions SD-100A-24, SD-100B-24, SD-100C-24, and SD-100D-24 are 100.8W and 4.2A, and the 5V versions SD-100A-5, SD-100B-5, SD-100C-5, and SD-100D-5 are 100W and 18A.
