Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

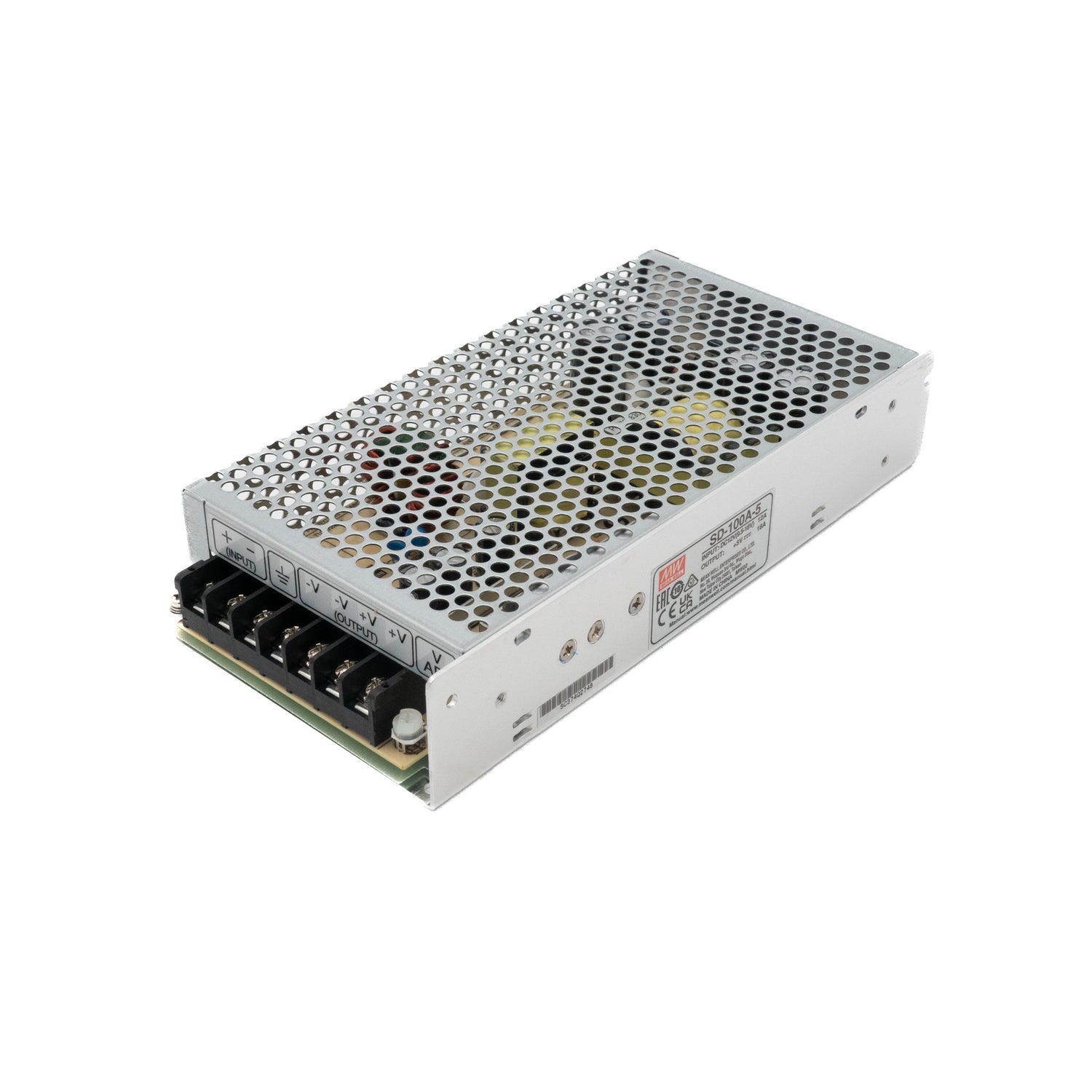

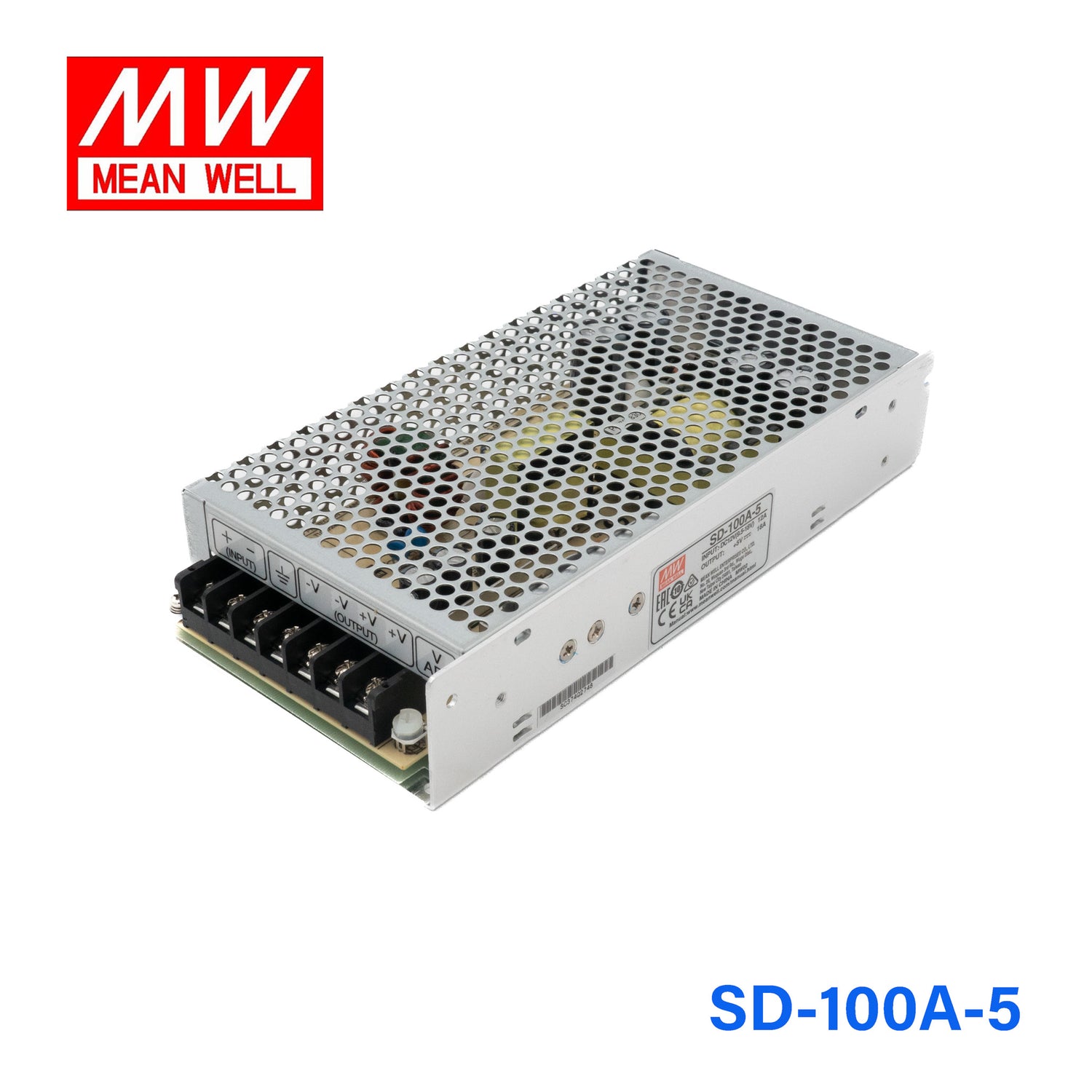

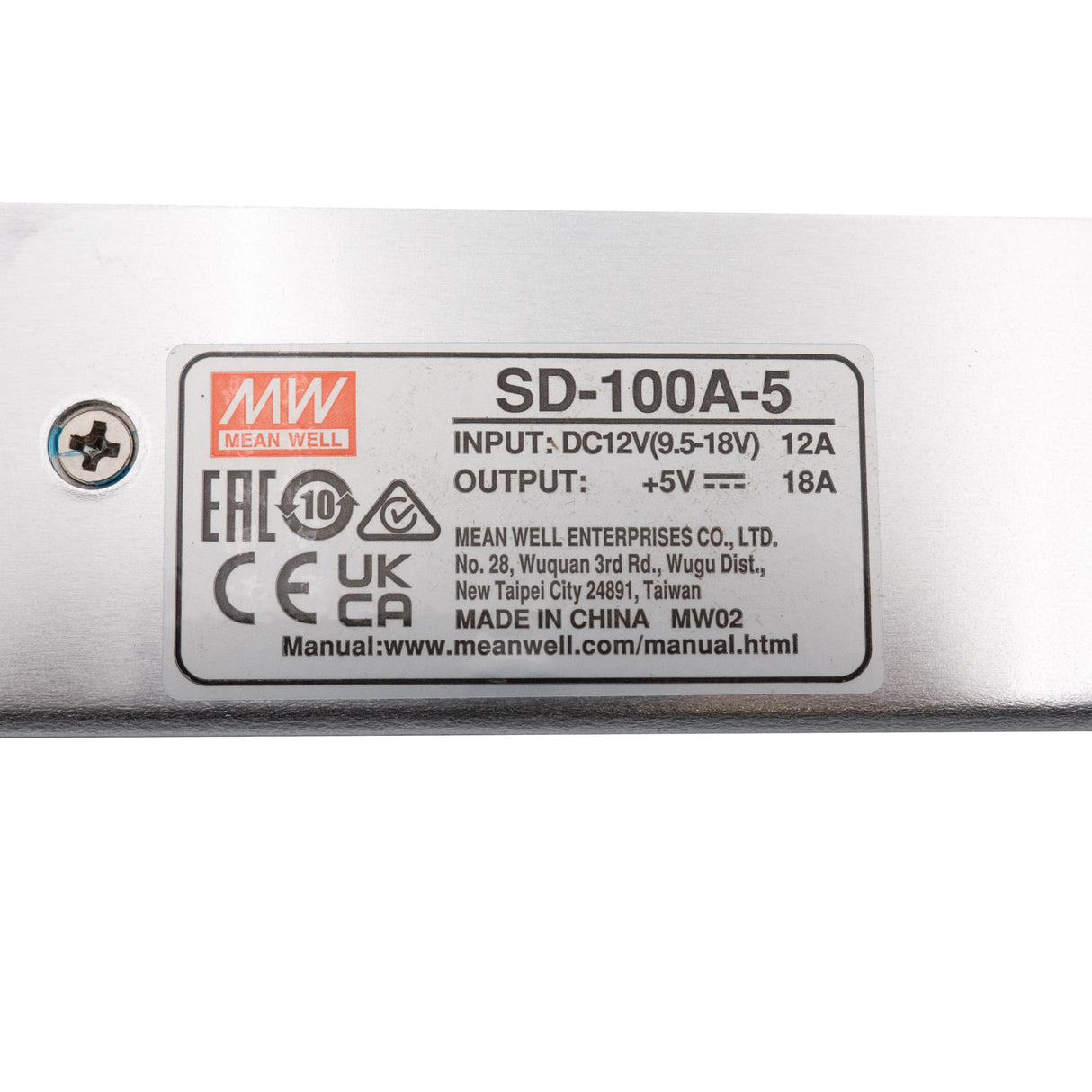

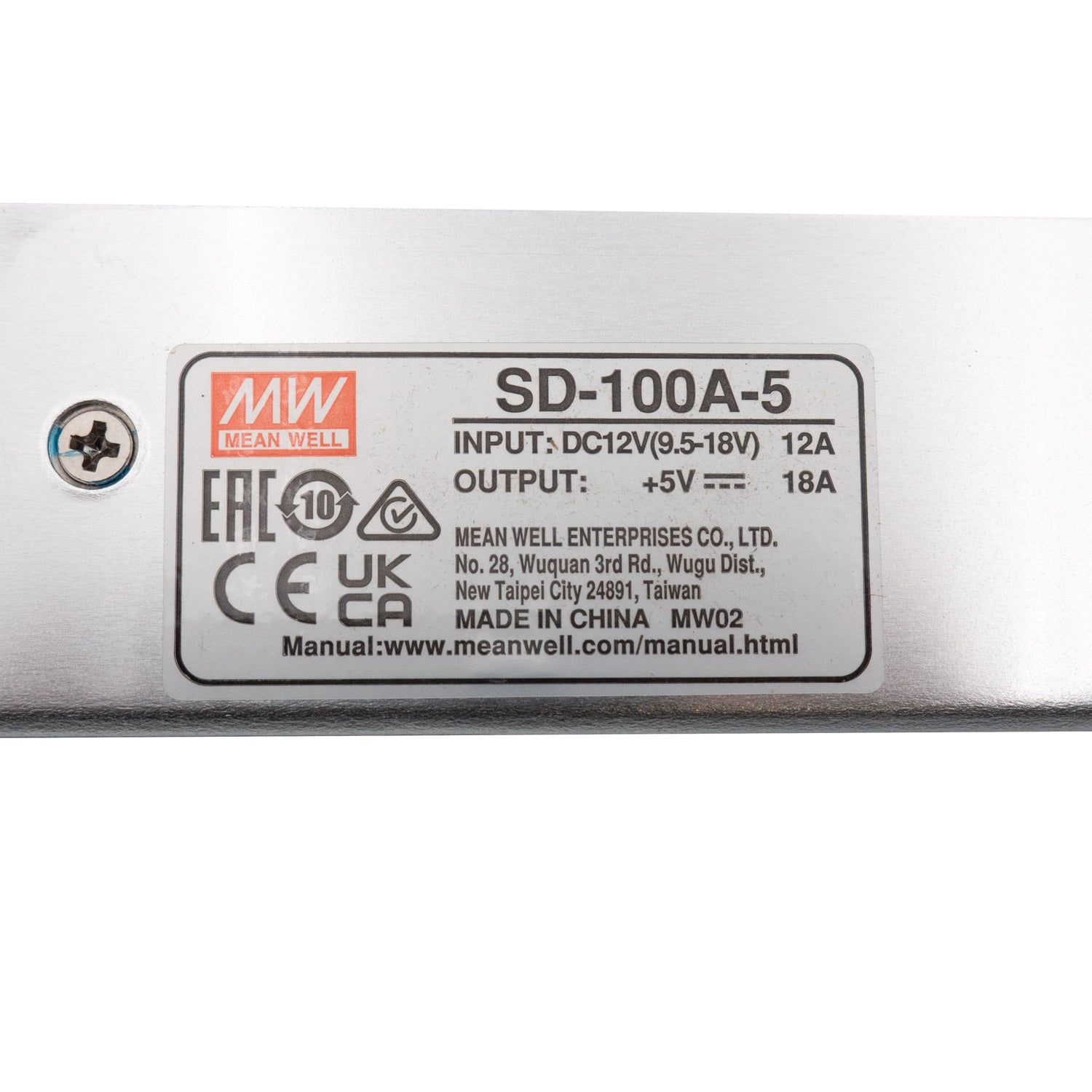

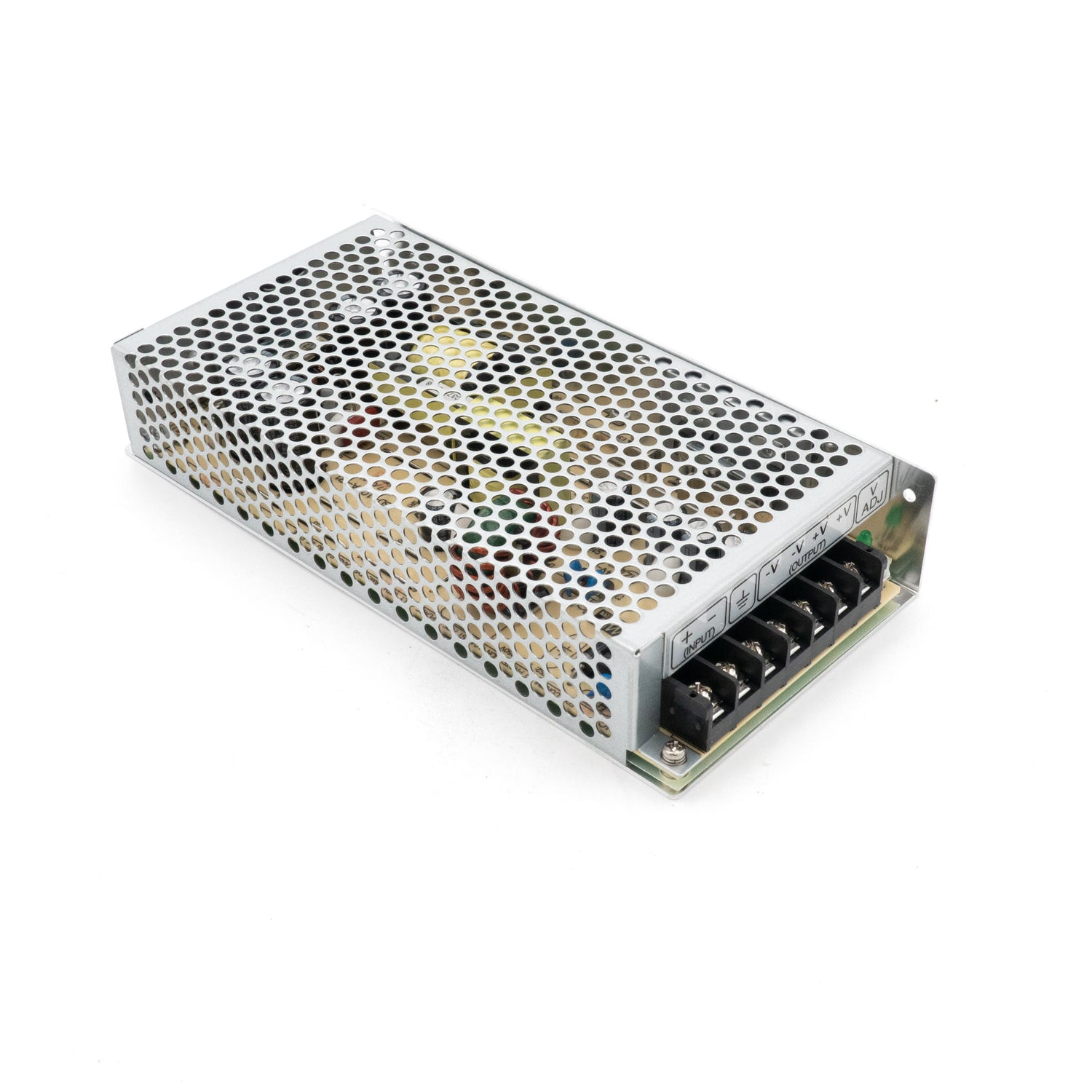

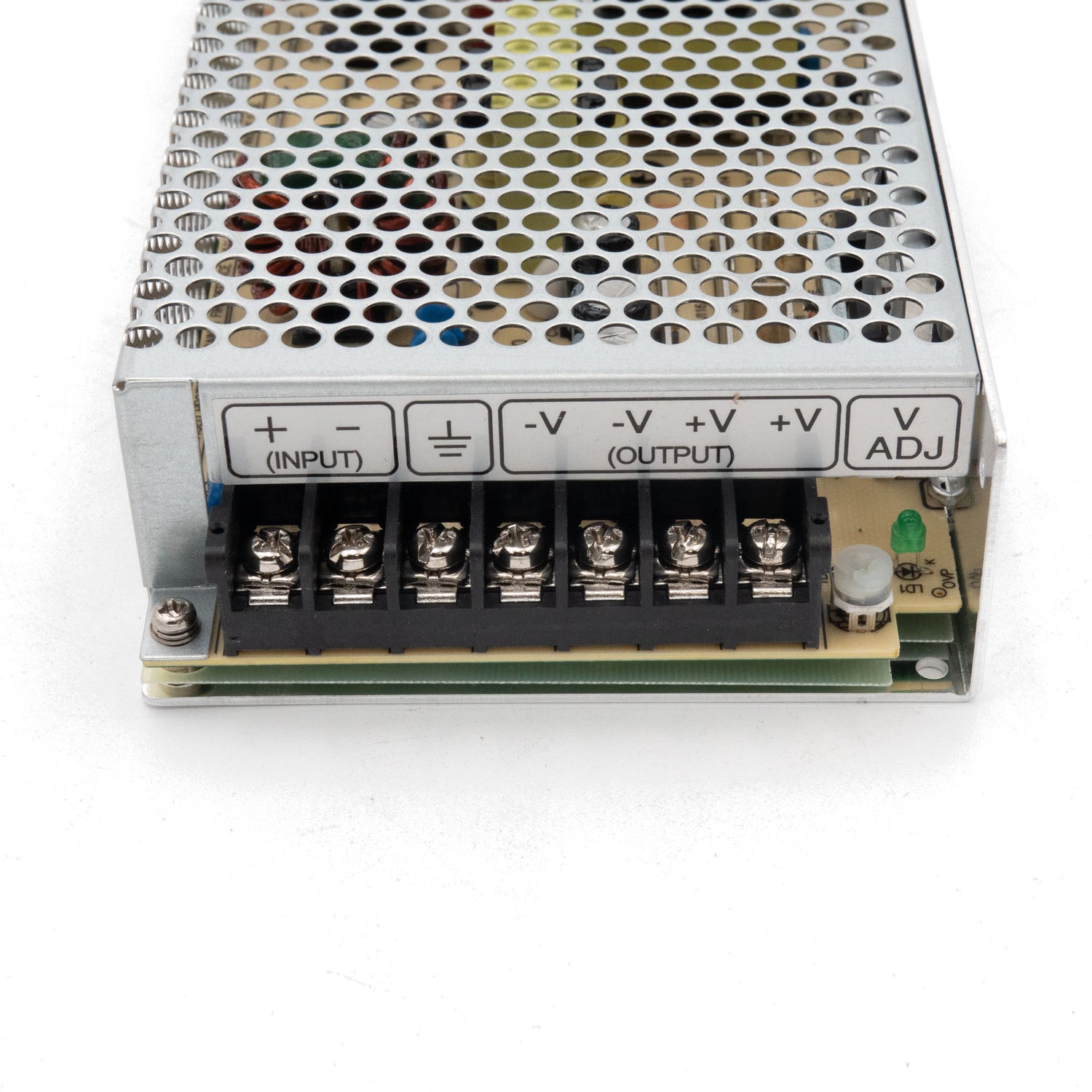

Mean Well SD-100A-5 DC-DC Converter - 100W - 9.5~18V in 5V out 18A

2:1 wide input range1.5~2KVAC isolation by models
SKU SD-100A-5
$42.39 USD
Shipping calculated at checkout.
In stock
|

Overview

SD-100A-5 is the 5V output model of this series: rated current 18A, rated power 90W, typical efficiency 78%.

Features

  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • Low cost
  • High reliability
  • 2 years warranty

Specifications

SD-100A-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
18A
CURRENT RANGE
0 ~ 18A
RATED POWER
90W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
4.5 ~ 5.5VDC
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
2s, 50ms(only D mode) at full load
HOLD UP TIME (Typ.)
20ms(only D mode) at full load

INPUT

VOLTAGE RANGE
A:9.5 ~ 18VDC
EFFICIENCY (Typ.)
78%
DC CURRENT (Typ.)
9.7A/12V
INRUSH CURRENT (Typ.)
D:18A/96VDC
LEAKAGE CURRENT
<0.75mA/120VAC(SD-100D)

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V/10% load Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1
WITHSTAND VOLTAGE
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
2600.2K hrs min. Telcordia SR-332 (Bellcore) ; 399.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.65Kg; 20pcs/13.8Kg/0.85CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 12,24,48,96VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-100A-5 S D - 1 0 0 series
S D - 1 0 0 series
SD-100A-5 INPUT ※
INPUT ※
SD-100A-5 Block Diagram
Block Diagram
SD-100A-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SD-100A-5 for 5V embedded controllers or industrial computing hardware?

Yes, it provides a constant 5V output and can deliver up to 18A. With a 90W rating and a listed 9.5-18V input range, it fits higher-current 5V DC applications within that power limit.

Is the SD-100A-5 suitable for powering 5V logic or communications equipment from a low-voltage DC bus?

It is designed for 5V constant voltage output from an input source in the listed 9.5-18V range. The 18A output capacity supports 5V loads that need relatively high current within the 90W rating.

Can this converter be used for 5V automation electronics in battery-powered systems?

Yes, if the source remains within the specified 9.5-18V range and the load needs regulated 5V DC. The converter is rated for up to 90W total output power and 18A output current.

Is the SD-100A-5 intended for outdoor environments or only protected enclosures?

The operating temperature range is listed as -15°C to +60°C. No IP rating is provided, so the specs do not identify it as an outdoor-rated or water-resistant model.

How does the SD-100A-5 compare with the other SD-100A models?

Within the SD-100A family, the SD-100A-5 is 90W at 5V and 18A, the SD-100A-12 is 102W at 12V and 8.5A, and the SD-100A-24 is 100.8W at 24V and 4.2A. They are all around the same power class, with different output voltages and current levels.
