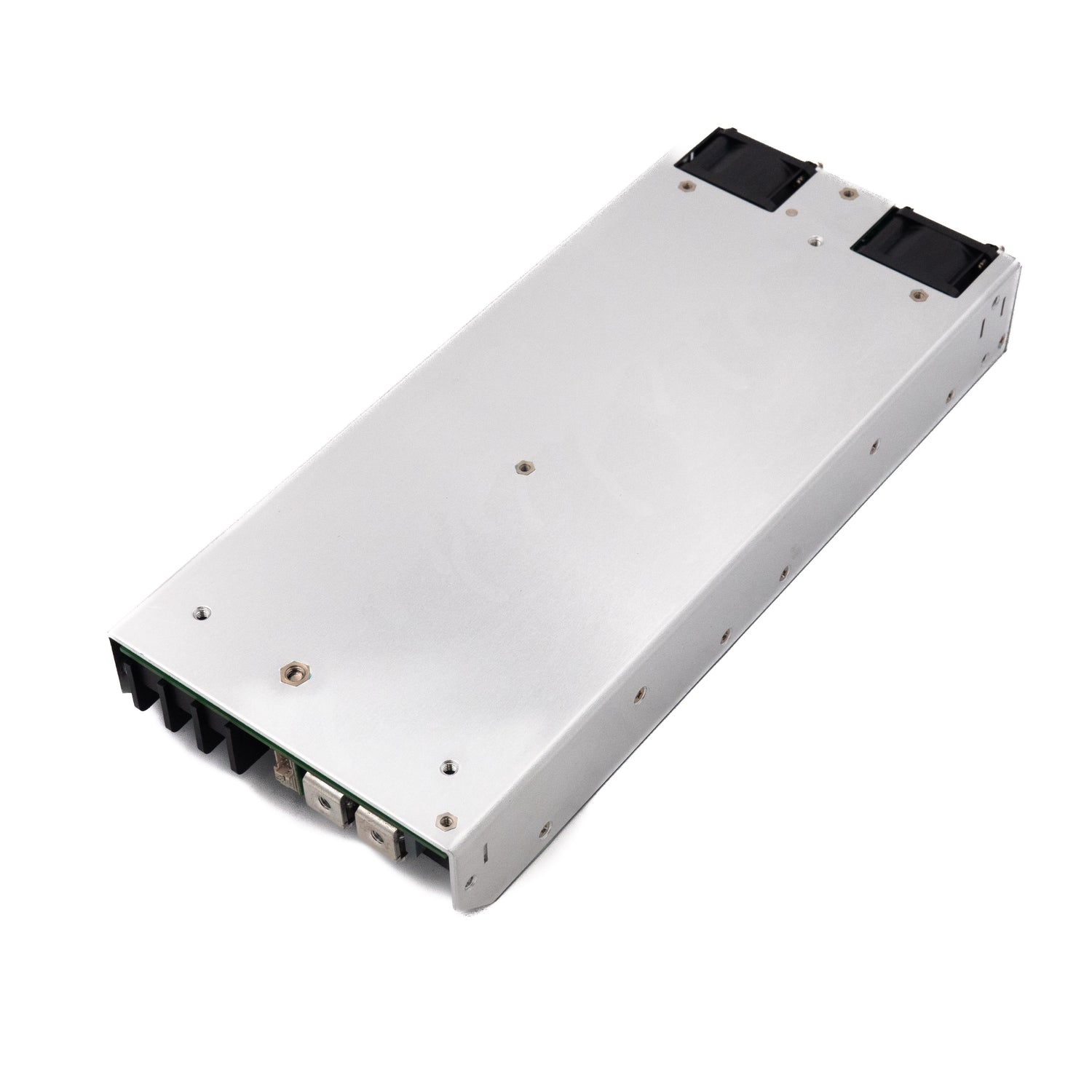

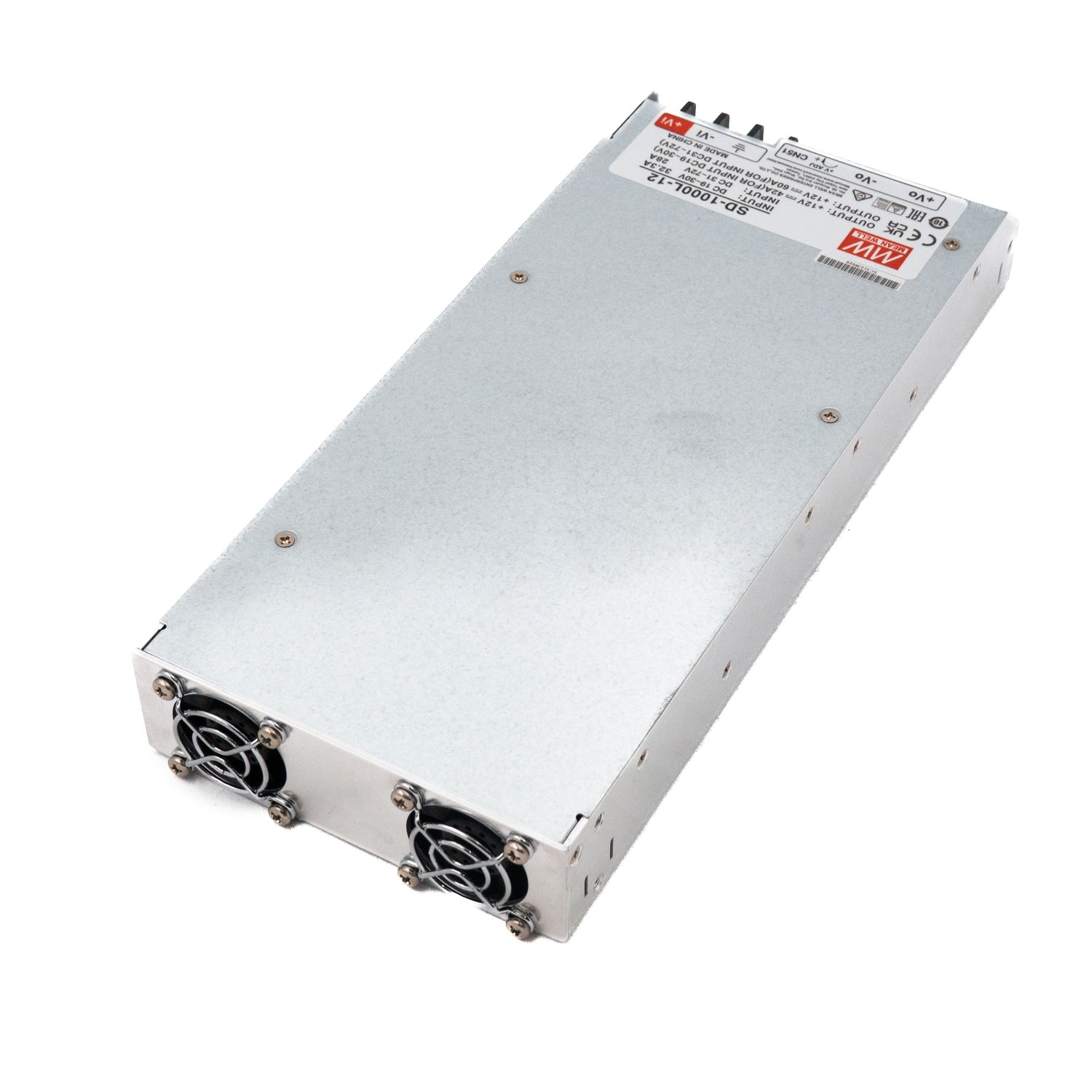

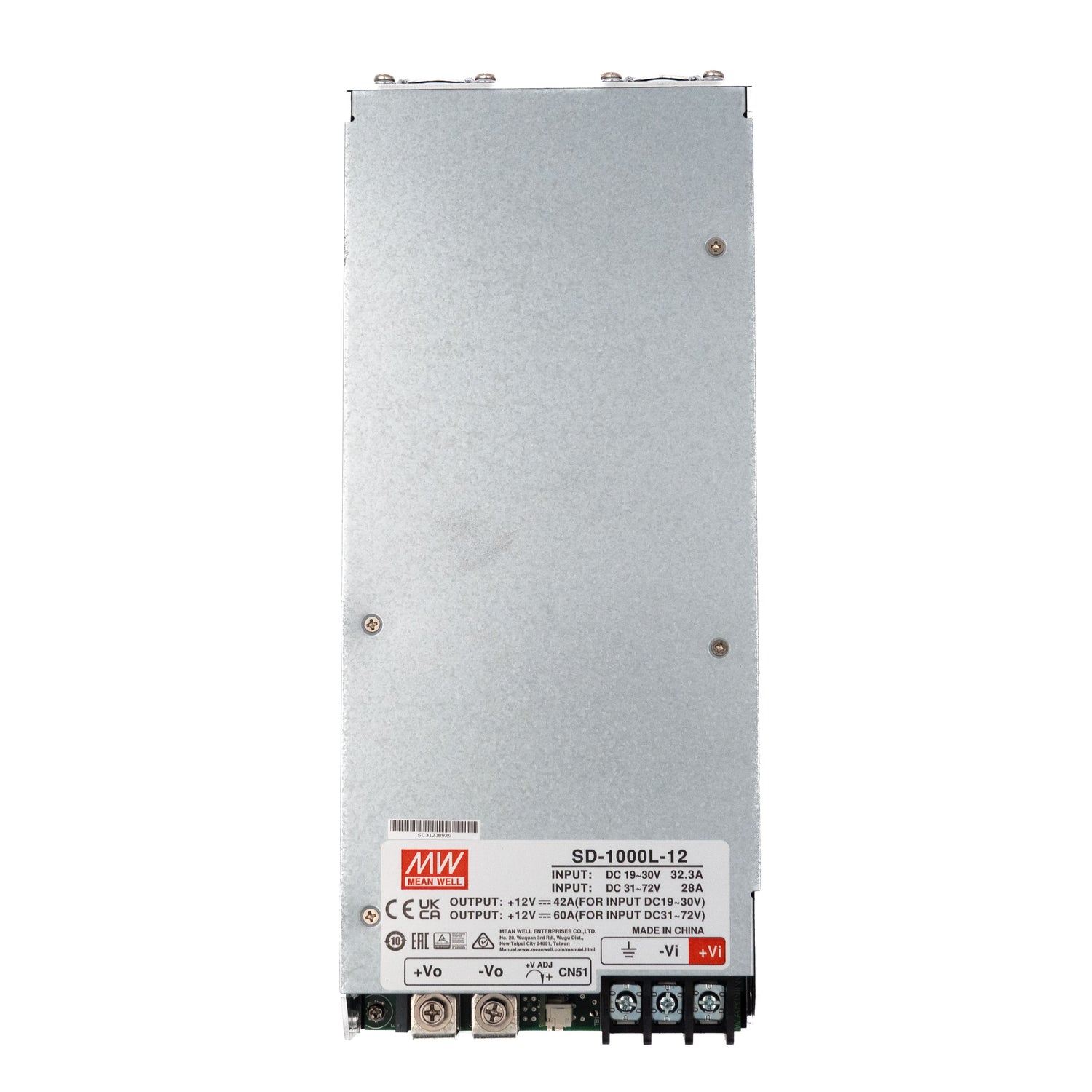

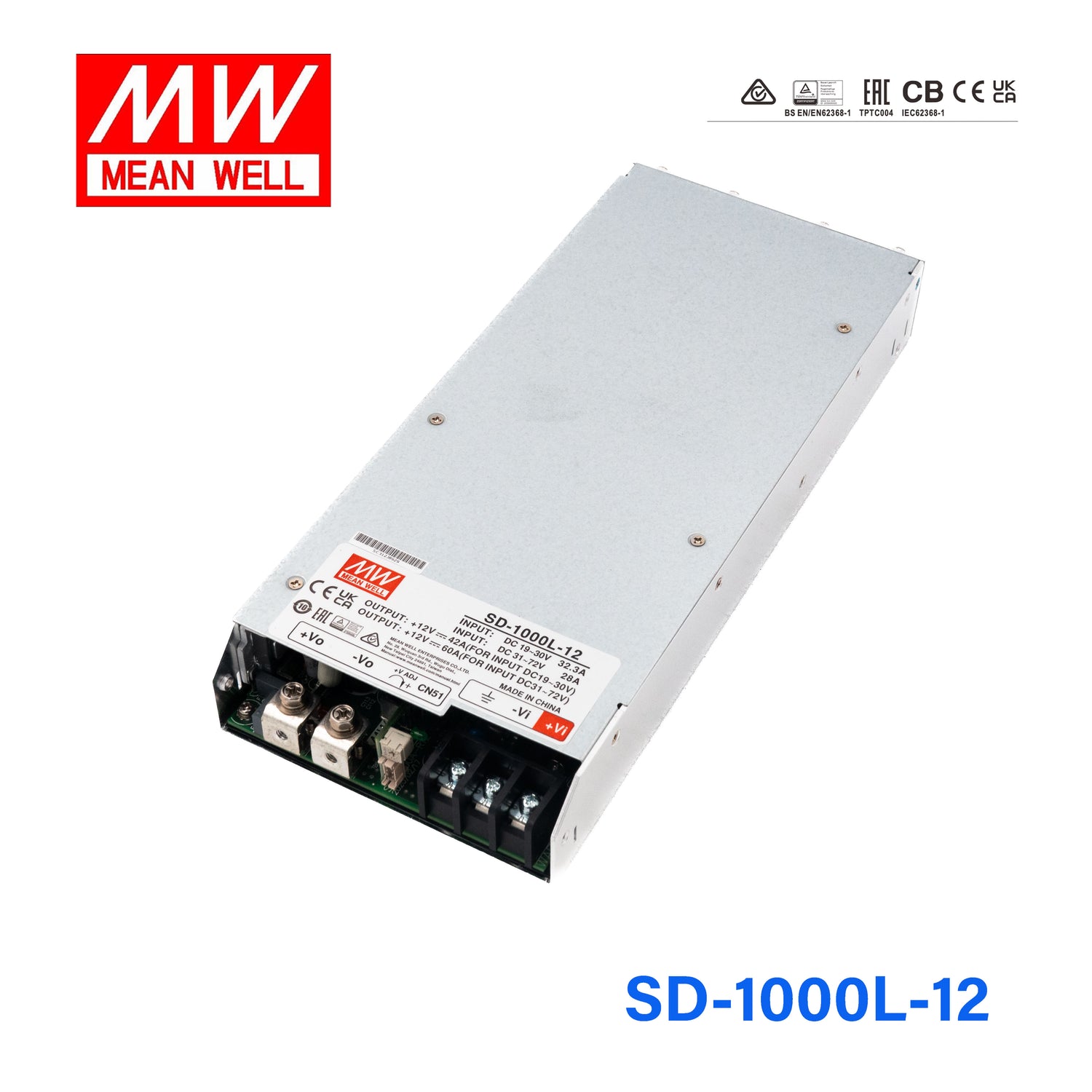

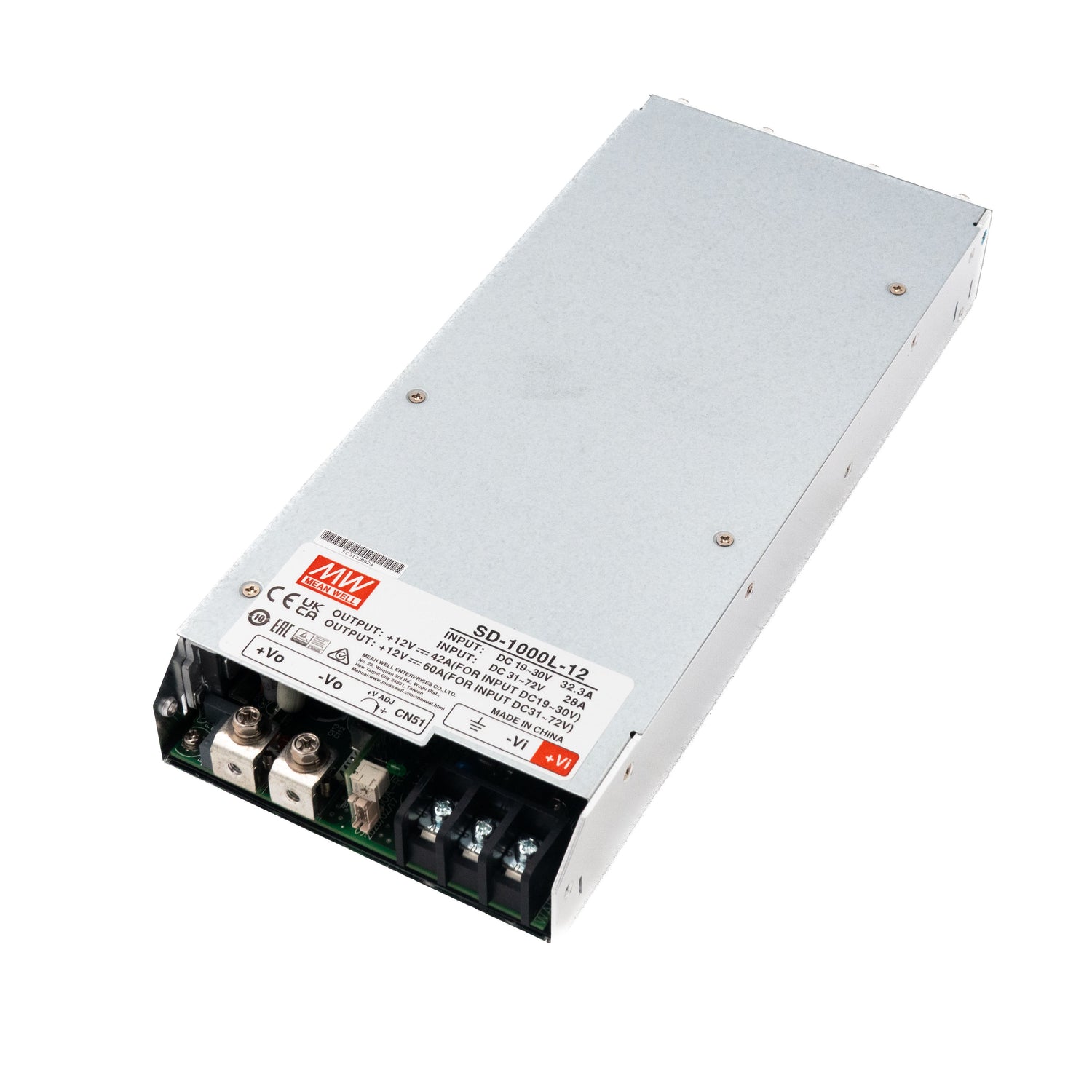

Mean Well SD-1000L-12 DC-DC Converter - 720W - 19~72V in 12V out 60A

Name: Mean Well SD-1000L-12 DC-DC Converter - 720W - 19~72V in 12V out 60A
Brand: Mean Well
SKU: SD-1000L-12
Price: 302.68 USD
Availability: InStock

4:1 wide input range1.5~2KVAC isolation by models12V/0.25A auxiliary outputbuilt-in remote ON/OFF control and remote sense1U low profile

SKU SD-1000L-12

$302.68 USD

Shipping calculated at checkout.

In stock

Overview

SD-1000L-12 is the 12V output model of this series: rated current 60A, rated power 720W, typical efficiency 84%.

Features

1U low profile 41mm
High power density 10.7w/inch³
2000VAC I/O Isolation
Protections: Short circuit / Overload / Over voltage / Over temperature
Output OK signal
Built-in remote ON-OFF control
Built-in remote sense function
Forced air cooling by built-in DC fan with fan speed control
12V, 0.25A auxiliary output
3 years warranty

Specifications

SD-1000L-12Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 60A
CURRENT RANGE: 0 ~ 60A
RATED POWER: 720W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 11 ~ 15V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 500ms, 50ms at full load

INPUT

VOLTAGE RANGE^Note.5: 19 ~ 72VDC
EFFICIENCY (Typ.): 84%
DC CURRENT (Typ.): 23.5A/48VDC
INRUSH CURRENT (Typ.): -----

PROTECTION

OVERLOAD: 105 ~ 125% rated output power Protection type : Constant current limiting, unit will shut down o/p voltage after about 5sec. Re-power on to recover
OVER VOLTAGE: 16 ~ 19V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE ON/OFF CONTROL: Please refer to function manual
OUTPUT OK SIGNAL: Open collector signal low when PSU turns on, maximum, sink current :10mA

ENVIRONMENT

WORKING TEMP.: -20 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32), EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

OTHERS

MTBF: 898.2K hrs min. Telcordia SR-332 (Bellcore) ; 106.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 295*127*41mm (L*W*H)
PACKING: 1.94Kg; 6pcs/12.6Kg/1.15CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 48, 96VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SD-1000L-12 Mechanical Specification — Mechanical Specification

SD-1000L-12 Block Diagram — Block Diagram

SD-1000L-12 Derating Curve — Derating Curve

SD-1000L-12 S D - 1 0 0 0 series — S D - 1 0 0 0 series

SD-1000L-12 S D - 1 0 0 0 series (2) — S D - 1 0 0 0 series (2)

SD-1000L-12 (C)Using internal 12V auxiliary output — (C)Using internal 12V auxiliary output

SD-1000L-12 2.Output OK signal — 2.Output OK signal

SD-1000L-12 3.Remote Sense — 3.Remote Sense

Downloads

Certificates2

EMC Certificate (SD-1000)(EN) PDF Download

CB Certificate (SD-1000)(EN) PDF Download

Test reports1

Test Report (SD-1000L-12)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SD-1000L-12 to power a 12V automation system from a lower or wider DC bus?

Yes, this model provides constant-voltage 12V output from a 19-72V input range. Its 720W rating and 60A output current make it suitable for higher-current 12V automation and industrial electronics where the source bus is below the H-version range.

Is the SD-1000L-12 appropriate for embedded or mobile equipment that has a 19-72V source and needs 12V?

It is intended for that type of DC-DC conversion when the input stays within 19-72V. The available output is 12V at up to 60A, so it supports much larger 12V loads than compact low-wattage converters.

Can this model be used in a 1U industrial or IT enclosure for 12V bulk power?

The unit measures 295 x 127 x 41mm (L x W x H) and delivers up to 720W at 12V. It also includes remote ON/OFF control, remote sense, and a 12V/0.25A auxiliary output, which are useful in managed cabinet or rack equipment.

What is the difference between the SD-1000L-12 and the related SD-1000H or other SD-1000L outputs?

Within the listed 1000-series group, the 12V versions are 720W at 60A, the 24V versions are 960W at 40A, and the 48V versions are 1008W at 21A. This SD-1000L-12 specifically combines the 12V, 60A, 720W output with a 19-72V input range, while the H versions are listed separately with a different input range.

Is the SD-1000L-12 suitable for outdoor installations or wide temperature swings?

The published operating temperature range is -20°C to +60°C. No IP rating is listed in the provided specs, so the page does not claim outdoor enclosure protection even though the temperature range is specified.
