Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

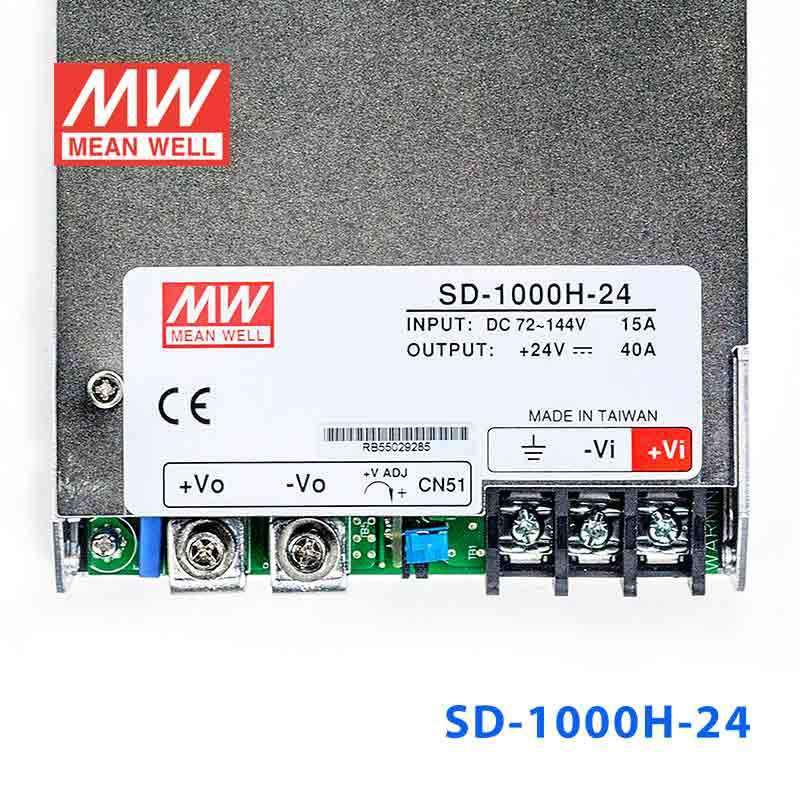

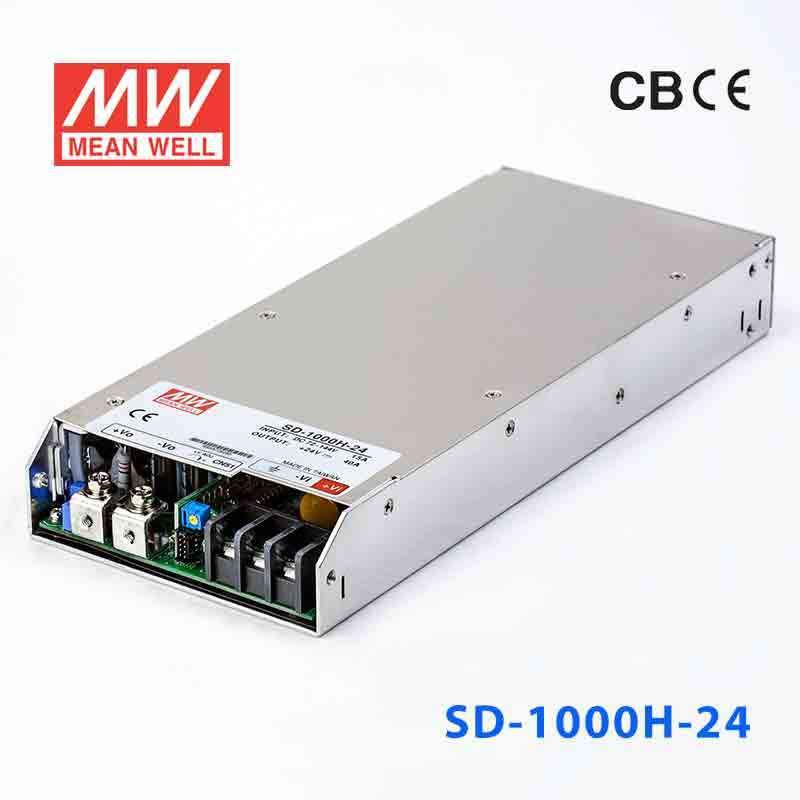

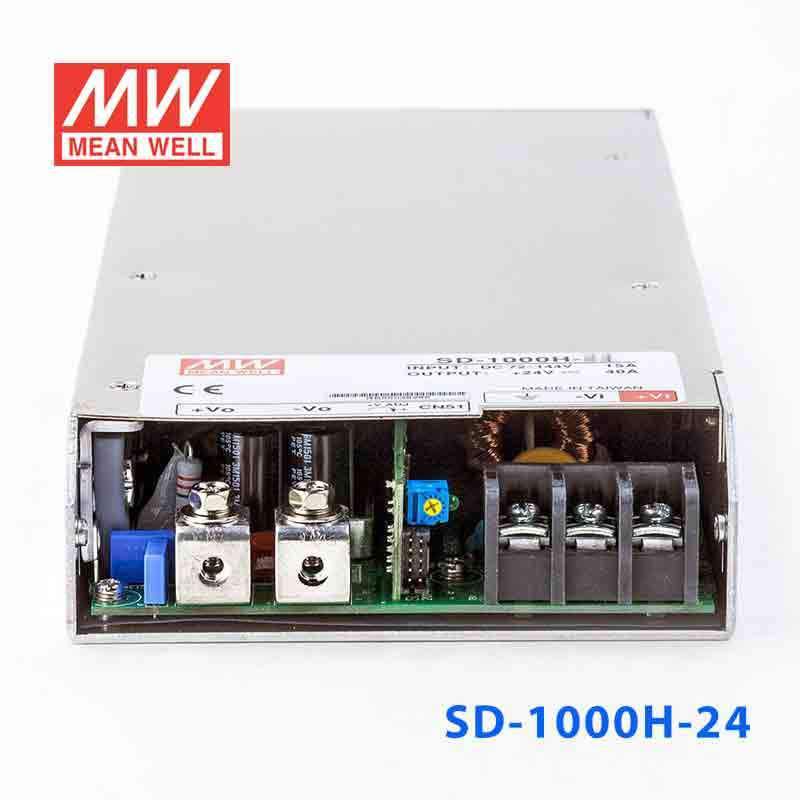

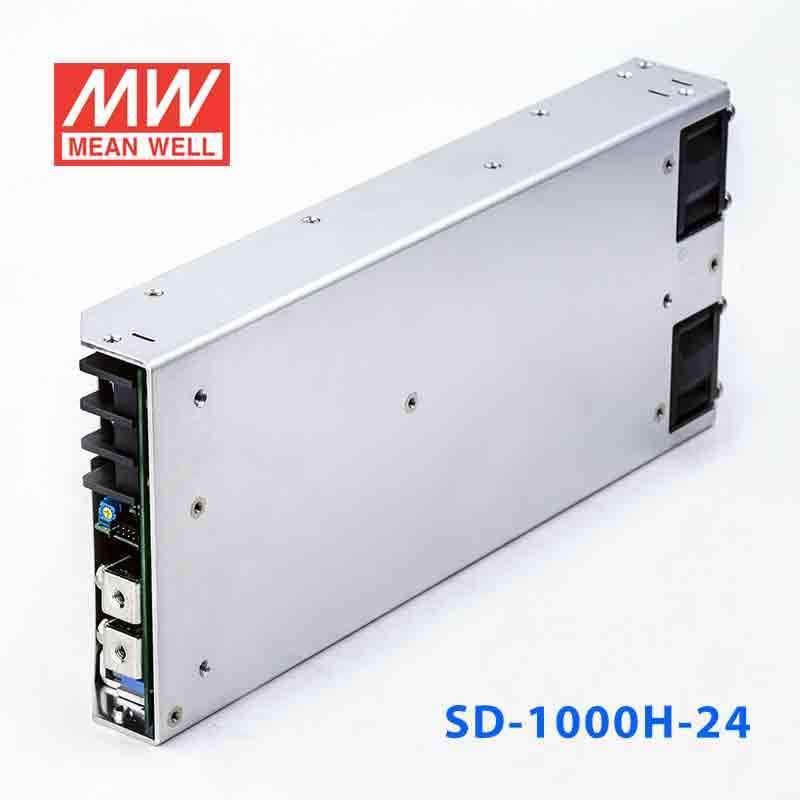

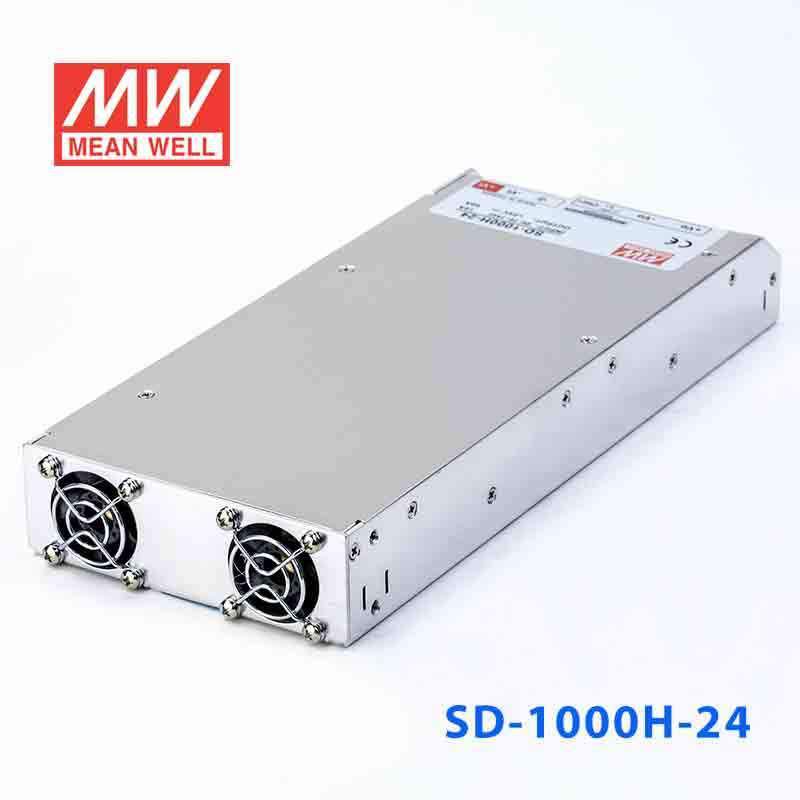

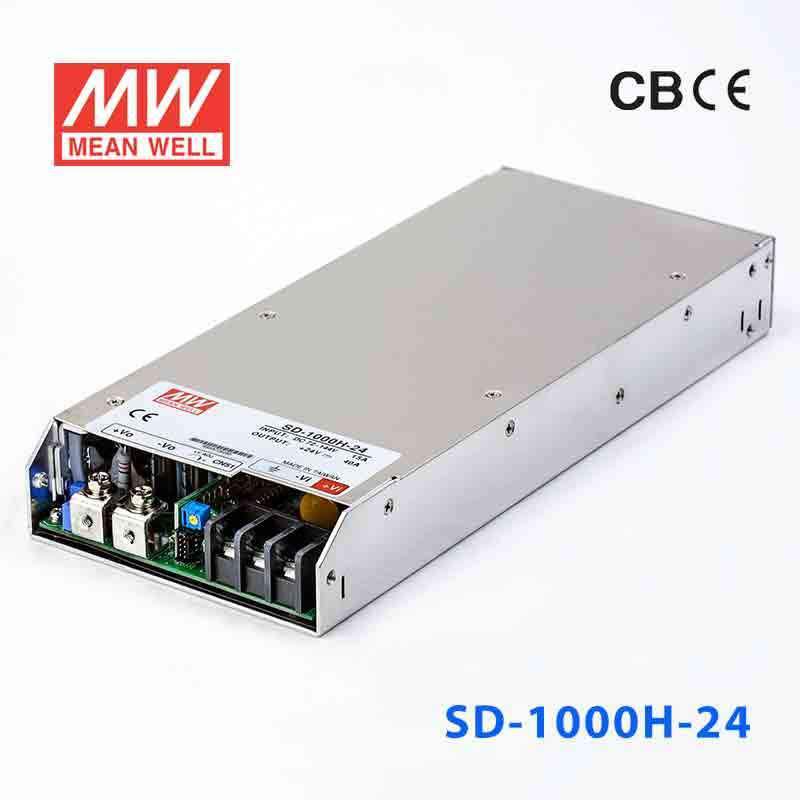

Mean Well SD-1000H-24 DC-DC Converter - 980W - 72~144V in 24V out
$302.68 USD
Unit price /
Unavailable
Description
Description
Features : 1U low profile 41mm
· High power density 10.7w/inch3
· 2000VAC I/O Isolation
· Protections: Short circuit / Overload / Over voltage / Over temperature
· Output OK signal
· Built-in remote ON-OFF control
· Built-in remote sense function
· Forced air cooling by built-in DC fan with fan speed control
· 12V, 0.25A auxiliary output
· 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage72V~144V
-
Standards MetEAC,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length11.61 in
-
Width5 in
-
Height1.61 in
-
Weight4.28 lb
