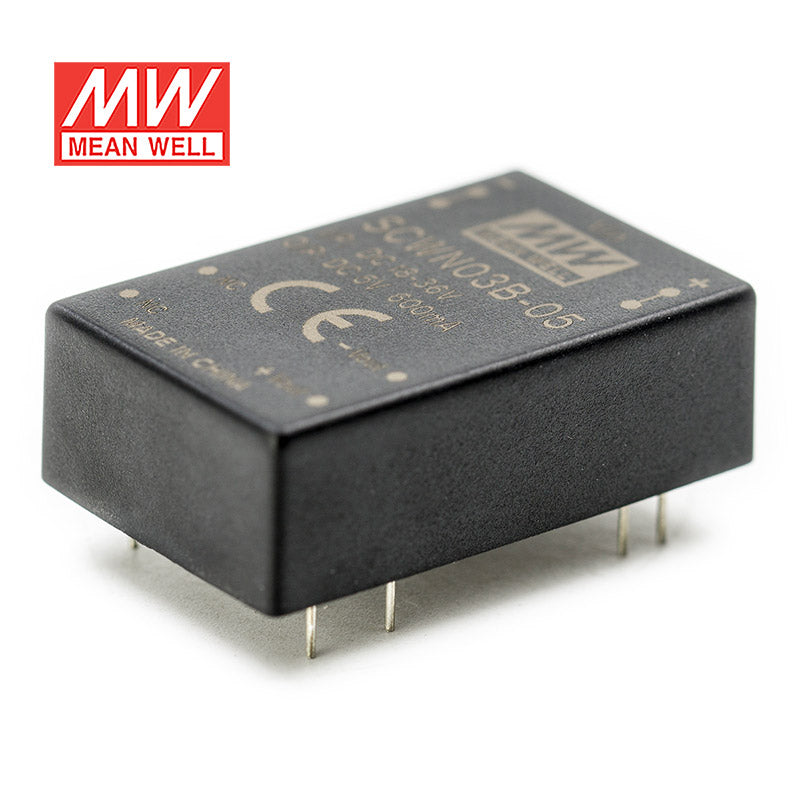

Mean Well SCWN03B-05 DC-DC Converter - 3W 18~36V DC in 5V out 600mA

Name: Mean Well SCWN03B-05 DC-DC Converter - 3W 18~36V DC in 5V out 600mA
Brand: Mean Well
SKU: SCWN03B-05
Price: 9.6 USD
Availability: InStock

SKU SCWN03B-05

$9.60 USD

Shipping calculated at checkout.

Available to order

Overview

SCWN03B-05 is the 5V output model of this series: rated power 3W, typical efficiency 82%.

SCWN03 and DCWN03 series are 3W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40~+ 90℃, 3 KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The additional components, models account for different input voltage 4.5~9V, 9~18V, 18~36V and 36~72V 2:1 wide input range, and various output voltage, 3 . 3V /5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protections: Short circuit (Continuous) / Overload / Input under voltage
3KVDC I/O isolation
3 years warranty

Specifications

SCWN03B-05Specifications from the official datasheet (2024-04-30 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): 24V (18 ~ 36V)
INPUT CURRENT NO LOAD: 5mA
INPUT CURRENT FULL LOAD: 152mA
OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 600mA
EFFICIENCY (TYP.): 82%
CAPACITOR LOAD (MAX.)^{* For each output}: 2200μF

INPUT

VOLTAGE RANGE: 18~36Vdc ,
SURGE VOLTAGE (100ms max.): 5Vin models : 10Vdc ; 12Vin models : 25Vdc ; 24Vin models : 50Vdc ; 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 5Vin models: 1.5A Fast-Acting Type, 12Vin models: 0.8A Fast-Acting Type, 24Vin models: 0.5A Fast-Acting Type, 48Vin models: 250mA Fast-Acting Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±1.5%
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Min.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 5Vin: 4.4Vdc, 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 5Vin: 4.2Vdc, 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 31Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 250pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 2500Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 12.3g ; 10pcs/per tube, 600pcs/60 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(E:5Vdc, A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load for SCWN03, 25% to 100% rated load for DCWN03.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SCWN03B-05 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates1

CE Certificate(SCWN/DCWN-03)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SCWN03B-05 for 5V PLC interface or controller electronics?

Yes, if the electronics need a constant 5V output and stay within 0.6A. This converter is rated 3W and is designed for an 18-36VDC input range, which suits low-power 5V control circuits.

Is the SCWN03B-05 a good option for 5V embedded processors or communication modules?

It fits 5V embedded loads that require regulated constant voltage and draw no more than 0.6A. The 3W rating and compact 31.8 × 20.3 × 10.2 mm size make it appropriate for small electronic assemblies.

Can this model power 5V industrial monitoring or data-acquisition boards?

It can be used for 5V monitoring or data-acquisition boards as long as the load stays within 0.6A and 3W. The source side must also match the specified 18-36VDC input range.

How does the SCWN03B-05 differ from the other SCWN03B versions?

The SCWN03B-05 provides 5V output at 0.6A with a 3W power rating. Its siblings are SCWN03B-03 at 3.3V and 0.6A, SCWN03B-12 at 12V and 0.25A, and SCWN03B-15 at 15V and 0.2A; all are 3W models.

Can the SCWN03B-05 be used in high-heat or low-temperature industrial locations?

The converter is specified for -40°C to +90°C operation, so it is rated for wide temperature conditions. No IP rating is included in the listed specs, so indoor or exposed outdoor suitability is not stated.
