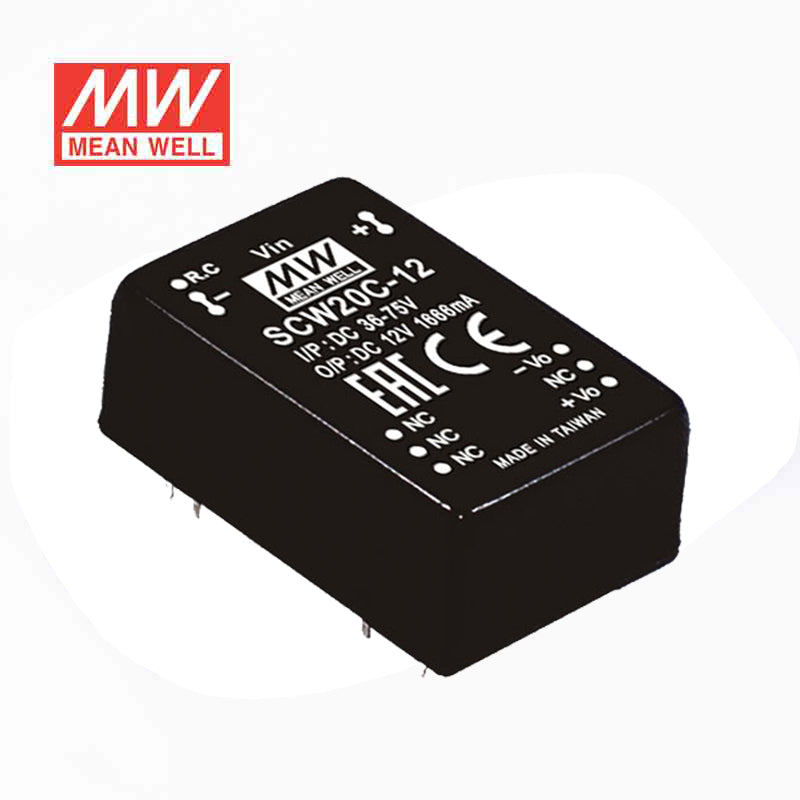

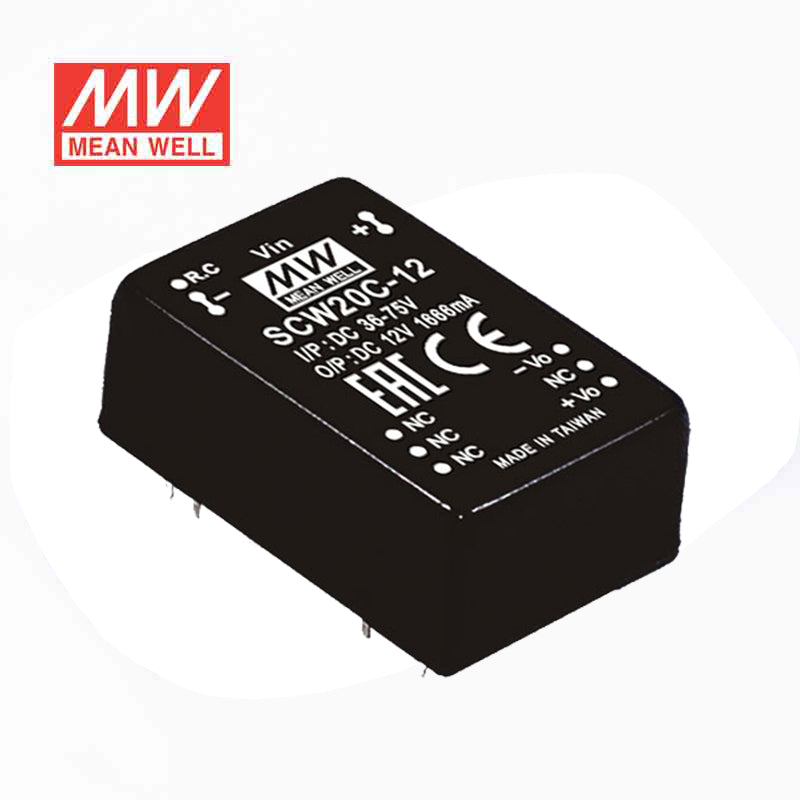

Mean Well SCW20C-12 DC-DC Converter - 20W 36~75V DC in 12V out
$28.77 USD
Unit price /
Unavailable
Description
Description
Features
| DIP24 package with industry-standard pinout |
| 2:1 wide input range |
| Operating temperature range -40 ~ +80°C |
| No minimum load required |
| Comply to BS EN/EN55032 radiated Class A without additional components |
| High efficiency up to 89% |
| Protections: Short circuit (Continuous) / Overload / Input under voltage |
| 1.5KVDC I/O isolation |
| Remote ON/OFF control |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | ±0.5% |
| Overload protection | 120 ~ 190% rated output power |
| Efficiency | 88% (typical) |
| Short circuit protection | Protection type: Continuous, automatic recovery |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25°C / 70% RH |
| Isolation capacitance | 1200pF (max.) |
| Working temperature | -40 ~ +80°C (Refer to "Derating Curve") |
| Storage temperature | +110°C max |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ±0.03% /°C (0 ~ 85°C) |
| Dimension (LxWxH) (mm) | 31.8 x 20.3 x 12.2mm (1.25 x 0.8 x 0.48 inch) |
| Case material | Five-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating20 Watt
-
Output Voltage12 Volt
-
Rated Current1.66 Ampere
-
Input Voltage0.015V~0.479V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
