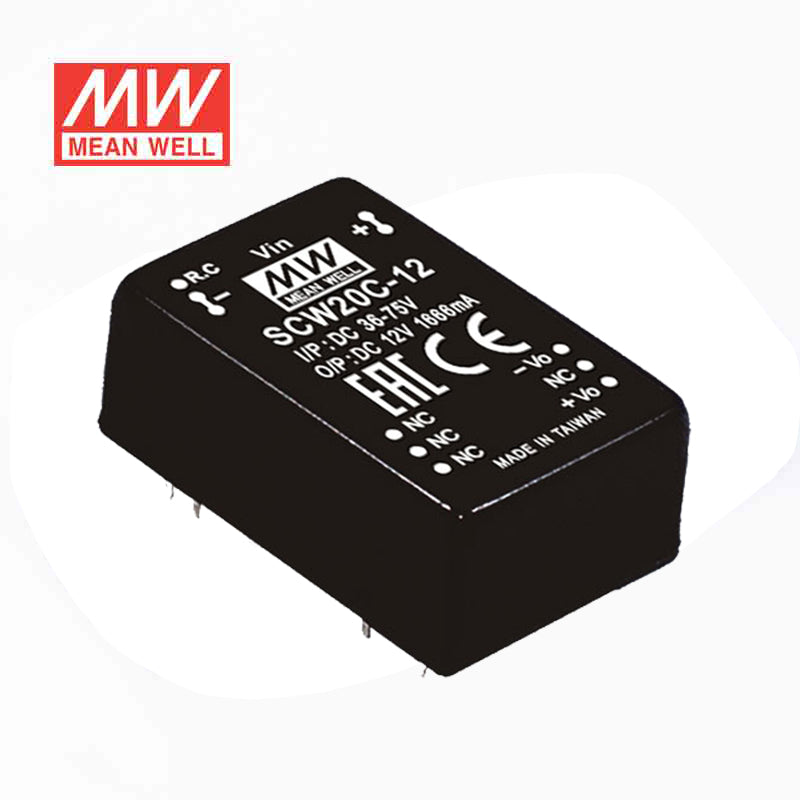

Mean Well SCW20C-05 DC-DC Converter - 20W 36~75V DC in 5V out 4A

Name: Mean Well SCW20C-05 DC-DC Converter - 20W 36~75V DC in 5V out 4A
Brand: Mean Well
SKU: SCW20C-05
Price: 26.52 USD
Availability: InStock

SKU SCW20C-05

$26.52 USD

Shipping calculated at checkout.

Available to order

Overview

SCW20C-05 is the 5V output model of this series: rated power 20W, typical efficiency 86%.

SCW20 series is 20W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+80℃, 1.5KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A with additional components, continuous-mode short circuit protection, etc. The additional components, models account for different input voltage 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 5V/12V/15V for single output, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +80℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A with additional components
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

SCW20C-05Specifications from the official datasheet (2025-07-28 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 48V (36 ~ 75V)
INPUT CURRENT NO LOAD: 45mA
INPUT CURRENT FULL LOAD: 484mA
OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 4000mA
EFFICIENCY (TYP.): 86%
CAPACITOR LOAD (MAX.): 1000μF

INPUT

VOLTAGE RANGE: 36~75Vdc
FILTER: Pi type
PROTECTION: Fuse recommended. 12Vin models: 4A Slow-Blow Type, 24Vin models: 2A Slow-Blow Type, 48Vin models: 1A Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±2%
RATED POWER: 20W
RIPPLE & NOISE^Note.2: 80mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Min.): 400KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 190% rated output power Protection type : Recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin > 2.5VDC or open ; Power OFF: R.C. ~ -Vin < 0.8VDC or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1200pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A with additional components
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A with additional components

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF: 224Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL: Five-sided shield metal case
PACKING: 18.5g ; 15pcs/per tube, 750pcs/50 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 20% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SCW20C-05 Mechanical Specification — Mechanical Specification

SCW20C-05 Pin Assignment — Pin Assignment

SCW20C-05 S C W 2 0 series — S C W 2 0 series

SCW20C-05 S C W 2 0 series (2) — S C W 2 0 series (2)

Typical applications

Downloads

Certificates3

CE Certificate(SCW/DCW-1220)(EN) PDF Download

EMC Certificate(SCW/DCW-1220)(EN) PDF Download

EAC Certificate(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SCW20C-05 to power a 5V industrial controller from a 36~75V DC system?

Yes, this model is a constant-voltage DC-DC converter with a 5V output and up to 4A output current. Its 20W rating and 36~75V DC input range make it suitable when the source side is within that input range and the load needs a regulated 5V supply.

Is the SCW20C-05 a good fit for embedded 5V logic or computing boards in automation equipment?

It can fit embedded 5V electronics when the total load stays within 5V, 4A, and 20W. The converter is compact at 31.8 × 20.3 × 12.2 mm, which helps in space-limited industrial and embedded assemblies.

Can this converter support 5V sensors, gateways, or low-voltage control electronics in a DC bus system?

It is designed for regulated 5V output from a 36~75V DC input, so it can be used for 5V control electronics that stay within 4A and 20W. That makes it relevant for low-voltage industrial and automation devices that need constant-voltage 5V power.

What is the difference between the SCW20C-05, SCW20C-12, and SCW20C-15?

All three models are 20W constant-voltage converters in the same series. The SCW20C-05 outputs 5V at 4A, the SCW20C-12 outputs 12V at 1.67A, and the SCW20C-15 outputs 15V at 1.33A.

Is the SCW20C-05 suitable for outdoor or harsh-temperature use?

The listed operating temperature range is -40°C to +80°C, with the load derated at higher temperatures according to the derating curve. No IP rating is provided in the supplied specs, so the product data here does not establish outdoor or weather-exposed suitability.
