Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

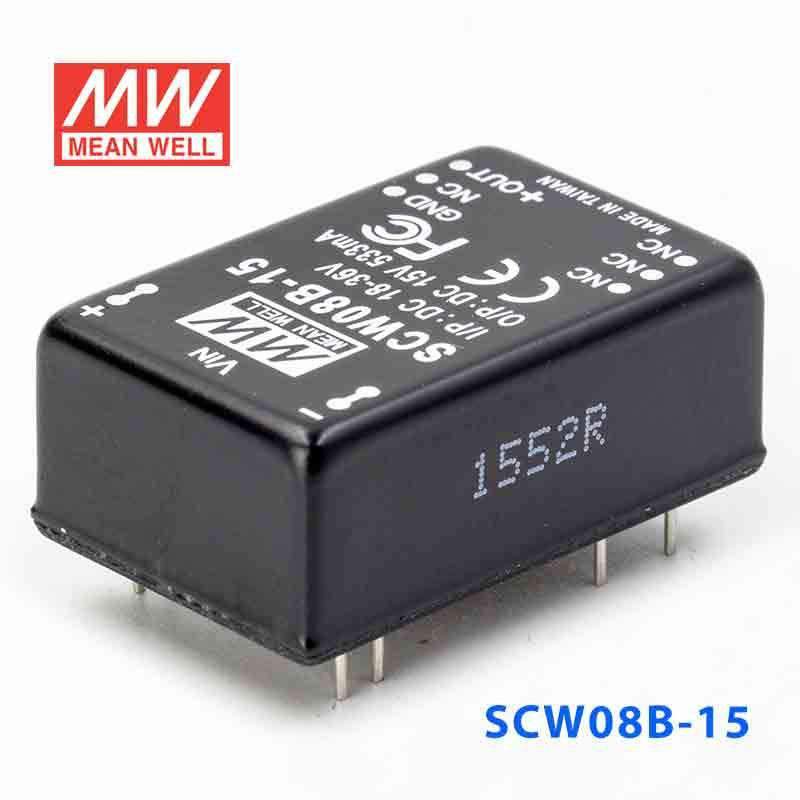

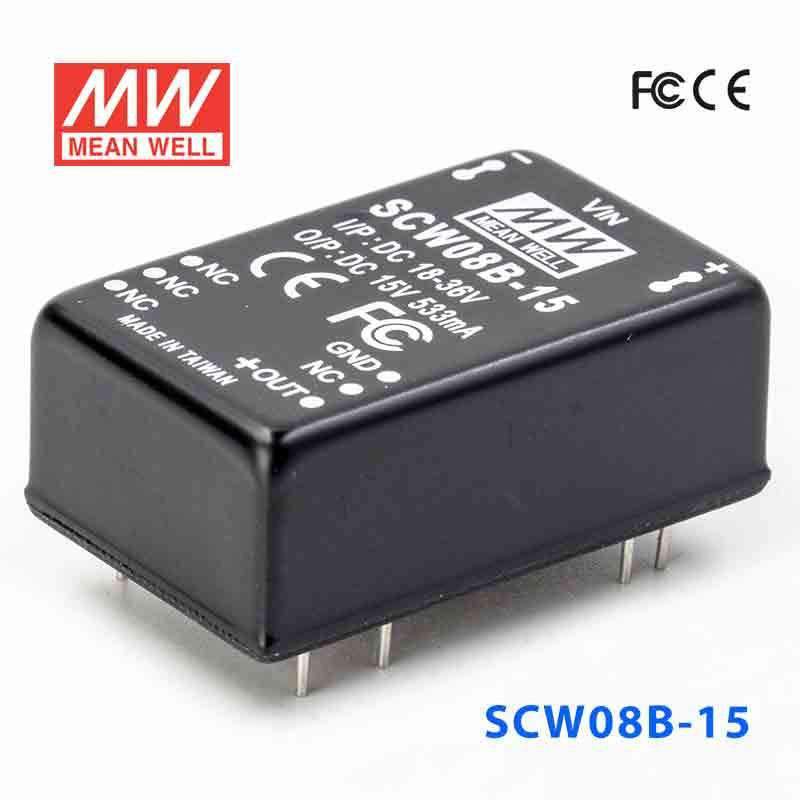

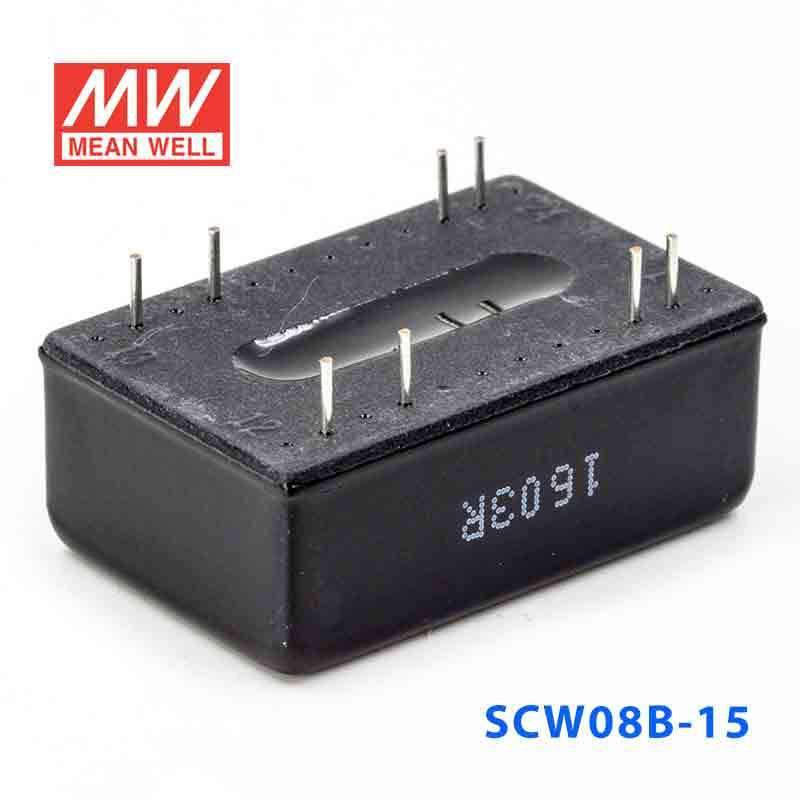

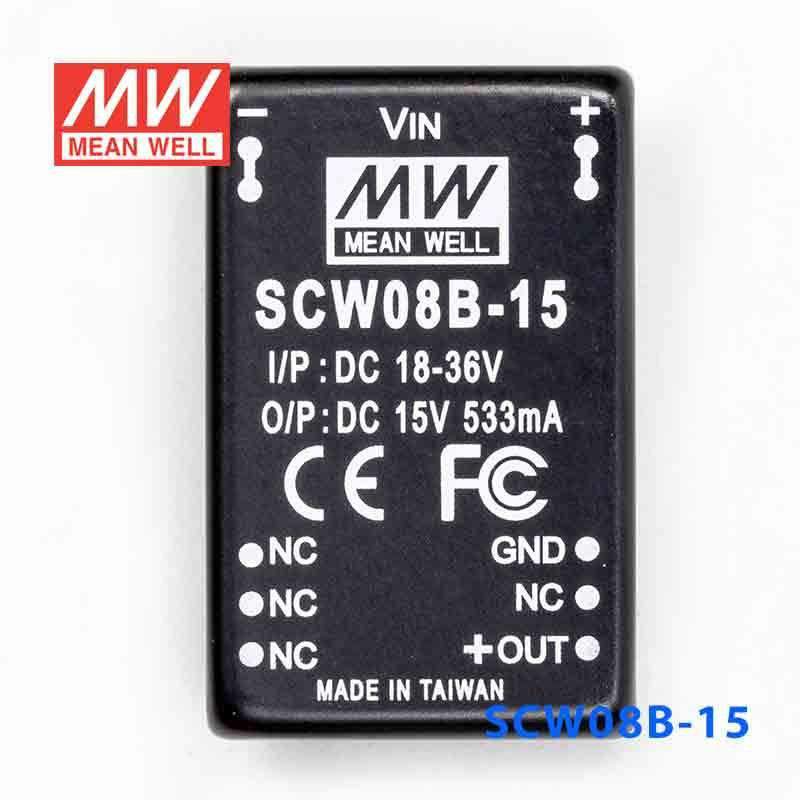

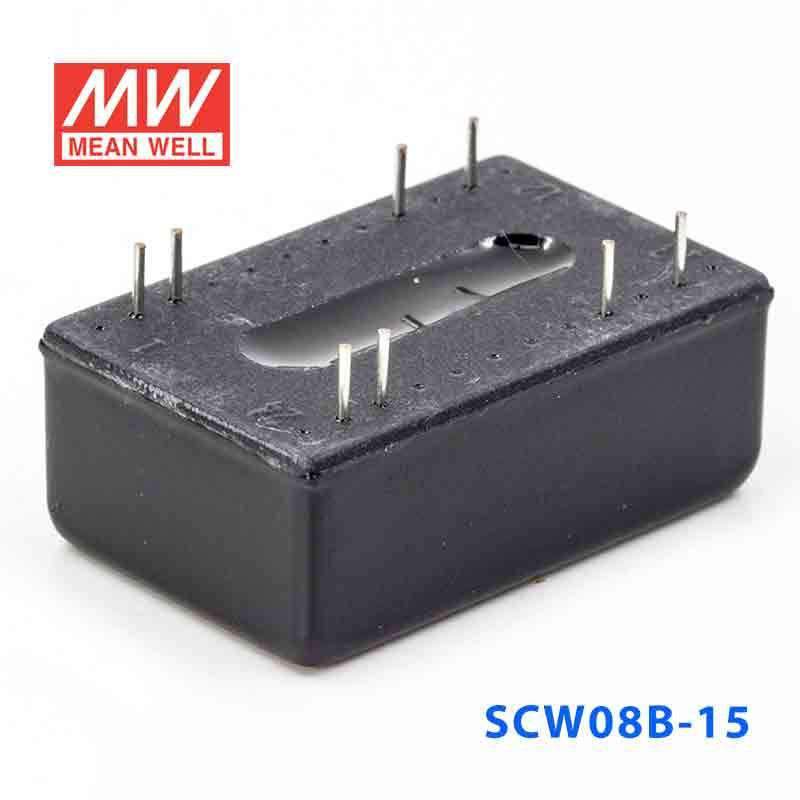

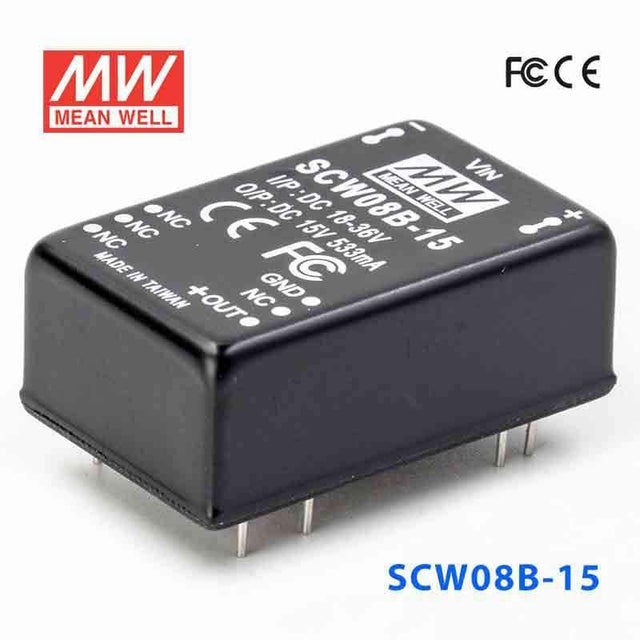

Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out
$18.42 USD
Unit price /
Unavailable
Description
Description
Features
| 2: 1 wide input range |
| 1000VDC I / O isolation |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Five-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.5% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 110% ~ 250%, auto-recovery |
| Efficiency | 82% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -40 ~ + 71 ° C (refer to output derating curve) |
| Storage temperature | -40 ° C to + 105 ° C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 1.25 ""x 0.8"" x 0.48 "" |
| Case material | Five-sided shield metal case |
| Isolation capacitance | 250pF (max.) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating8 Watt
-
Output Voltage15 Volt
-
Rated Current0.53 Ampere
-
Input Voltage18V~36V
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
