Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

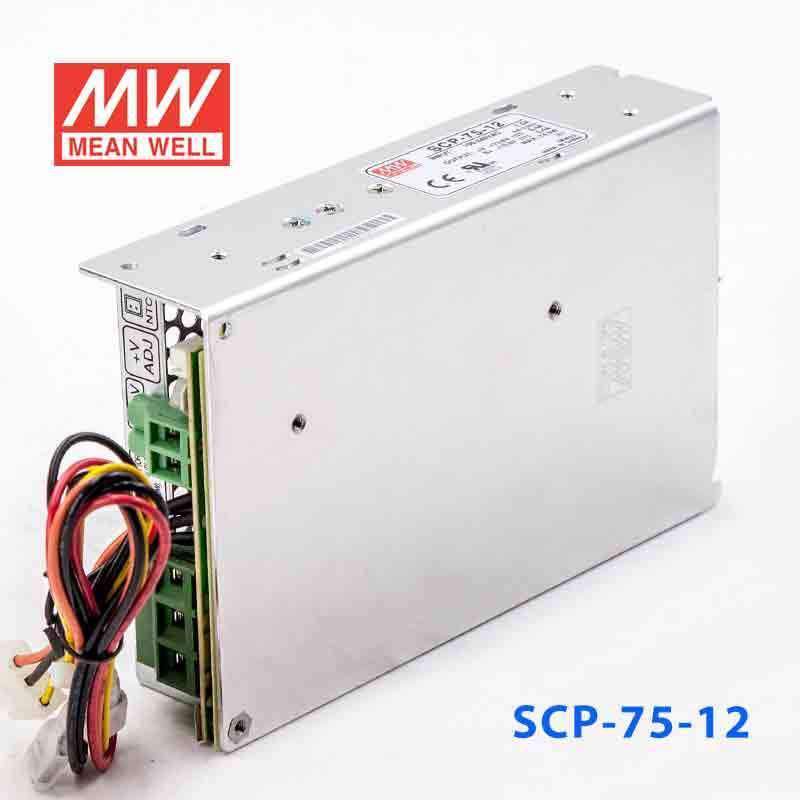

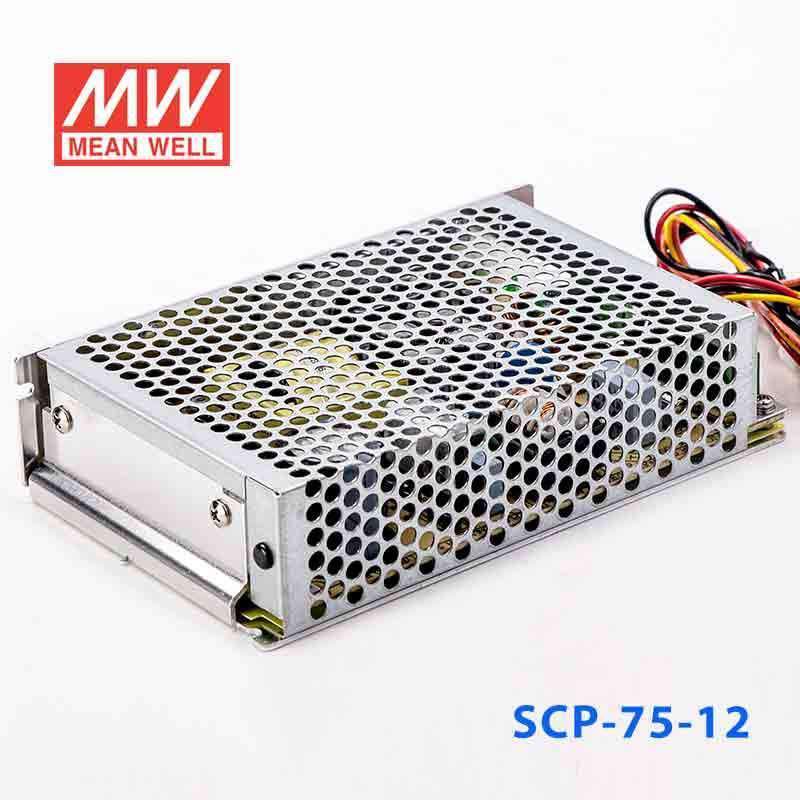

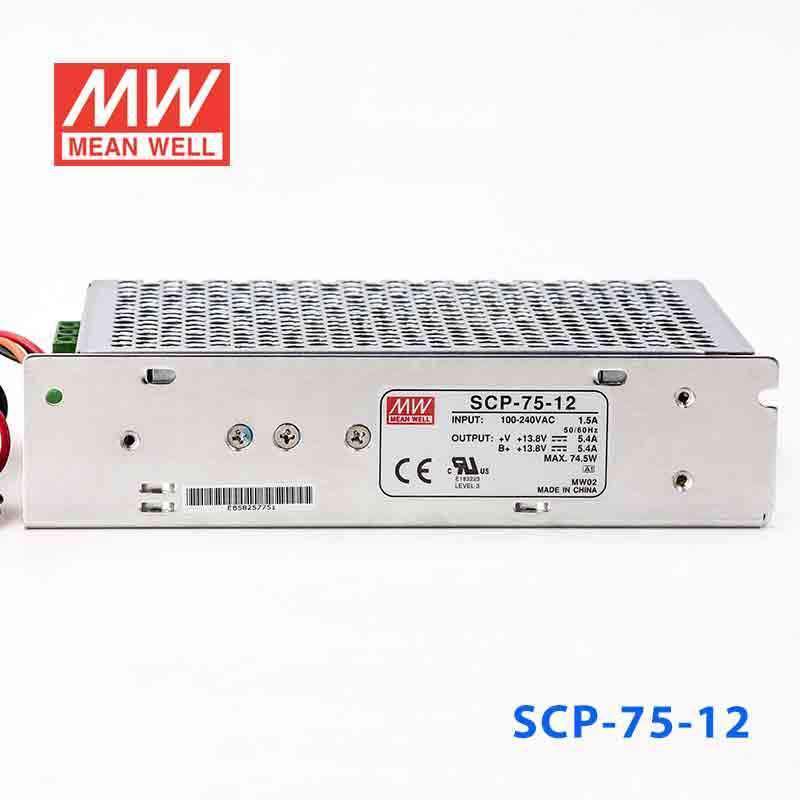

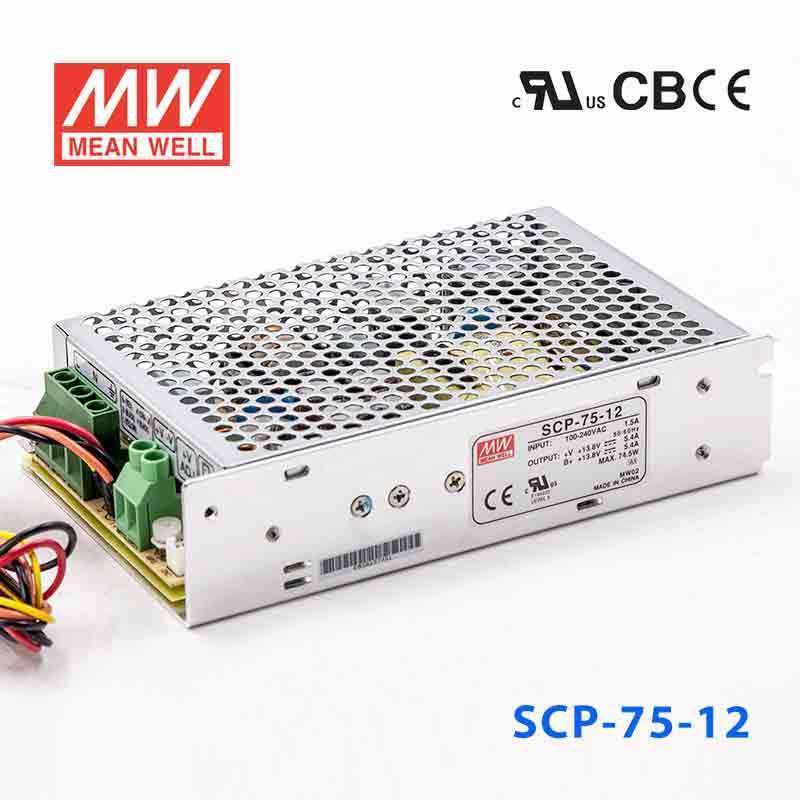

Mean Well SCP-75-12 Power supply 74.5W 13.8V 5.4A
$31.70 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| LED indicator for power on |
| No load power consumption <0.75W |
| Protections: Short circuit / Over current / Over voltage / Battery polarity (by fuse) |
| Temperature compensation function (by external thermistor) |
| Cooling by free air convection |
| 100% full load burn-in test |
| 2 years warranty |
General Specification
| AC input voltage range | 85~264VAC/ 120~370VDC |
| AC inrush current | Cold start, 45A |
| DC adjustment range | 95%~115% rated output voltage |
| Overload protection | 120%~165%, hiccup mode, auto-recovery |
| Over voltage protection | 120%~140%, rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -20~+60°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1 |

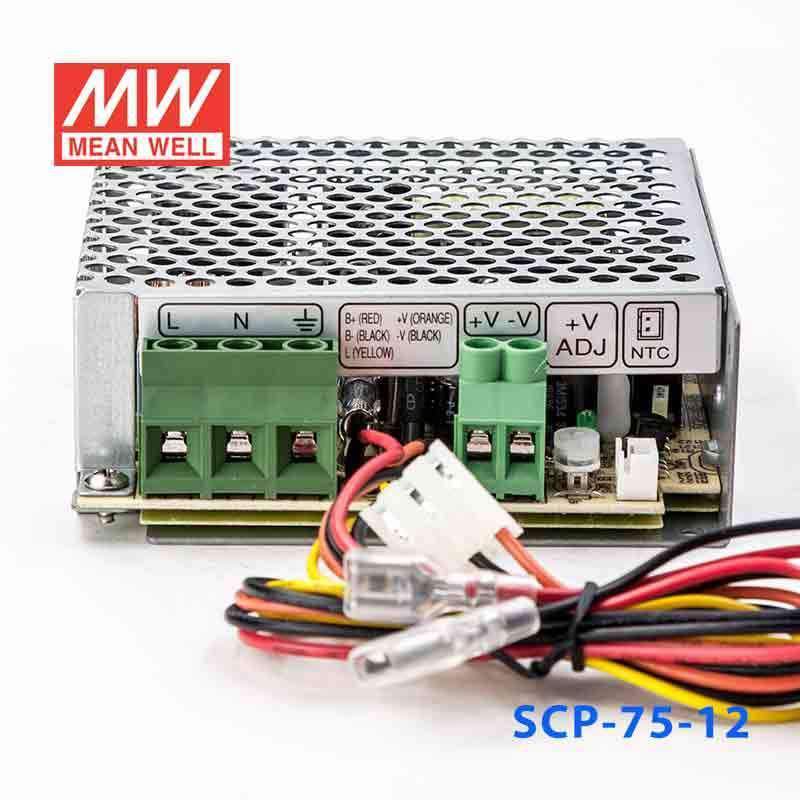

| Connection | I/P: 3 poles, O/P: 2 poles screw terminal |
| Packing | 0.5kg ; 30pcs / 16.0kg / 1CUFT |
| Dimension (LxWxH) (mm) | 159x 97x 38 mm |
| Setup, rise, hold up time | 500ms, 30ms, 50ms at full load and 230VAC |
Specifications
Specifications
-
BrandMean Well
-
SeriesSCP Series
-
Power Rating74.5 Watt
-
Output Voltage13.8 Volt
-
Rated Current5.4 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.1 lb
