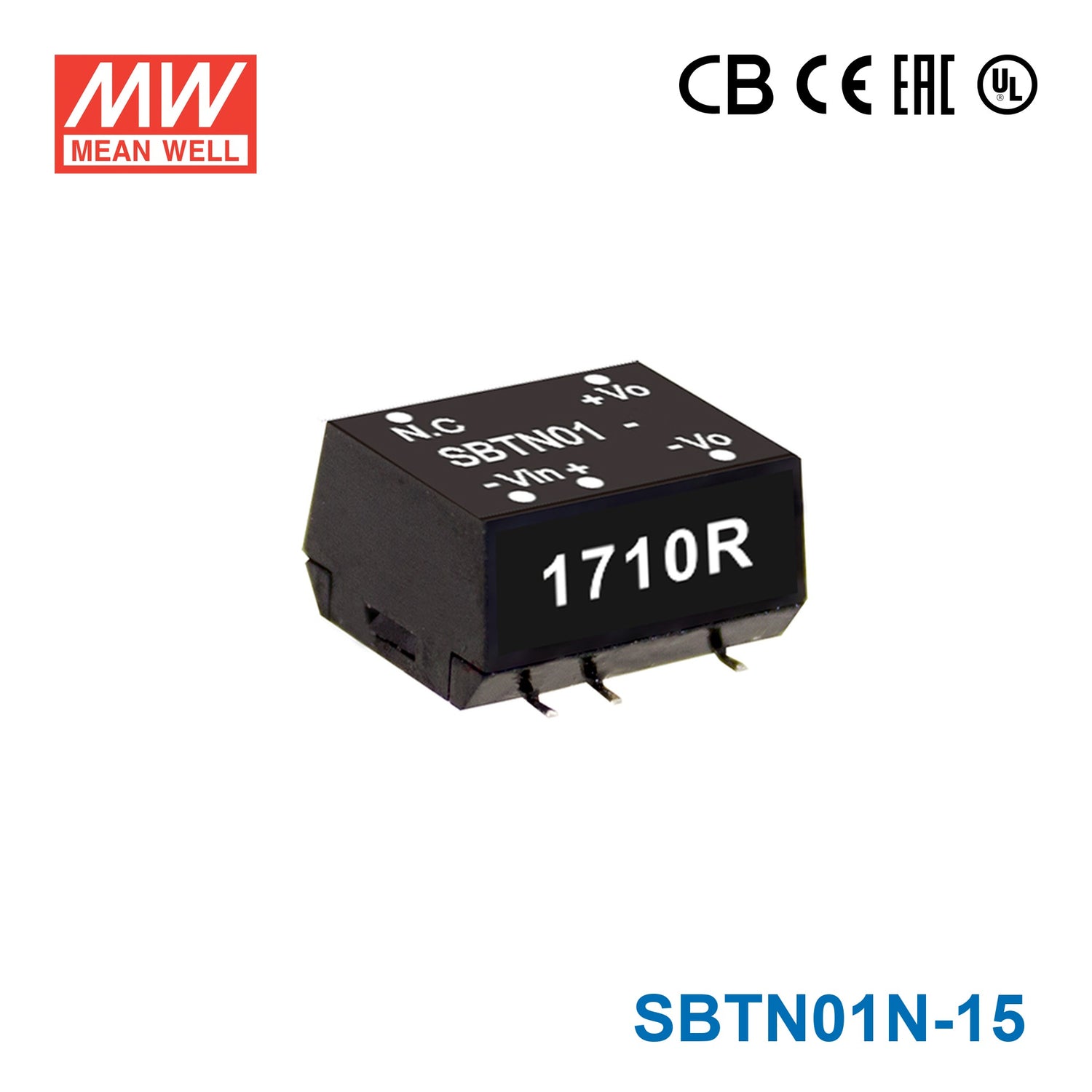

Mean Well SBTN01N-15 DC-DC Converter - 1W 24V DC in 15V out 67mA

Name: Mean Well SBTN01N-15 DC-DC Converter - 1W 24V DC in 15V out 67mA
Brand: Mean Well
SKU: SBTN01N-15
Price: 4.45 USD
Availability: InStock

SKU SBTN01N-15

$4.45 USD

Shipping calculated at checkout.

Available to order

Overview

SBTN01N-15 is the 15V output model of this series: rated power 1W, typical efficiency 78%.

SBTN01 series is 1W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 3.3V/5V/12V/24V±10%, and various output voltage, 3.3V/5V/9V/12V/15V for single output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 84%
Protection: Short circuit
1.5KVDC I/O isolation (3KVDC I/O isolation optional)
Low cost
Optional reel packing
3 years warranty

Specifications

SBTN01N-15Specifications from the official datasheet (2026-09-15 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (21.6 ~ 26.4V)
INPUT CURRENT (NO LOAD): 11mA
INPUT CURRENT (FULL LOAD): 54mA
VOLTAGE RANGE: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.): 3.3, 5Vin models : 9Vdc ; 12Vin models : 16Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 3.3Vin models: 1000mA Slow-Blow Type, 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 6.7 ~ 67mA
VOLTAGE ACCURACY: ±2% (Vo 3.3V for±3%)
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation (1.5% for 1% input variation only for Vo 3.3V)
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz
EFFICIENCY (TYP.): 78%
CAPACITOR LOAD (MAX.): 220μF

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1(Except for 9V output models), EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 880Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 12.9*10.9*7.1mm (0.50*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: Standard : 1.1g ; 38 pcs/per tube, 4560 pcs/ 120 tube/per carton Optional : 1.1g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(K:3.3Vdc, L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 220uF/100V.

Technical drawings

SBTN01N-15 Mechanical Specification — Mechanical Specification

SBTN01N-15 Pin Assignment — Pin Assignment

SBTN01N-15 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates3

CE Certificate(SBTN01)(EN) PDF Download

UL Certificate(SBTN01)(EN) PDF Download

EMC Certificate(SBTN)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SBTN01N-15 for a low-power 15V industrial electronics rail?

It is suitable for low-power 15V electronics where the load remains within 1W and 67mA. It is an unregulated converter with a fixed 15V output (load regulation ±8%), so it suits circuits that tolerate some output variation with load.

Is this model a fit for a small 15V embedded or automation module in a 24V DC system?

Yes, if the source is within the listed 21.6-26.4VDC input range and the 15V load does not exceed 67mA. This makes it appropriate for compact embedded and automation subcircuits rather than higher-power devices.

Can the SBTN01N-15 support a 15V analog or control stage in a compact enclosure?

It can support a low-current 15V analog, control, or interface stage up to 1W. The compact size of 12.9 x 10.9 x 7.1 mm and weight of 0.0011 kg help where enclosure space is limited.

How does the SBTN01N-15 differ from the other SBTN01N converters?

The SBTN01N models all carry a 1W rating, but each uses a different output voltage and current combination. The family includes 3.3V at 300mA, 5V at 200mA, 9V at 111mA, 12V at 84mA, and 15V at 67mA.

Is the SBTN01N-15 suitable for outdoor conditions or only temperature-challenging indoor equipment?

The product is specified for operation from -40C to +90C, with load derating at high ambient temperature per the sheet's derating curve, so it supports demanding indoor equipment environments. No IP rating is listed, so the provided specifications do not verify outdoor suitability.
