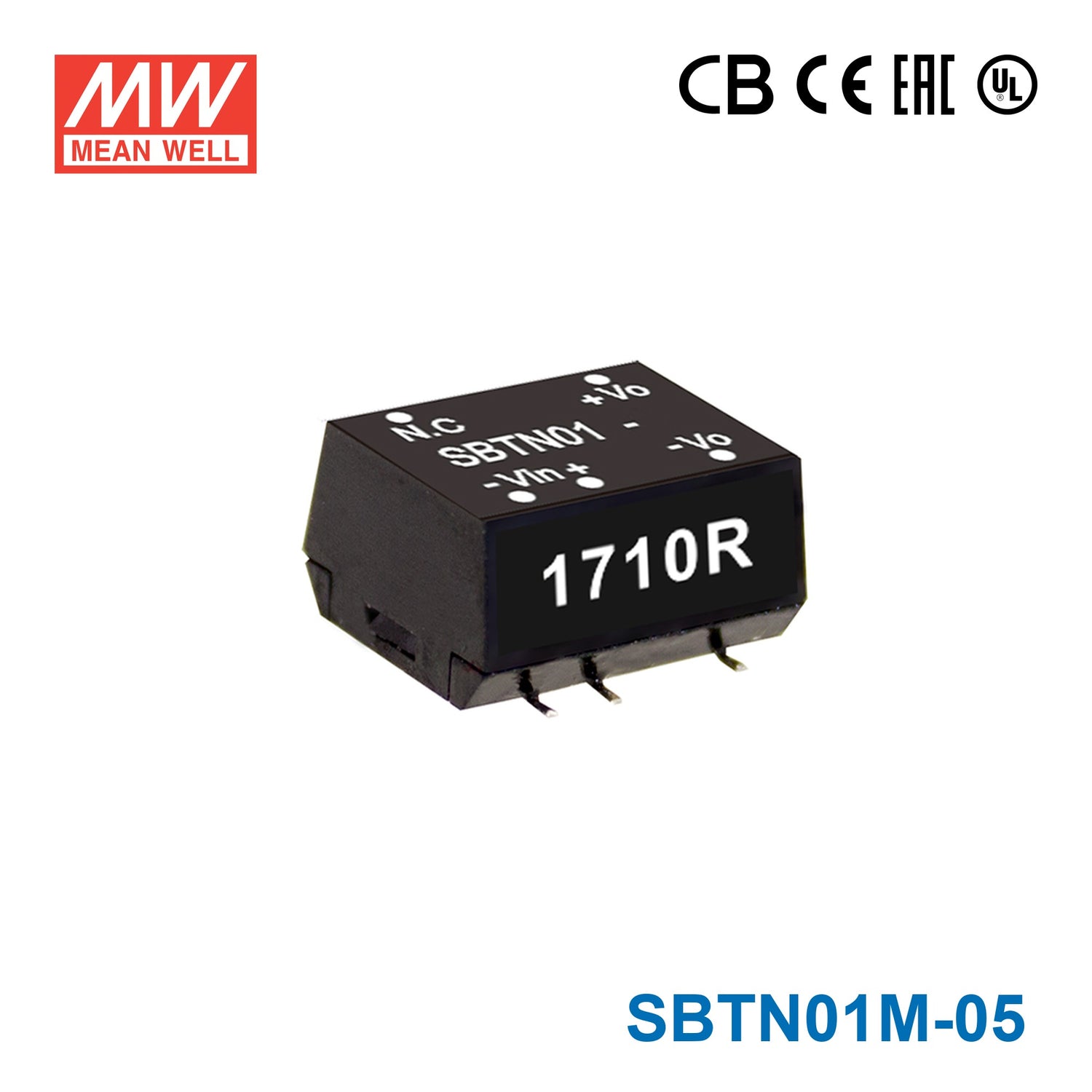

Mean Well SBTN01M-05 DC-DC Converter - 1W 12V DC in 5V out 200mA

Name: Mean Well SBTN01M-05 DC-DC Converter - 1W 12V DC in 5V out 200mA
Brand: Mean Well
SKU: SBTN01M-05
Price: 4.45 USD
Availability: InStock

SKU SBTN01M-05

$4.45 USD

Shipping calculated at checkout.

Available to order

Overview

SBTN01M-05 is the 5V output model of this series: rated power 1W, typical efficiency 79%.

SBTN01 series is 1W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 3.3V/5V/12V/24V±10%, and various output voltage, 3.3V/5V/9V/12V/15V for single output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 84%
Protection: Short circuit
1.5KVDC I/O isolation (3KVDC I/O isolation optional)
Low cost
Optional reel packing
3 years warranty

Specifications

SBTN01M-05Specifications from the official datasheet (2026-09-15 edition)

INPUT

INPUT VOLTAGE (RANGE): 12V (10.8 ~ 13.2V)
INPUT CURRENT (NO LOAD): 12mA
INPUT CURRENT (FULL LOAD): 112mA
VOLTAGE RANGE: 10.8 ~ 13.2Vdc ,
SURGE VOLTAGE (100ms max.): 3.3, 5Vin models : 9Vdc ; 12Vin models : 16Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 3.3Vin models: 1000mA Slow-Blow Type, 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 20 ~ 200mA
VOLTAGE ACCURACY: ±2% (Vo 3.3V for±3%)
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation (1.5% for 1% input variation only for Vo 3.3V)
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz
EFFICIENCY (TYP.): 79%
CAPACITOR LOAD (MAX.): 220μF

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1(Except for 9V output models), EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 880Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 12.9*10.9*7.1mm (0.50*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: Standard : 1.1g ; 38 pcs/per tube, 4560 pcs/ 120 tube/per carton Optional : 1.1g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(K:3.3Vdc, L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 220uF/100V.

Technical drawings

SBTN01M-05 Mechanical Specification — Mechanical Specification

SBTN01M-05 Pin Assignment — Pin Assignment

SBTN01M-05 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates3

CE Certificate(SBTN01)(EN) PDF Download

UL Certificate(SBTN01)(EN) PDF Download

EMC Certificate(SBTN)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SBTN01M-05 to power a low-power 5V embedded controller from a 12V DC source?

Yes, this model is intended for applications where the converter input is 10.8-13.2VDC and the load needs a fixed 5V output. Its output rating is 0.2A with 1W total power, so it fits low-power embedded controllers and logic sections.

Is this a reasonable choice for small industrial monitoring electronics that run on 5V?

It can be, as long as the 5V load stays within 0.2A and 1W. That makes it suitable for low-power monitoring, control, or communications circuits rather than higher-draw 5V devices.

Can the SBTN01M-05 work in compact automation hardware with very little board space?

Yes, it is very compact at 12.9 x 10.9 x 7.1 mm and weighs 0.0011 kg. Those dimensions make it practical for dense automation or embedded assemblies where only a small 5V rail is required.

Is this converter suitable for outdoor equipment cabinets?

The operating temperature range is -40°C to +90°C, with load derating at high ambient temperature per the derating curve, which supports a wide range of equipment conditions. No IP rating is listed in the provided specs, so it is better suited to protected housings or indoor control assemblies than directly exposed outdoor use.

How does the SBTN01M-05 compare with the other SBTN01M versions?

All SBTN01M models are 1W converters, but they differ by output. The siblings are 3.3V at 300mA for the SBTN01M-03, 9V at 111mA for the SBTN01M-09, 12V at 84mA for the SBTN01M-12, and 15V at 67mA for the SBTN01M-15, while this model provides 5V at 200mA.
