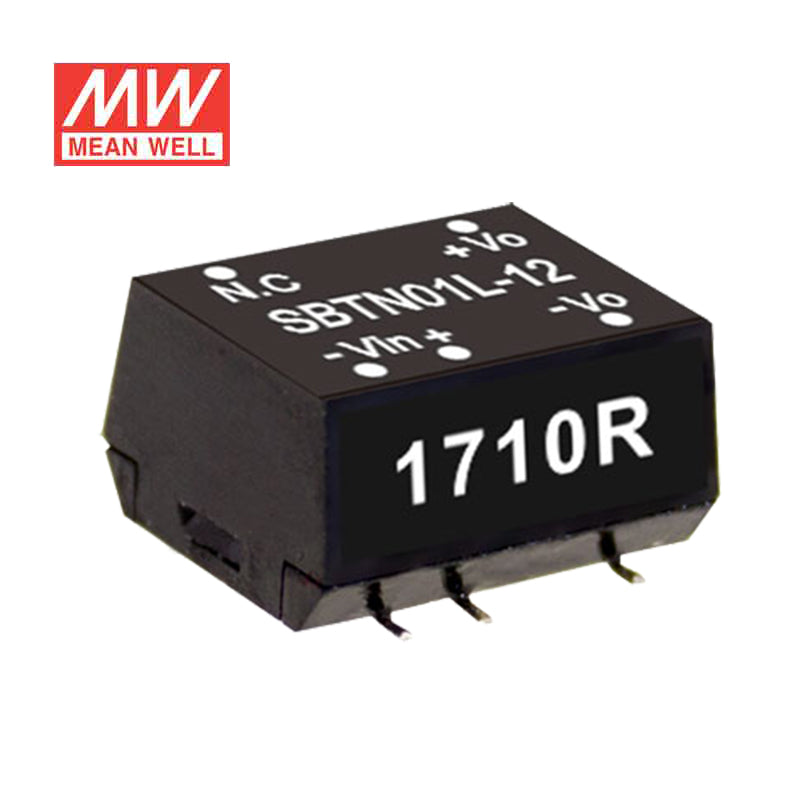

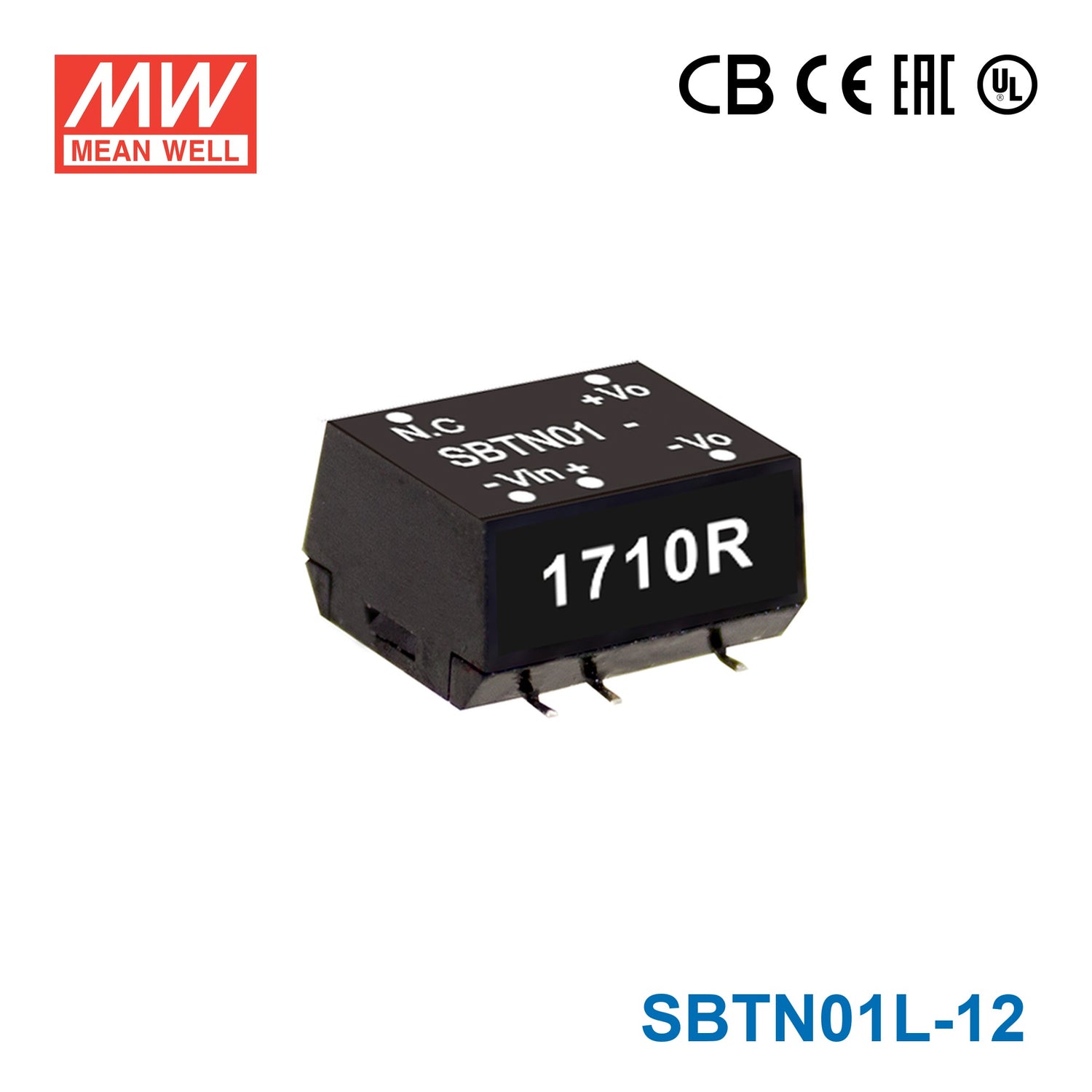

Mean Well SBTN01L-12 DC-DC Converter - 1W 5V DC in 12V out 84mA

Name: Mean Well SBTN01L-12 DC-DC Converter - 1W 5V DC in 12V out 84mA
Brand: Mean Well
SKU: SBTN01L-12
Price: 4.45 USD
Availability: InStock

SKU SBTN01L-12

$4.45 USD

Shipping calculated at checkout.

Available to order

Overview

SBTN01L-12 is the 12V output model of this series: rated power 1W, typical efficiency 80%.

SBTN01 series is 1W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 3.3V/5V/12V/24V±10%, and various output voltage, 3.3V/5V/9V/12V/15V for single output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 84%
Protection: Short circuit
1.5KVDC I/O isolation (3KVDC I/O isolation optional)
Low cost
Optional reel packing
3 years warranty

Specifications

SBTN01L-12Specifications from the official datasheet (2026-09-15 edition)

INPUT

INPUT VOLTAGE (RANGE): 5V (4.5 ~ 5.5V)
INPUT CURRENT (NO LOAD): 30mA
INPUT CURRENT (FULL LOAD): 257mA
VOLTAGE RANGE: 4.5 ~ 5.5Vdc ,
SURGE VOLTAGE (100ms max.): 3.3, 5Vin models : 9Vdc ; 12Vin models : 16Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 3.3Vin models: 1000mA Slow-Blow Type, 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 8.4 ~ 84mA
VOLTAGE ACCURACY: ±2% (Vo 3.3V for±3%)
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation (1.5% for 1% input variation only for Vo 3.3V)
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz
EFFICIENCY (TYP.): 80%
CAPACITOR LOAD (MAX.): 220μF

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1(Except for 9V output models), EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 880Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 12.9*10.9*7.1mm (0.50*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: Standard : 1.1g ; 38 pcs/per tube, 4560 pcs/ 120 tube/per carton Optional : 1.1g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(K:3.3Vdc, L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 220uF/100V.

Technical drawings

SBTN01L-12 Mechanical Specification — Mechanical Specification

SBTN01L-12 Pin Assignment — Pin Assignment

SBTN01L-12 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates3

CE Certificate(SBTN01)(EN) PDF Download

UL Certificate(SBTN01)(EN) PDF Download

EMC Certificate(SBTN)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SBTN01L-12 for a low-power 12V sensor or monitoring module in industrial equipment?

Yes, this model is an unregulated DC-DC converter with a fixed 12V output rated for 84mA and 1W. It fits low-power industrial or automation loads that specifically need 12V and stay within that output limit.

Is this converter a good fit for embedded control boards that need a small 12V rail from a 5V DC source?

It can be a fit when the source available to the converter is 4.5-5.5VDC and the downstream circuit needs a fixed 12V output. The output capacity is 84mA at 1W, so it is intended for light embedded loads rather than higher-current subsystems.

Can I use this for a compact automation interface circuit that only needs a small amount of 12V power?

Yes, the small size of 12.9 x 10.9 x 7.1 mm and 0.0011 kg weight make it suited to compact electronics where board space matters. Its 12V output is limited to 84mA and 1W, so it is best for low-power interface or signal-stage use.

Is the SBTN01L-12 suitable for outdoor or harsh-environment use?

The operating temperature range is -40°C to +90°C, with load derating at high ambient temperature per the derating curve, which supports use across a wide temperature span. No IP rating is listed in the provided specs, so it is better matched to protected indoor equipment or enclosed assemblies rather than exposed outdoor locations.

How does the SBTN01L-12 compare with the other SBTN01L output options?

Within the SBTN01L family, all models are 1W units. The sibling outputs are 3.3V at 300mA for the SBTN01L-03, 5V at 200mA for the SBTN01L-05, 9V at 111mA for the SBTN01L-09, and 15V at 67mA for the SBTN01L-15, while this model provides 12V at 84mA.
