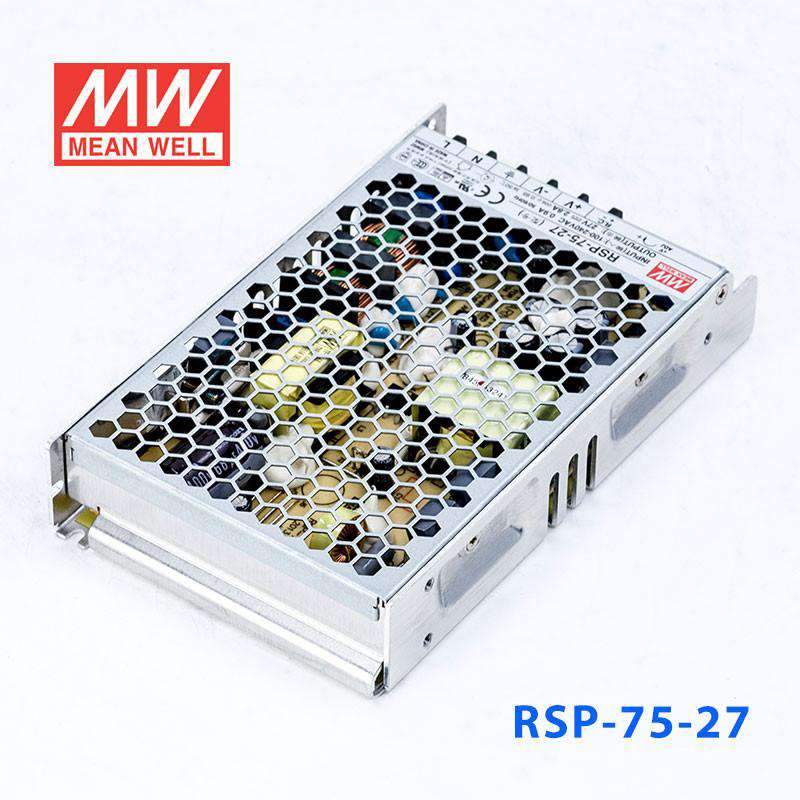

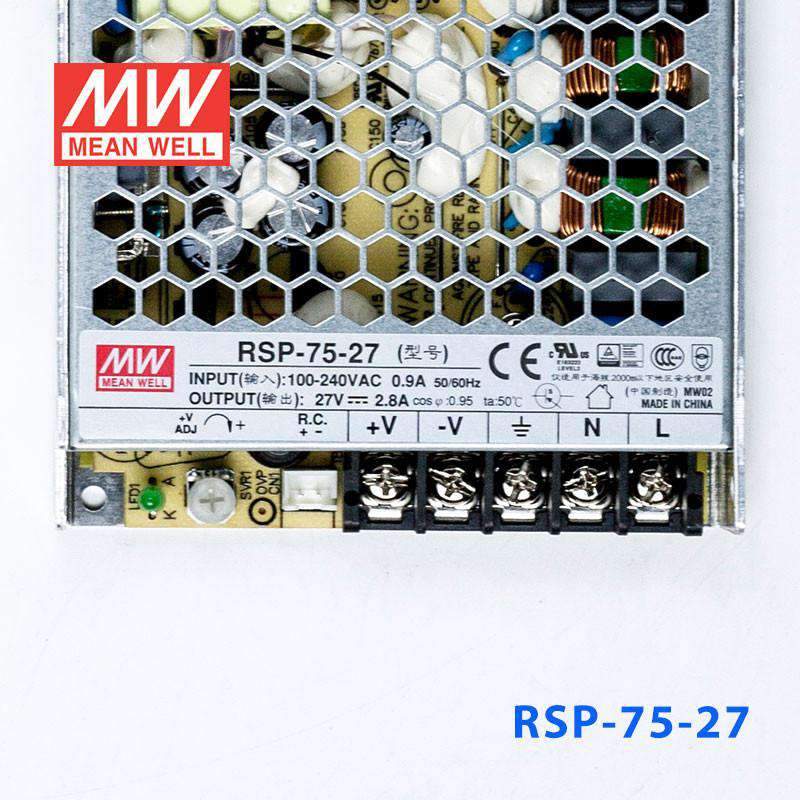

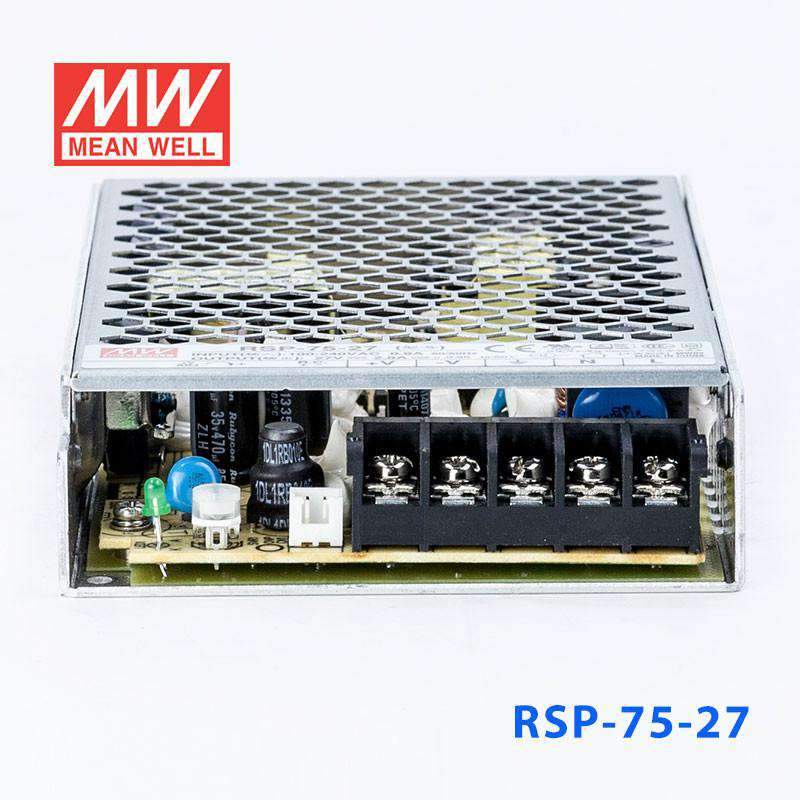

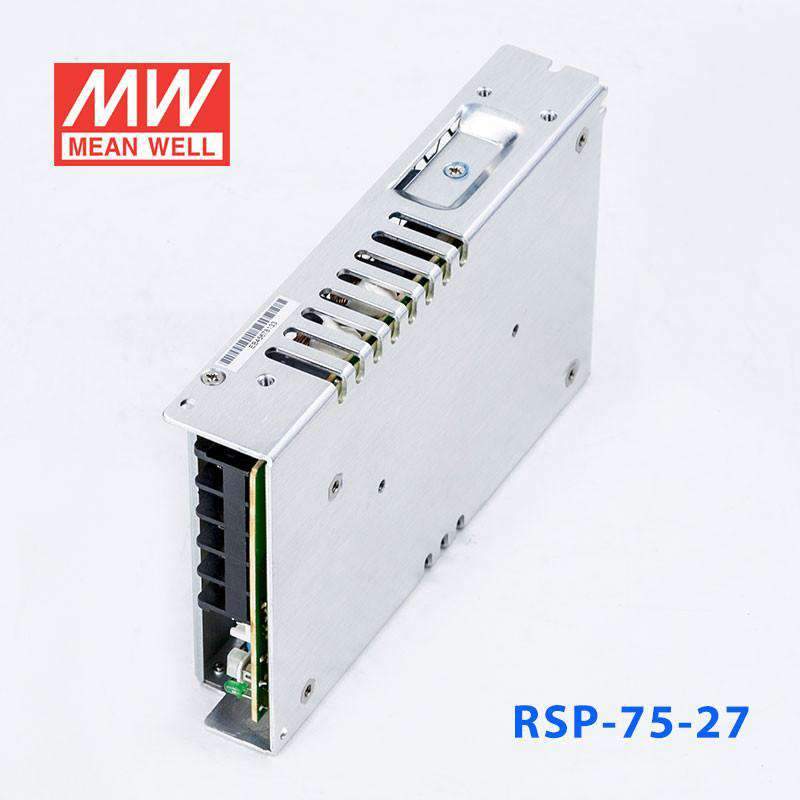

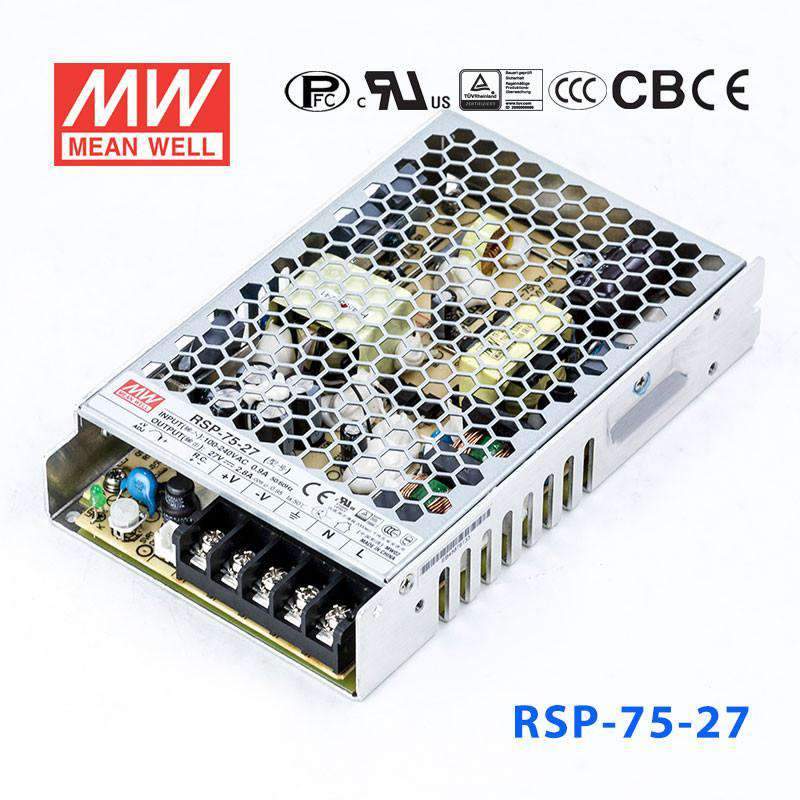

Mean Well RSP-75-27 Power Supply 75W 27V 2.8A

Name: Mean Well RSP-75-27 Power Supply 75W 27V 2.8A
Brand: Mean Well
SKU: RSP-75-27
Price: 40.88 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU RSP-75-27

$40.88 USD

Shipping calculated at checkout.

Select model — 9 in this family

RSP-75-27

RSP-75-27 75W 27V In stock$40.88 USD

RSP-100-27 100W 27V Low stock$44.76 USD

RSP-150-27 150W 27V Low stock$47.55 USD

RSP-320-27 320W 27V Low stock$65.60 USD

RSP-500-27 500W 27V Backorder$114.85 USD

RSP-750-27 750W 27V In stock$220.88 USD

RSP-1000-27 1000W 27V In stock$285.73 USD

RSP-1500-27 1500W 27V Backorder$433.58 USD

RSP-1600-27 1600W 27V Low stock$459.86 USD

Product variants

In stock

Overview

RSP-75-27 is the 27V output model of this series: rated current 2.8A, rated power 75.6W, typical efficiency 88%.

RSP-75 is a 75W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection , working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 89%
Cooling by free air convection
Built-in remote ON-OFF control
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
3 years warranty

Specifications

RSP-75-27Specifications from the official datasheet (2025-01-10 edition)

OUTPUT

DC VOLTAGE: 27V
RATED CURRENT: 2.8A
CURRENT RANGE: 0 ~ 2.8A
RATED POWER: 75.6W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 25.7 ~ 29.7V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 600ms, 30ms at full load
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 0.9A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 29.7 ~ 36.45V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to EN 61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1,BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 48V) approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, GB9254 Class B, GB17625.1
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2171.5K hrs min. Telcordia SR-332 (Bellcore) ; 296.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*30mm (L*W*H)
PACKING: 0.44Kg; 30pcs/14.2Kg/0.9CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-75-27 Mechanical Specification — Mechanical Specification

RSP-75-27 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates3

CB Certificate (RSP-75)(EN) PDF Download

TUV(60950) Certificate (RSP-75)(EN) PDF Download

TUV(61558) Certificate (RSP-75)(EN) PDF Download

Test reports1

Test Report (RSP-75-27)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What is the RSP-75-27 suited for in embedded or industrial systems?

The RSP-75-27 delivers 27V at 2.8A (75.6W), appropriate for powering small motion control modules, specialty field instruments, and embedded subsystems operating on a 24-28V nominal bus. Its compact 159.0 × 97.0 × 30.0 mm form factor suits screw-mounted panel enclosures.

Can the RSP-75-27 operate in cold indoor environments?

Yes. The RSP-75-27 operates from -25°C to +70°C (with output derating at higher temperatures) at 20-90% RH non-condensing. Safety approvals include UL62368-1, TÜV EN62368-1, EN61558, AS/NZS 62368.1, EAC, CCC, BSMI and BIS.

How does the RSP-75-27 compare to the RSP-75-24 and RSP-75-48?

All three share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-24 provides 76.8W at 3.2A, the RSP-75-27 provides 75.6W at 2.8A, and the RSP-75-48 provides 76.8W at 1.6A. Power output is similar; current decreases as voltage increases.

What is the rated output power of the RSP-75-27?

The RSP-75-27 is rated at 75.6W (27V × 2.8A). It weighs 0.44 kg and includes a 3-year warranty. Built-in active PFC is included.
