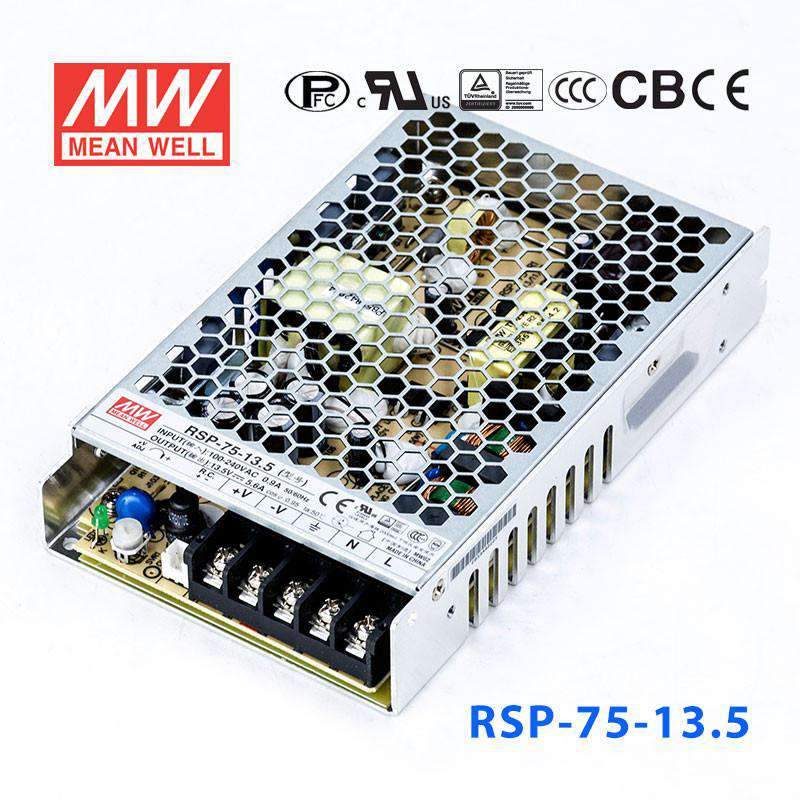

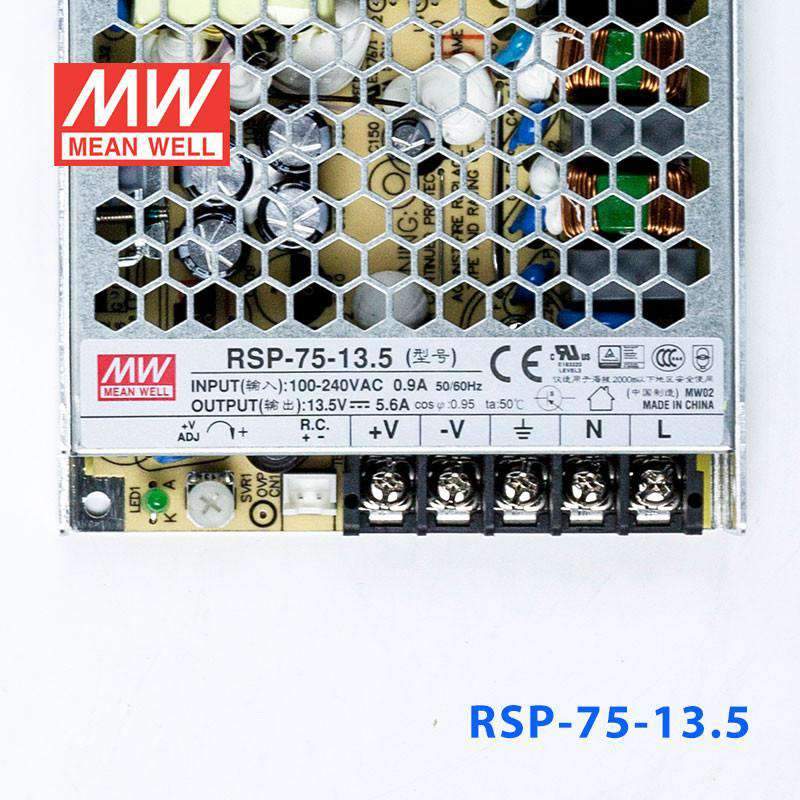

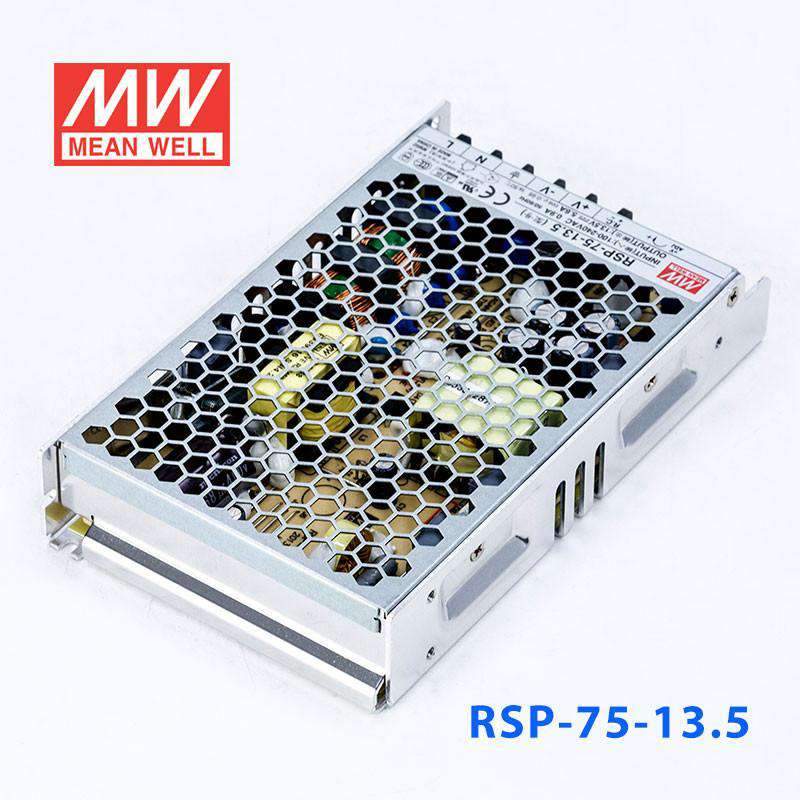

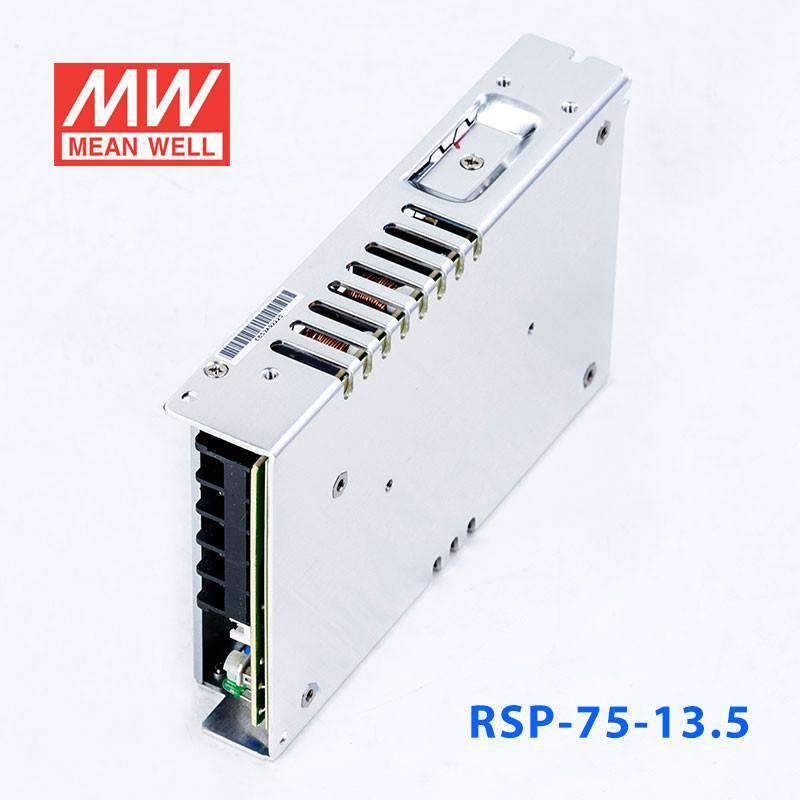

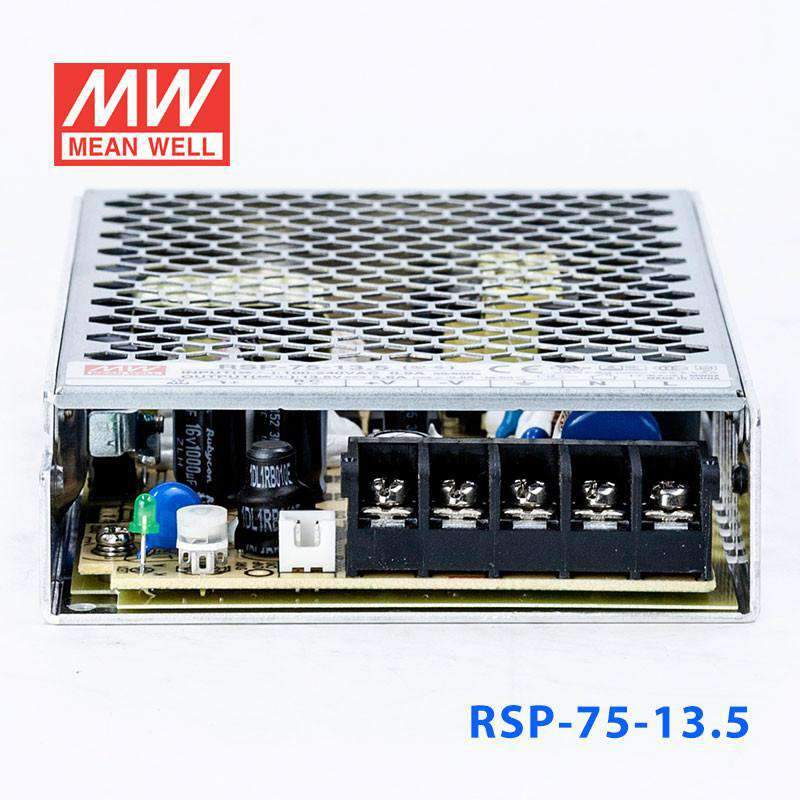

Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A

Name: Mean Well RSP-75-13.5 Power Supply 75W 13.5V 5.6A
Brand: Mean Well
SKU: RSP-75-13.5
Price: 40.88 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU RSP-75-13.5

$40.88 USD

Shipping calculated at checkout.

Select model — 5 in this family

RSP-75-13.5

RSP-75-13.5 75W 13.5V Low stock$40.88 USD

RSP-100-13.5 100W 13.5V Low stock$44.76 USD

RSP-150-13.5 150W 13.5V Low stock$47.55 USD

RSP-200-13.5 200W 13.5V Low stock$54.28 USD

RSP-320-13.5 320W 13.5V Low stock$65.60 USD

Product variants

In stock

Overview

RSP-75-13.5 is the 13.5V output model of this series: rated current 5.6A, rated power 75.6W, typical efficiency 85%.

RSP-75 is a 75W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection , working for the temperature up to 70℃.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 89%
Cooling by free air convection
Built-in remote ON-OFF control
Protections: Short circuit / Overload / Over voltage / Over temperature
LED indicator for power on
3 years warranty

Specifications

RSP-75-13.5Specifications from the official datasheet (2025-01-10 edition)

OUTPUT

DC VOLTAGE: 13.5V
RATED CURRENT: 5.6A
CURRENT RANGE: 0 ~ 5.6A
RATED POWER: 75.6W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 12.8 ~ 14.9V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 600ms, 30ms at full load
HOLD UP TIME (Typ.): 16ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.93/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 0.9A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14.85 ~ 18.23V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: CN1: < 0~0.8VDC POWER ON , 4~10VDC POWER OFF

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY: Ⅲ; According to EN 61558, EN50178,EN60664-1, EN62477-1 ; altitude up to 2000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1,BS EN/EN61558-2-16, AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1,BIS IS13252(Part1): 2010/IEC 60950-1:2005(except for 48V) approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, GB9254 Class B, GB17625.1
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF: 2171.5K hrs min. Telcordia SR-332 (Bellcore) ; 296.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*30mm (L*W*H)
PACKING: 0.44Kg; 30pcs/14.2Kg/0.9CUFT

Test conditions and notes5

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-75-13.5 Mechanical Specification — Mechanical Specification

RSP-75-13.5 Block Diagram — Block Diagram

RSP-75-13.5 Derating Curve — Derating Curve

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates3

CB Certificate (RSP-75)(EN) PDF Download

TUV(60950) Certificate (RSP-75)(EN) PDF Download

TUV(61558) Certificate (RSP-75)(EN) PDF Download

Test reports1

Test Report (RSP-75-13.5)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What is the RSP-75-13.5 commonly used for?

The RSP-75-13.5 provides 13.5V at 5.6A (75.6W) for equipment that needs a regulated 13.5V rail, such as factory control or automation apparatus and test and measurement instruments. Its 159.0 × 97.0 × 30.0 mm form factor suits compact panel installations.

What is the minimum operating temperature of the RSP-75-13.5?

The RSP-75-13.5 operates down to -25°C, with an upper limit of +70°C (output derates at higher temperatures per the derating curve). It is an enclosed-type unit with UL62368-1, TÜV EN62368-1, EN61558, AS/NZS 62368.1, EAC, CCC, BSMI and BIS safety approvals.

How does the RSP-75-13.5 compare to the RSP-75-12 and RSP-75-15?

All three units share the 159.0 × 97.0 × 30.0 mm chassis and 85-264VAC input. The RSP-75-12 delivers 75.6W at 6.3A, the RSP-75-13.5 delivers 75.6W at 5.6A, and the RSP-75-15 delivers 75W at 5A. All three are rated at approximately 75W with current decreasing as voltage increases.

What certifications does the RSP-75-13.5 hold?

The RSP-75-13.5 holds UL62368-1, TÜV BS EN/EN62368-1, BS EN/EN61558-1 and -2-16, AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1 and BIS IS13252 approvals and includes a 3-year warranty. It weighs 0.44 kg.
