Mean Well RSP-500-12 Power Supply 500W 12V - Best Price

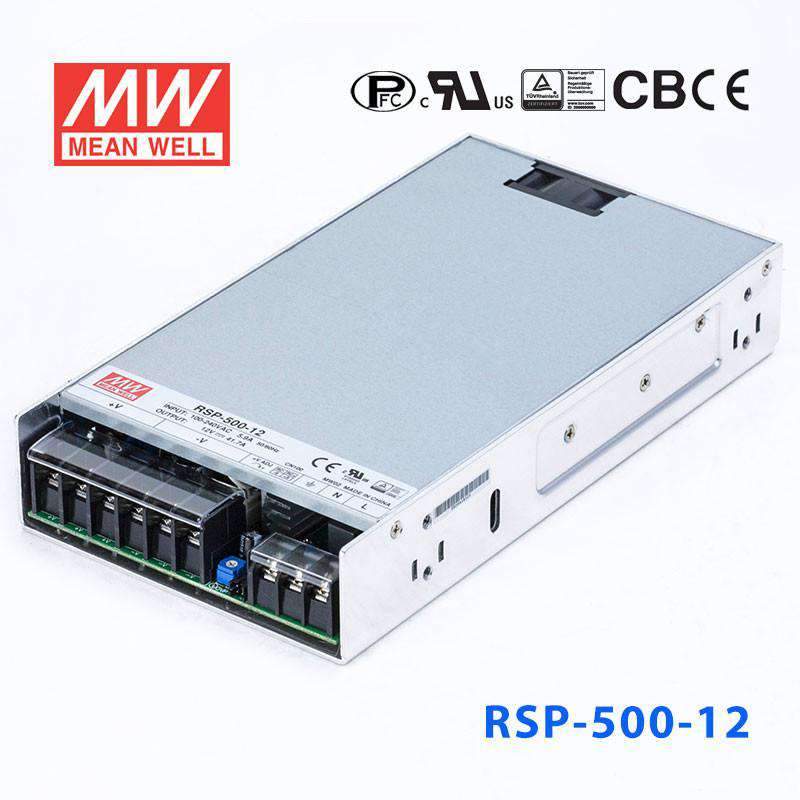

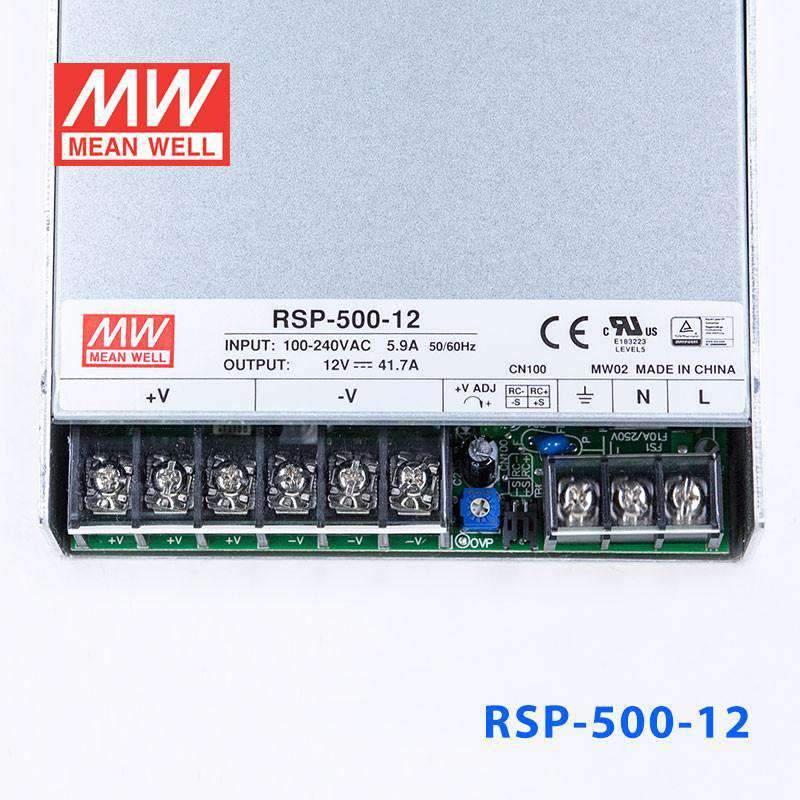

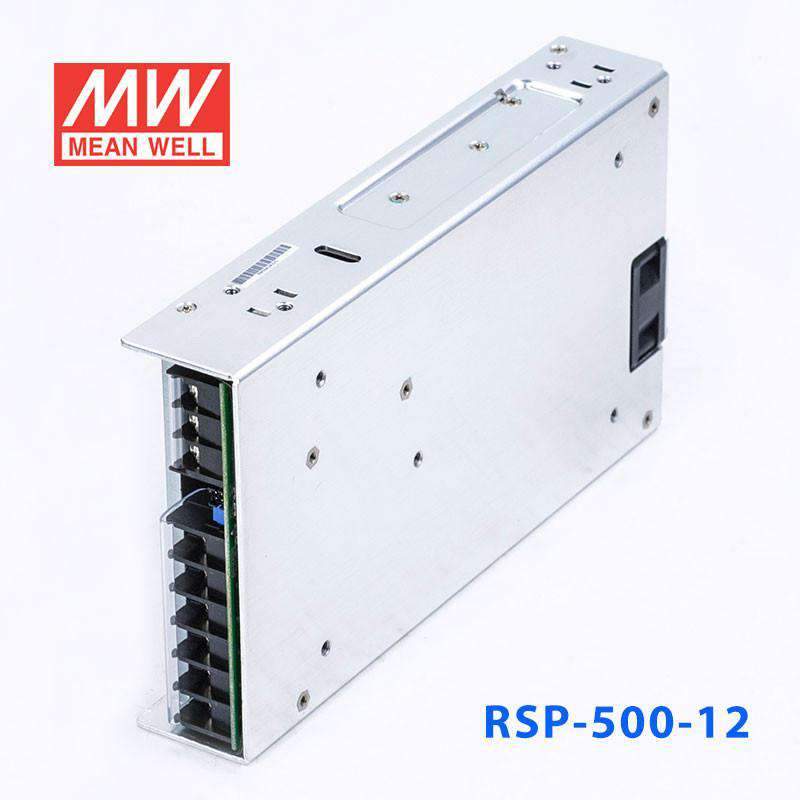

Name: Mean Well RSP-500-12 Power Supply 500W 12V 41.7A
Brand: Mean Well
SKU: RSP-500-12
Price: 95.73 USD
Availability: InStock

Overview

RSP-500-12 is the 12V output model of this series: rated current 41.7A, rated power 500.4W, typical efficiency 88%.

RSP-500 is a 500W single output enclosed type AC/DC power supply. This series operates for 85~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RSP-500 provides vast design flexibility by equipping various built-in functions such as remote ON-OFF control, remote sense,etc.

Features

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90.5%
Forced air cooling by built-in DC fan (Note.5)
Built-in remote ON-OFF control / remote sense
Protections: Short circuit / Overload / Over voltage / Over temperature
3 years warranty

Specifications

RSP-500-12Specifications from the official datasheet (2025-09-26 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 41.7A
CURRENT RANGE: 0 ~ 41.7A
RATED POWER: 500.4W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 10 ~ 13.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.3%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 80ms/230VAC 3000ms, 80ms/115VAC at full load
HOLD UP TIME (Typ.): 18ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 5.3A/115VAC 2.65 A/230VAC
INRUSH CURRENT (Typ.): 20A/115VAC 40A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting , recovers automatically after fault condition is removed
OVER VOLTAGE: 13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL: POWER ON:open or 0~0.8VDC between RC+(Pin 4)&RC-(Pin3) on CN100 POWER OFF: 4~10VDC between RC+(Pin 4)&RC-(Pin3) on CN100
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.3V
FAN CONTROL (Typ.): RTH2 ≧ 50 ℃± 10 ℃ Fan on ; RTH2 ≦ 40 ℃± 10 ℃ Fan off (Fan always on for 3.3~5V,Fan ON/OFF control for 12~48V)

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.4)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004 , CCC GB4943.1 , BSMI CNS15598-1, BIS IS13252(Part1): 2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020,GB/T 9254, CNS15936 Class B
EMC IMMUNITY: Compliance to BS EN/ EN61000-4-2,3,4,5,6,8,11, BS EN/ EN55035, BS EN/ EN61000-6-2, EAC TP TC 020

OTHERS

MTBF: 1372.4K hrs min. Telcordia SR-332 (Bellcore) ; 187.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 230*127*40.5mm (L*W*H)
PACKING: 1.3Kg; 9pcs/12.7Kg/0.7CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Fan always on for 3.3~5V,Fan ON/OFF control for 12~48V.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSP-500-12 Mechanical Specification — Mechanical Specification

RSP-500-12 Block Diagram — Block Diagram

RSP-500-12 Derating Curve — Derating Curve

RSP-500-12 Function Manual — Function Manual

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application

Downloads

Certificates3

CB Certificate (RSP-500)(EN) PDF Download

TUV Certificate (RSP-500)(EN) PDF Download

EMC Certificate (RSP-500)(EN) PDF Download

Test reports1

Test Report (RSP-500-12)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

What applications is the RSP-500-12 suited for at 12V, 500W?

The RSP-500-12 outputs 12V at 41.7A (500.4W), appropriate for network infrastructure equipment, embedded server nodes, and industrial automation controllers operating on a 12V bus. Its 1U form factor (230.0 × 127.0 × 40.5 mm) allows standard rack integration.

What temperature range does the RSP-500-12 support?

The RSP-500-12 operates from -30°C to +70°C ambient (refer to the derating curve). It is an enclosed type unit with UL62368-1, TÜV BS EN/EN62368-1, AS/NZS 62368.1, EAC, CCC, BSMI and BIS safety approvals.

What is the input voltage range of the RSP-500-12?

The RSP-500-12 accepts 85-264VAC, supporting the full range of worldwide single-phase AC power systems. It includes built-in active PFC and weighs 1.3 kg.
