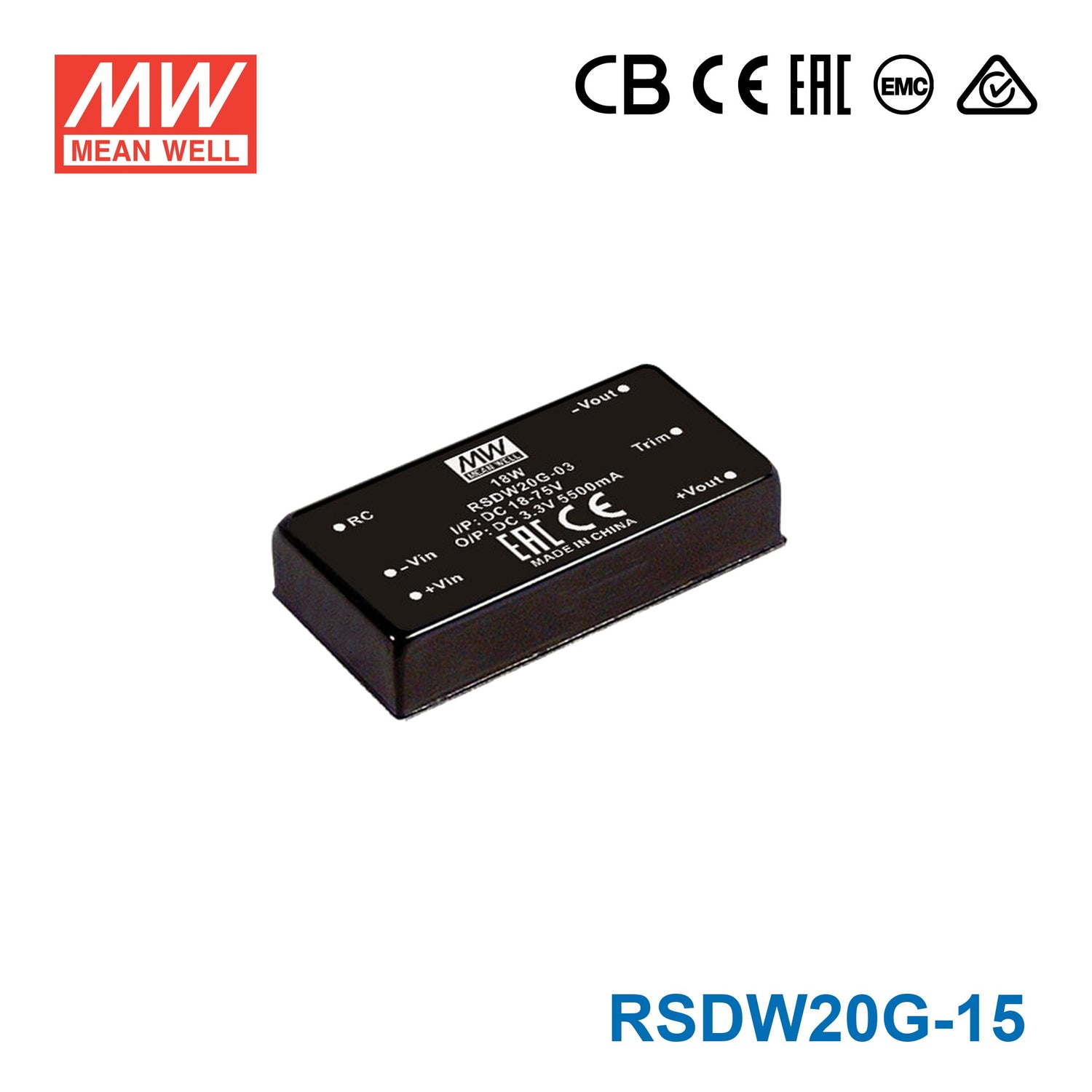

Mean Well RSDW20G-15 DC-DC Converter - 20W - 18~75V in 15V out
$41.32 USD
Unit price /
Unavailable
Description
Description
Features
| Compliance with EN50155 railway standard |
| DIP 2" x 1" package with standard pinout |
| 4:1 wide input range |
| Wide operating temperature range -40~+85°C |
| No minimum load required |
| Fully encapsulated |
| Protections: Short circuit(Continuous)/Overload/Over voltage/Input under voltage |
| 1.5KVDC, 3KVDC I/O isolation by models |
| Remote ON/OFF control |
| 3 years warranty |
General Specification
| Voltage Accuracy | ±1.5% |
| Overload Protection | 110~160% rated output power |
| Efficiency | 90% |
| Short circuit protection | Continuous, automatic recovery |
| Working temperature | -40°C to +85°C |
| EMC | Compliance to EN55032 class A, EN61000-4-2,3,4,5,6 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 71℃) |
| Dimension (LxWxH) (mm) | 50.8*25.4*10.2mm |
| Potting material | Non-conductive black plastic |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage18V~75V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.4 in
-
Weight0.08 lb
