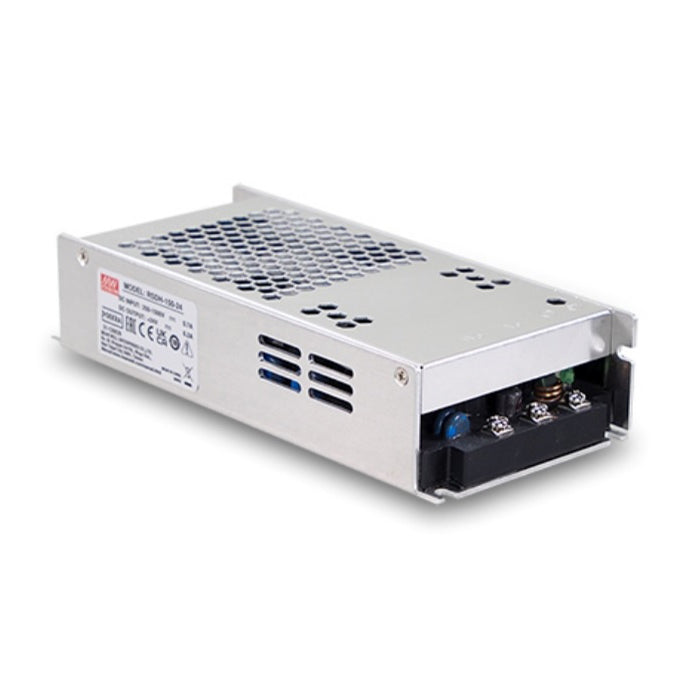

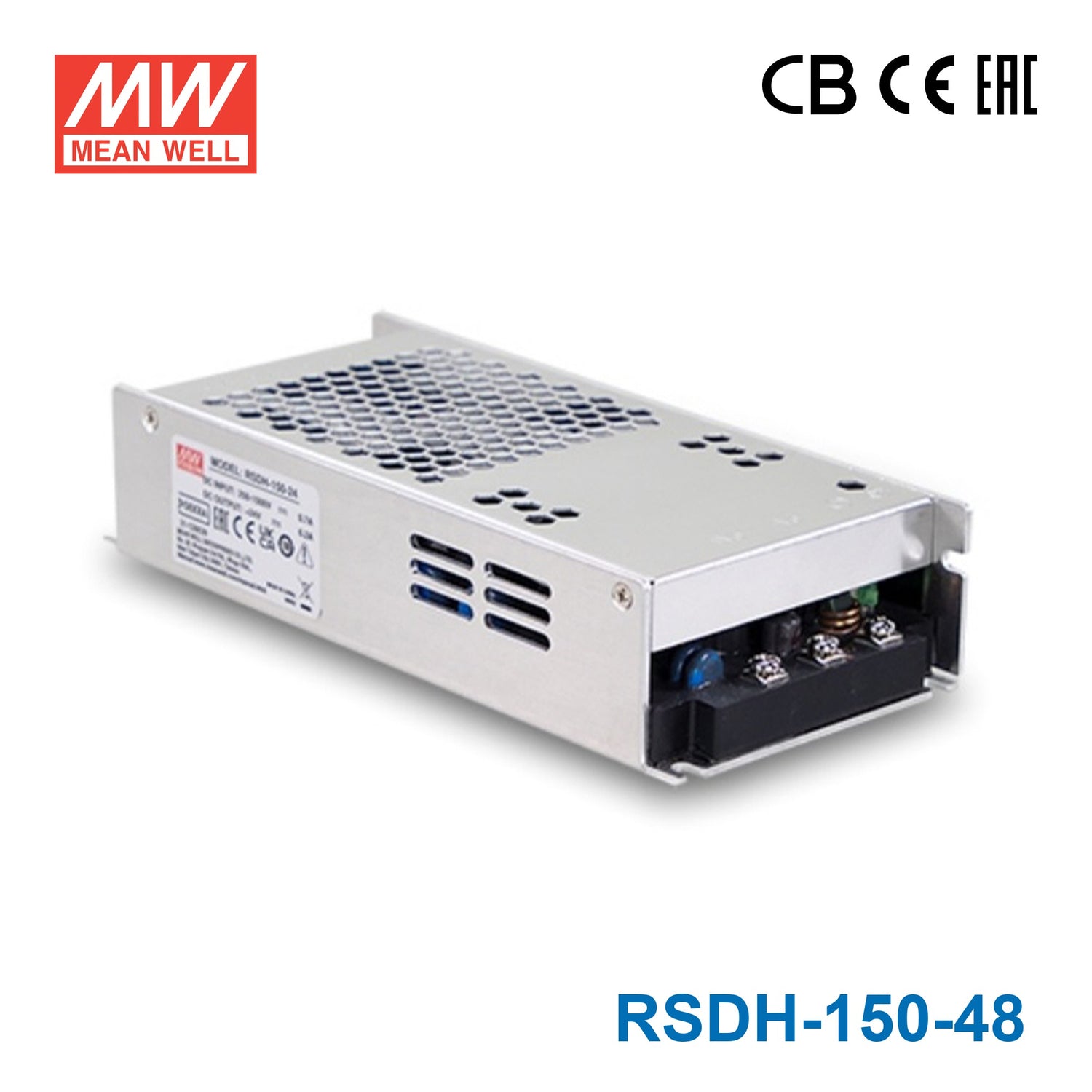

Mean Well RSDH-150-48 Ultra Wide Input DC-DC Converter, 250V-1500VDC Input, 48V Output 3.12A

Name: Mean Well RSDH-150-48 Ultra Wide Input DC-DC Converter, 250V-1500VDC Input, 48V Output 3.12A
Brand: Mean Well
SKU: RSDH-150-48
Price: 87.53 USD
Availability: InStock

250~1500VDC 6:1 ultra-wide input range4KVAC I/O high isolationfanless designhalf encapsulated1U low profile-41mm

SKU RSDH-150-48

$87.53 USD

Shipping calculated at checkout.

Available to order

Overview

RSDH-150-48 is the 48V output model of this series: rated current 3.12A, rated power 150W, typical efficiency 90%.

RSDH-150 series is a 250 ~ 1500Vdc ultra-high input enclosed type DC-DC converter which can supply stable working voltage for the load. Main features are as following: -40~+80° C wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. RSDH-150 is compliant with UL1741 and BS EN/EN-61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application, ESS, charging pile, railway and so forth.

Features

250~ 1500Vdc 6:1 ultra-wide input range
Withstand 1700Vdc surge input for 10 seconds
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature
DC input under voltage / DC input reverse polarity
Fanless design, half encapsulated, cooling by free air convection
-40~+80°C ultra-wide operating temperature (＞+55°C derating)
Over voltage categoryⅡ
Operating altitude up to 5000 meters
DC output voltage adjustable(12~15V, 24~29V, 30~36V, 48~58V)
1U low profile 41mm
Half encapsulated
3 years warranty

Specifications

RSDH-150-48Specifications from the official datasheet (2024-08-09 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 3.12A
CURRENT RANGE: 0 ~ 3.12A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 58V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
EXTERNAL CAPACITANCE LOAD (Max.): 1000μF

INPUT

VOLTAGE RANGE^Note.4: 250 ~ 1500Vdc
EFFICIENCY (Typ.) 300Vdc: 90%
EFFICIENCY (Typ.) 800Vdc: 92%
EFFICIENCY (Typ.) 1500Vdc: 88%
INRUSH CURRENT (max.): COLD START 300A /1500Vdc 200A/800Vdc 70A/250Vdc
EXTERNAL INPUT FUSE: 4A/1500VDC, required (Please refer to page 4 for more details)

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage
OVER VOLTAGE: 62 ~ 70V Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Protection type : Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT: Under voltage protection range: 200 ~ 225Vdc , Under voltage release range:225 ~ 246.5Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃ )
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.5: 5000m
OVER VOLTAGE CATEGORY: OVCⅡ 2000m; According to EN62109-1

SAFETY & EMC (Note.6)

SAFETY STANDARDS: UL1741, CSA C22.2 No.107.1-16 , IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:3.75KVAC O/P-FG:2KVAC
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, 4KV Vin~FG
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, 4KV Vin~FG
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A, criteria A

OTHERS

MTBF: 1924.7K hrs min. Telcordia SR-332 (Bellcore) ; 285.9 K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*86*41mm (L*W*H)
PACKING: 0.81Kg;12pcs/10.7Kg/0.75CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RSDH-150-48 Block Diagram — Block Diagram

RSDH-150-48 Derating Curve — Derating Curve

RSDH-150-48 Mechanical Specification — Mechanical Specification

RSDH-150-48 External FUSE wiring instruction — External FUSE wiring instruction

Typical applications

Downloads

Datasheet1

RSDH-150-48 datasheetRSDH_150_spec.pdf · 2024-08-09 edition PDF Download

FAQ

What applications is the Mean Well RSDH-150-48 best suited for?

The RSDH-150-48 is designed for high-voltage DC systems that need a regulated 48V output from a very wide DC input range. Its 250-1500VDC input capability makes it relevant for industrial and other specialized DC bus applications where input voltage can vary significantly. Buyers typically choose this model when they need 150W output with 48VDC at up to 3.12A.

What makes the RSDH-150-48 different from a standard DC-DC converter?

The main differentiator is its 250-1500VDC 6:1 ultra-wide input range, which is far broader than conventional DC-DC converters. This model also withstands 1700VDC surge input for 10 seconds, uses a fanless half-encapsulated design, and operates across a wide -40°C to +80°C temperature range with derating above +55°C. Those features make it a more specialized option for demanding DC input environments.

Can this converter handle fluctuating or high-voltage DC input sources?

Yes. The RSDH-150-48 is built for DC inputs from 250VDC to 1500VDC and can tolerate 1700VDC surge input for 10 seconds. That specification is a key reason to select this model when the upstream DC source is much higher than typical low-voltage converters are designed for.

Is the RSDH-150-48 suitable for harsh temperature or high-altitude environments?

This model is specified for operation from -40°C to +80°C, with derating required above +55°C. It is also rated for operating altitudes up to 5000 meters. Combined with its fanless, half-encapsulated construction, that makes it a strong candidate for demanding ambient conditions.

What output does the Mean Well RSDH-150-48 provide?

The converter provides a nominal 48VDC output with a 150W power rating and rated output current of 3.12A. Its output voltage is also adjustable within the 48-58V range. That flexibility can help when a system needs a regulated 48V class DC output with some adjustment margin.

What protection features are included on the RSDH-150-48?

The RSDH-150-48 includes protection for short circuit, overload, over voltage, over temperature, DC input under voltage, and DC input reverse polarity. These built-in protections are part of the model's design for higher-risk DC environments. Mean Well also backs this unit with a 3-year warranty.
