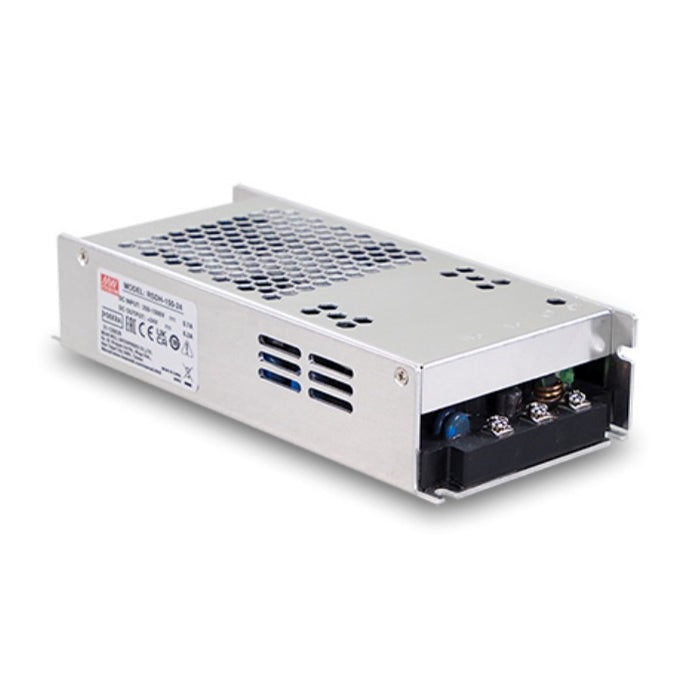

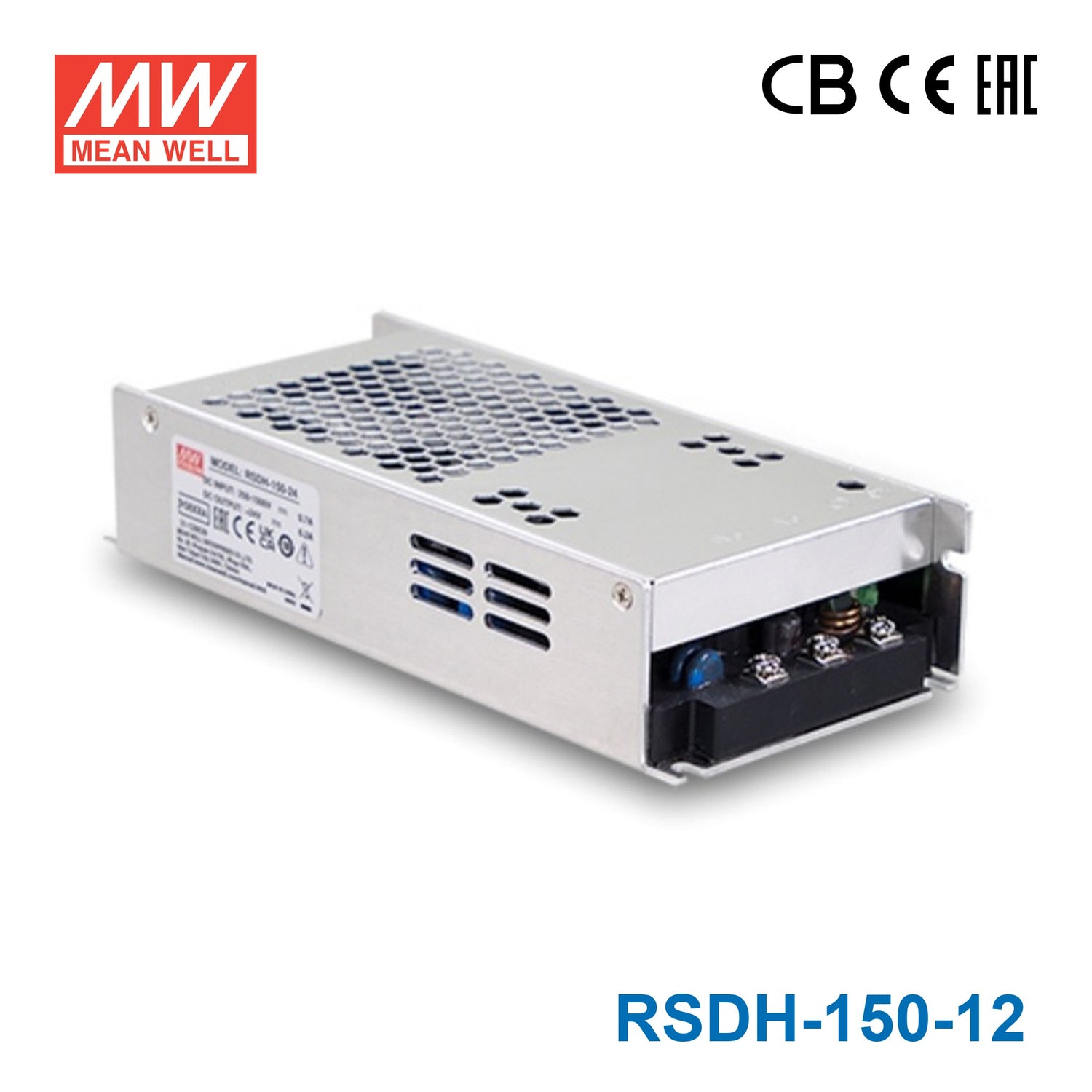

Mean Well RSDH-150-12 Ultra Wide Input DC-DC Converter, 250V-1500VDC Input, 12V Output 10A

Name: Mean Well RSDH-150-12 Ultra Wide Input DC-DC Converter, 250V-1500VDC Input, 12V Output 10A
Brand: Mean Well
SKU: RSDH-150-12
Price: 87.53 USD
Availability: InStock

250~1500VDC 6:1 ultra-wide input range4KVAC I/O high isolationfanless designhalf encapsulated1U low profile-41mm

SKU RSDH-150-12

$87.53 USD

Shipping calculated at checkout.

Available to order

Overview

RSDH-150-12 is the 12V output model of this series: rated current 10A, rated power 120W, typical efficiency 88%.

RSDH-150 series is a 250 ~ 1500Vdc ultra-high input enclosed type DC-DC converter which can supply stable working voltage for the load. Main features are as following: -40~+80° C wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, high efficiency, low ripple & noise, complete protections and so on. RSDH-150 is compliant with UL1741 and BS EN/EN-61000-6-2 standard regarding immunity for industrial environments. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application, ESS, charging pile, railway and so forth.

Features

250~ 1500Vdc 6:1 ultra-wide input range
Withstand 1700Vdc surge input for 10 seconds
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature
DC input under voltage / DC input reverse polarity
Fanless design, half encapsulated, cooling by free air convection
-40~+80°C ultra-wide operating temperature (＞+55°C derating)
Over voltage categoryⅡ
Operating altitude up to 5000 meters
DC output voltage adjustable(12~15V, 24~29V, 30~36V, 48~58V)
1U low profile 41mm
Half encapsulated
3 years warranty

Specifications

RSDH-150-12Specifications from the official datasheet (2024-08-09 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 120W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 12 ~ 15V
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.5%
EXTERNAL CAPACITANCE LOAD (Max.): 4000μF

INPUT

VOLTAGE RANGE^Note.4: 250 ~ 1500Vdc
EFFICIENCY (Typ.) 300Vdc: 88%
EFFICIENCY (Typ.) 800Vdc: 88%
EFFICIENCY (Typ.) 1500Vdc: 85%
INRUSH CURRENT (max.): COLD START 300A /1500Vdc 200A/800Vdc 70A/250Vdc
EXTERNAL INPUT FUSE: 4A/1500VDC, required (Please refer to page 4 for more details)

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode when output voltage<55%, recovers automatically after condition is removed; Constant current limiting, recovers automatically after fault condition is removed within 55% ~ 100% rated output voltage
OVER VOLTAGE: 16.5 ~ 21V Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Protection type : Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT: Under voltage protection range: 200 ~ 225Vdc , Under voltage release range:225 ~ 246.5Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃ )
VIBRATION: Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
OPERATING ALTITUDE^Note.5: 5000m
OVER VOLTAGE CATEGORY: OVCⅡ 2000m; According to EN62109-1

SAFETY & EMC (Note.6)

SAFETY STANDARDS: UL1741, CSA C22.2 No.107.1-16 , IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVAC I/P-FG:3.75KVAC O/P-FG:2KVAC
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, 2KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, 4KV Vin~FG
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, 2KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, 4KV Vin~FG
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A, criteria A

OTHERS

MTBF: 1924.7K hrs min. Telcordia SR-332 (Bellcore) ; 285.9 K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 191*86*41mm (L*W*H)
PACKING: 0.81Kg;12pcs/10.7Kg/0.75CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

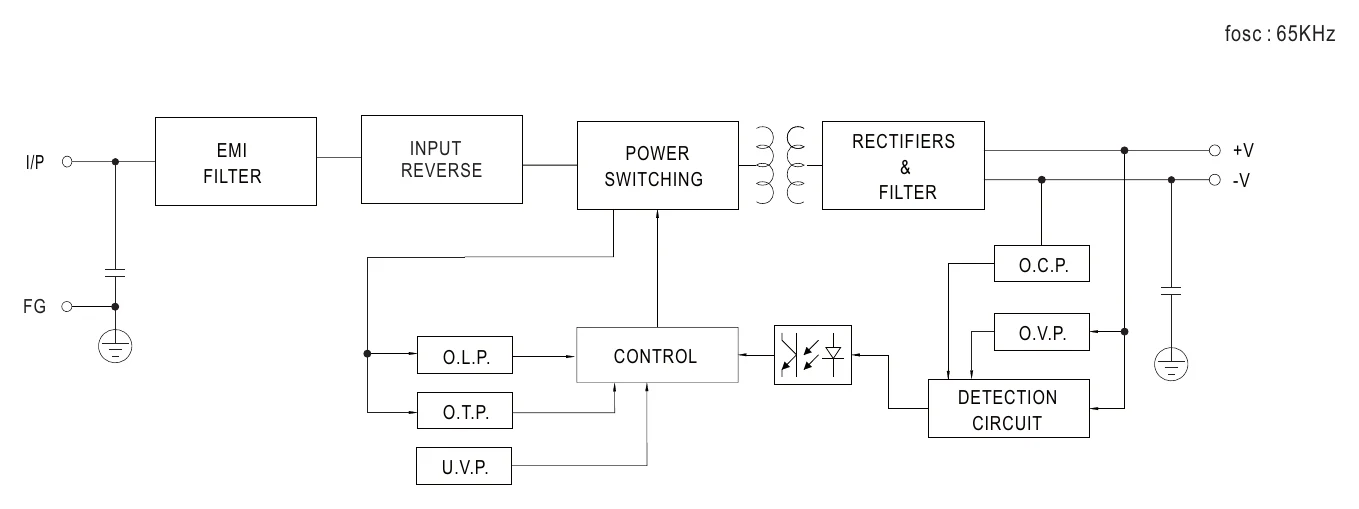

RSDH-150-12 Block Diagram — Block Diagram

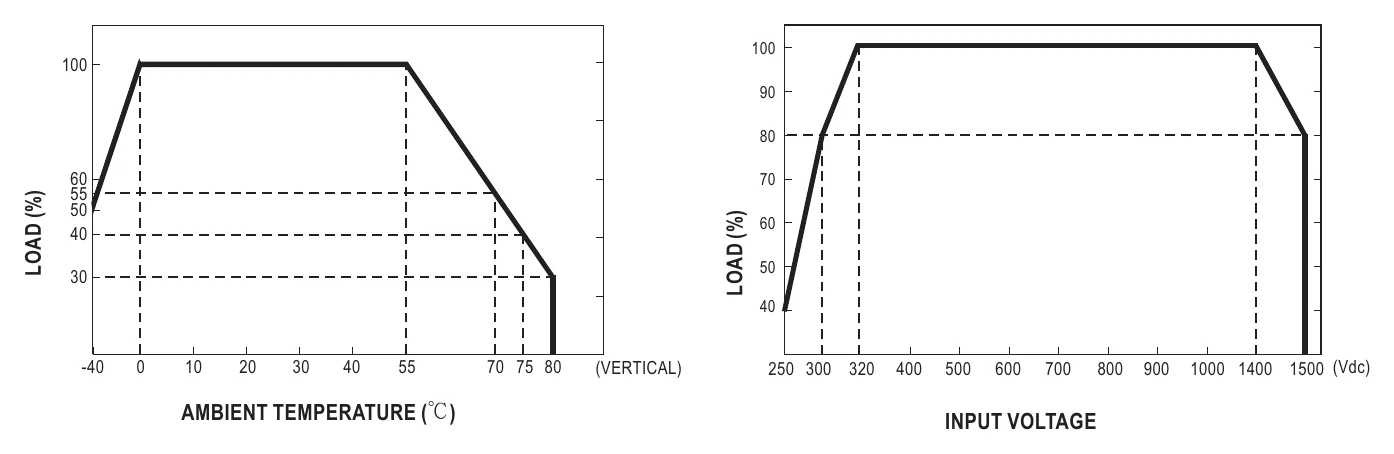

RSDH-150-12 Derating Curve — Derating Curve

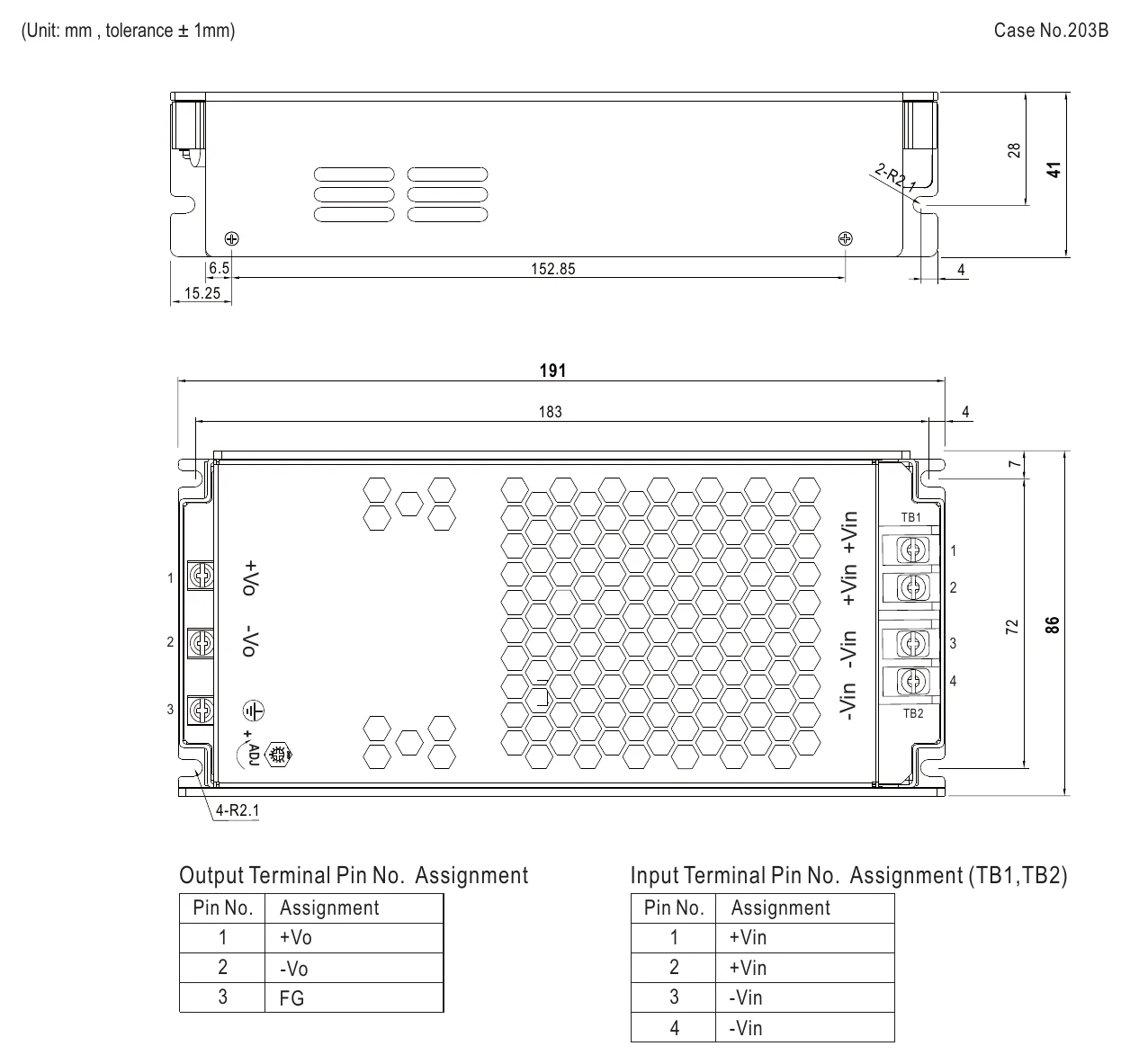

RSDH-150-12 Mechanical Specification — Mechanical Specification

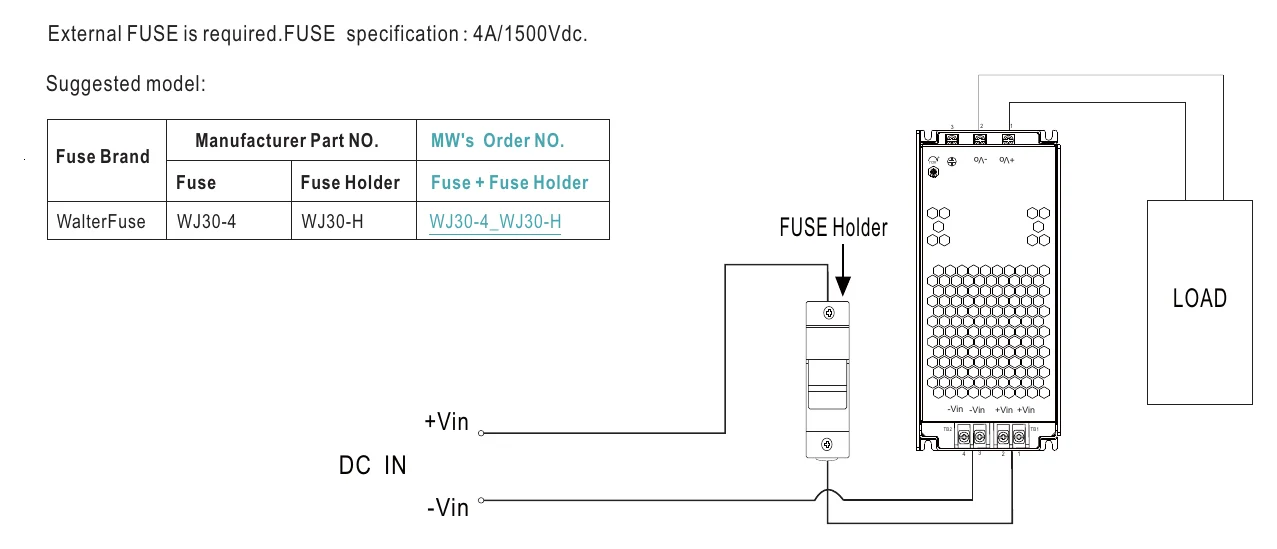

RSDH-150-12 External FUSE wiring instruction — External FUSE wiring instruction

Typical applications

Downloads

Datasheet1

RSDH-150-12 datasheetRSDH_150_spec.pdf · 2024-08-09 edition PDF Download

FAQ

What is the input and output range of the Mean Well RSDH-150-12?

This model accepts a very wide 250 to 1500VDC input range and provides a 12VDC output. It is rated for 120W total output power and 10A rated current. The output voltage is also adjustable within the stated range for this series.

What applications is the RSDH-150-12 designed for?

The RSDH-150-12 is suited to DC-DC conversion applications that need a stable 12V output from a very high and widely varying DC input. Its 250 to 1500VDC input capability makes it a strong fit for specialized industrial and high-voltage DC environments. Buyers typically consider it where conventional narrow-input converters are not suitable.

How does the RSDH-150-12 differ from a standard DC-DC converter?

Its main differentiator is the 6:1 ultra-wide 250 to 1500VDC input range, which is much broader than many standard DC-DC converters. It also withstands 1700VDC surge input for 10 seconds and uses a fanless, half encapsulated design. That combination makes it distinct for demanding DC input conditions.

Can the RSDH-150-12 operate in harsh temperature conditions?

Yes, this converter is rated for an ultra-wide operating temperature range from -40°C to +80°C. The specification notes derating above +55°C. This makes it appropriate for environments with significant temperature variation, provided the application stays within the published limits.

What protection features are included in the Mean Well RSDH-150-12?

This model includes protection for short circuit, overload, over voltage, over temperature, DC input under voltage, and DC input reverse polarity. These built-in protections help support reliability in demanding applications. The unit is also designed to withstand 1700VDC surge input for 10 seconds.

Is the RSDH-150-12 a good fit for space-constrained equipment?

It is designed with a 1U low-profile form factor and a height of 41mm, which can help in compact equipment layouts. The fanless construction also supports use where reduced maintenance and passive cooling are preferred. Buyers evaluating enclosure space often look at this model for those reasons.

What environmental and operating limits should buyers consider for this model?

In addition to its -40°C to +80°C operating range, the RSDH-150-12 is rated for operating altitudes up to 5000 meters. It uses free air convection cooling and is half encapsulated. These characteristics are relevant for industrial applications where altitude, temperature, and passive cooling matter.

What warranty is provided with the RSDH-150-12?

The Mean Well RSDH-150-12 includes a 3-year warranty. For buyers comparing industrial power products, that provides a clear baseline for expected manufacturer support. Warranty terms should still be reviewed alongside the seller's product policy.
