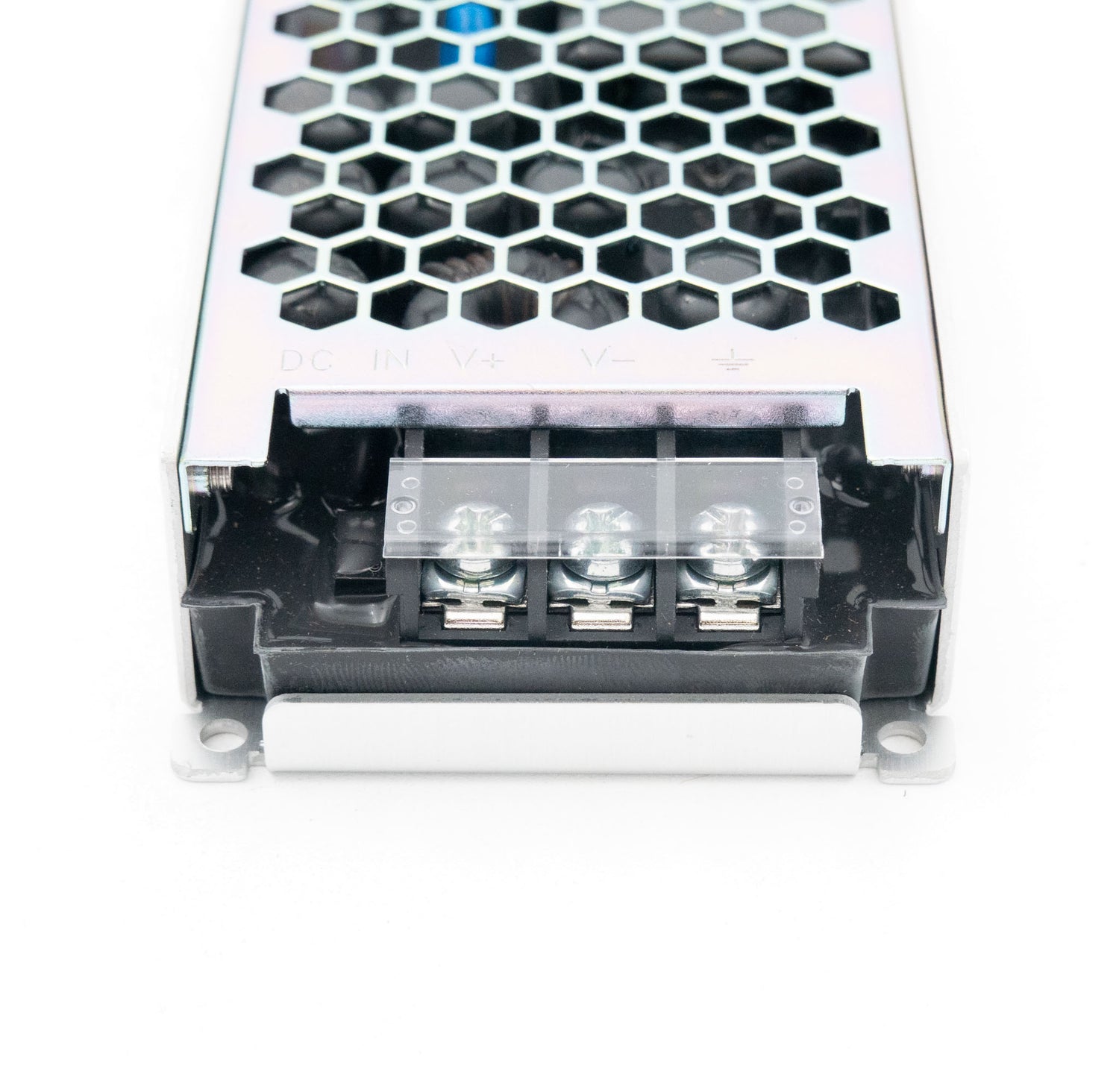

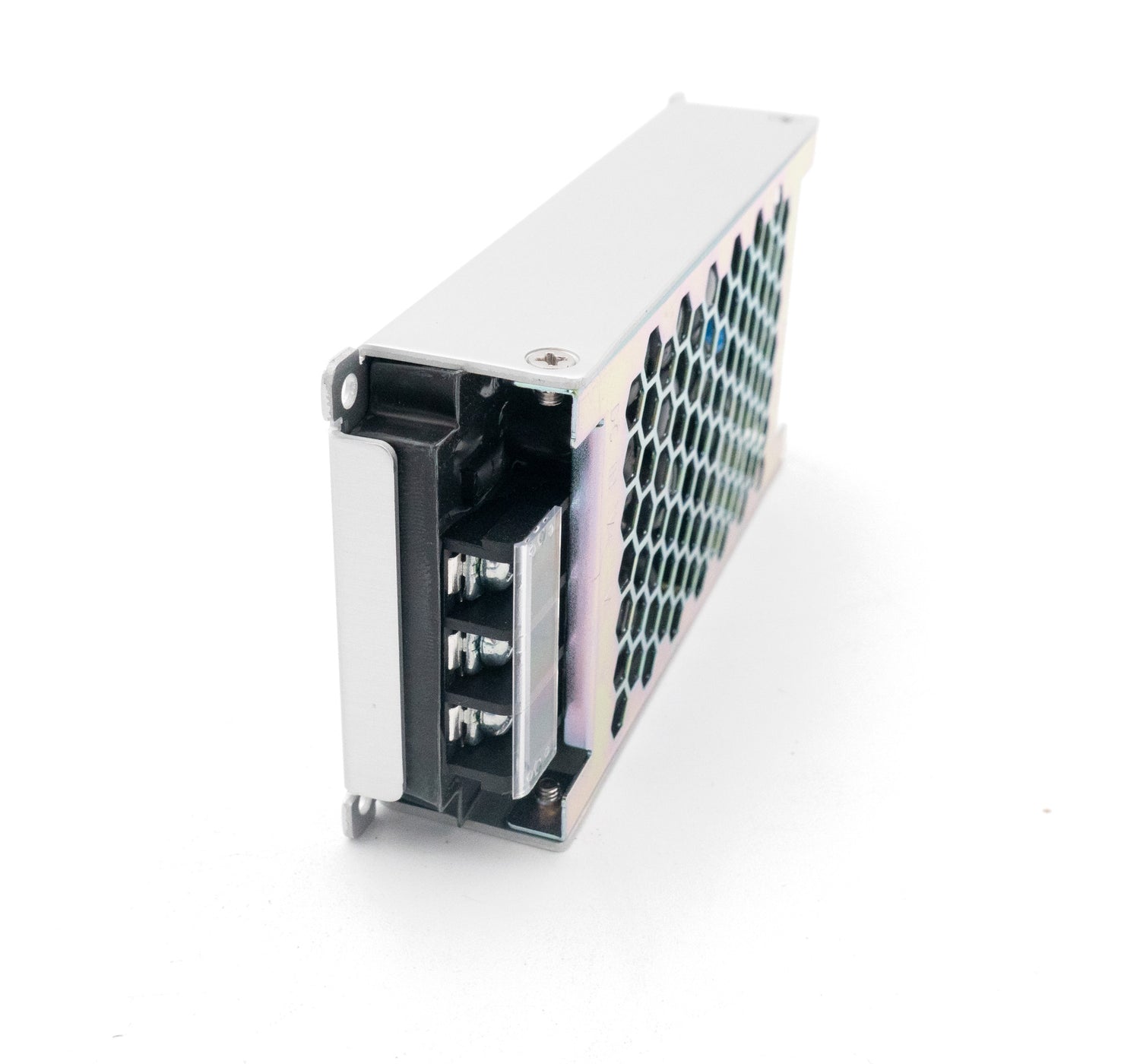

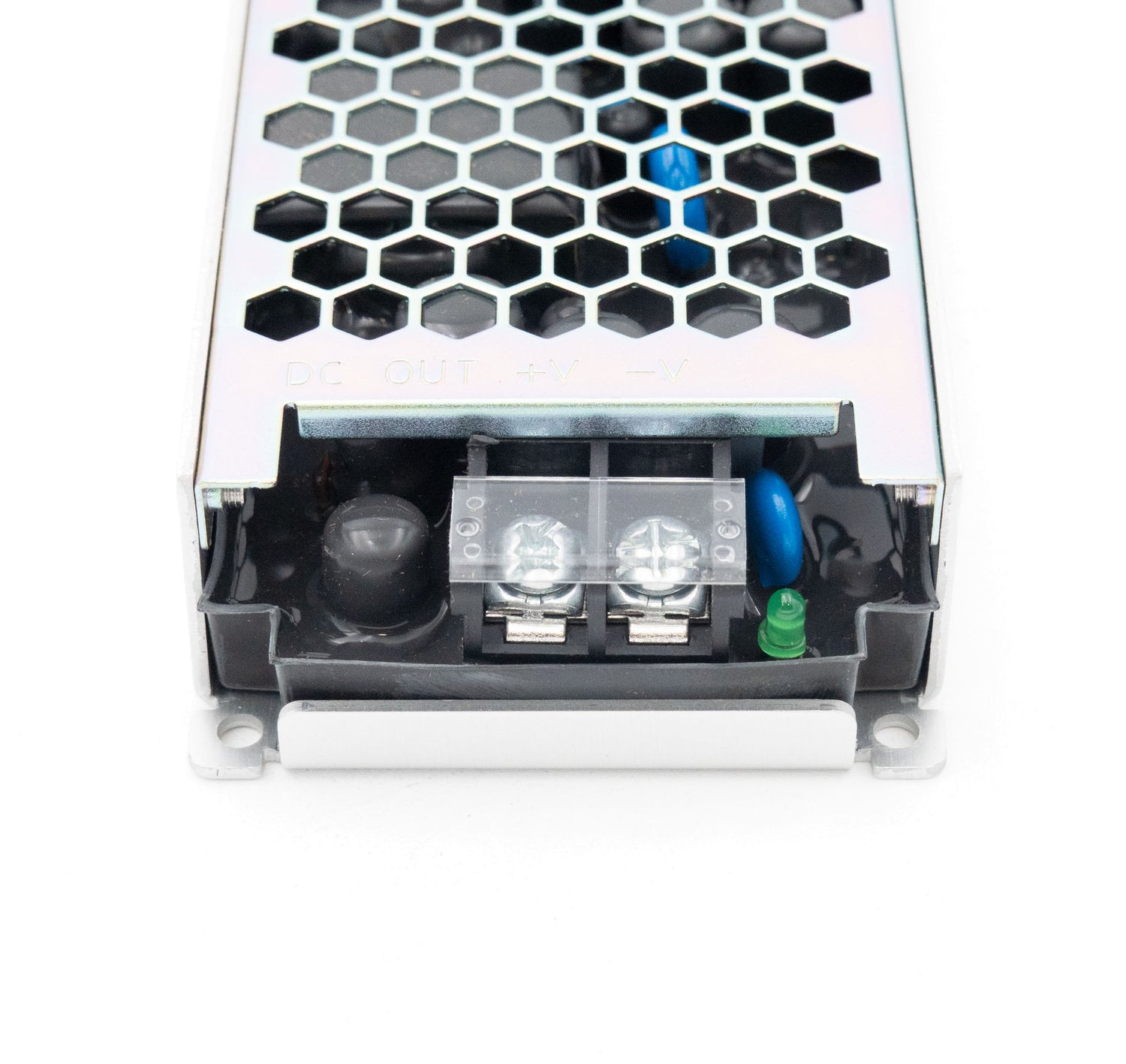

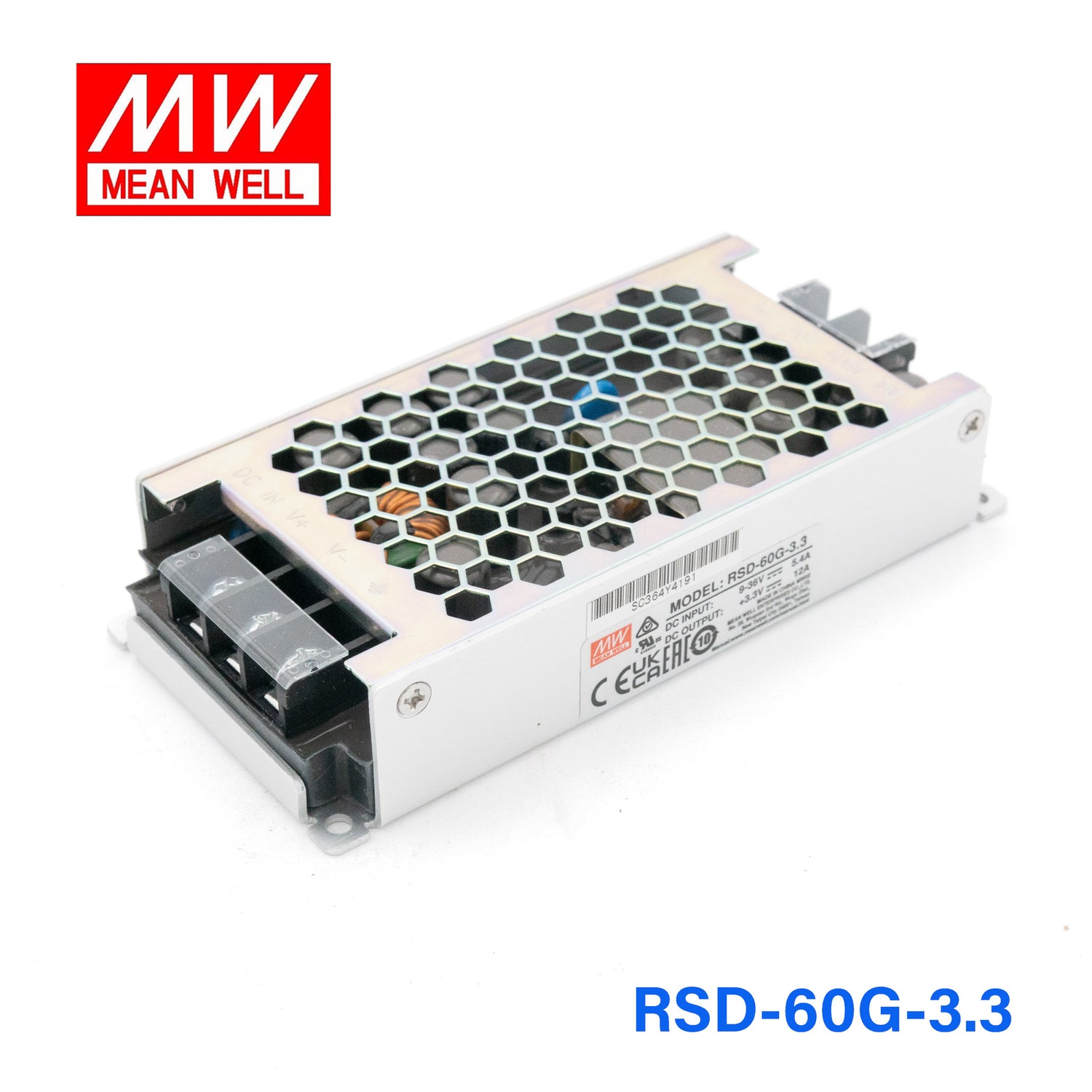

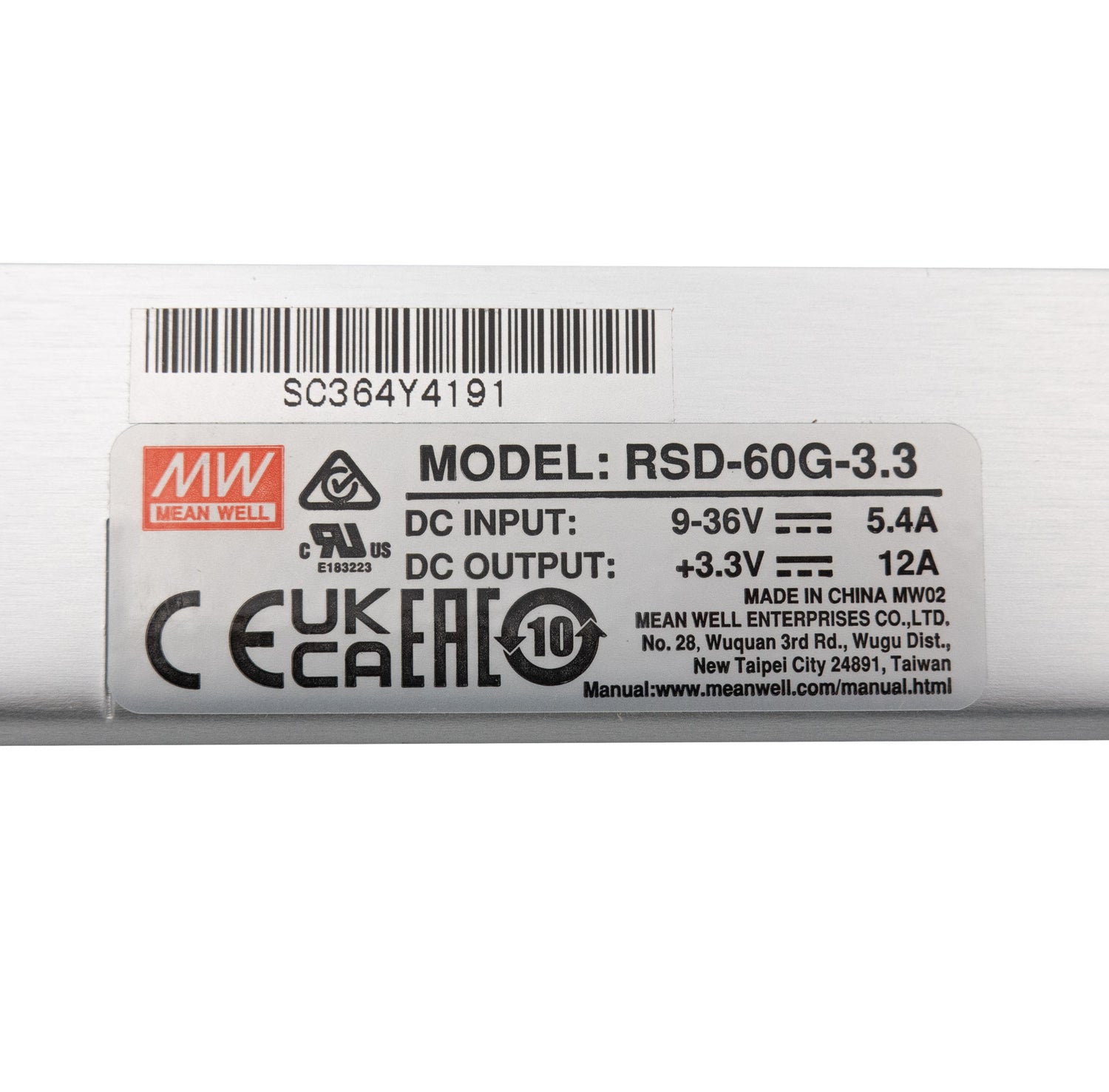

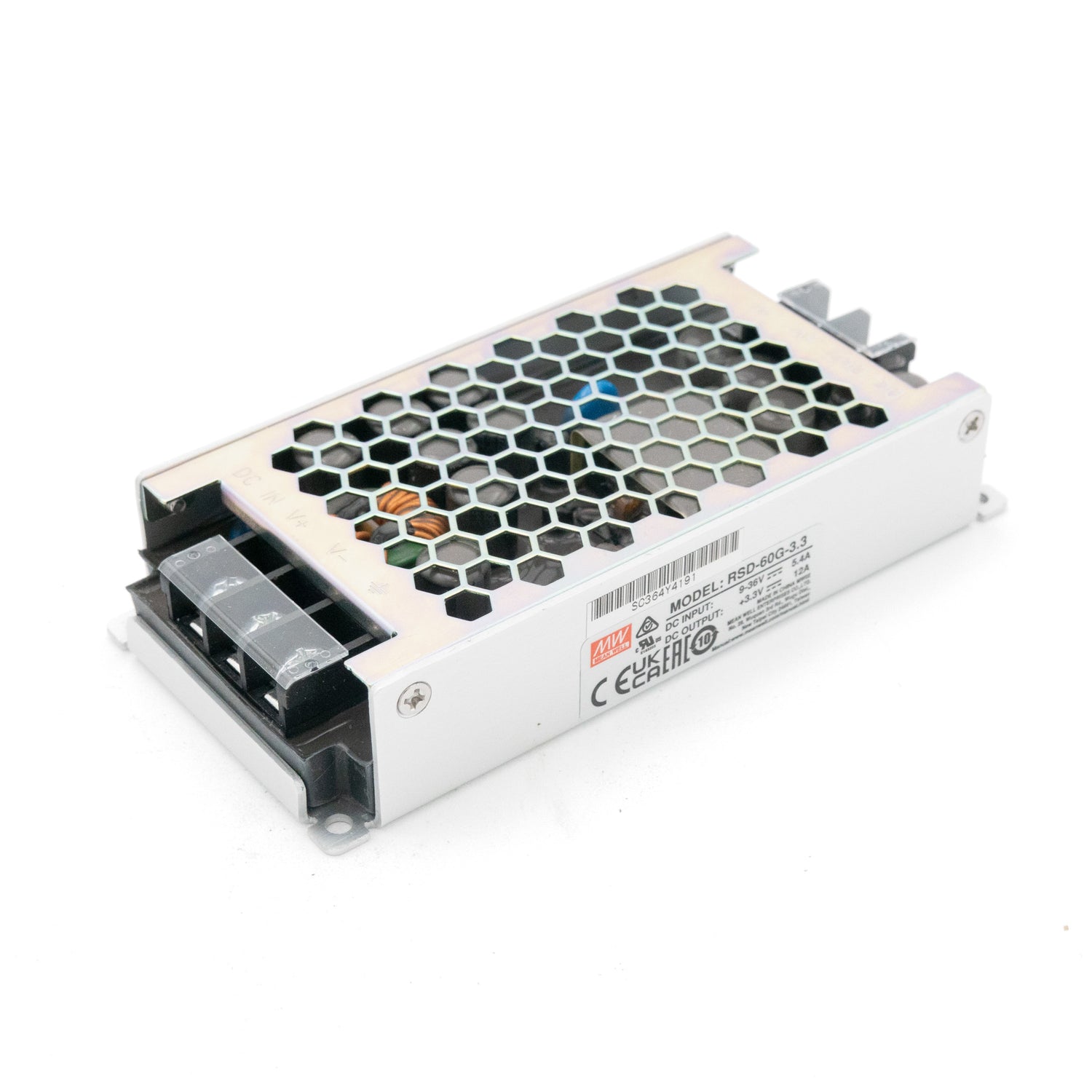

Mean Well RSD-60G-3.3 DC-DC Converter - 39.6W - 9~36V in 3.3V out 12A
$41.18 USD
Unit price /
Unavailable
Description
Description
The RSD-60G-3.3 is a 19.8W Mean Well DC-DC converter (input: 9~36VDC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 9~36VDC
- ✓ Output voltage (max): 3.3V
- ✓ Rated output current: 12A
- ✓ I/O isolation: 4000V
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CB, CE, EAC, EMC, RCM
- ✓ 3 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating19.8 Watt
-
Output Voltage3.3 Volt
-
Rated Current12 Ampere
-
Input Voltage9V~36V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height0.98 in
-
Weight0.64 lb
