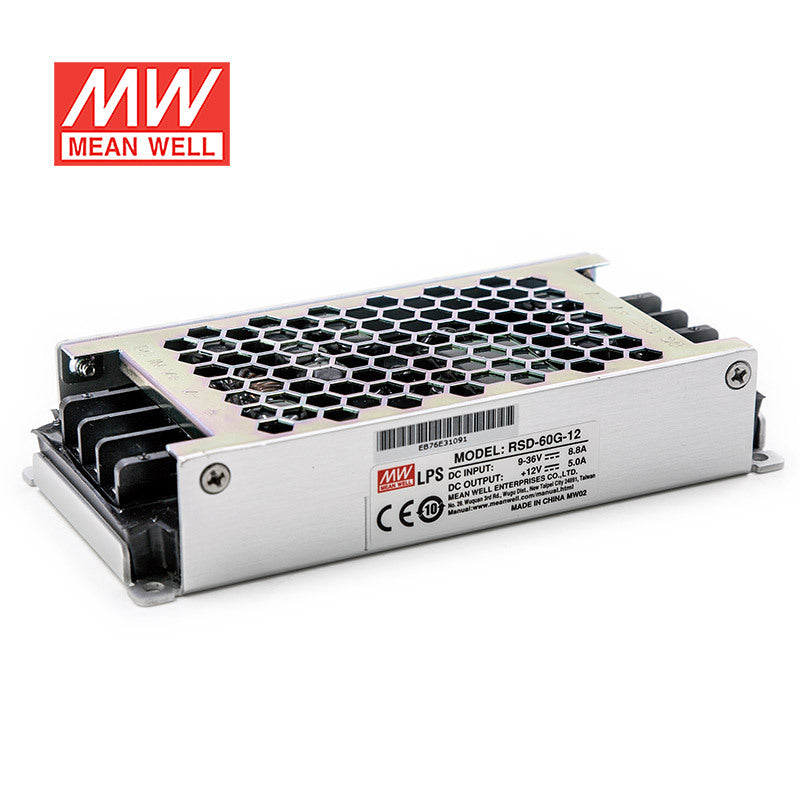

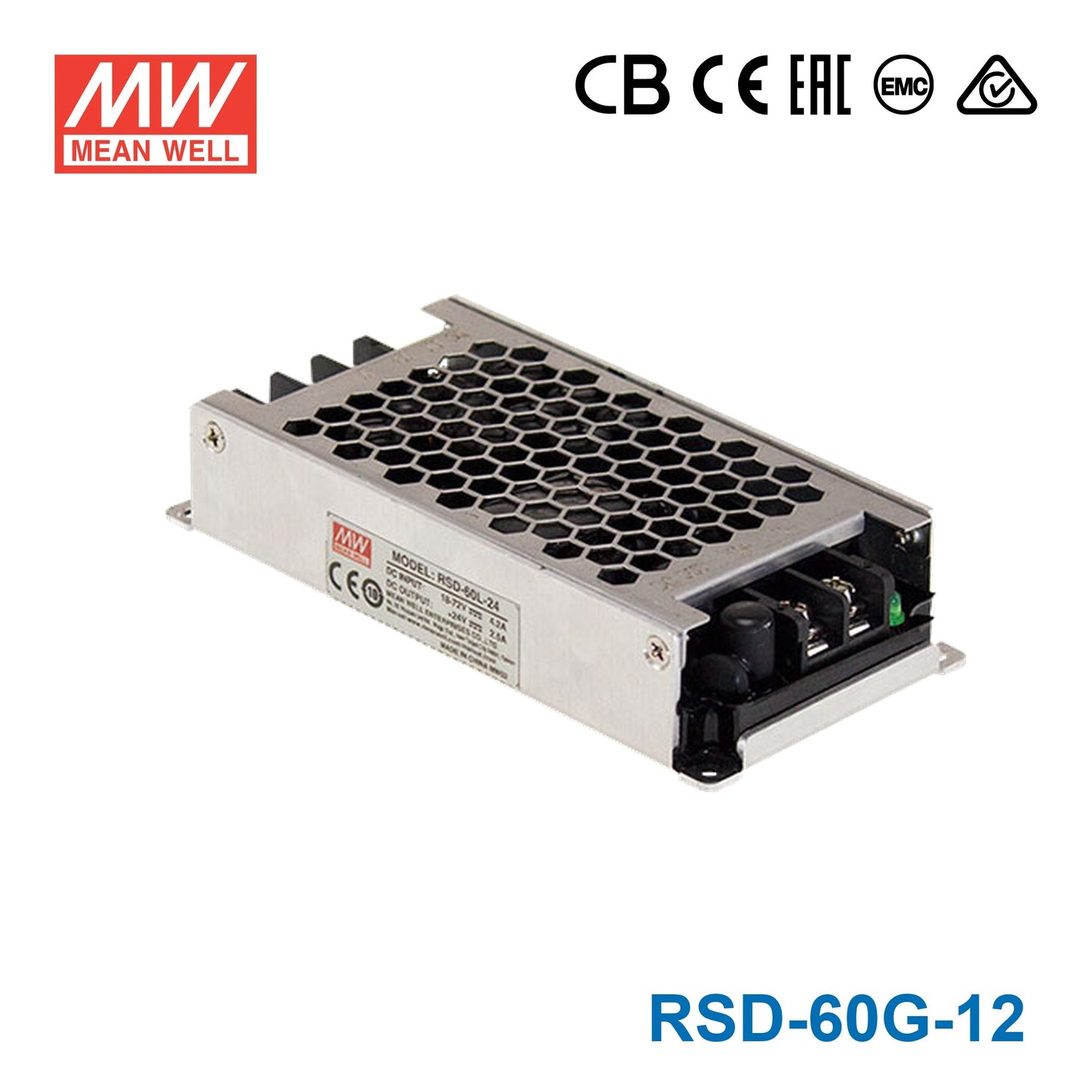

Mean Well RSD-60G-12 DC-DC Converter - 30W - 9~36V in 12V out

$44.08 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Compliance with BS EN/EN50155 and BS EN/EN45545-2 railway standard
Ultra compact and 1U low profile(25mm
4:1 wide input range
No minimum load required
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.
4000VDC I / O isolation
Half encapsulated, cooling by free air convection
-40~+70℃ wide working temperature
The built-in constant current limiting circuit
LED indicator for power on
100% full load burn-in test
3 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 0.5%
Overload protection Range 105% ~ 135%
Overload protection Type Constant current limiting recovers automatically after the fault condition is removed
Over-voltage protection 115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature -40 ~ + 85°C (refer to output derating curve)
Safety standards IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
EMC standards EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard EN50155 / IEC60571
Dimension (LxWxH) (mm) 128 x 60 x 25mm
Packing 0.29Kg; 48pcs/14.9Kg/0.75CUFT

Specifications

  • Brand
    Mean Well
  • Series
    RSD Series
  • Power Rating
    30 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    9V~36V
  • Standards Met
    CB,CE,EAC,EMC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~70°C
  • Warranty
    3 Year
  • Length
    5.04 in
  • Width
    2.36 in
  • Height
    0.98 in
  • Weight
    0.64 lb

File Downloads

::specification::
