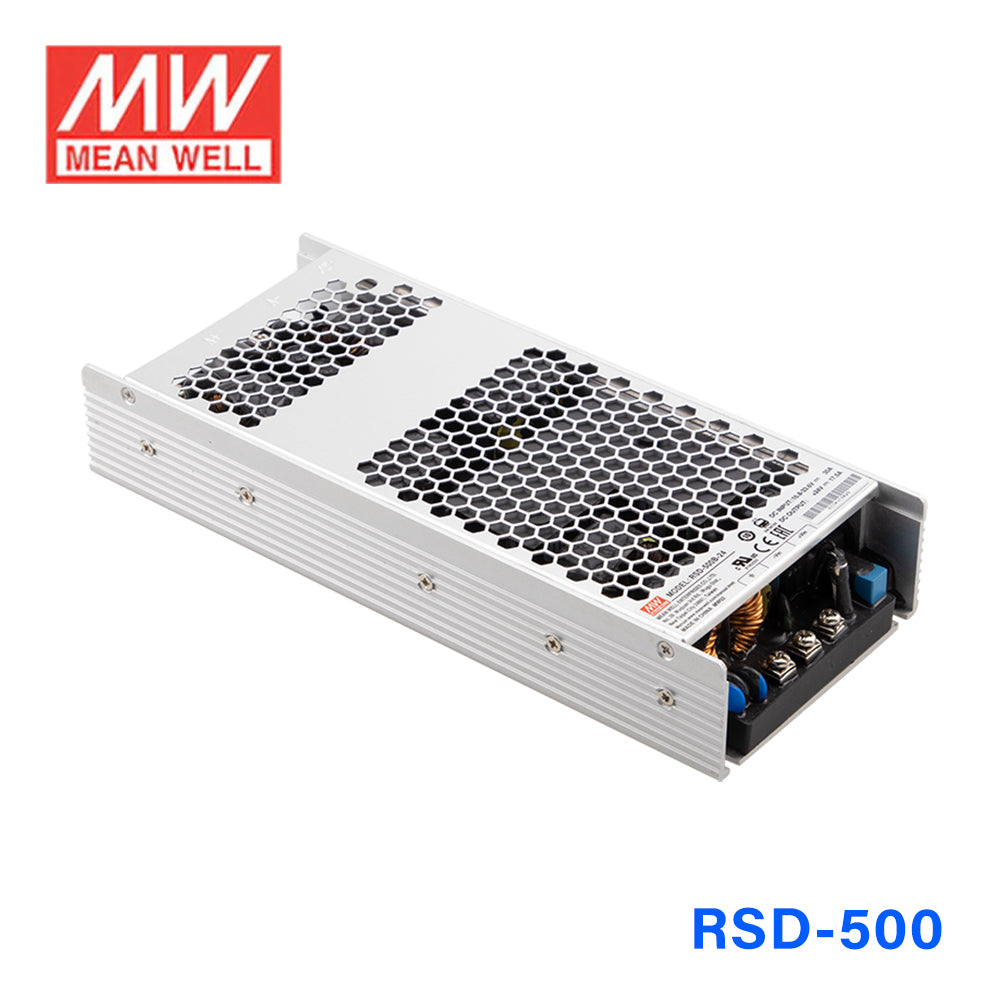

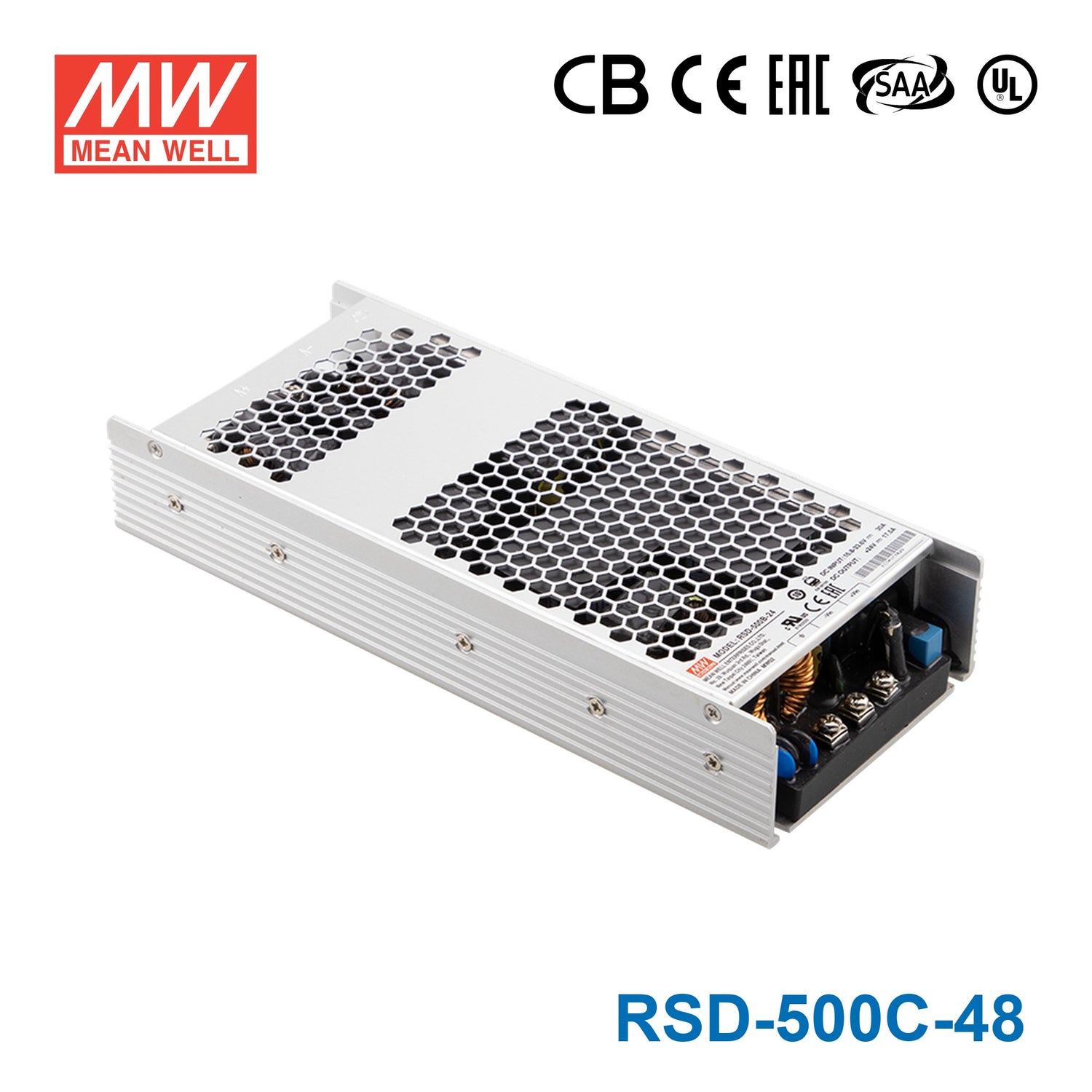

Mean Well RSD-500C-48 DC-DC Converter - 460.8W 33.6-67.2V DC in 48V out 9.6A

Name: Mean Well RSD-500C-48 DC-DC Converter - 460.8W 33.6-67.2V DC in 48V out 9.6A
Brand: Mean Well
SKU: RSD-500C-48
Price: 239.79 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RSD-500C-48

$239.79 USD

Shipping calculated at checkout.

In stock

Overview

RSD-500C-48 is the 48V output model of this series: rated current 9.6A, rated power 460.8W, typical efficiency 93%.

RSD-500 series is a 500W enclosed type reliable railway DC-DC converter. This series is compliant with BS EN/EN50155/BS EN/EN45545-2 railway standard, constituting three types of models with 2:1 wide but different input ranges 16.8~33.6V/33.6~67.2V/67.2~154V, suitable for railway and all kinds of transportation systems exploiting the frequently used standard input voltages such as 24V, 36V, 48V, 72V, 96V and 110V.Various output voltages, 12V, 24V and 48V are available for selection. This series has the capability of working under -40~+80℃, low ripple and noise, supreme EMC characteristics, 4KVdc I/O isolation, low enclosure profile 41mm and an interior with semi-potted silicone. It does not only well fits the in-car systems or the facilities by rails for railway, trams and buses but also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

Features

Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
1U low profile 41mm
2:1 wide input range
Fanless design, half encapsulated , cooling by free air convection
-40~+80℃ wide operating temperature
DC output adjustable
Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity/ Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
Operating additude up to 5000 meters(Note.5)
LED indicator for power on
3 years warranty

Specifications

RSD-500C-48Specifications from the official datasheet (2026-07-02 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 9.6A
CURRENT RANGE: 0 ~ 9.6A
RATED POWER: 460.8W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 48~ 56V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 60ms
HOLD UP TIME (Typ.): Please refer to page 4 hold up time (Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS: 33.6 ~ 67.2Vdc
VOLTAGE RANGE 1s^Note.4: 28.8 ~ 33.6Vdc
EFFICIENCY (Typ.): 93%
DC CURRENT (Typ.): 11A @48Vdc
INRUSH CURRENT (Typ.): 30A
INTERRUPTION OF VOLTAGE SUPPLY: EN50155:2021-B/C/D type comply with S1 level (3ms)@ full load; B/C type comply with S2 level (10ms)@ 70% load, D- type comply with S2 level (10ms) @ full load

PROTECTION

OVERLOAD: Constant current limiting 105~135% rated output power with auto-recovery
OVER VOLTAGE: 57.6 ~ 65V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover
REVERSE POLARITY: By internal, MOSFET, no damage, recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT: 48Vin :Power ON≥33.6V , OFF≤33V

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 5 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85, 5 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃)
VIBRATION: Component:10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC61373
OPERATING ALTITUDE^Note.5: 5000 meters / OVCⅡ

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, IEC 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVdc I/P-FG:2.5KVdc O/P-FG:2.5KVdc
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISRP32) Class A
Radiated BS EN/EN55032 (CISRP32) Class B
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-FG ;criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A
RAILWAY STANDARD: Compliance to BS EN/EN45545-2 for fire protection ; BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration, BS EN/EN50121-3-2 for EMC

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISRP32)	Class A
Radiated	BS EN/EN55032 (CISRP32)	Class B
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-FG ;criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 834.7K hrs min. Telcordia SR-332 (Bellcore) ; 99.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 237*100*41mm (L*W*H)
PACKING: 1.45Kg;10pcs/15.5Kg/0.8CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at normal input (B:24Vdc , C:48Vdc , D:110Vdc ) , rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than2000m(6500ft).
6. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

RSD-500C-48 Block Diagram — Block Diagram

RSD-500C-48 Input Under-Voltage Protection — Input Under-Voltage Protection

RSD-500C-48 Efficiency vs Load & Vin Curve — Efficiency vs Load & Vin Curve

RSD-500C-48 Overload Protection — Overload Protection

RSD-500C-48 Derating Curve — Derating Curve

RSD-500C-48 methods are similar and share the same derating curve. — methods are similar and share the same derating curve.

RSD-500C-48 methods are similar and share the same derating curve. (2) — methods are similar and share the same derating curve. (2)

RSD-500C-48 Illustration (page 7) — Illustration (page 7)

RSD-500C-48 Mechanical Specification — Mechanical Specification

Typical applications

Bus,tram,metro or railway system
Industrial control system
Semiconductor fabrication equipment
Factory automation
Electro-mechanical
Wireless network
Telecom or datacom system
Highly vibrotating,highly dusty, extremely low or high temperature harsh environment

Downloads

Certificates3

UL Certificate(RSD-500)(EN) PDF Download

CE Certificate(RSD-500)(EN) PDF Download

CB Certificate(RSD-500)(EN) PDF Download

FAQ

Can I use the RSD-500C-48 to supply 48V telecom or network equipment from a 33.6-67.2V DC source?

Yes. The RSD-500C-48 accepts 33.6-67.2V DC input and delivers constant 48V output, which fits DC systems that need a regulated 48V rail. Its 460.8W rating and 9.6A output current support higher-power 48V equipment within those limits.

Is this converter suitable for 48V industrial automation or embedded systems with moderate to high load?

It can be a fit for 48V embedded and automation equipment that requires constant-voltage output and draws up to 9.6A, with a total limit of 460.8W. That makes it a stronger 48V option than lower-power 48V siblings in the same family. The 237.0 × 100.0 × 41.0 mm housing also helps where space is controlled.

Can the RSD-500C-48 be used in mobile or vibration-exposed 48V DC equipment?

Yes, for 48V DC loads within 460.8W and 9.6A. The specs give 5G vibration resistance and full-load operation up to 70°C when mounted on the recommended iron plate (55°C without it), which are relevant for equipment mounted in moving or mechanically active environments. It remains a constant-voltage 48V converter, so the load must match that output requirement.

Will this model handle wide temperature ranges, and is it outdoor-rated?

The operating temperature range is -40°C to +80°C; full load is rated up to 55°C without an iron mounting plate, or up to 70°C on the recommended iron plate. That supports use in equipment exposed to significant thermal variation. No IP rating is provided in the specs, so the published data does not support calling it outdoor-rated on its own.

How does the RSD-500C-48 compare with the other 48V models in the RSD 500 series?

The 48V models in the 500 series are RSD-500B-48 at 422.4W, 48V, and 8.8A, RSD-500C-48 at 460.8W, 48V, and 9.6A, and RSD-500D-48 at 499.2W, 48V, and 10.4A. All share the same 48V output class, but the available wattage and output current increase across the three models. That is the core factual distinction between them.
