Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

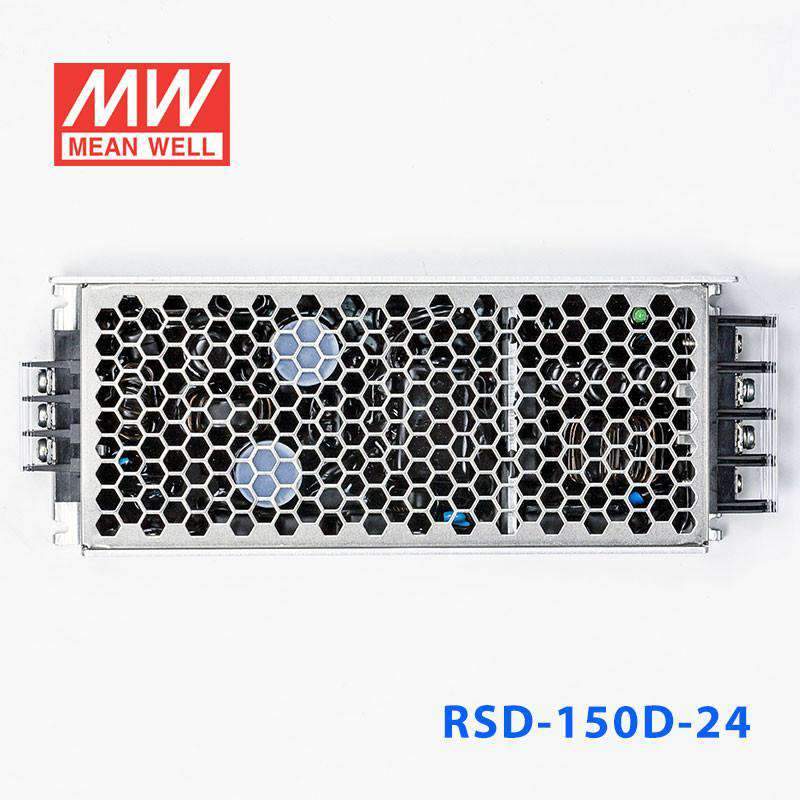

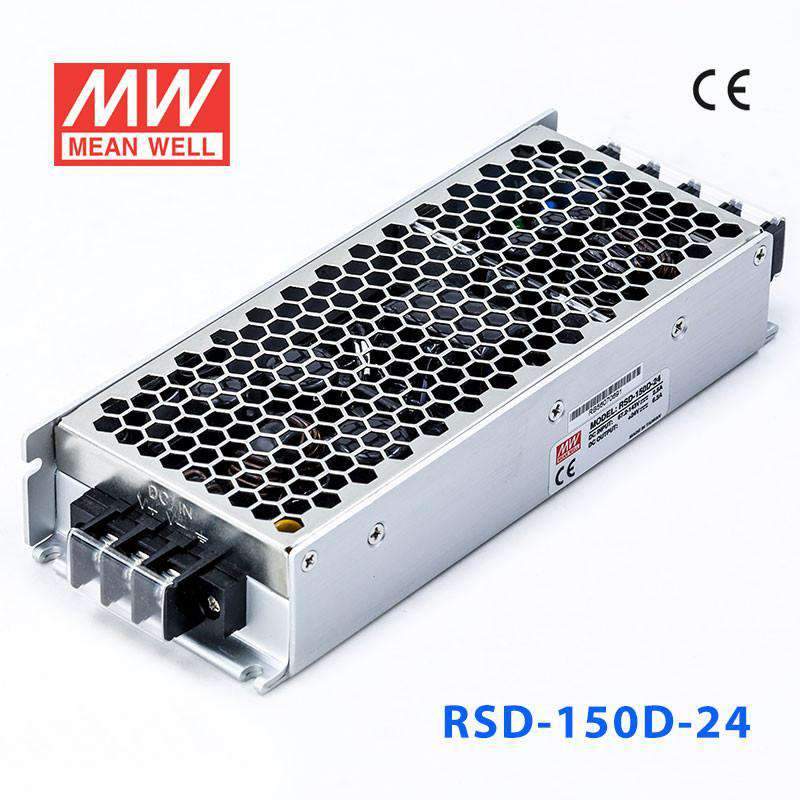

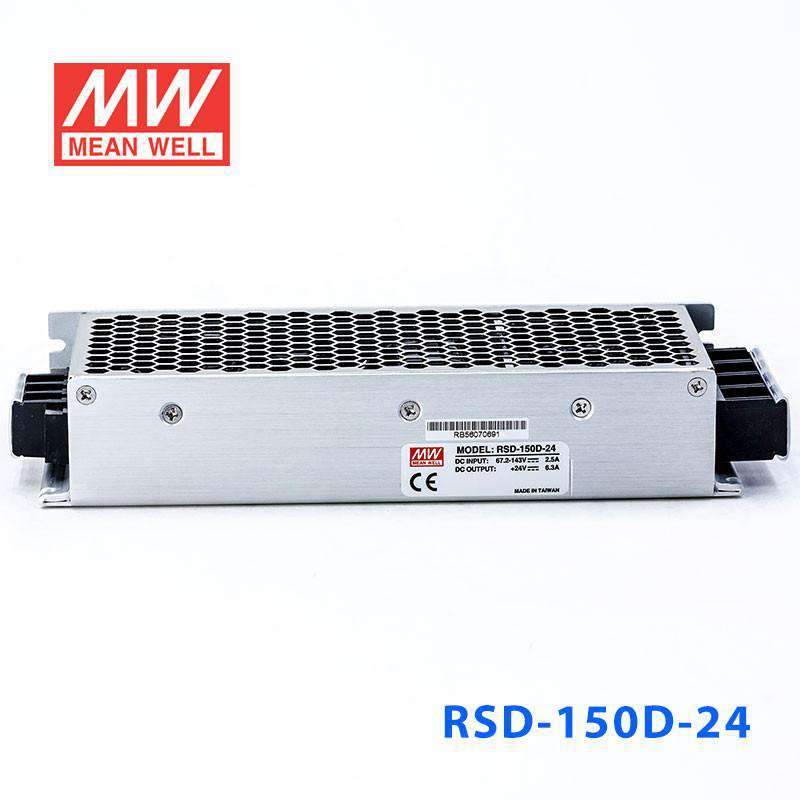

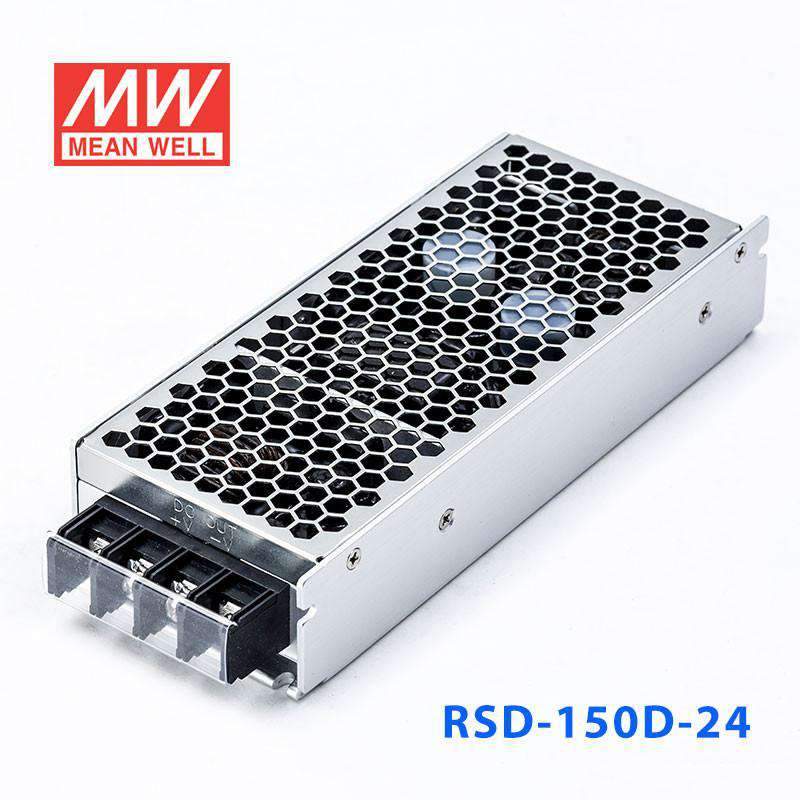

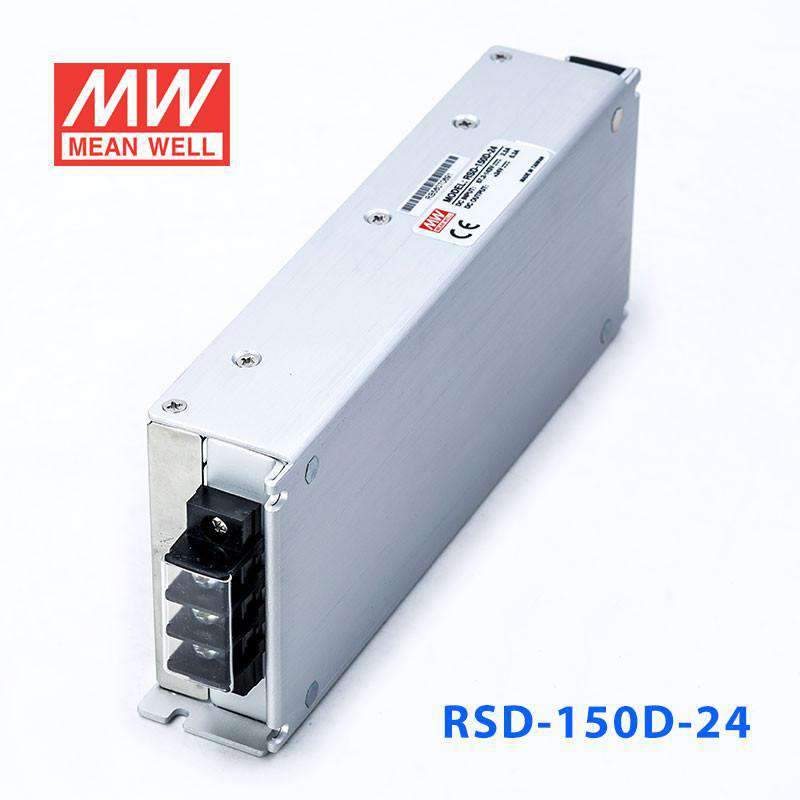

Mean Well RSD-150D-24 DC-DC Converter - 151.2W - 67.2~143V in 24V out
$98.12 USD
Unit price /
Unavailable
Description
Description
Features
| Compliance to EN50155 railway standard |
| 2: 1 wide input range |
| 4000VDC I / O isolation |
| Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp. |
| Cooling by free air convection |
| Built-in constant current limiting circuit |
| 1U low profile |
| All using 105 ° C long life electrolytic |
| Half encapsulated |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| ALoad regulation (max.) | ± 1% |
| Overload protection Range | 105% ~ 135% |
| Overload protection Type | Constant current limiting, recovers automatically after fault condition is removed |
| Over voltage protection | 115% to 135% Shutdown O / P voltage, re-power on to recover |
| Withstand voltage | I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute |
| Isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -40 ~ + 70°C (refer to output derating curve) |
| Safety standards | Meet IEC60950-1 (LVD) |
| EMC standards | EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8 |
| Railway standard | EN50155 / IEC60571 |
| Dimension (LxWxH) (mm) | 189x77x36 |
| Packing | 15pcs / 13kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage67.2V~143V
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length7.44 in
-
Width3.03 in
-
Height1.42 in
-
Weight1.76 lb
