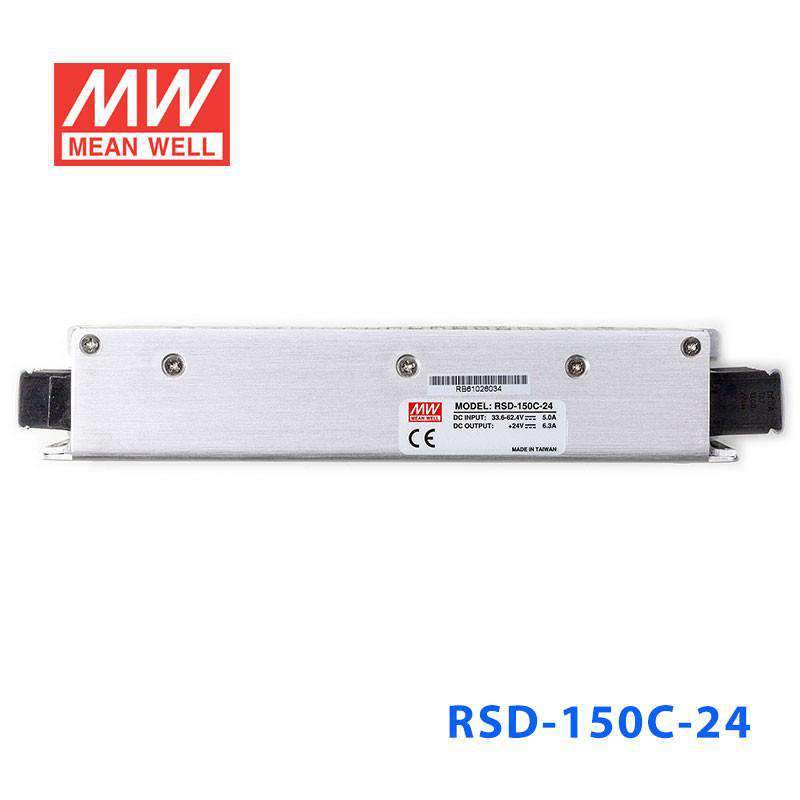

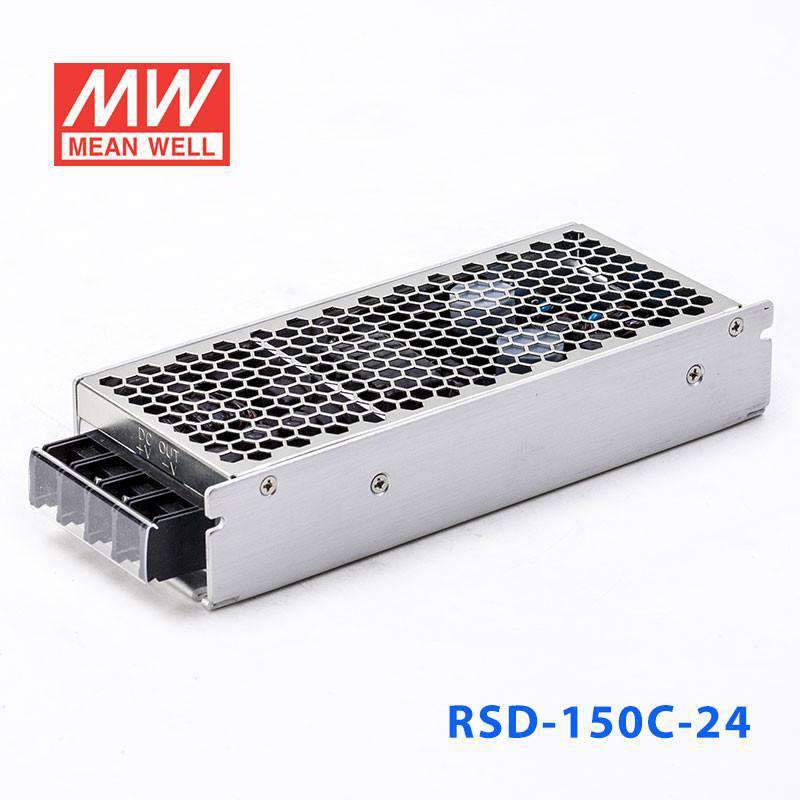

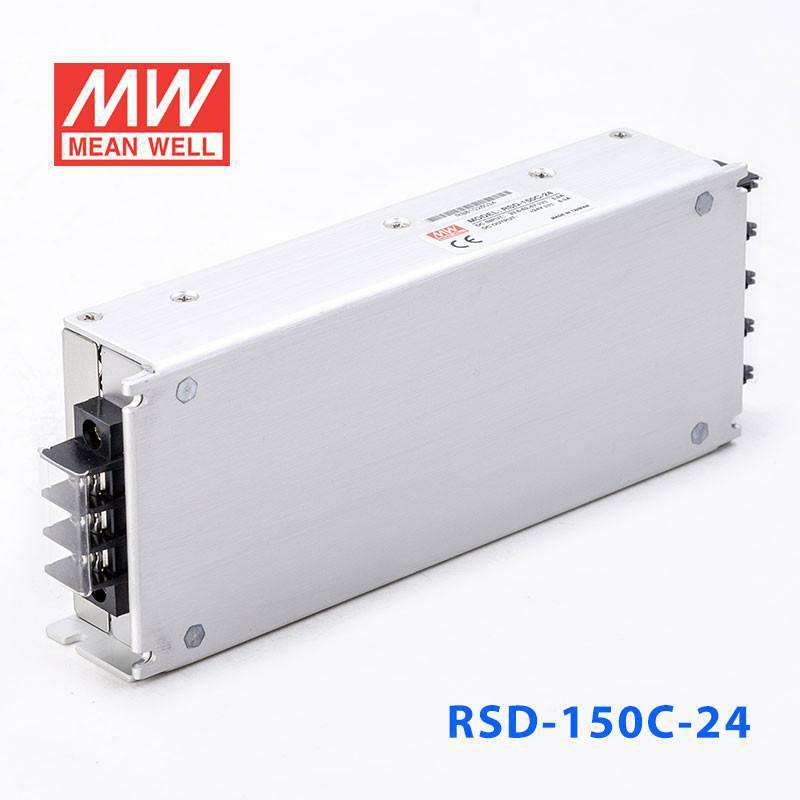

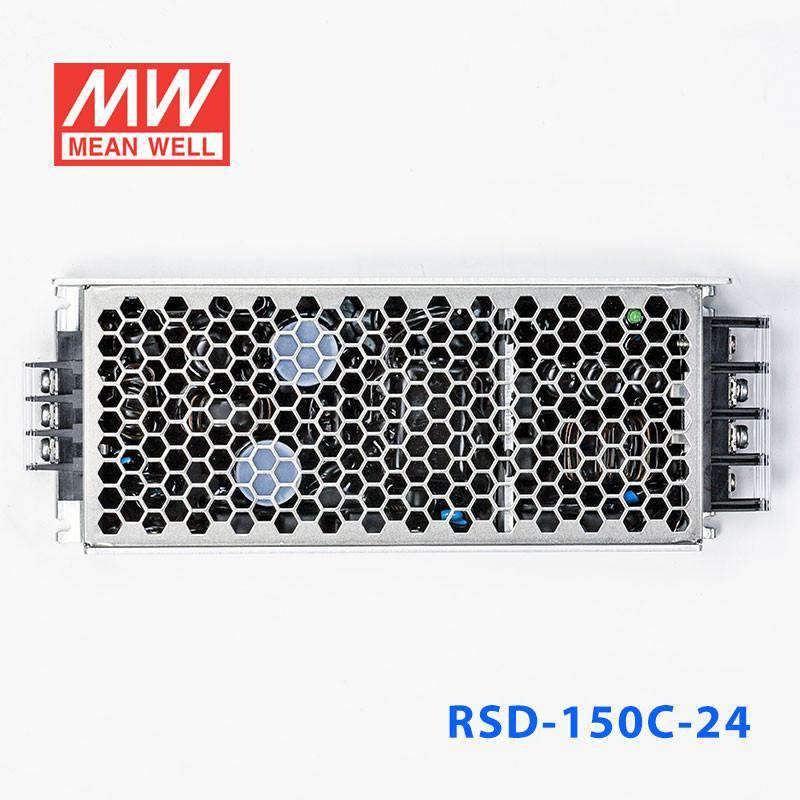

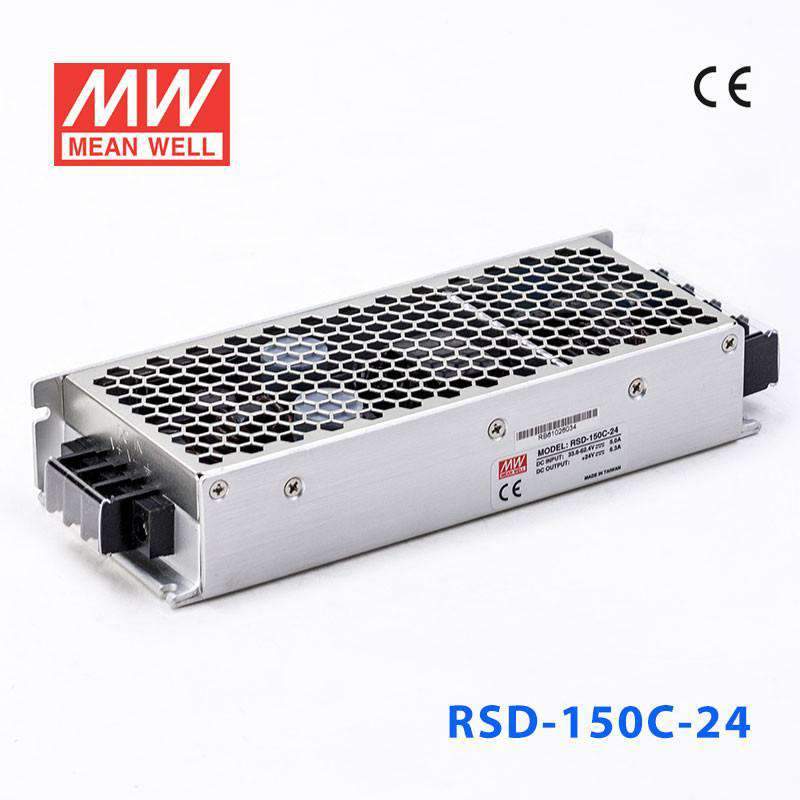

Mean Well RSD-150C-24 DC-DC Converter - 151.2W - 33.6~62.4V in 24V out 6.3A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation
SKU RSD-150C-24
$98.12 USD
Shipping calculated at checkout.
In stock
|

Overview

RSD-150C-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 91%.

Features

  • Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Half encapsulated
  • Built-in constant current limiting circuit
  • 1U low profile 36mm
  • All using 105℃ long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty

Specifications

RSD-150C-24Specifications from the official datasheet (2025-07-18 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
6.3A
CURRENT RANGE
0 ~ 6.3A
RATED POWER
151.2W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
800ms, 50ms at full load
HOLD UP TIME (Typ.)
Please refer to page 3 Hold up Time( Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS
33.6 ~ 62.4VDC
VOLTAGE RANGE 1 SEC.
28.8 ~ 67.2VDC
EFFICIENCY (Typ.)
91%
DC CURRENT (Typ.)
3.6A/48V
INRUSH CURRENT (Typ.)
45A/48VDC
INTERRUPTION OF VOLTAGE SUPPLY
EN50155:2021-Comply with S1 level

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
WORKING HUMIDITY
5 ~ 95% RH non-condensing
STORAGE TEMP.
-40 ~ +85℃
TEMP. COEFFICIENT
± 0.03%/℃ (0 ~ 50℃ )
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
OPERATING ALTITUDE
5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
RAILWAY STANDARD
BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration,BS EN/EN50121-3-2 for EMC;BS EN/EN45545-2 for fire protection

OTHERS

MTBF
2405.1K hrs min. Telcordia SR-332 (Bellcore) ; 223.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
189*77*36mm (L*W*H)
PACKING
0.8Kg; 15pcs/13Kg/0.75CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-150-5/-12)
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSD-150C-24 Mechanical Specification
Mechanical Specification
RSD-150C-24 Block Diagram
Block Diagram
RSD-150C-24 Input Under-Voltage Protection
Input Under-Voltage Protection
RSD-150C-24 Hold-up Time
Hold-up Time
RSD-150C-24 Efficiency vs Load & Vin Curve
Efficiency vs Load & Vin Curve
RSD-150C-24 Overload Protection
Overload Protection
RSD-150C-24 LOAD(%)
LOAD(%)

Downloads

FAQ

Can I use the RSD-150C-24 for 24V PLC, relay, or automation loads on a 33.6 to 62.4V DC system?

Yes, it provides a constant 24V output with up to 6.3A output current from a 33.6 to 62.4V input range. That fits 24V automation loads that need regulated 24V and stay within the 151.2W rating.

Is the RSD-150C-24 appropriate for 24V HMI or industrial communications equipment?

It is a constant voltage converter with a 24V output and 6.3A available current. That makes it a practical choice for 24V industrial electronics and communications devices powered from a higher-voltage DC source in its specified input range.

Can this model be used in battery-based or vehicle-mounted 24V control systems?

It is designed to convert 33.6 to 62.4V input power down to a regulated 24V output. The 189.0 x 77.0 x 36.0 mm housing, 0.8 kg weight, and 5G vibration specification support use in compact systems exposed to movement or vibration.

Does the RSD-150C-24 work for outdoor cabinets or only indoor enclosures?

The unit is rated for operation from -40°C to +55°C with no derating, and up to +70°C at 60% load by free air convection. No IP rating is given, so it is better matched to sheltered cabinets or other protected enclosures rather than exposed outdoor mounting.

What is the difference between the RSD-150C-24 and the other RSD-150C voltage versions?

In the same RSD-150C group, the RSD-150C-5 is 150W, 5V, and 30A, while the RSD-150C-12 is 150W, 12V, and 12.5A. The RSD-150C-24 is 151.2W, 24V, and 6.3A, so the choice comes down to required output voltage and current.
