Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

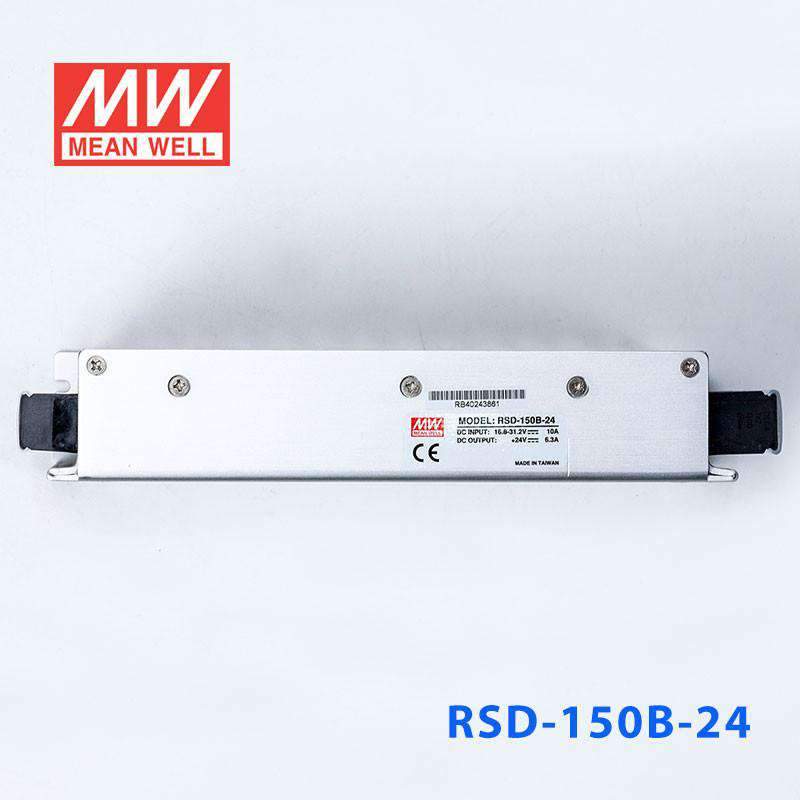

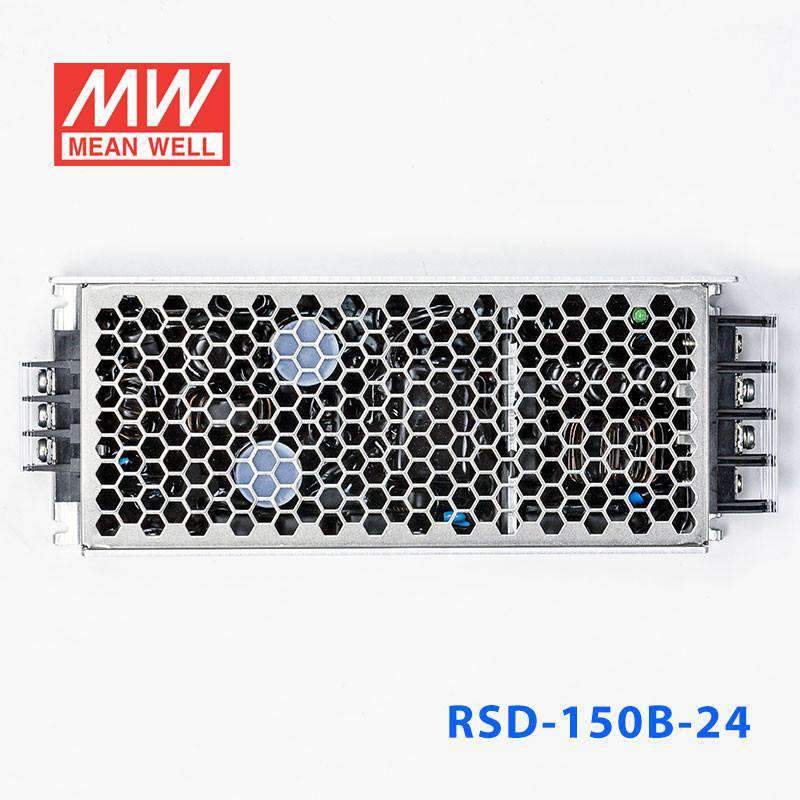

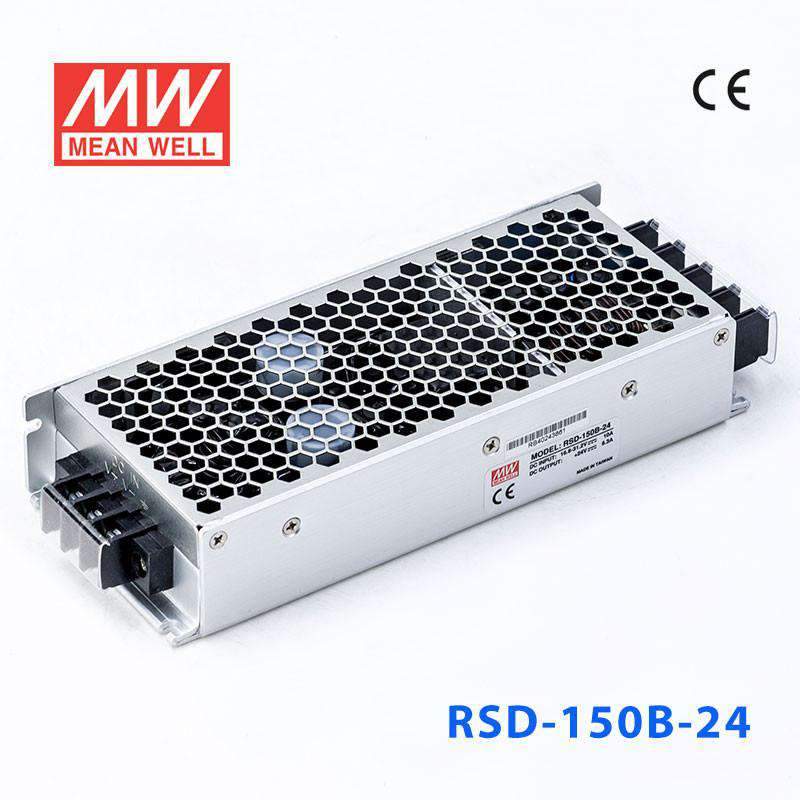

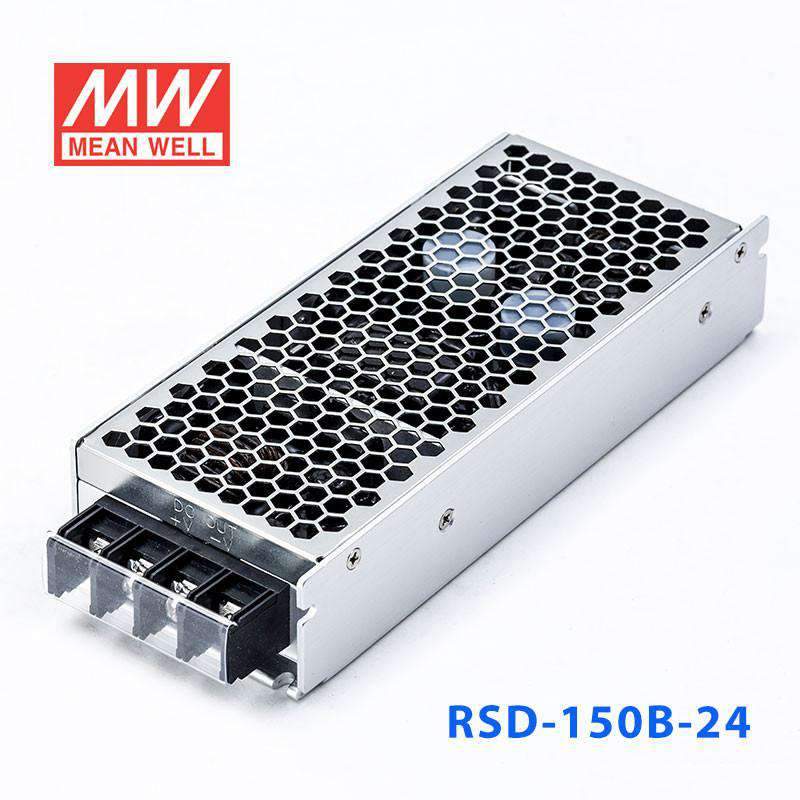

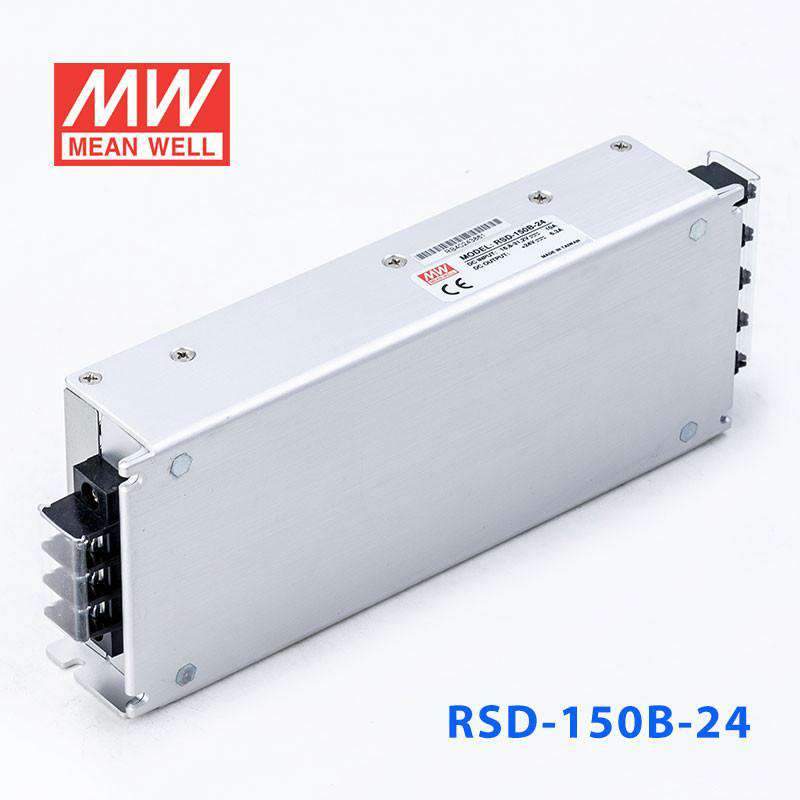

Mean Well RSD-150B-24 DC-DC Converter - 151.2W - 16.8~31.2V in 24V out 6.3A

miniature sizeeconomicalwithstand 5G vibration and 70°C operation
SKU RSD-150B-24
$98.12 USD
Shipping calculated at checkout.
In stock
|

Overview

RSD-150B-24 is the 24V output model of this series: rated current 6.3A, rated power 151.2W, typical efficiency 90%.

Features

  • Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
  • 2:1 wide input range
  • Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Half encapsulated
  • Built-in constant current limiting circuit
  • 1U low profile 36mm
  • All using 105℃ long life electrolytic capacitors
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty

Specifications

RSD-150B-24Specifications from the official datasheet (2025-07-18 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
6.3A
CURRENT RANGE
0 ~ 6.3A
RATED POWER
151.2W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.2%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
800ms, 50ms at full load
HOLD UP TIME (Typ.)
Please refer to page 3 Hold up Time( Load de-rating curve )

INPUT

VOLTAGE RANGE CONTINUOUS
16.8 ~ 31.2VDC
VOLTAGE RANGE 1 SEC.
14.4 ~ 33.6VDC
EFFICIENCY (Typ.)
90%
DC CURRENT (Typ.)
7.3A/24V
INRUSH CURRENT (Typ.)
45A/24VDC
INTERRUPTION OF VOLTAGE SUPPLY
EN50155:2021-Comply with S1 level

PROTECTION

OVERLOAD
105 ~ 135% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-40 ~ +55℃ (no derating) ; +70℃ @ 60% load by free air convection ; +70℃ no derating with external base plate, TX class compliance
WORKING HUMIDITY
5 ~ 95% RH non-condensing
STORAGE TEMP.
-40 ~ +85℃
TEMP. COEFFICIENT
± 0.03%/℃ (0 ~ 50℃ )
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373
OPERATING ALTITUDE
5000 meters

SAFETY & EMC (Note 4)

SAFETY STANDARDS
IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8, BS EN/EN55035, light industry level, EAC TP TC 020
RAILWAY STANDARD
BS EN/EN50155 / IEC60571 including IEC61373 for shock & vibration,BS EN/EN50121-3-2 for EMC;BS EN/EN45545-2 for fire protection

OTHERS

MTBF
2405.1K hrs min. Telcordia SR-332 (Bellcore) ; 223.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
189*77*36mm (L*W*H)
PACKING
0.8Kg; 15pcs/13Kg/0.75CUFT
Test conditions and notes6
  1. 1. All parameters NOT specially mentioned are measured at 24,48,110VDC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Strongly recommended that external output capacitance should not exceed 5000uF. (Only for: RSD-150-5/-12)
  6. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RSD-150B-24 Mechanical Specification
Mechanical Specification
RSD-150B-24 Block Diagram
Block Diagram
RSD-150B-24 Input Under-Voltage Protection
Input Under-Voltage Protection
RSD-150B-24 Hold-up Time
Hold-up Time
RSD-150B-24 Efficiency vs Load & Vin Curve
Efficiency vs Load & Vin Curve
RSD-150B-24 Overload Protection
Overload Protection
RSD-150B-24 LOAD(%)
LOAD(%)

Downloads

FAQ

Can I use the RSD-150B-24 for 24V industrial automation equipment?

Yes, if the equipment requires constant 24V and the total load does not exceed 6.3A. At 151.2W, it provides more 24V output capacity than the 100.8W 24V versions in the sibling list.

Is the RSD-150B-24 suitable for 24V I/O modules, HMIs, or control electronics?

It is a fit for 24V control and interface electronics that need regulated constant-voltage output up to 6.3A. That makes it appropriate for moderate-power 24V subsystems within a 151.2W budget.

Can this model run a 24V communications or monitoring subsystem from a 16.8~31.2V input source?

Yes, when the source is within the stated 16.8~31.2V input range from the product name and the connected 24V load stays within 6.3A. This is the right kind of converter for regulated 24V output in embedded or automation applications that operate inside those limits.

Does the RSD-150B-24 work in cold or hot environments, and is it rated for outdoor exposure?

Its operating temperature range is -40°C to +55°C with no derating, extending to +70°C at 60% load by free air convection. The provided specs do not list an IP rating, so outdoor suitability is not confirmed by this data.

What is the difference between the RSD-150B-24 and the other RSD-150B outputs?

In the RSD-150B family, RSD-150B-5 is 150W at 5V and 30A, RSD-150B-12 is 150W at 12V and 12.5A, and RSD-150B-24 is 151.2W at 24V and 6.3A. The RSD-150C and RSD-150D listings follow the same 5V, 12V, and 24V output groupings, with the 24V versions also listed at 151.2W and 6.3A.
