Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

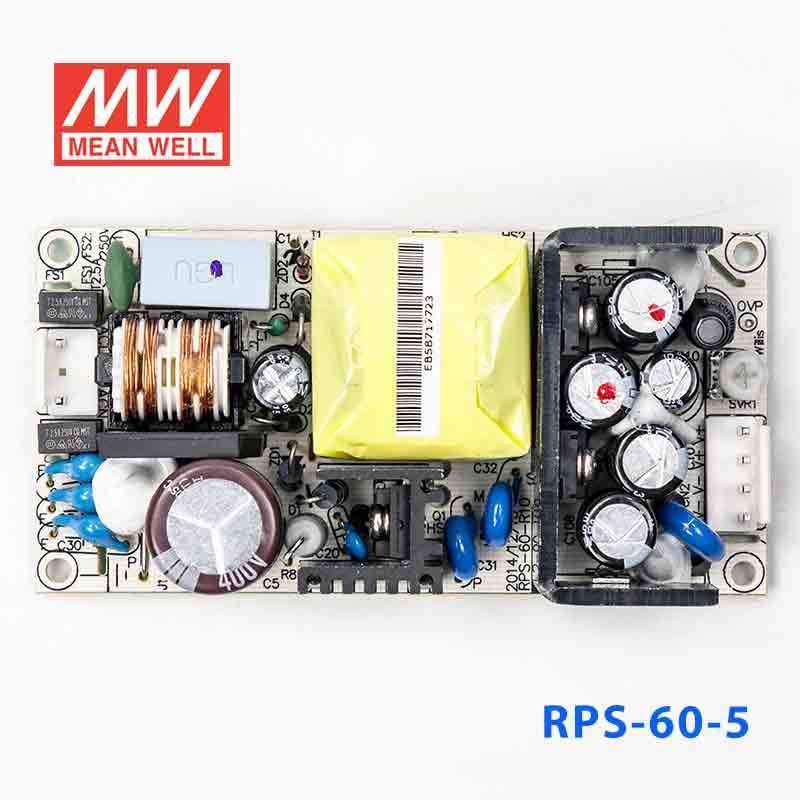

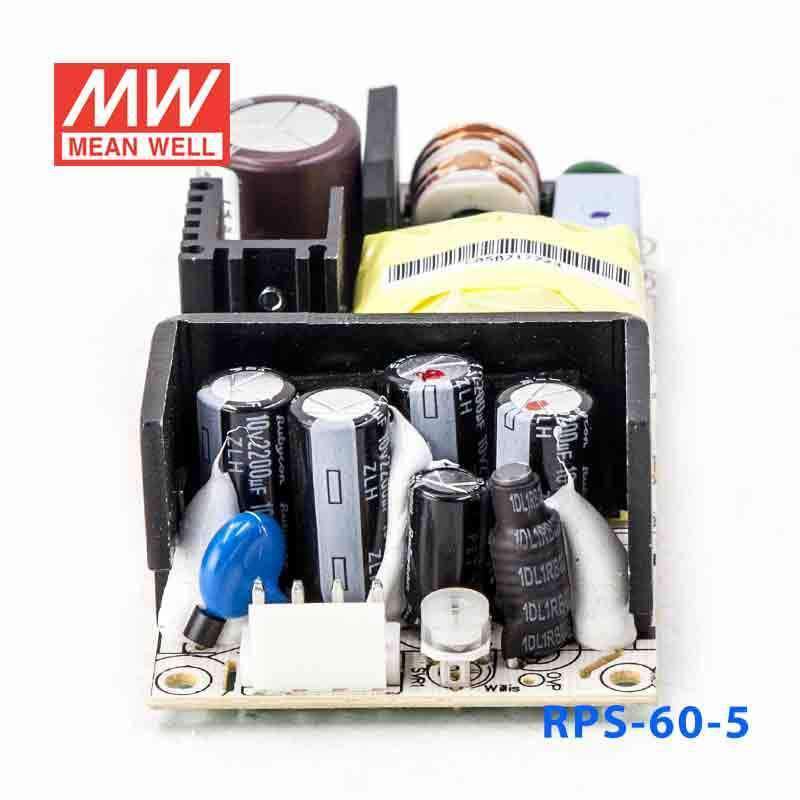

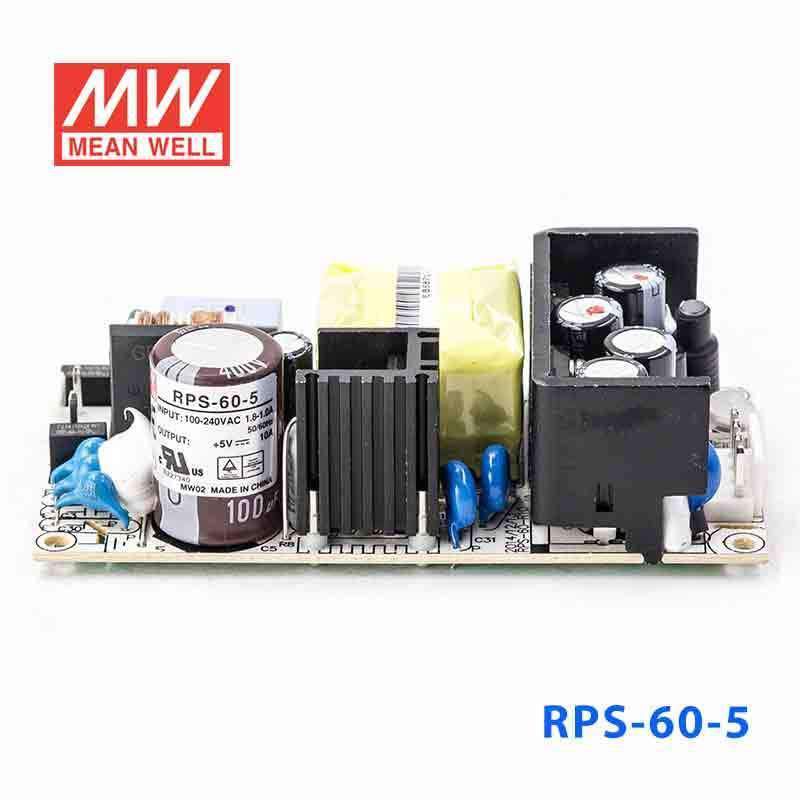

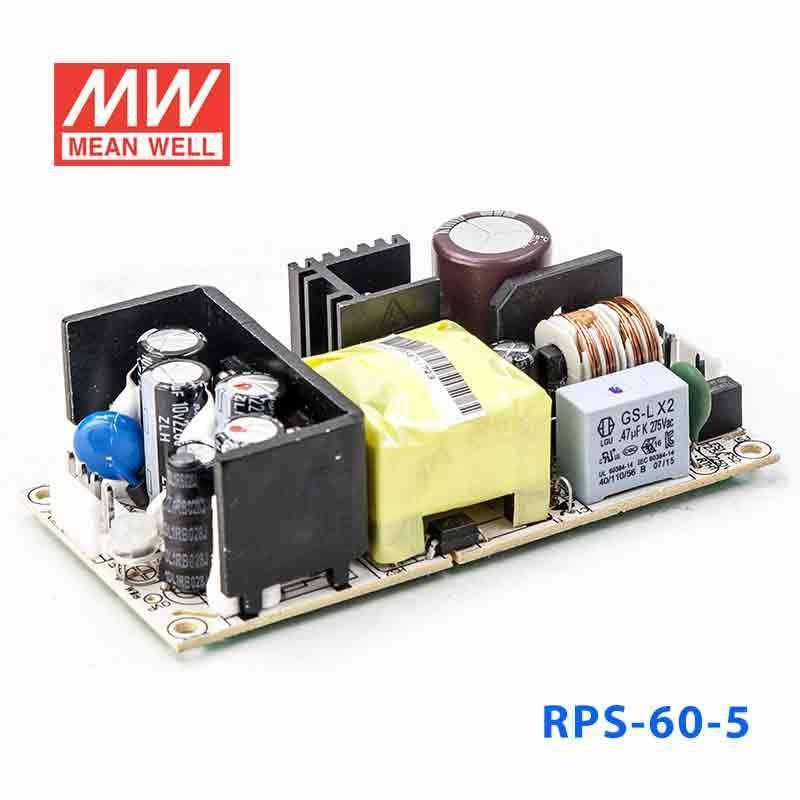

Mean Well RPS-60-5 Green Power Supply W 5V 10A - Medical Power Supply
$17.75 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Medical safety approved (2xMOPP) |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.75W |
| Low leakage current <150uA |
| 110% peak load capability |
| High power density 6.57W/in3 |
| Cooling by free air convection |
| Suitable for medical & IT applications |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start, 30A at 115VAC, 60A at 230VAC |
| DC adjustment range | -5%~+10% rated output voltage |
| Overload protection | 115%~150% hiccup mode, auto-recovery |
| Over voltage protection | CH1: 110%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, 1 minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| Leakage current | Less than 150uA at 264VAC |
| Safety standards | ANSI/AAMI ES60601-1, UL60950-1, TUV EN60601-1, EN60950-1 approved |
| EMC standards | EN55011 / EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, EN61204-3 medical level |
| Connection | 3,4P / 3.96mm pitch, JST P/N: B3P / B4P-VH |
| Dimension (LxWxH) | 101.6x 50.8x 29 mm |
| Setup, rise, hold up time | 500ms, 30ms, 50ms at full load and 230VAC |
| Packing | 0.15kg ; 96pcs / 15.4kg / 0.89CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating50 Watt
-
Output Voltage5 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4 in
-
Width2 in
-
Height1.14 in
-
Weight0.33 lb
