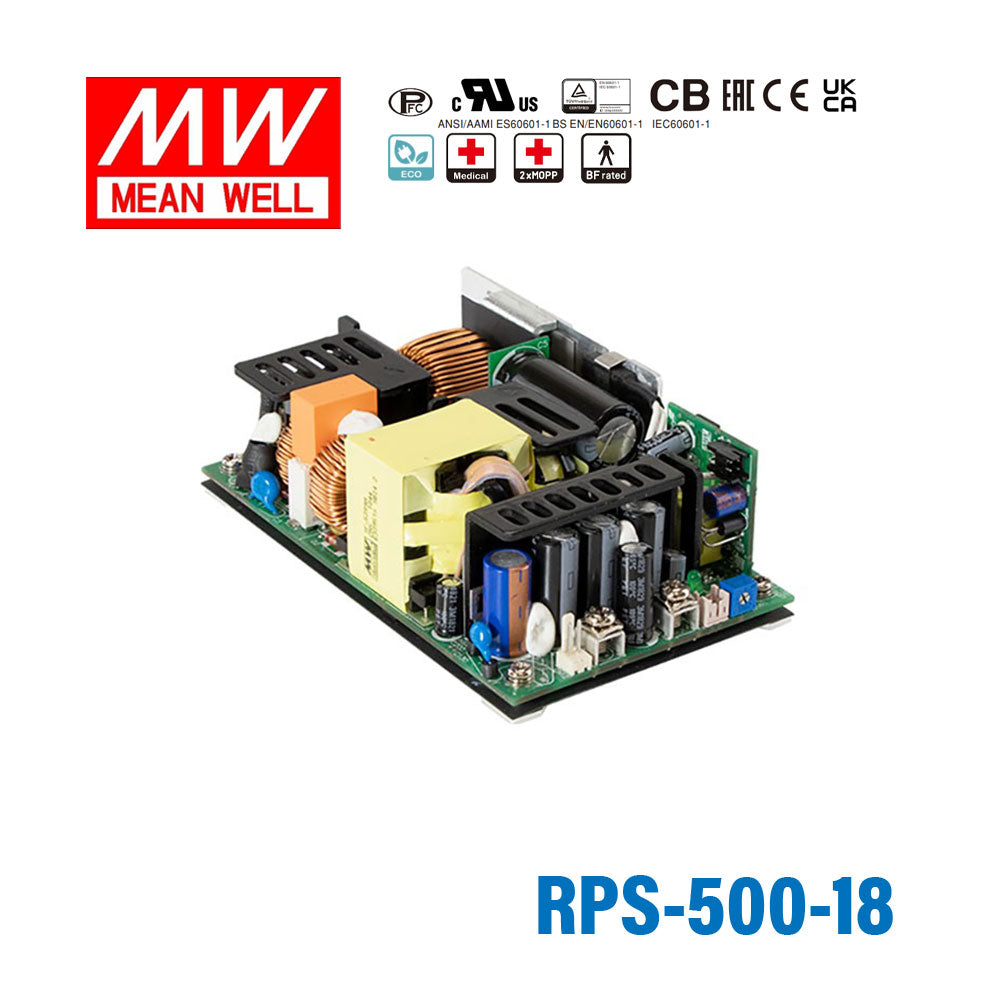

Mean Well RPS-500-18 Green Power Supply W 18V 17.8A - Medical Power...
$113.63 USD
Unit price /
Unavailable
Description
Description
Features
| 5"x3" compact size |
| 320W convection, 500W force air |
| 550W peak power (3 sec.)/td> |
| Medical safety approved (2xMOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1 |
| MEMI for both Class I & Class II configuration |
| -30~+70°C wide range operating temperature |
| No load power consumption under 0.5W by PS-ON control |
| High efficiency up to 94% |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail, and remote sense |
| Operating altitude up to 4000 meters (Note.5) |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 80 ~ 264VAC | 113 ~ 370VDC |
| AC inrush current | COLD START 40A/115VAC 80A/230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over-voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Leakage current | Earth leakage current <220 A/264VAC 50Hz, Touch current < 100 A/264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1000ms, 30ms, 10ms at full load and 230VAC |
| Dimension (LxWxH) | 127 x 76.2 x 41mm | 5 x 3 x 1.61 inch |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating320.4 Watt
-
Output Voltage18 Volt
-
Rated Current17.8 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.61 in
-
Weight1.01 lb
