Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

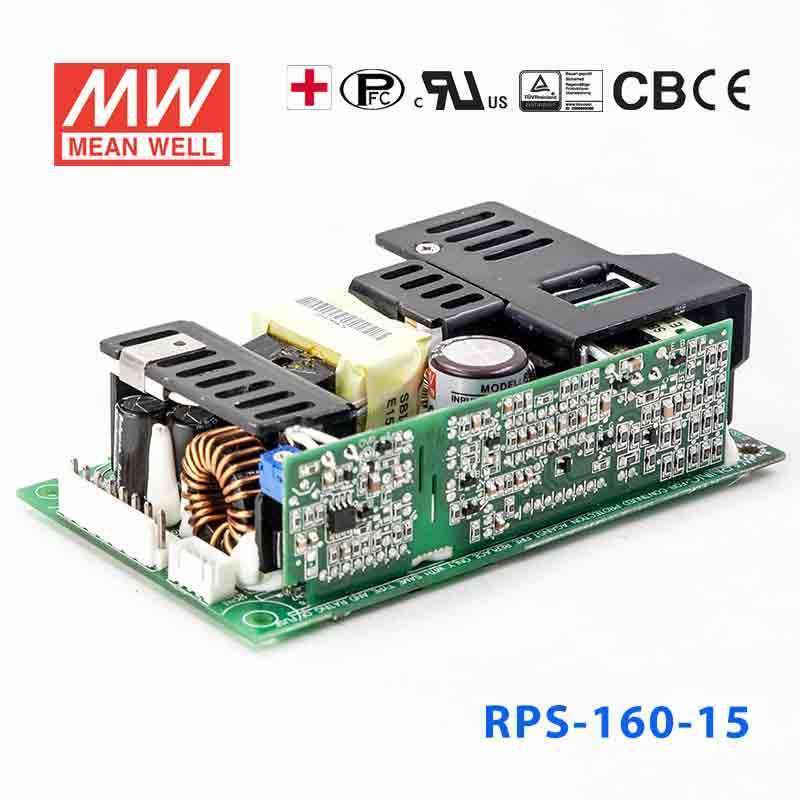

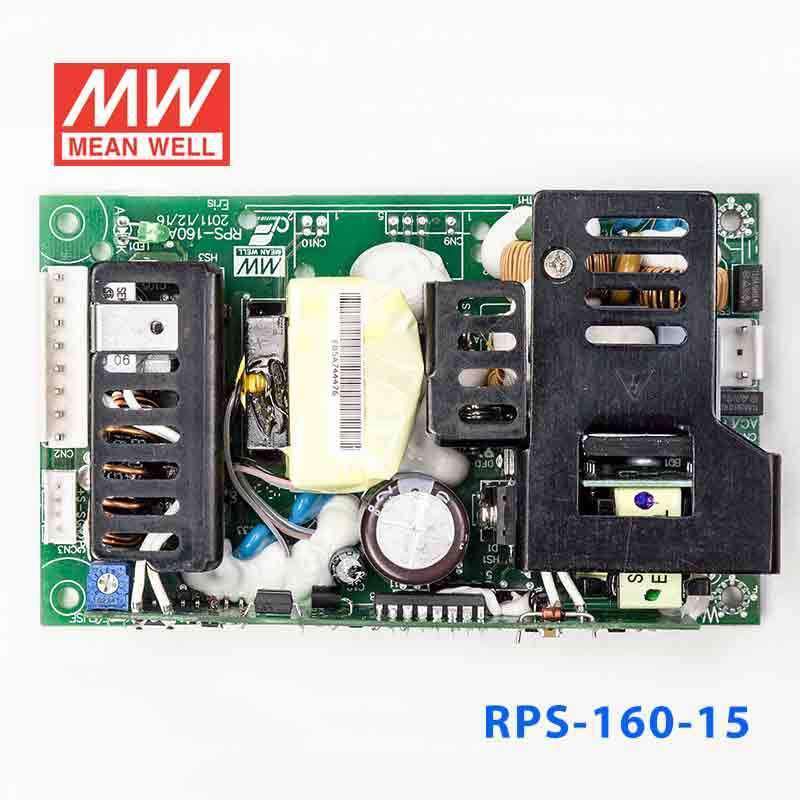

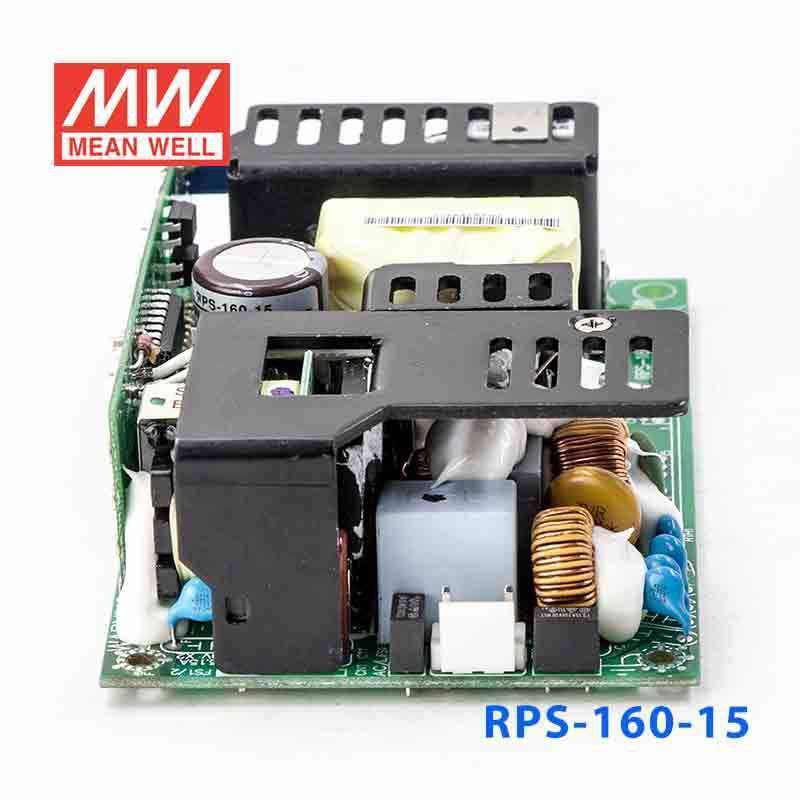

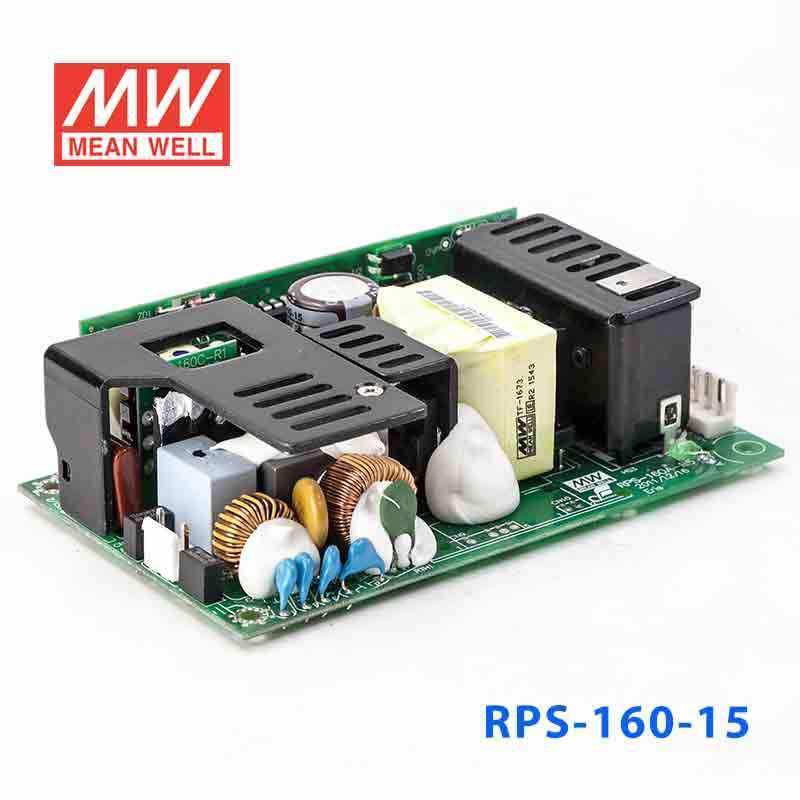

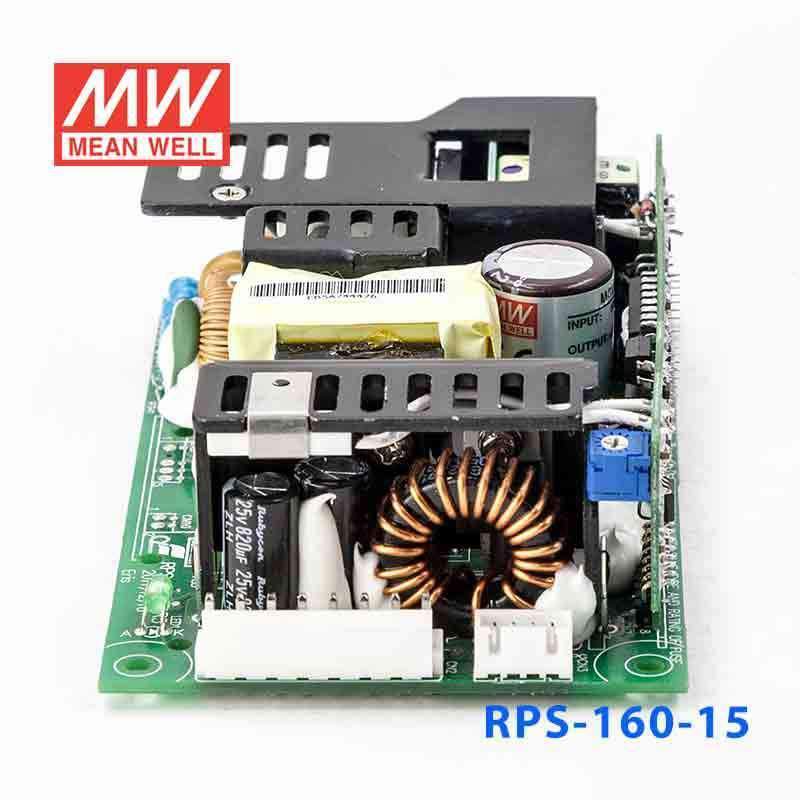

Mean Well RPS-160-15 Green Power Supply W 15V 7.3A - Medical Power ...
$57.86 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Medical safety approved (2xMOPP) |
| Protections: Short circuit / Overload / Over voltage / Over Temp. |
| Built-in active PFC function |
| Low leakage current <200uA |
| Free air convection for 110W and 160W with 20.5 CFM forced air |
| 5""x3"" compact size |
| With power good and fail signal output |
| Built-in remote sense function for 5~15V |
| Standby 5V@0.8A (G model) |
| No load power consumption under 0.75W by PS-ON control (G model) |
| Suitable for medical & IT applications |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start, 35A at 115VAC, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 105%~135% hiccup mode, auto-recovery |
| Over voltage protection | CH1: 115%~135% shut off, re-power on to recovery |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, 1 minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| Leakage current | Less than 200uA at 264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011/EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN60601-1-2, EN61000-6-2 (RPS(G)-160) |
| Connection | 3+8+2(4)P/3.96mm pitch JST B3P / B8P-VH, B2B (B4B)-XH |
| Setup, rise, hold up time | 1800ms, 30ms, 16ms at full load and 230VAC |
| Dimension (LxWxH) | 127x 76.2x 34.6mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating112.5 Watt
-
Output Voltage15 Volt
-
Rated Current7.3 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.36 in
-
Weight0.71 lb
