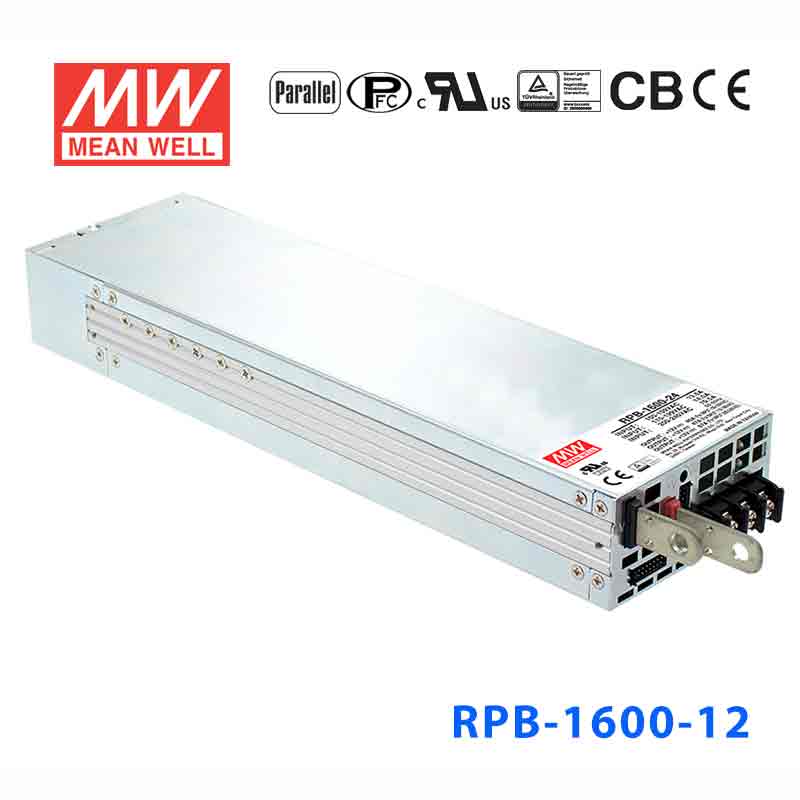

Mean Well RPB-1600-12 Battery Chargers 1600W 14.4V 100A - 3 Stage W/PFC

Name: Mean Well RPB-1600-12 Battery Chargers 1600W 14.4V 100A - 3 Stage W/PFC
Brand: Mean Well
SKU: RPB-1600-12
Price: 440.82 USD
Availability: InStock

suitable for lead-acid and Li-ion batteriesbuilt-in default 3 stage charging curvebuilt-in I²C interfacePMBus protocolactive current sharing up to 4800W

SKU RPB-1600-12

$440.82 USD

Shipping calculated at checkout.

In stock

Overview

RPB-1600-12 is the model of this series: typical efficiency 91%.

RPB-1600 is a 1.6KW single output AC/DC charger with a high power density up to 25W/inch³. Three embedded charging curves, specifically for the lead-acid batteries, are built into each model. Thanks to the communication protocol, PMBus, and CANBus one spare curve can be further accommodated to fit other types of batteries such as the li-ion batteries. Each model is cooled by the thermostatically controlled fan. Moreover, RPB-1600 provides various protection mechanisms, offering the best safety for diversified applications.

Features

Charger for lead-acid batteries (Gel, flooded and AGM) and Li-ion batteries (lithium iron and lithium manganese)
Built-in default 3 stage charging curves and programmable curve
Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
Forced air cooling by built-in DC fan
Output voltage and current programmable
Built-in OR-ing FET
Active current sharing up to 4800W(2+1)
Protections: Battery under voltage / Battery no connection / Short circuit / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RPB-1600-12Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

BOOST CHARGE VOLTAGE(Vboost)(default): 14.4V
FLOAT CHARGE VOLTAGE(Vfloat)(default): 13.8V
CONSTANT CURRENT(CC)(default): 100A
VOLTAGE ADJ. RANGE^{By built-in potentiometer, SVR (Note 5)}: 11.5 ~ 15V
RECOMMENDED BATTERY CAPACITY(AMP HOURS)^Note.3: 330 ~ 1000Ah
LEAKAGE CURRENT FROM BATTERY (Typ.)^Note.8: <45mA

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230VAC at full load
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.)^Note.4: 14A/115VAC 8A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVER VOLTAGE^{Protection type : Shut down o/p voltage, re-power on to recover}: 15.75 ~ 18.75V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

AUXILIARY POWER: 5V @ 0.3A, 12V @ 0.8A
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to Function Manual
OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 5}: Adjustment of output voltage is allowable to 75 ~ 125% of nominal output voltage. Please refer to the Function Manual.
OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 5}: Adjustment of output current is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual.
TEMPERATURE COMPENSATION: -3mV / ℃ / cell / (12V = 6 cells ; 24V = 12 cells ; 48V = 24 cells)
ALARM SIGNAL: Isolated signal output for T-alarm and DC OK

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Conduction Class B, Radiation Class A ; BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, EAC TP TC 020

OTHERS

MTBF: 457.7K hrs min. Telcordia SR-332 (Bellcore) ; 100.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 300*85*41mm (L*W*H)
PACKING: 2.1Kg;6pcs/13.6Kg/1.25CUFT

Technical drawings

RPB-1600-12 Block Diagram — Block Diagram

RPB-1600-12 Derating Curve — Derating Curve

RPB-1600-12 Mechanical Specification — Mechanical Specification

RPB-1600-12 ※AC Input Terminal Pin No. Assignment — ※AC Input Terminal Pin No. Assignment

Typical applications

Large scale DC UPS or emergency back up system
Marine battery charger module
Electric scooter or vehicle charger station
Wastewater treatment system
Electrolysis system

Downloads

Certificates7

Mean Well RCP-RCB-RSP-RPB-NSP-1600-RCB-1600NE-RHP-1U-RHP-8K1U-RHB-8K1U-TUV Certificate PDF Download

Mean Well RCP-RCB-RSP-RPB-1600-RCB-1600NE-RHP-1U-RHP-8K1U-RHB-8K1U-CB(TUV) Certificate PDF Download

Mean Well RSP-RPB-1600-EMC Certificate PDF Download

Mean Well RSP-1600-RPB-1600-CE-dec Certificate PDF Download

Mean Well RSP-1600-RPB-1600-UK-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well RPB-1600-12 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What battery types is the Mean Well RPB-1600-12 designed to charge?

The RPB-1600-12 is designed for lead-acid batteries including gel, flooded, and AGM types, as well as Li-ion batteries including lithium iron and lithium manganese chemistries. It includes built-in default 3-stage charging curves and also supports a programmable charging curve for applications that need more customization.

What are the main output specifications of the RPB-1600-12?

This model is rated at 1600W with a 14.4V boost charge voltage and 100A rated current. Those specifications make it a high-power charger for demanding battery charging applications where substantial current capacity is needed.

Is the RPB-1600-12 suitable for industrial or heavy-duty battery charging applications?

Yes, the RPB-1600-12 is aimed at higher-demand charging environments thanks to its 1600W power rating, active PFC, and programmable output voltage and current. Features such as built-in OR-ing FET and active current sharing also make it relevant for larger or more advanced power systems.

Can the charging behavior of the RPB-1600-12 be adjusted for different battery requirements?

Yes, this model includes built-in default 3-stage charging curves and also supports a programmable charging curve. In addition, the output voltage and current are programmable, which gives more flexibility for battery charging applications that need controlled charging parameters.

Does the RPB-1600-12 support monitoring or system communication features?

Yes, the RPB-1600-12 includes a built-in I2C interface and supports PMBus protocol. An optional CANBus protocol is also available, which can be useful in systems that require charger communication and control integration.

What operating temperatures can the Mean Well RPB-1600-12 handle?

The specified operating temperature range for this model is -30°C to +70°C. That wide range makes it better suited than many standard chargers for use in challenging ambient conditions, provided the overall system is designed for the same environment.

Can multiple RPB-1600-12 units be used in higher-power systems?

Yes, the RPB-1600-12 supports active current sharing up to 4800W in a 2+1 configuration. This makes it a stronger fit for applications that may need scalable charging capacity beyond a single 1600W unit.

What warranty is offered for the RPB-1600-12?

The RPB-1600-12 includes a 5-year warranty. That warranty period is consistent with its positioning as an industrial-grade battery charger for long-term use.
