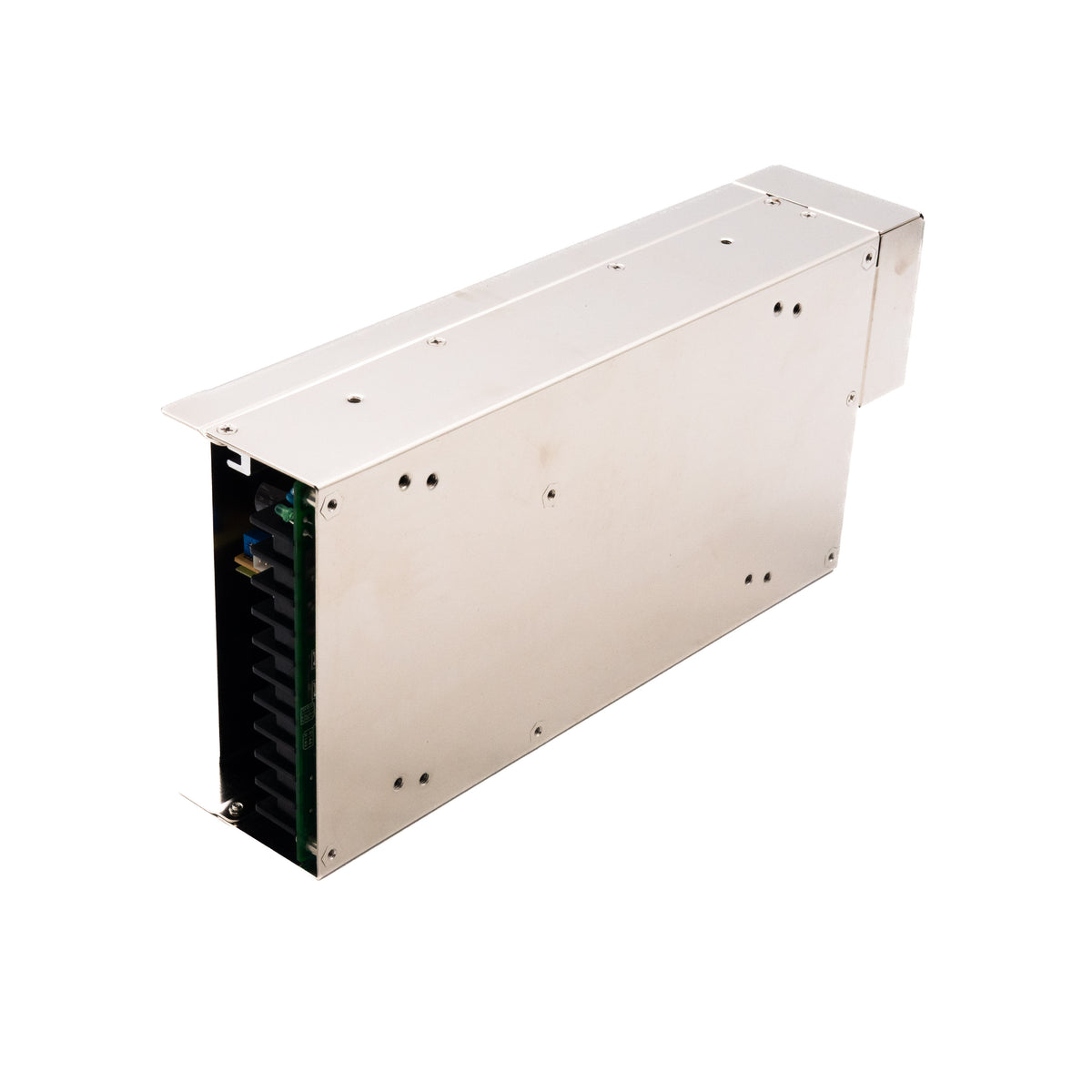

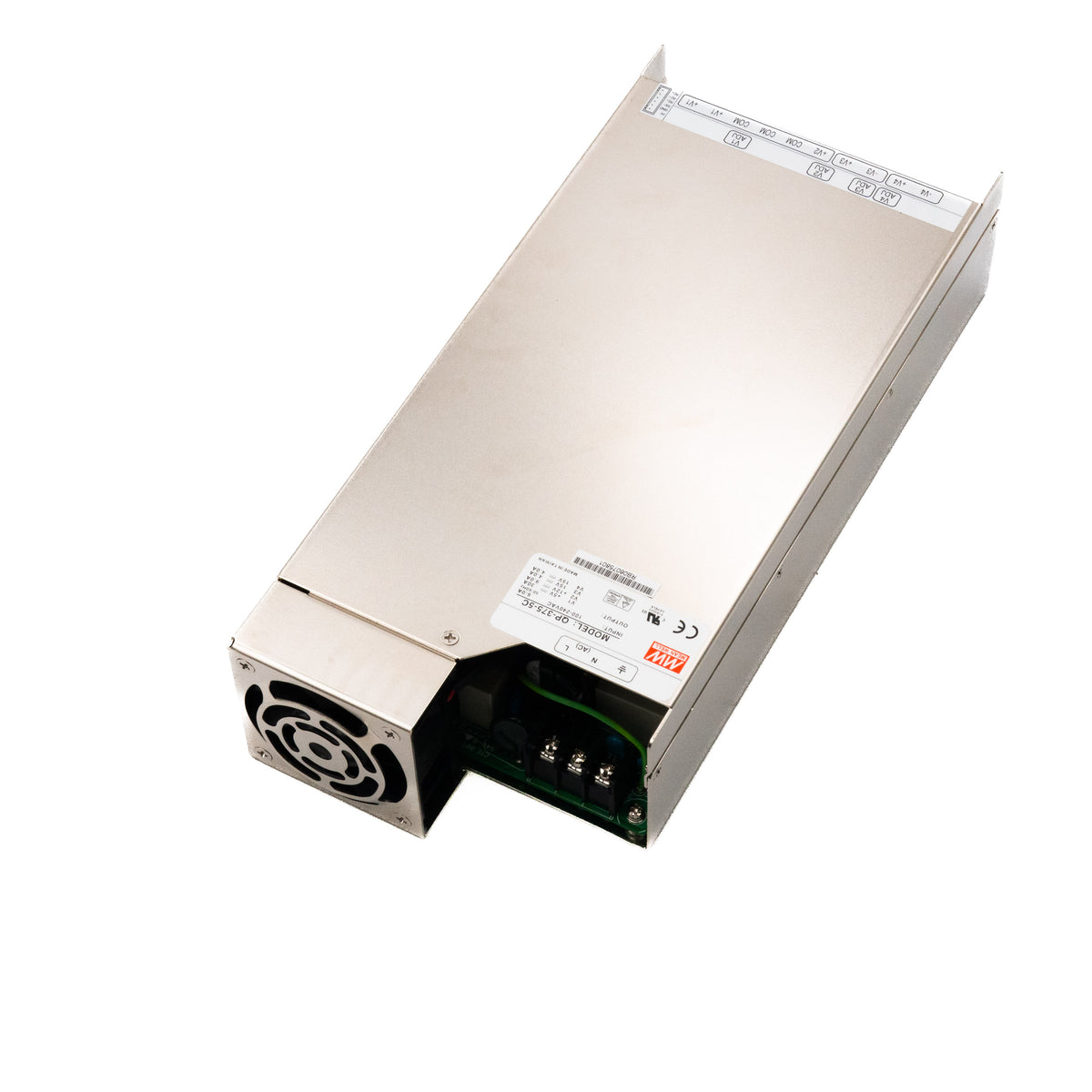

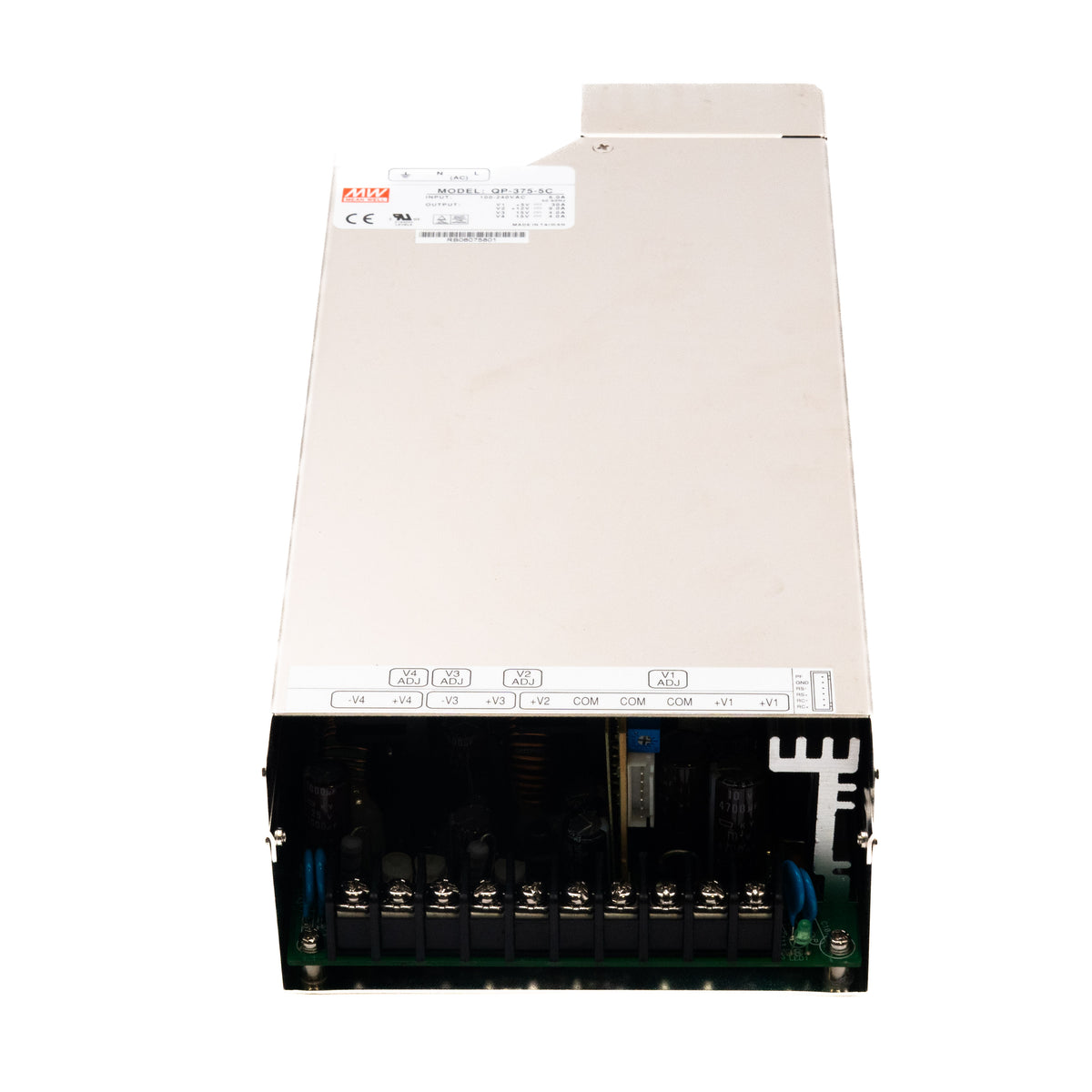

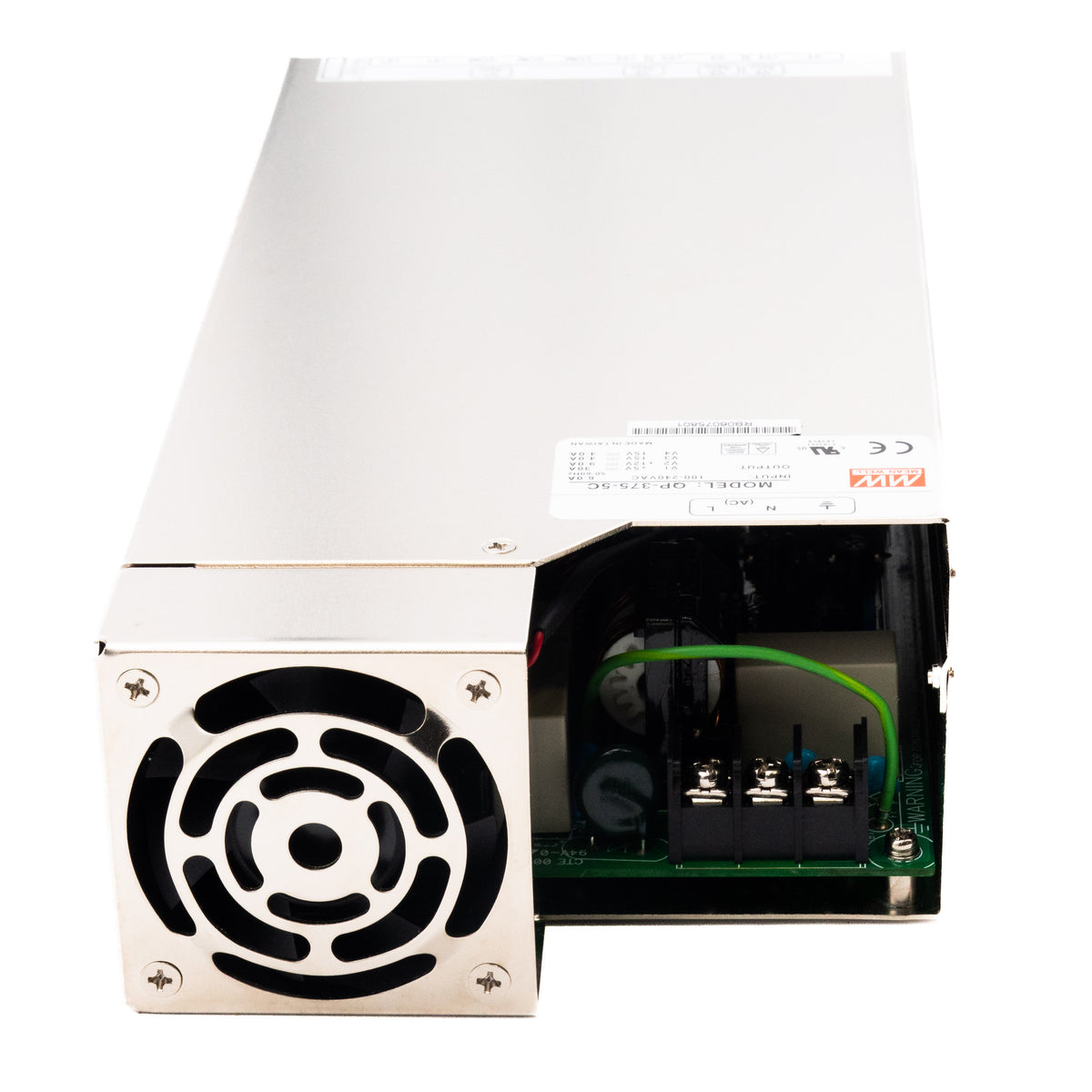

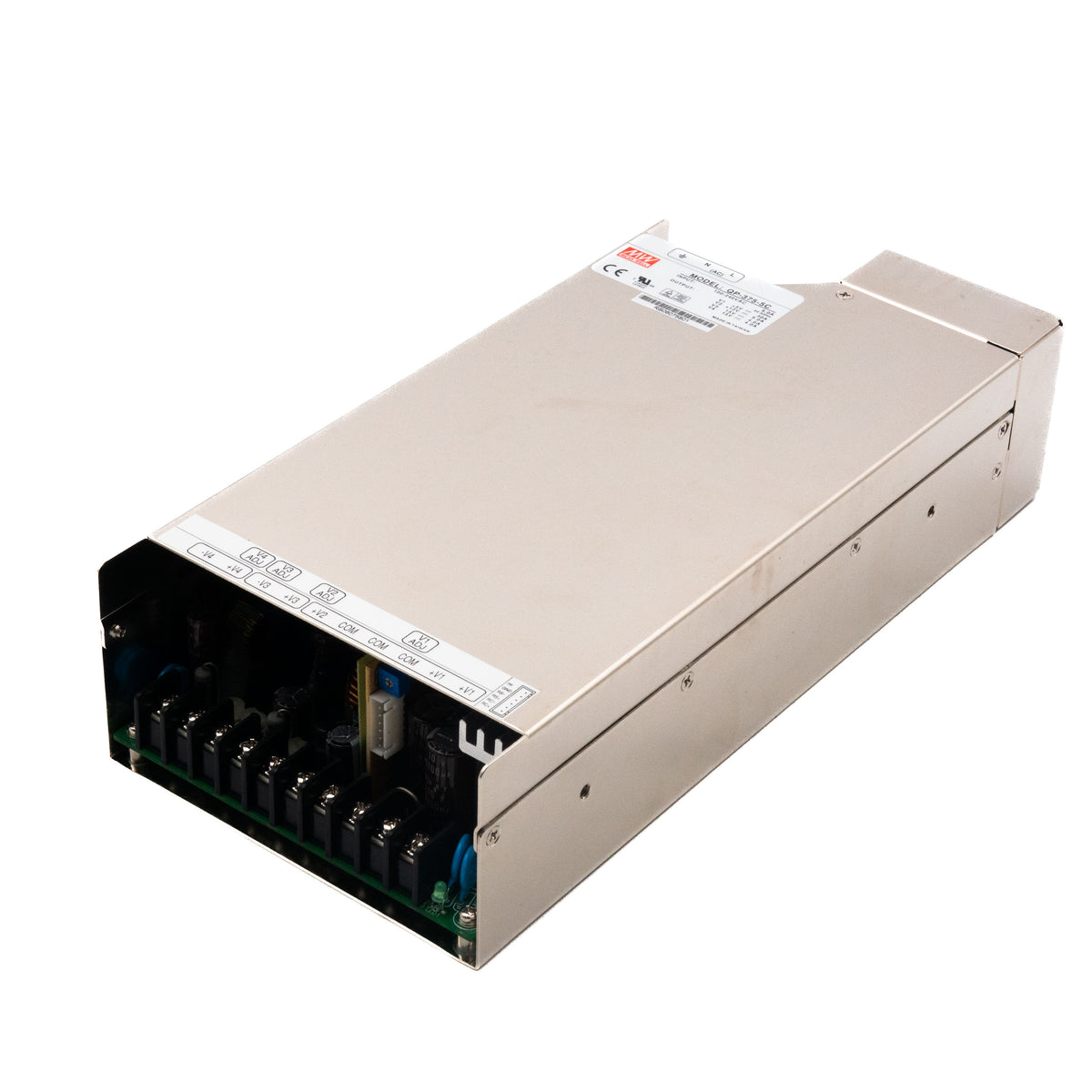

Mean Well QP-375-5C PFC Switching Power Supply
$126.43 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function, PF>0.95 |
| Protection: Short circuit / Over current / Over voltage / Over Temperature |
| Forced air cooling by built-in DC fan |
| CH3, 4 are isolated from the other outputs and the polarity can be reversed |
| No minimum load requirement for CH2, 3, 4 |
| All output can be adjustable from -5~+10% |
| With power good and fail signal output(Optional) |
| Built-in remote ON-OFF control |
| Fixed switching frequency at 100KHz |
| 3 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 0.8% |
| Overload protection Range | 105 ~ 135% rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |
| Working temperature | -10 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| Dimension (LxWxH) (mm) | 280*127*63.5mm (L*W*H) |
| Packing | 2.4Kg; 6pcs/14.8Kg/0.89CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesQP Series
-
Power Rating378 Watt
-
Output Voltage5 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,UL
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length11.02 in
-
Width5 in
-
Height2.5 in
-
Weight5.29 lb
File Downloads
File Downloads
::specification::
