Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

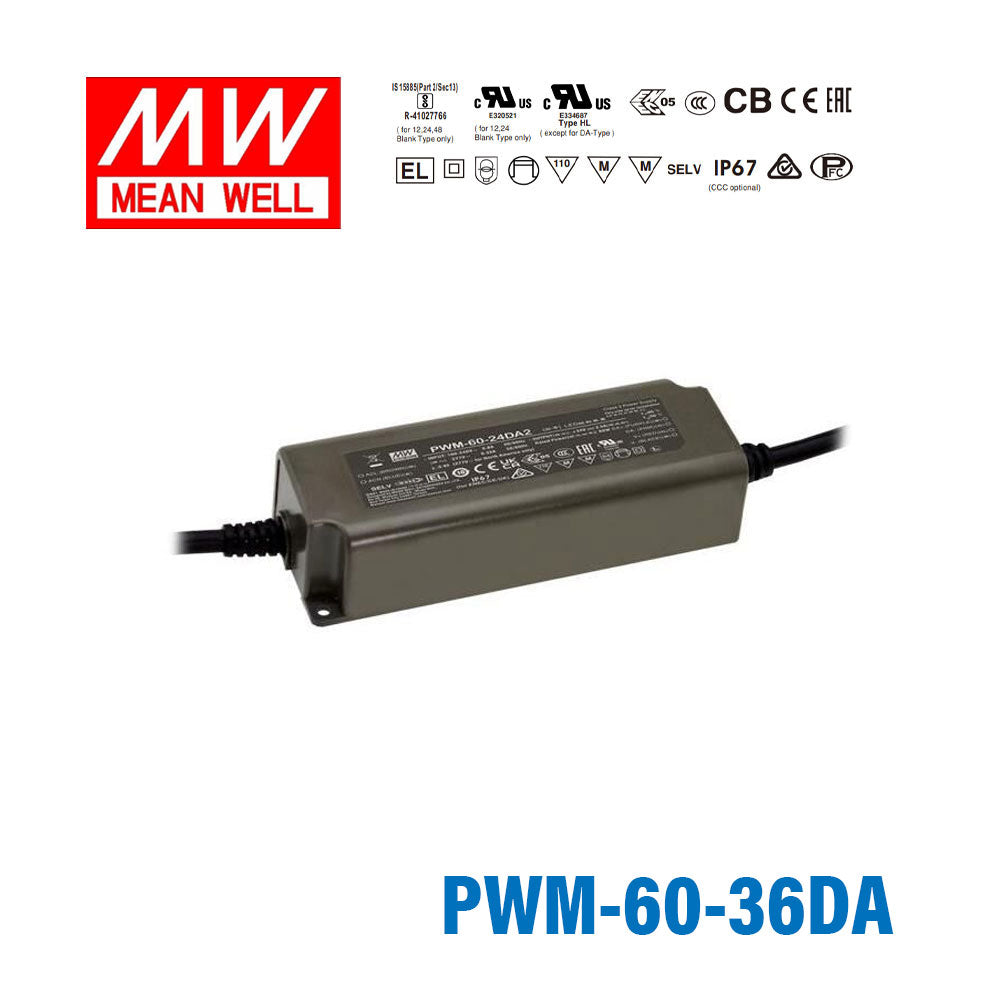

Mean Well PWM-60-36DA Power Supply 60W 36V - DALI 1.67A
$43.82 USD
$134.25
Unit price /
Unavailable
Description
Description
The PWM-60 is a 60W Mean Well AC-DC constant voltage LED driver (input: 90~305VAC, output: 36V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 36V
- ✓ Rated output current: 1.67A
- ✓ DALI dimming support
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
