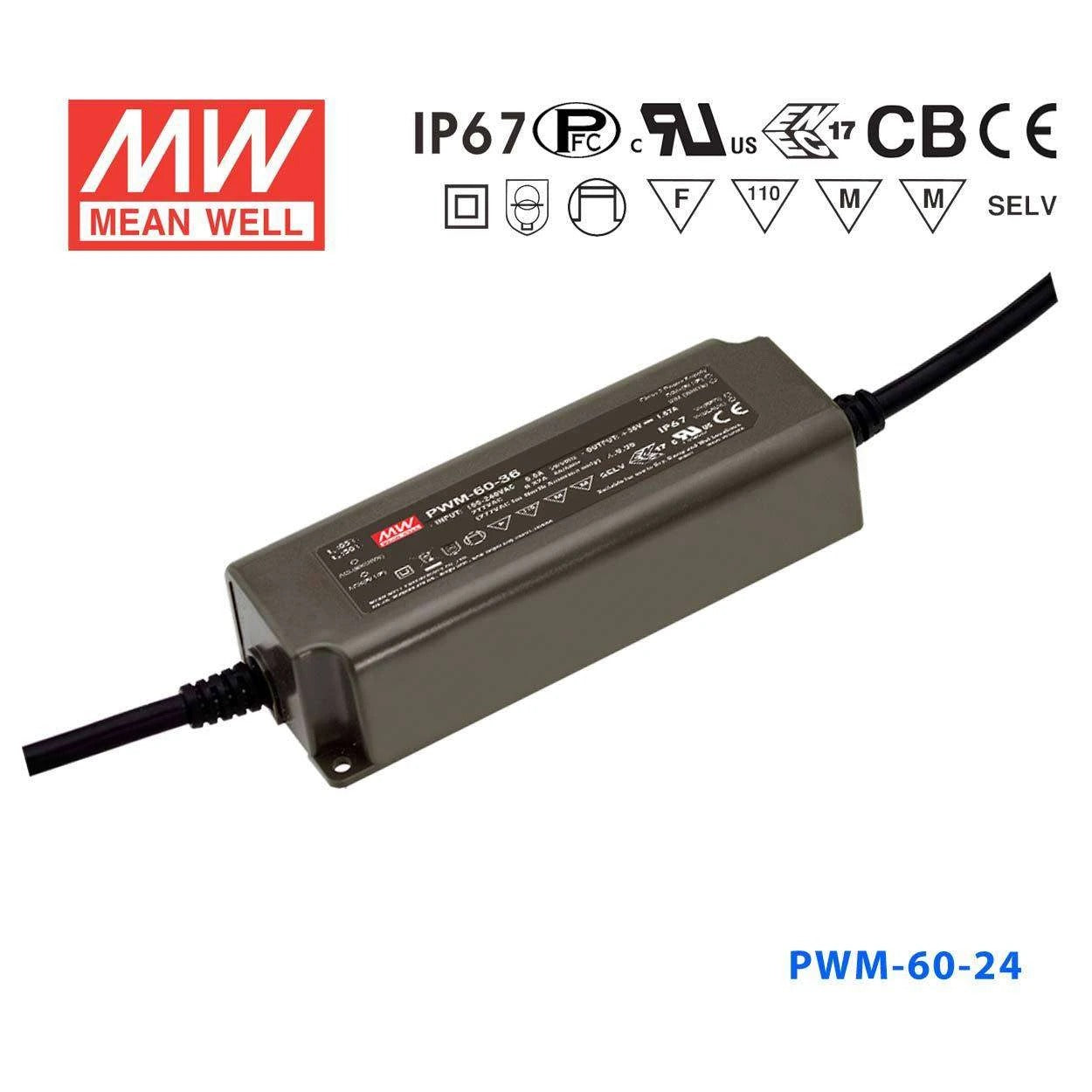

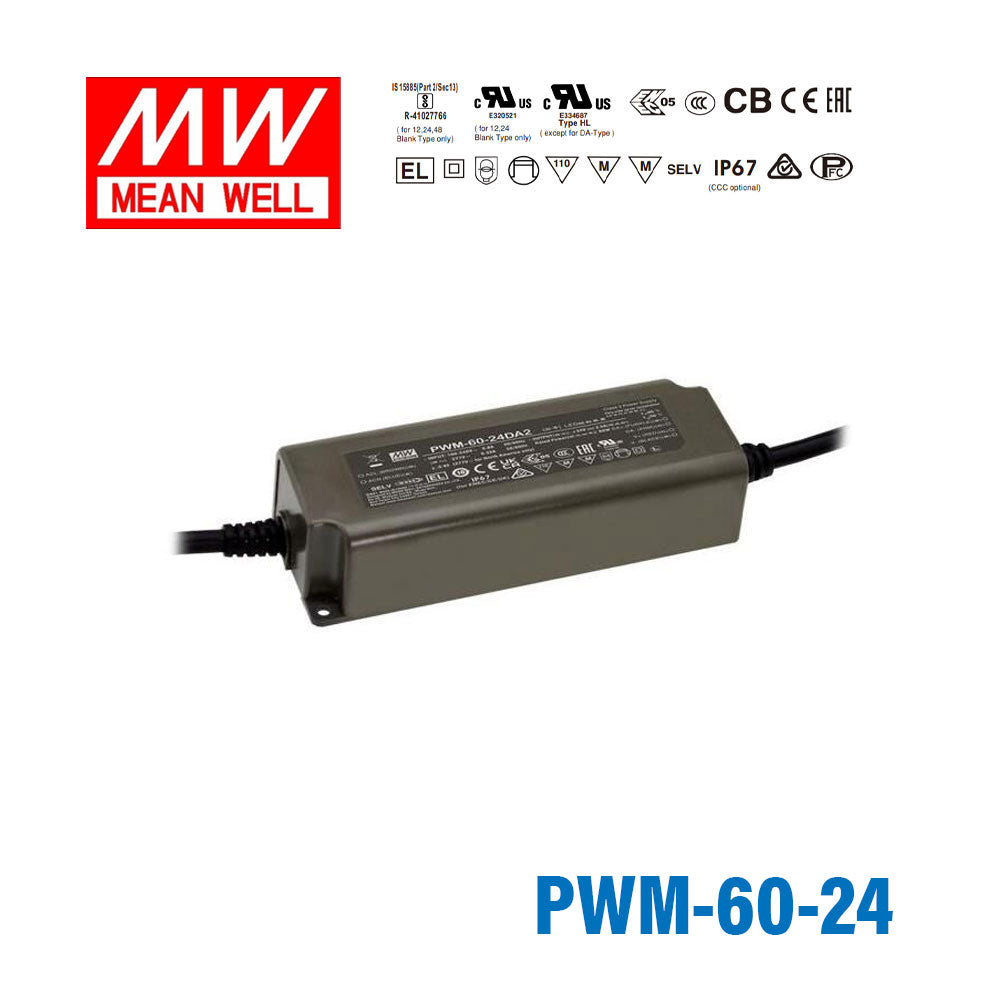

Mean Well PWM-60-24 Power Supply 60W 24V - Dimmable

$34.26 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input (up to 305VAC) / Full range
Constant voltage PWM style output
Built-in active PFC function
High efficiency up to 91%
No load power consumption <0.5W
Protections:
Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Fully isolated plastic case
Fully encapsulated with IP67 level
Class 2 power unit (except for PWM-90-12 & PWM-120)
Isolation class II, no F.G.
Built-in 2 in 1 dimming function (0~10VDC or PWM signal)
Suitable for dry, damp, and wet location
Suitable for LED strip lighting
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
Overload protection 108%~120% hiccup mode, auto-recovery
Over voltage protection 113%~142% rated output voltage
Over temp. protection Shut down output voltage, re-power on to recover
Setup, rise, hold up time 500ms, 80ms, 16ms at full load and 230VAC
Setup, rise, hold up time 1000ms, 80ms, 16ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved (PWM-40/60/120 pending);
Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
(PWM-40/60/120 pending)
Connection Input UL rated, SJTW 18AWGx3C (30cm)
Connection Output UL2464 18AWG x2C (30cm)+
22AWG x2C (30cm)
Dimension (LxWxH) (mm) 150x 53x 35

Specifications

  • Brand
    Mean Well
  • Series
    PWM Series
  • Power Rating
    60 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    2.5 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    5.91 in
  • Width
    2.09 in
  • Height
    1.38 in
  • Weight
    1.08 lb
