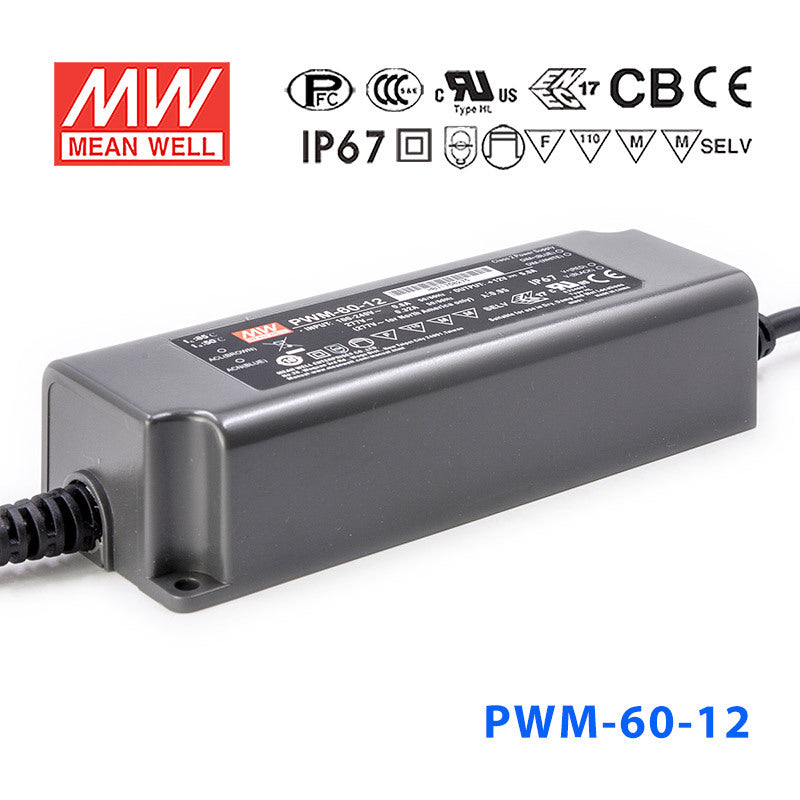

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

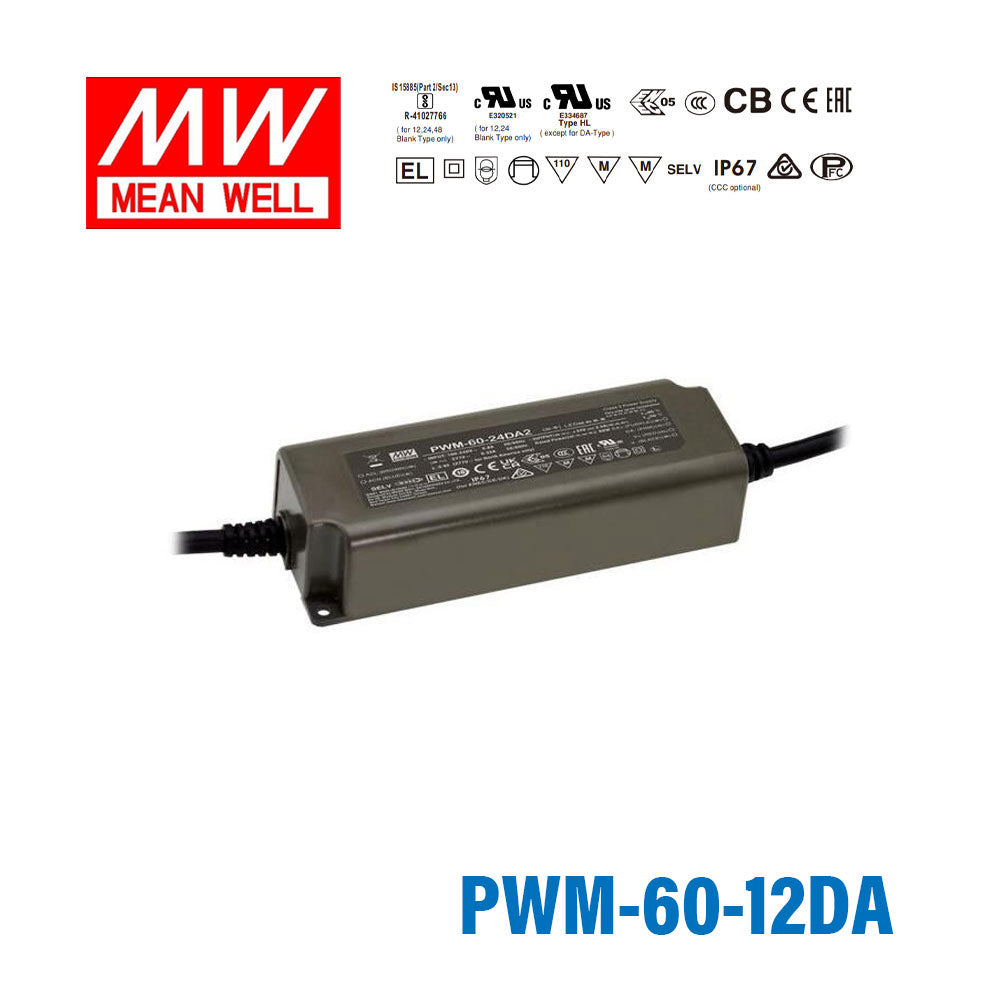

Mean Well PWM-60-12DA Power Supply 60W 12V - DALI 5A

Name: Mean Well PWM-60-12DA Power Supply 60W 12V - DALI 5A
Brand: Mean Well
SKU: PWM-60-12DA
Price: 43.4 USD
Availability: InStock

PWM style outputfully isolated plastic caseIP67Class II design without FGDALI

SKU PWM-60-12DA

$43.40 USD

Shipping calculated at checkout.

Select model — 7 in this family

PWM-60-12DA

PWM-40-12 Dimmable Low stock$31.55 USD

PWM-60-12DA DALI In stock$43.40 USD

PWM-60-12DA2 DALI2 Low stock$43.40 USD

PWM-60-12 Dimmable In stock$34.26 USD

PWM-90-12DA DALI Backorder$56.47 USD

PWM-90-12DA2 DALI2 Backorder$56.47 USD

PWM-90-12 Dimmable Low stock$42.44 USD

Product variants

In stock

Overview

PWM-60-12DA is the 12V output model of this series: rated current 5A, rated power 60W, typical efficiency 86%.

PWM-60 series is a 60W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips. PWM-60 operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-60 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Features

Constant Voltage PWM style output
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II/2 design
No load power consumption <0.5W
Fully encapsulated with IP67 level
Function: 3 in 1 dimming(dim-to-off);DALI-2
Minimum dimming level 0.2% for DALI-2 type
Typical lifetime>50000 hours and 5 years warranty

Specifications

PWM-60-12DASpecifications from the official datasheet (2026-07-08 edition)

OUTPUT

DC VOLTAGE: 12V
RATED CURRENT: 5A
RATED POWER: 60W
DIMMING RANGE: 0 ~ 100%
PWM FREQUENCY (Typ.): 1.47kHz for Blank-Type, 2.5kHz for DA2-Type
SETUP, RISE TIME^{Note.2 Note.9}: 500ms, 80ms/ 115AC or 230VAC
HOLD UP TIME (Typ.): 16ms/115VAC or 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 86%
AC CURRENT (Typ.): 0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC
INRUSH CURRENT (Typ.): COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W

PROTECTION

OVERLOAD: 108 ~ 130% rated output power Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Shut down o/p voltage, re-power on to recover(except for DA2-type) Hiccup mode,recovers automatically after fauit condition is removed (only for DA2-type)
OVER VOLTAGE: 15 ~ 17V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: UL8750( type ”HL” ), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67,BIS IS 15885(Part2/Sec13)(for 12,24,48 Blank and 12,24-DA2 Type), EAC TP TC 004, GB/T19510.1,GB/T19510.213 approved; Design refer to BS EN/EN60335-1; According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL) (AC Input: 100-240Vac)(for DA2-Type only)
DALI STANDARDS: IEC62386-101, 102, 207,251 for DA2-Type only,Device type 6(DT6)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 2626.6K hrs min. Telcordia SR-332 (Bellcore) ; 227.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 150*53*35mm (L*W*H)
PACKING: 0.49Kg;30pcs/15.7Kg/1.0CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA type.

Technical drawings

PWM-60-12DA DIMMING OPERATION — DIMMING OPERATION

PWM-60-12DA ◎ Applying additive resistance — ◎ Applying additive resistance

PWM-60-12DA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

PWM-60-12DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

PWM-60-12DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

PWM-60-12DA Block Diagram — Block Diagram

PWM-60-12DA Mechanical Specification — Mechanical Specification

PWM-60-12DA Recommend Mounting Direction — Recommend Mounting Direction

PWM-60-12DA ◎Connection for Blank-type — ◎Connection for Blank-type

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Industrial lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

PWM-60-12DA datasheetPWM-60-spec.pdf · 2026-07-08 edition PDF Download

Certificates5

UL Certificate (PWM-60)(EN) PDF Download

CB Certificate (PWM-60)(EN) PDF Download

EMC Certificate (PWM-60)(EN) PDF Download

ENEC Certificate (PWM-60)(EN) PDF Download

ErP Certificate (PWM-60)(EN) PDF Download

Test reports1

Test Report(PWM-60-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the PWM-60-12DA be installed in outdoor or wet-area lighting applications?

Yes. The PWM-60-12DA carries an IP67 rating, protecting it from dust and temporary water immersion. Its -40°C to +85°C operating temperature range makes it suitable for outdoor enclosures, exterior signage, and covered wet-location fixtures.

How much 12V LED strip can the PWM-60-12DA drive?

The PWM-60-12DA provides up to 60W at 12V and 5A. To estimate maximum run length, divide 60W by your strip's rated watts per meter — for example, an 8W/m strip supports approximately 7.5 meters. Always verify your strip's actual rated power per meter.

Is the PWM-60-12DA suitable for DALI-controlled 12V LED strip in a commercial lighting system?

Yes. The PWM-60-12DA implements DALI protocol, allowing it to be addressed and dimmed from a DALI lighting control system. This makes it appropriate for commercial office, retail, or hospitality 12V LED installations where centralized DALI control is specified.

Can the PWM-60-12DA power 12V LED strips in an architectural facade or exterior signage application?

Yes. The IP67-rated housing and outdoor-rated operating temperature allow the PWM-60-12DA to be mounted in exterior signage enclosures or behind facade cladding for dimmable 12V LED strip lighting. DALI control allows the lighting level to be adjusted from a building management system.

Is the PWM-60-12DA appropriate for use in museum or gallery accent lighting requiring precise dimming?

Yes. DALI-controlled LED drivers like the PWM-60-12DA allow individual or group addressing and smooth dimming curves, which are valuable in museum and gallery settings where precise, flicker-free light level control is needed for exhibit accent lighting.

What is the difference between the PWM-60-12DA and the PWM-60-12DA2?

The PWM-60-12DA supports DALI (first generation), while the PWM-60-12DA2 supports DALI-2, which adds enhanced device discovery, query commands, and backward compatibility improvements. Both models accept a universal input voltage range of 90 ~ 305VAC. Both output 60W at 12V and 5A.
