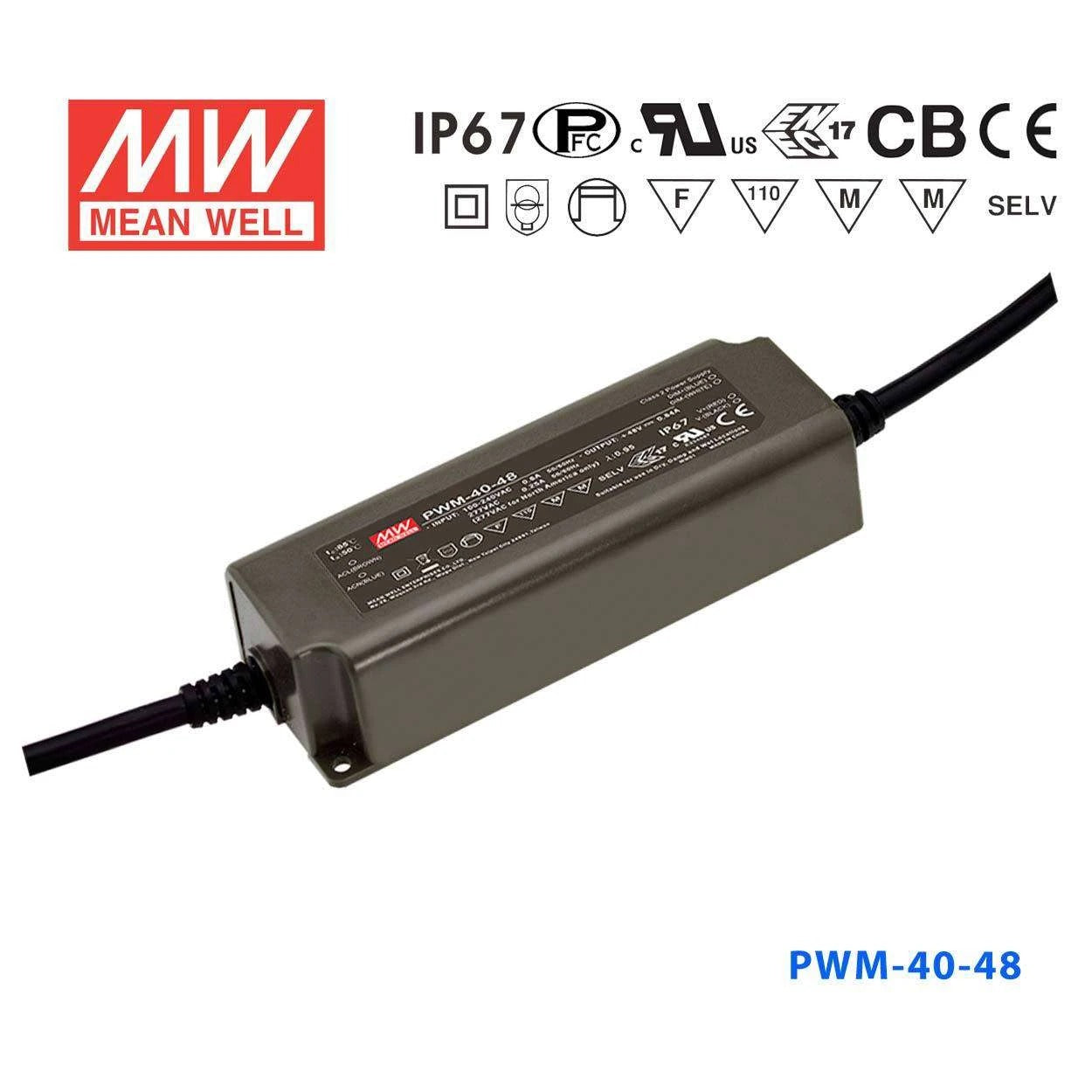

Mean Well PWM-40-48 Power Supply 40W 48V - Dimmable 840mA
$33.50 USD
Unit price /
Unavailable
Description
Description
The PWM-40 is a 40W Mean Well AC-DC constant voltage LED driver (input: 90~305VAC, output: 48V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 48V
- ✓ Rated output current: 0.84A
- ✓ 3-in-1 dimming (0–10V / PWM / resistance)
- ✓ Class II design — no earth connection required
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating40 Watt
-
Output Voltage48 Volt
-
Rated Current0.84 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.91 in
-
Width2.09 in
-
Height1.38 in
-
Weight1.08 lb
